Oracle Lighting · 5885-006

Oracle Lighting 5885-006

Part #: 5885-006
UPC: 810030395591

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Oracle Lighting Series: Bumper Flush Mount LED Light Bars

pro mess

Log in to order

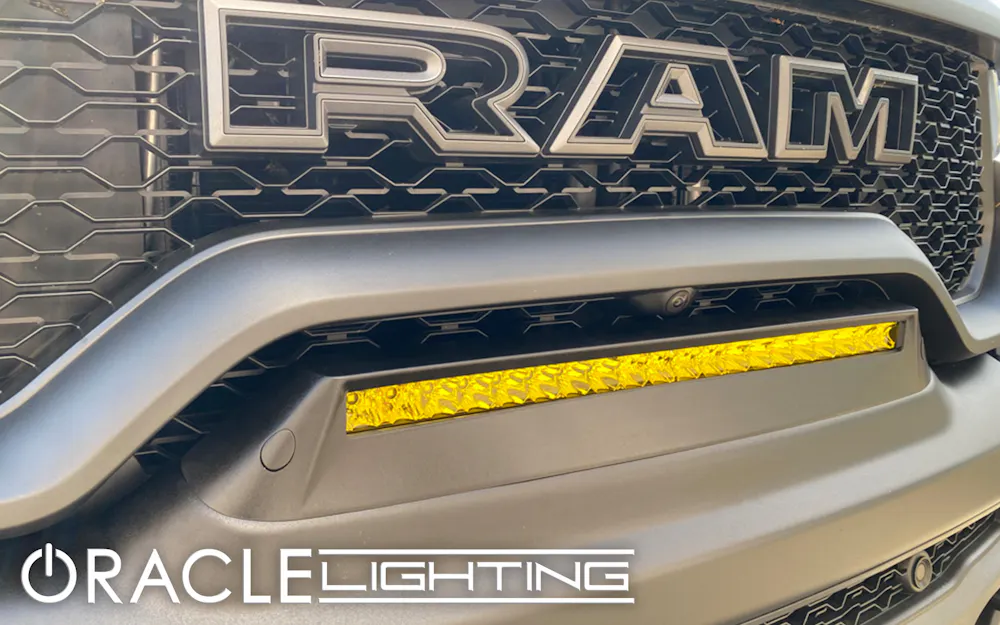

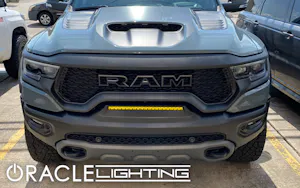

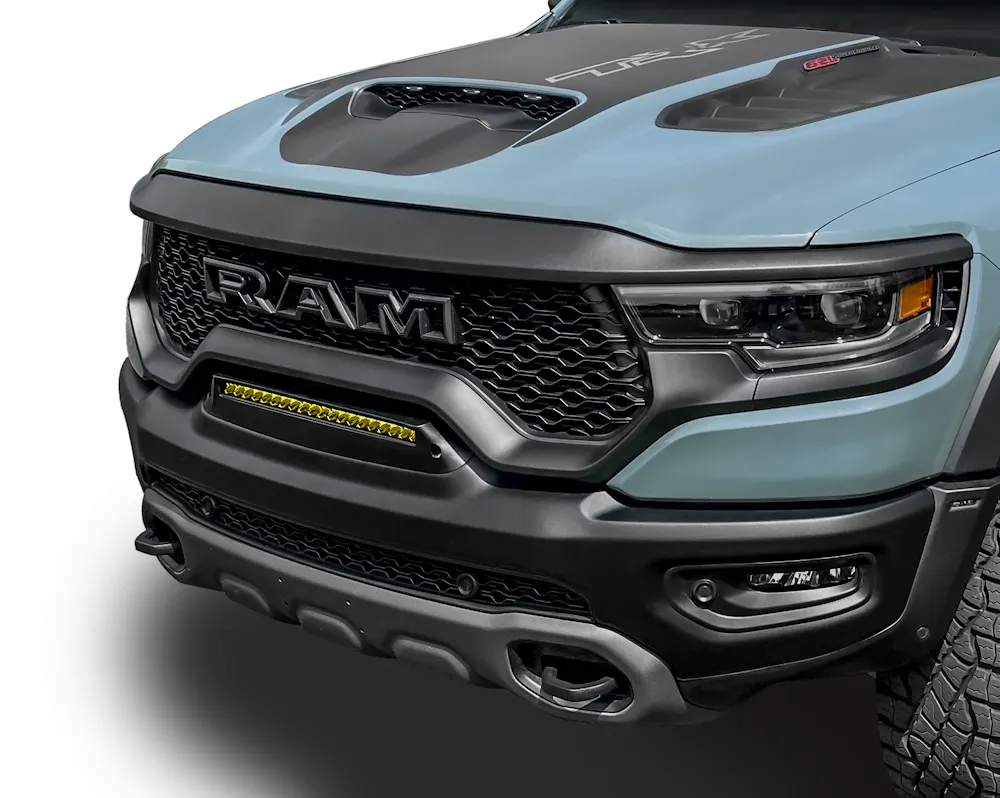

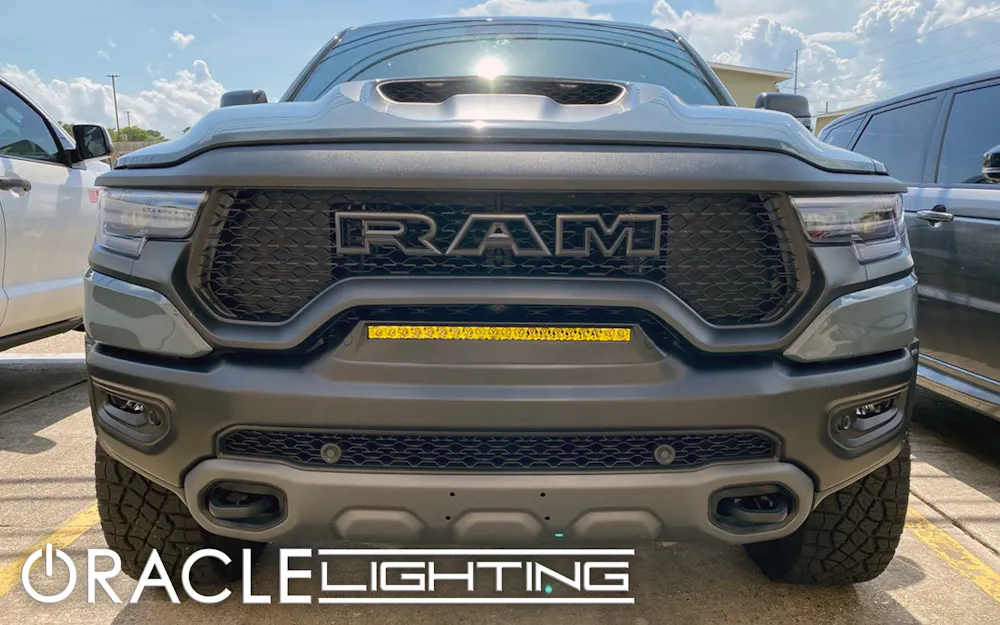

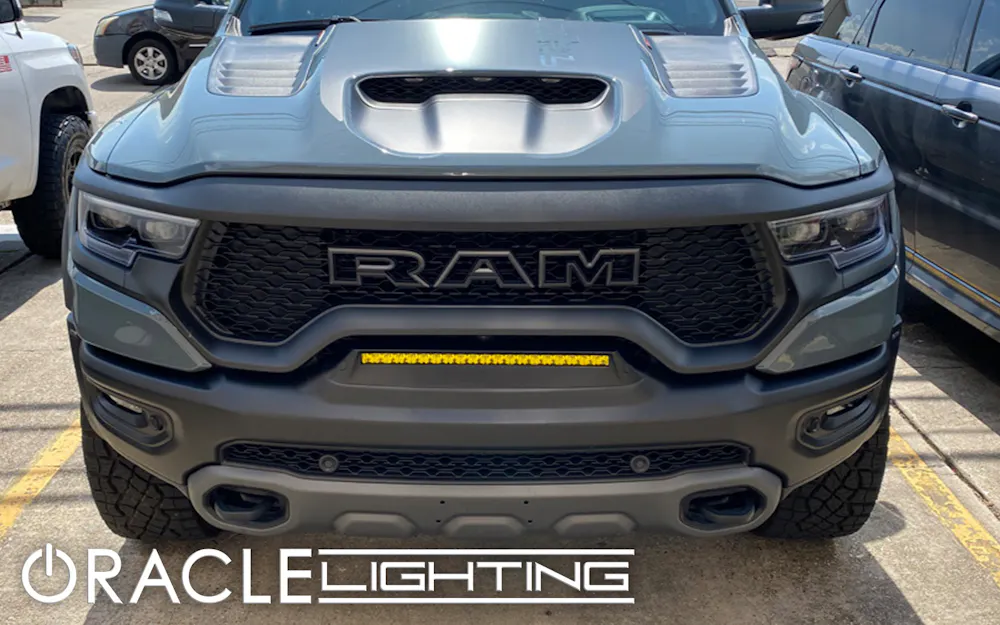

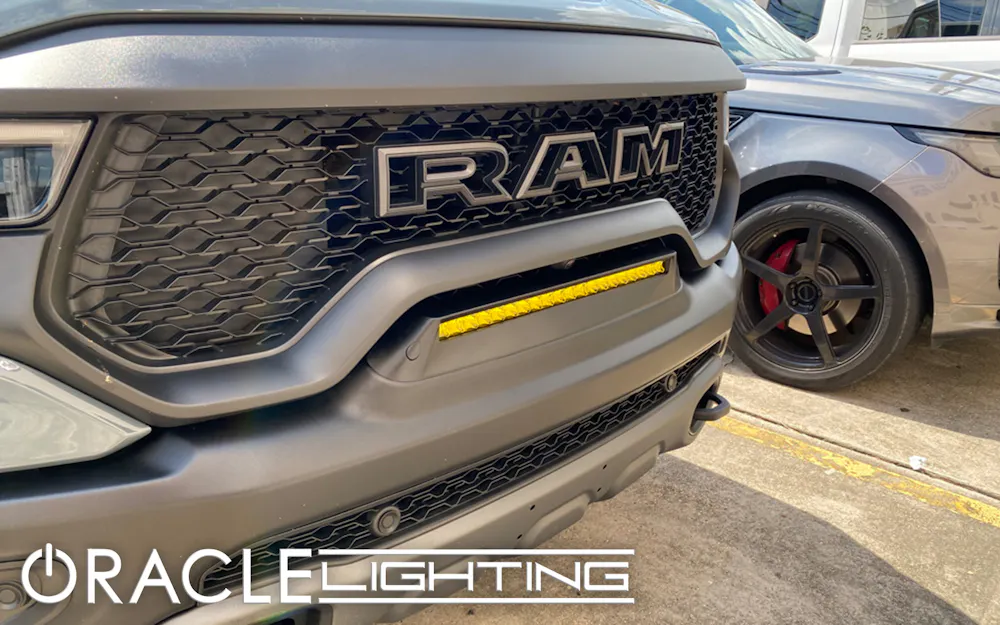

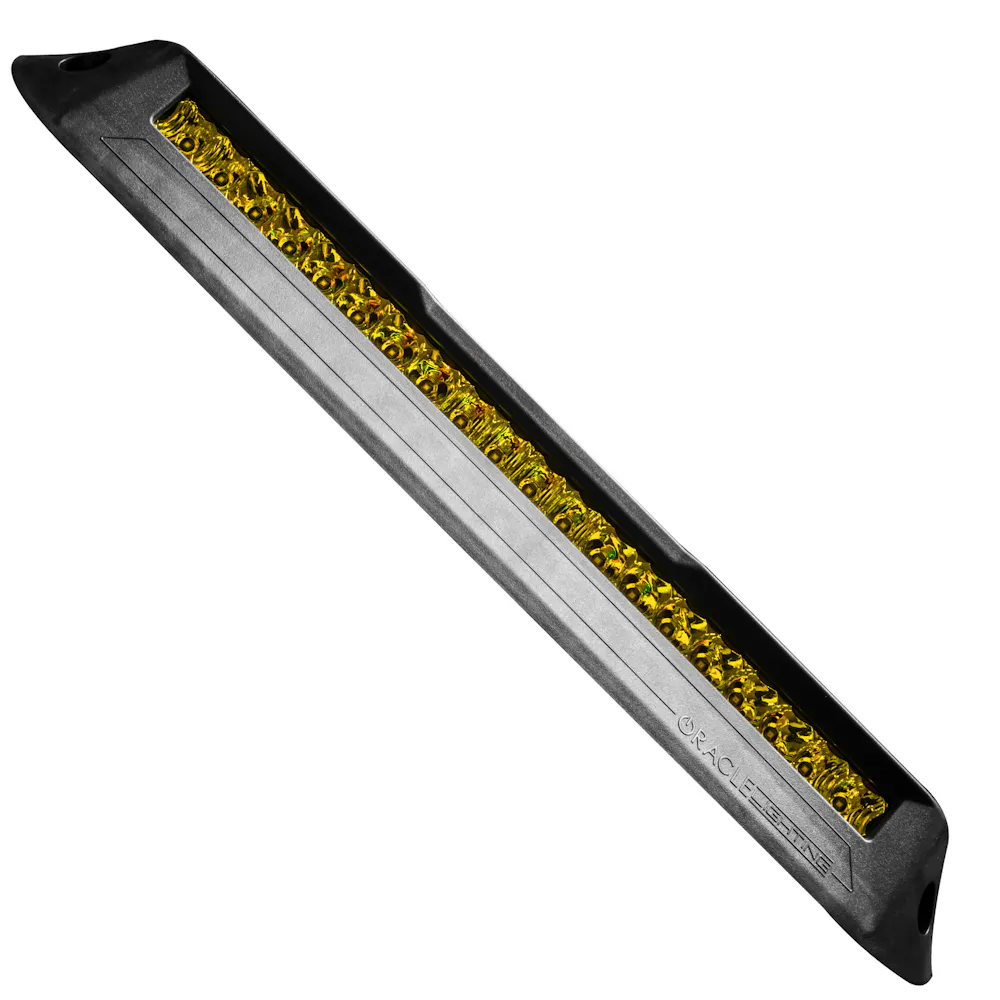

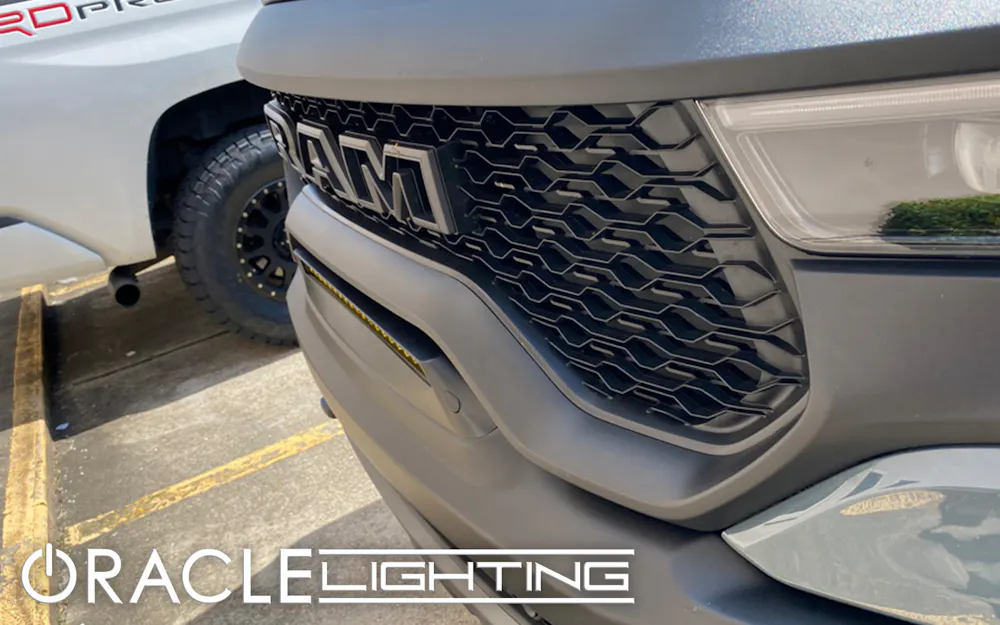

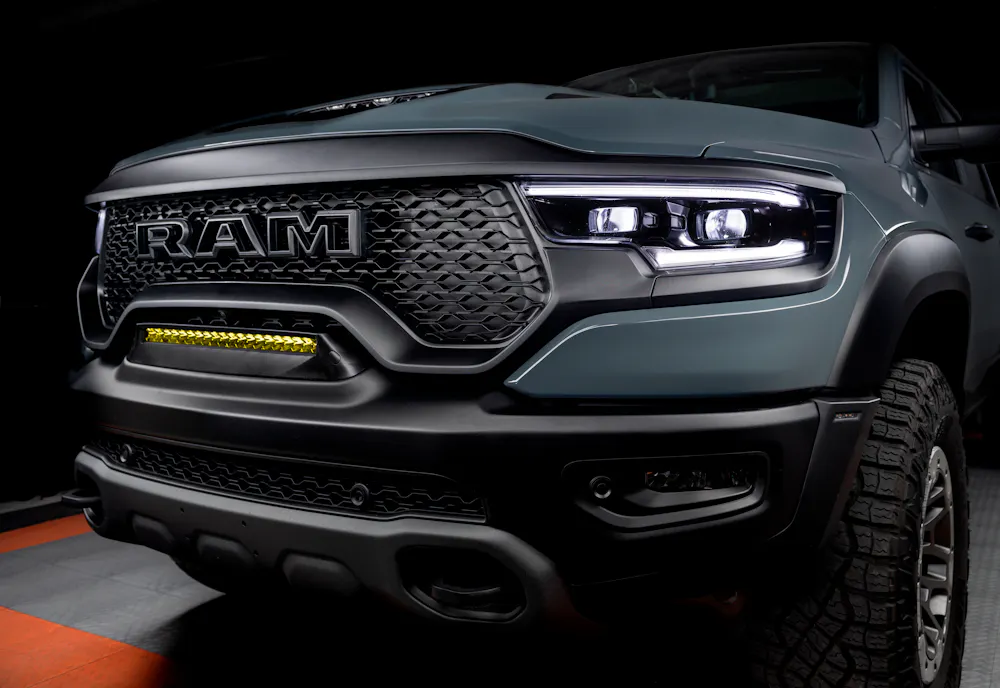

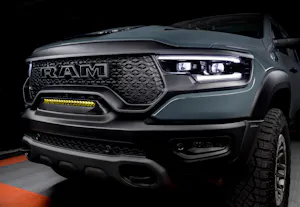

Description: 2019-2024 RAM Rebel/TRX Front Bumper Flush LED Light Bar System - Yellow Lens; 2019-2022 RAM Rebel/TRX Front Bumper Flush LED Light Bar System

Proposition 65 Warning

Cancer - www.P65Warnings.ca.gov

Description

This new auxiliary light design from ORACLE Lighting incorporates both TIR (Total Internal Reflection) and LED Reflector Facing Technology to create a high-quality light output with a precision beam pattern. By combining both optic technologies this light provides an average 30 degree beam pattern and projects up to nearly 500M overall distance. The integrated LED marker lights feature both White and Amber LEDs which can be utilized for parking lights, DRL, and/or Turn Signals.

Features & benefits

Watts: 100W (20x 5W LED)

Information

3000K - Yellow Lens

Application summary

Year	Make / model
2022-2024	Ram 1500

Specifications

GTIN: 00810030395591
Weight: 4 lb
Height: 30 in
Length: 6 in
Width: 6 in
Life cycle: Available to Order
AAM brand code: ORL
Warehouse brand code: FQCV
AAIA brand code: FQCV

Attributes

AMP Draw: 7.5A at 12VDC
Add-On: N/A
Base Color: Black
Base Diameter: 31.98
Base Length: 31.84
Base Material: 6061-T6 Billet Aluminum
Brightness: 12000
California Proposition 65: WARNING: Cancer - www.P65Warnings.ca.gov
Department of Transportation Approved: No
Housing: Polycarbonate
Housing Color: Black
Housing Finish: Painted
Housing Material: Composite
Housing Shape: Rectangle
Kelvin Temperature: 5500K
LED: Osram CRDP LED Chip
LED Life: 50,000+ Hours
Lens: Optically Clear Lexan
Lens Color: Clear
Lens Diameter: 18.76
Lens Length: 18.75
Lens Material: Polycarbonate
Lens Width: 1.91
Light Quantity: 20
Lumen Output: 12000
Mounting Hardware Included: Yes
Optics: Mixed Spot/ Flood
Relay Included: No
Street Legal: No
Switch Included: No
Terminal Quantity: 2
Terminal Type: Lead Wire
Title: 5885-006 - Light Bar
Voltage: 12
Waterproof Rating: IP69K
Wattage: 100
Watts: 100W (20x 5W LED)
Wire Gauge Measurement: 16
Wire Quantity: 2
Wiring Harness Included: Yes
Wiring Harness Length: 36

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

2022-2024 Ram 1500

Resources

Retail View

Year	Make/Model
2022-2024	Ram 1500
