Oracle Lighting · 5839-111

View More

Part #: 5839-111
UPC: 810030396024

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Oracle Lighting Series: Oculus Bi-LED Projector Headlights

pro mess

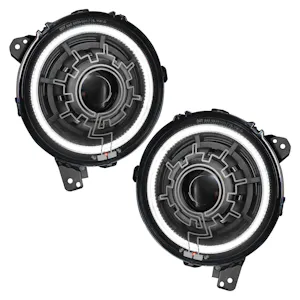

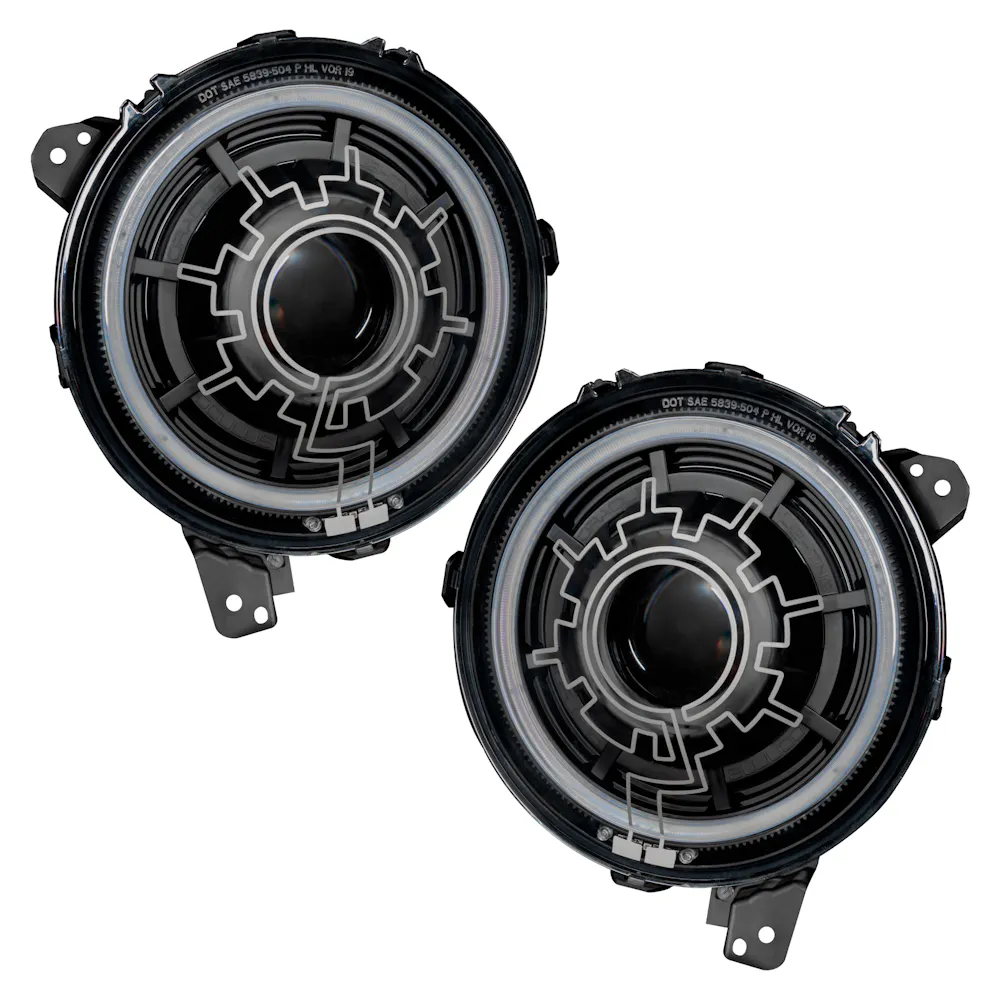

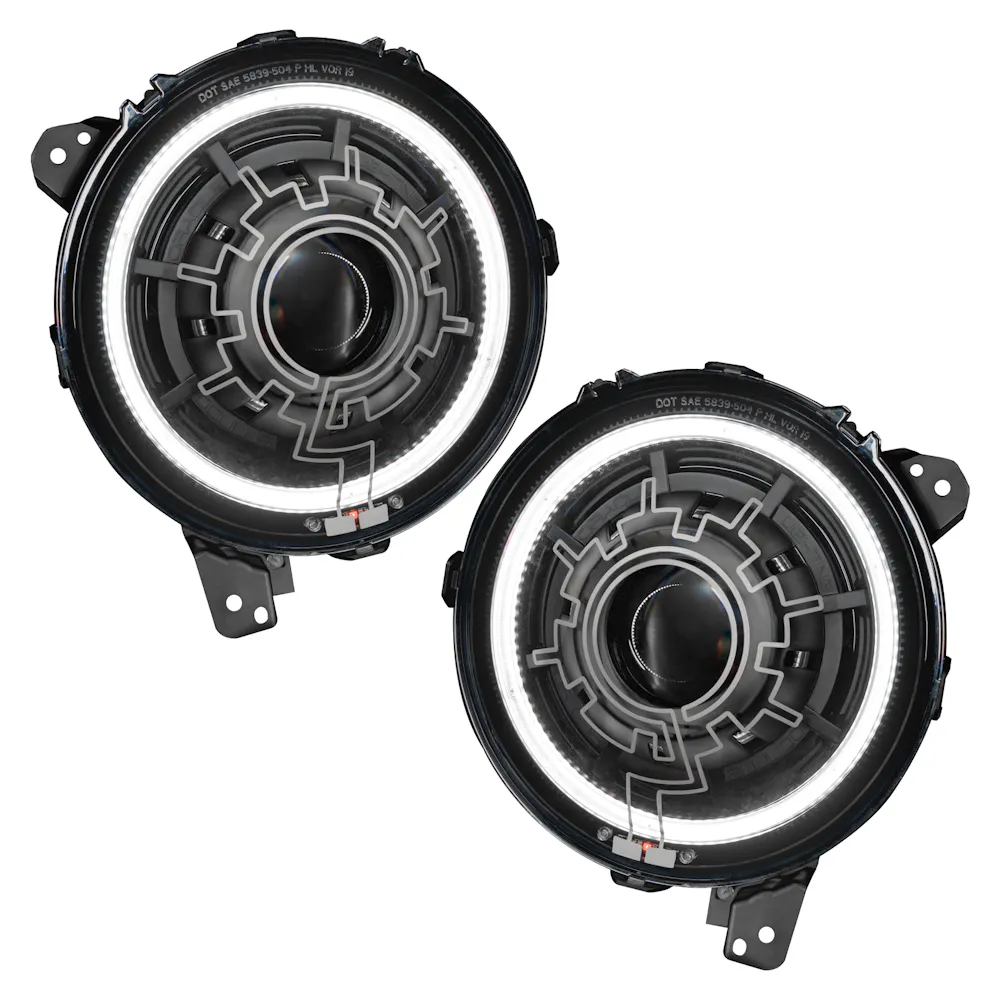

Description: Oculus Heated Lens Bi-Proj HLs for Jeep Wrangler JL/Gladiator JT - 5500K; ORACLE Lighting Oculus(TM) Heated Lens Bi-LED Projector Headlights for Jeep Wrangler JL / Gladiator JT

Cancer - www.P65Warnings.ca.gov

Description

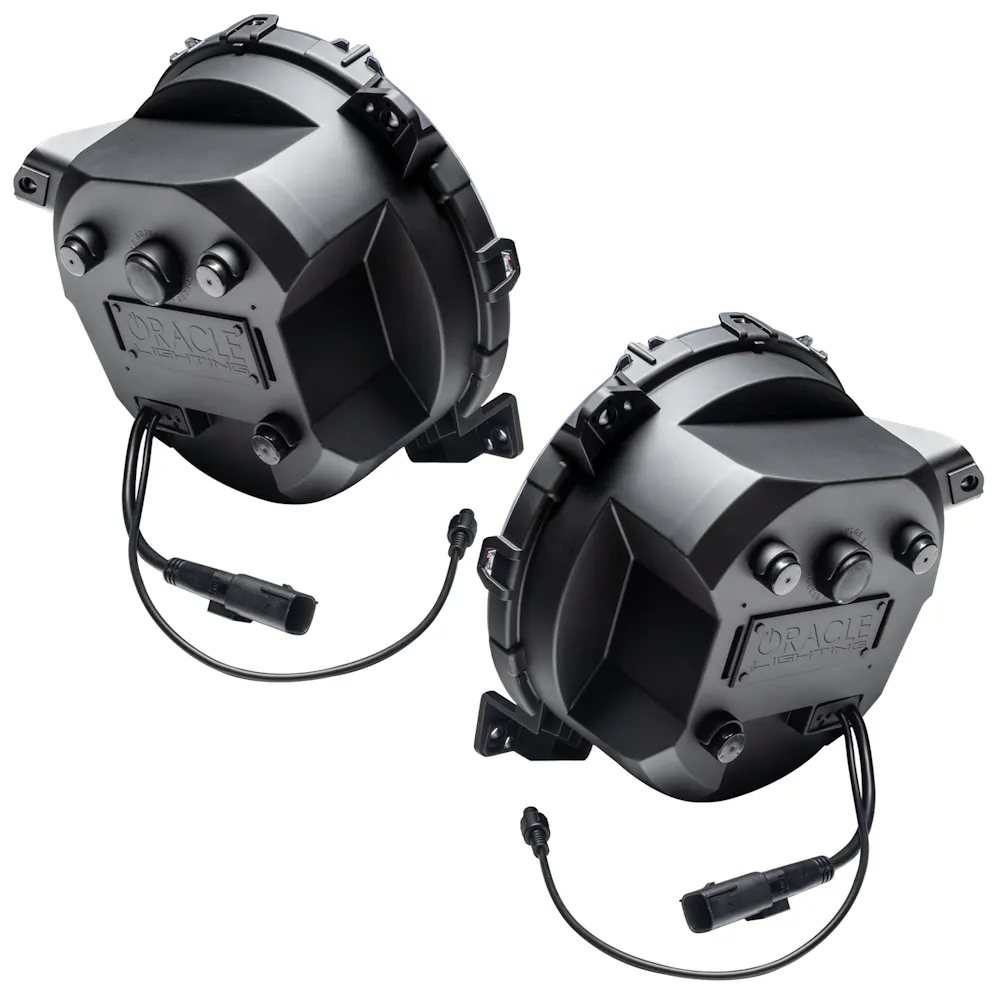

Reliability: It is undeniably important to implement proper thermal management tools for high-performance LEDs to operate with reliability in various environments. Oculus™ utilizes both active and passive cooling methods to sustain low LED temperatures. Remote mounted heat sinks and an internal cooling fan work in conjunction to ensure proper temperature control and longevity of the LEDs.

Features & benefits

These all-new headlamps provide enhanced driver visibility with increased and focused LED light output. Complete headlight replacement, better light focus than a simple bulb upgrade.
These Headlights have an external temperature sensor. The most ideal spot to mount this would be somewhere on the grill but some may not want this to be visible. Ideally in a spot where there is the least amount of engine heat.
Headlight Beam Wattage: 36W Each
Total Headlight Beam Lumens: 5,200LM
Headlight Beam Color Temp: 5500K
Certification: DOT SAE 5839-504 HL VOR 19

Information

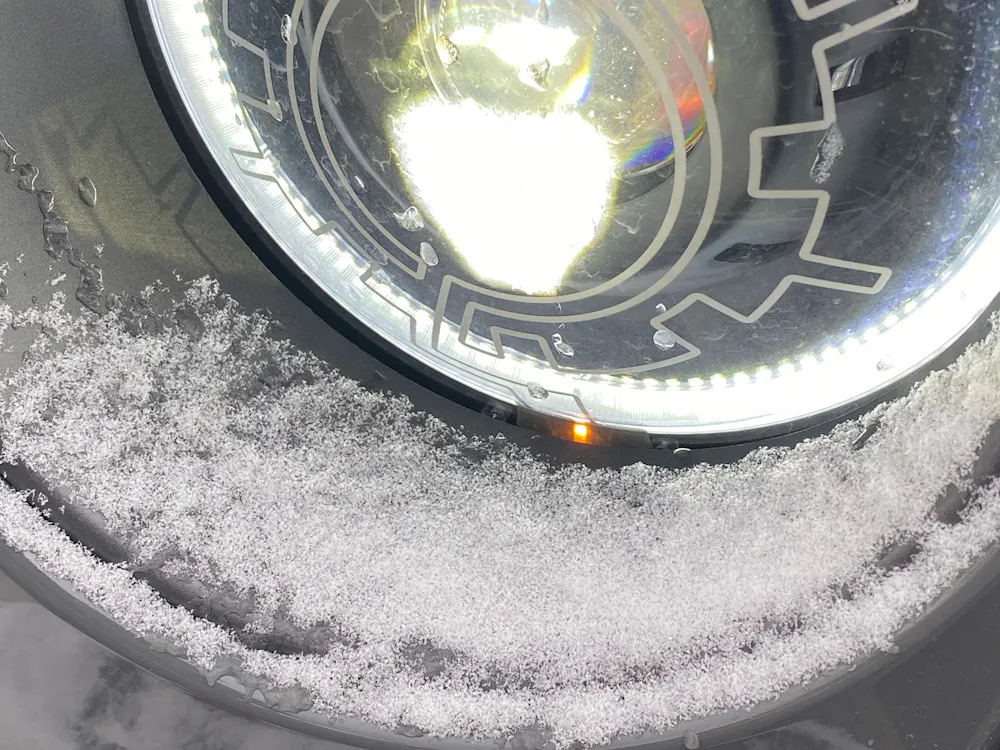

This design is 100% plug and play, no additional wiring required for the heating element. Integrated temperature sensors are built into the lights and the lights include a small status LED to tell you when the heater element is on. The heating function activates automatically when the headlight is turned on and the ambient temperature reaches near freezing. The heating function is indicated by an Amber LED which illuminates when the heating function is active. When the temperature of the front lens cover is fully heated, the heating function automatically shuts off and will cycle back on when the temperature drops again.

Application summary

Year	Make / model
2020-2026	Jeep Gladiator
2018-2026	Jeep Wrangler

Specifications

GTIN: 00810030396024
Weight: 8 lb
Height: 20 in
Length: 10 in
Width: 14 in
Life cycle: Available to Order
AAM brand code: ORL
Warehouse brand code: FQCV
AAIA brand code: FQCV

Attributes

Add-On: N/A
Amperage Rating: 3
Average Rated Life: 60000
Ballast Included: Yes
Beam Type: High Beam Low Beam
Bezel Color: Black
Brightness: 5200
Bulb Color: 6,000K
Bulb Quantity: 2
Bulb Technology: Bi-LED
Bulb Type: Molex
Bulbs Included: Yes
California Proposition 65: WARNING: Cancer - www.P65Warnings.ca.gov
Color: 5500K
Department of Transportation Approved: Yes
Details: Precision LED lighting projector for optimum light distribution and beam angle. Installs using original mounting hardware and headlight wiring is Plug & Play into the factory connector without additional relays or harnesses. LED Halo features over 200 bright white LEDs for a vivid lighting impact.
Headlight Type: Assembly
High Beam Wattage: 36
Housing Color: Black
Housing Material: Polycarbonate (PC)
Install Type: This design is 100% plug and play, no additional wiring required for the heating element. Integrated temperature sensors are built into the lights and the lights include a small status LED to tell you when the heater element is on. The heating function activates automatically when the headlight is turned on and the ambient temperature reaches near freezing. The heating function is indicated by an Amber LED which illuminates when the heating function is active. When the temperature of the front lens cover is fully heated, the heating function automatically shuts off and will cycle back on when the temperature drops again.
Lens Color: Clear
Lens Material: Polycarbonate (PC)
Mounting Hardware Included: No

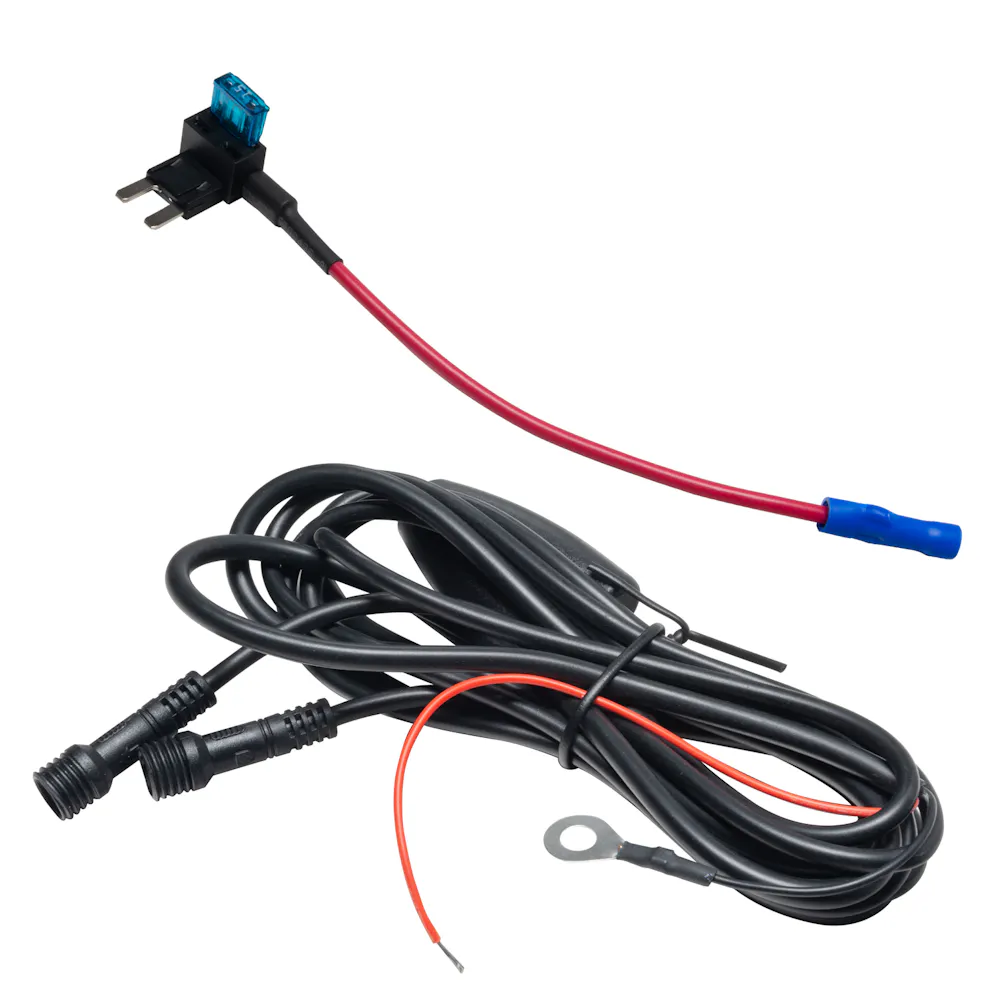

Purpose: These all-new headlamps provide enhanced driver visibility with increased and focused LED light output. Complete headlight replacement, better light focus than a simple bulb upgrade. Installation is simplified by a Plug & Play wiring harness which plugs into the factory connector. Package includes tool for easy beam angle adjustability for proper light focus on lifted Jeeps.
Reason: It is undeniably important to implement proper thermal management tools for high-performance LEDs to operate with reliability in various environments. Oculus utilizes both active and passive cooling methods to sustain low LED temperatures. Remote mounted heat sinks and an internal cooling fan work in conjunction to insure proper temperature control and longevity of the LEDs.
Secondary Amperage Rating: 3
Significance: Light focus is very important for not only driver safety but others on the road who can potentially have their vision obstructed by glare. This is especially significant on lifted vehicles where the light source is raised and in a position to interfere with the field of vision of other drivers. These new Oculus headlights feature a very sharp cut-off line and focus light with precision specifically to avoid such issues.
Street Legal: Yes
Terminal Type: Blade
Title: 5839-111 - Headlight Assembly
Voltage: 12
Wattage: 36
