Description: 60mm 15W Fog Beam LED Emitter - Yellow - 3000K; ORACLE Lighting 60mm 15W Fog Beam LED Emitter
Description:
Description
These high-powered LED modules are small but mighty! These expertly designed lights make a big impact with bright yellow 3000K LED illumination for up to 1000 Lumen output. The fog beam irradiation angle is perfect for applications where functional on-road illumination is needed in a small package. This makes it one of the most versatile FMVSS-compliant LED modules on the market. The advanced optics and precise beam ensure that your new lighting won't blind other drivers. The integrated anti-fog breather valve provides trouble-free use even in extreme weather situations. Markings for DOT, SAE, and E9 on our 15W fog light emitters give you peace of mind during rigorous inspections. The wiring connector is fully insulated, and the IP68 Ingress Protection rating provides the rugged durability you expect from ORACLE Lighting products.
Features & benefits
- Waterproof Wiring Connector
Information
Yellow - 3000K
Specifications
- GTIN
- 00810030397861
- Weight
- 1 lb
- Height
- 9 in
- Length
- 4 in
- Width
- 9 in
- Life cycle
- Available to Order
- AAM brand code
- ORL
- Warehouse brand code
- FQCV
- AAIA brand code
- FQCV
Attributes
- Add-On
- N/A
- Amp Draw
- 0.6A @12V DC
- Average Rated Life
- 60000
- Bulb Quantity
- 3
- Bulb Technology
- LED
- Bulb Type
- Chip
- Bulbs Included
- Yes
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Color
- Yellow - 3000K
- Connector Type
- 9005 / 9006 Molded Wiring Connector
- Department of Transportation Approved
- Yes
- Housing Color
- Black
- Housing Material
- Cast Aluminum
- Length
- 61.28
- Lens Color
- Clear
- Lens Diameter
- 60
- Lens Material
- PMA
- Light Color Temperature
- 3000K
- Light Count
- 3x High-Output 5W LEDs
- Material
- Aluminum anti-fog Breather Valve
- Max Lumen Output
- 1000 Max Lumen Light Output
- Mounting Hardware Included
- No
- Optic Type
- Advanced Optics Design for Optimal Visibility
- Output Detail
- Precision Beam no glare output design
- Street Legal
- Yes
- Terminal Quantity
- 1
- Terminal Type
- Threaded
- Title
- 5821-006 - Fog Light Assembly
- Total Max Wattage
- 15W
- Voltage
- 12
- Waterproof
- Yes
- Wattage
- 15
- Wire Gauge Measurement
- 18
- Wiring Harness Included
- No
Fitment status
This product is universal and will fit your application.

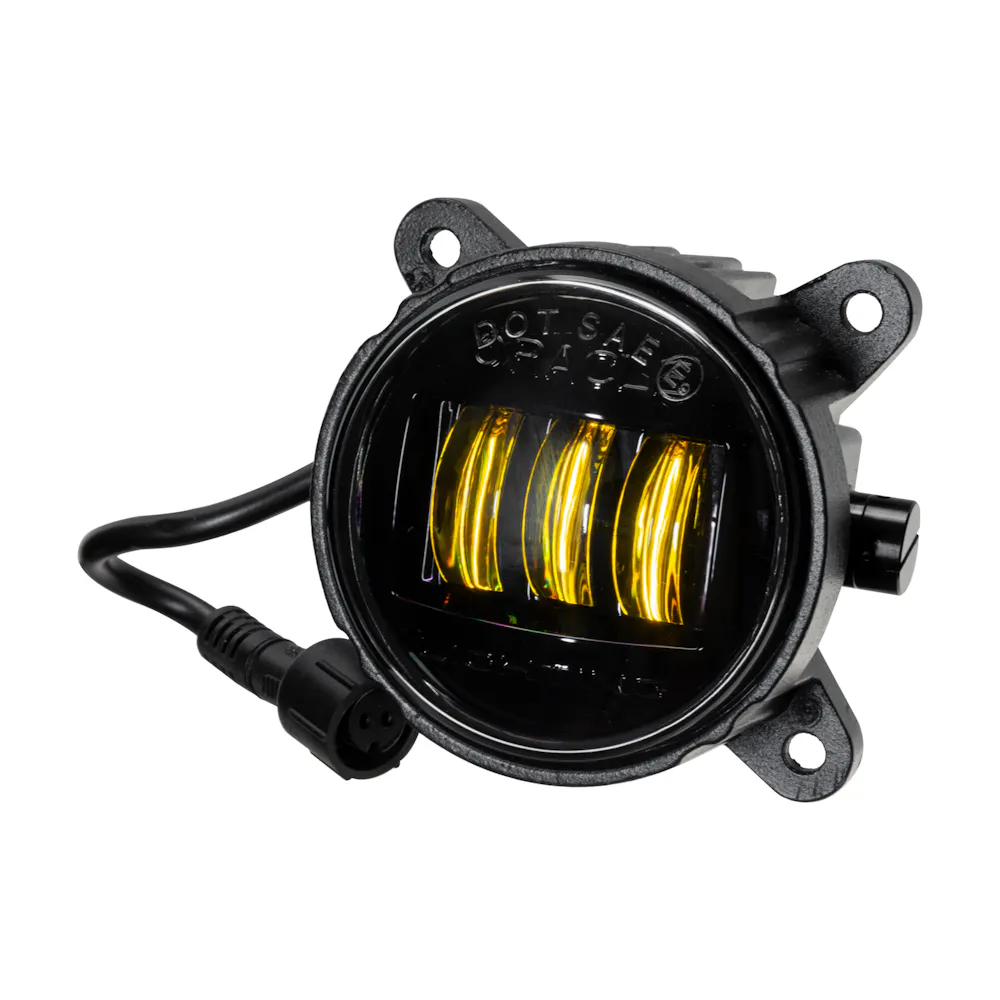

Oracle Lighting 5821-006
