Oracle Lighting / 5769J-001

View More

Part #: 5769J-001
UPC: 810030390497

Loading availability... Loading...

Notify me when this item is in stock.

Brand: Oracle Lighting Series: High Powered LED Headlights

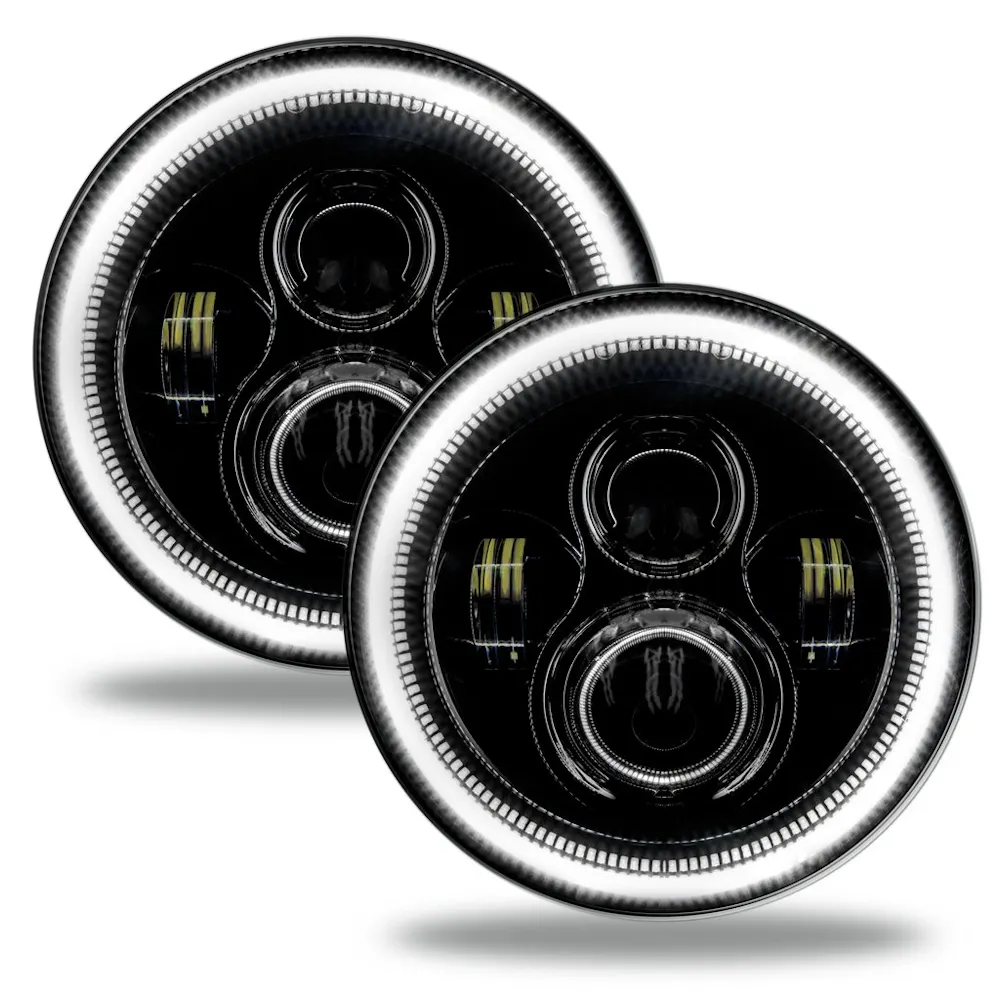

Description: Jeep Wrangler JL/Gladiator JT 7in. High Powered LED Headlights (Pair) - White; ORACLE Lighting Jeep Wrangler JL/Gladiator JT 7in. High Powered LED Headlights (Pair) White Halos

pro mess

Cancer - www.P65Warnings.ca.gov

Description

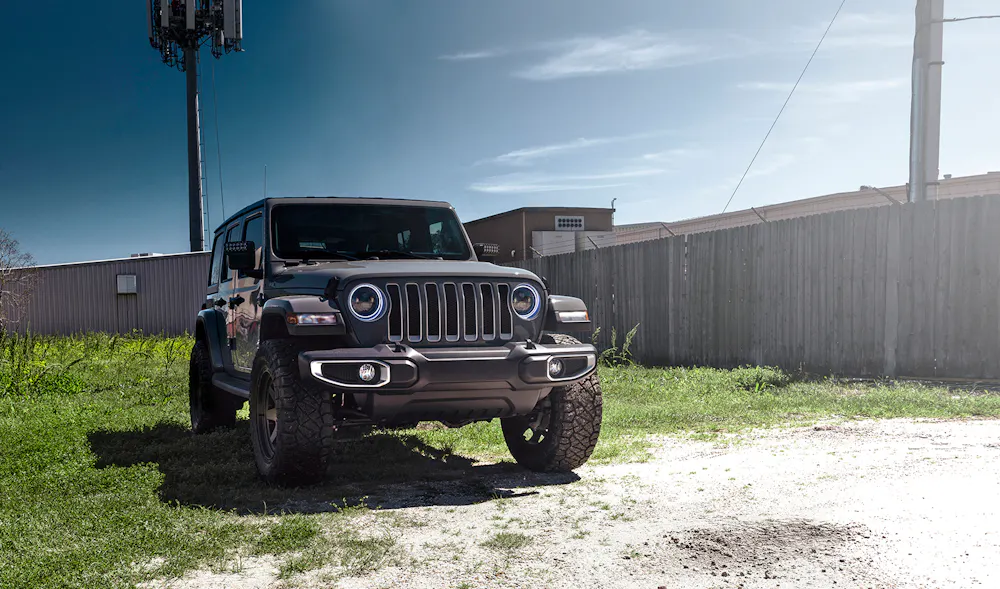

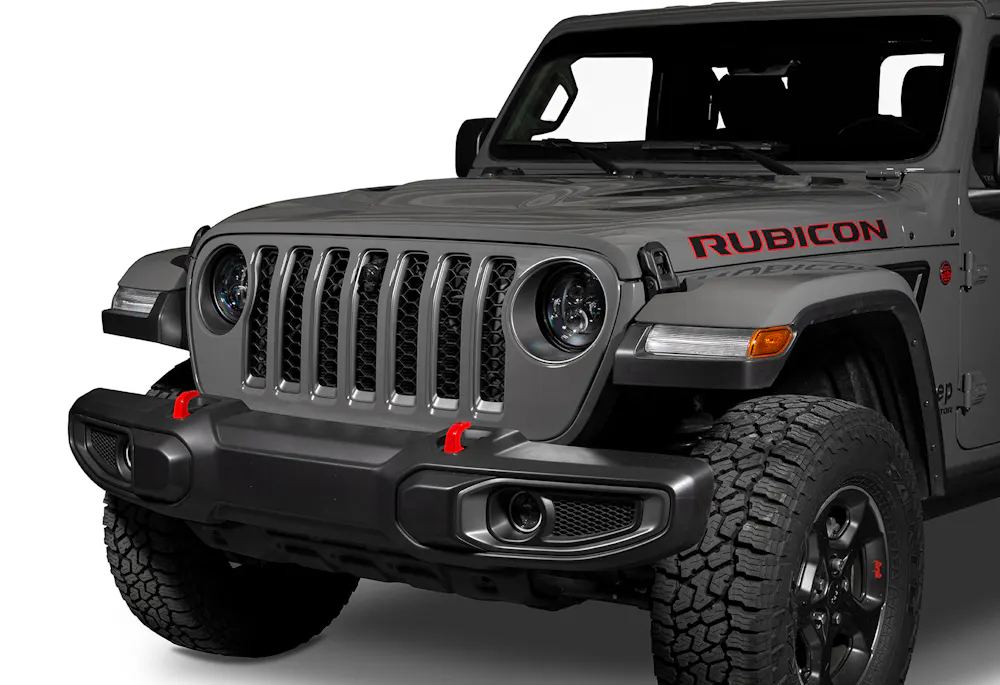

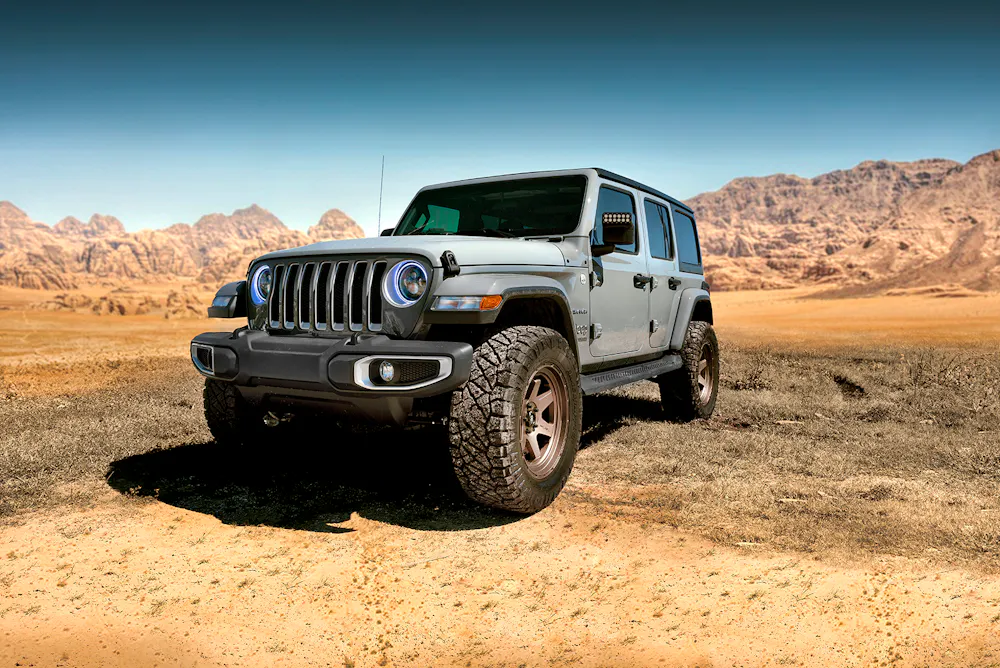

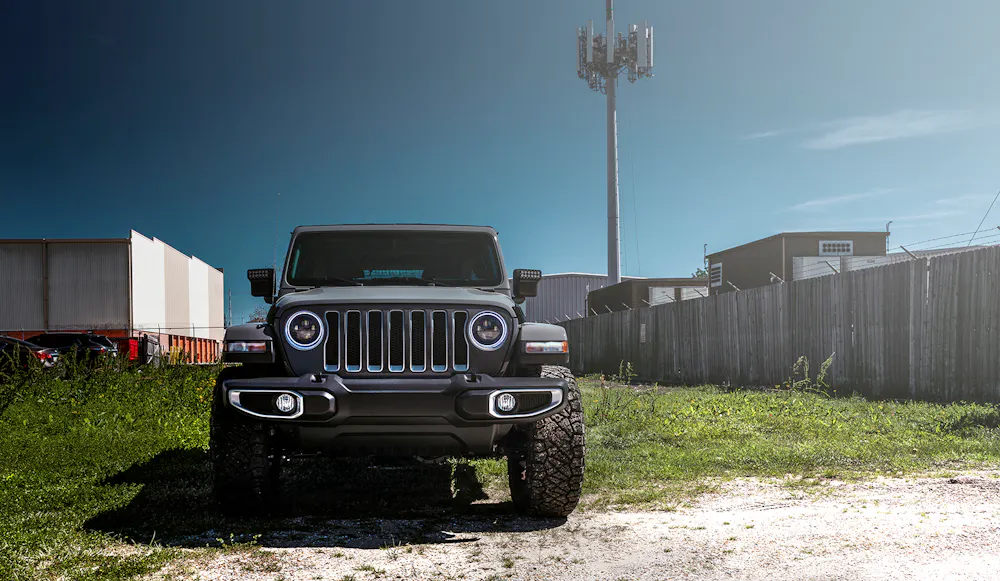

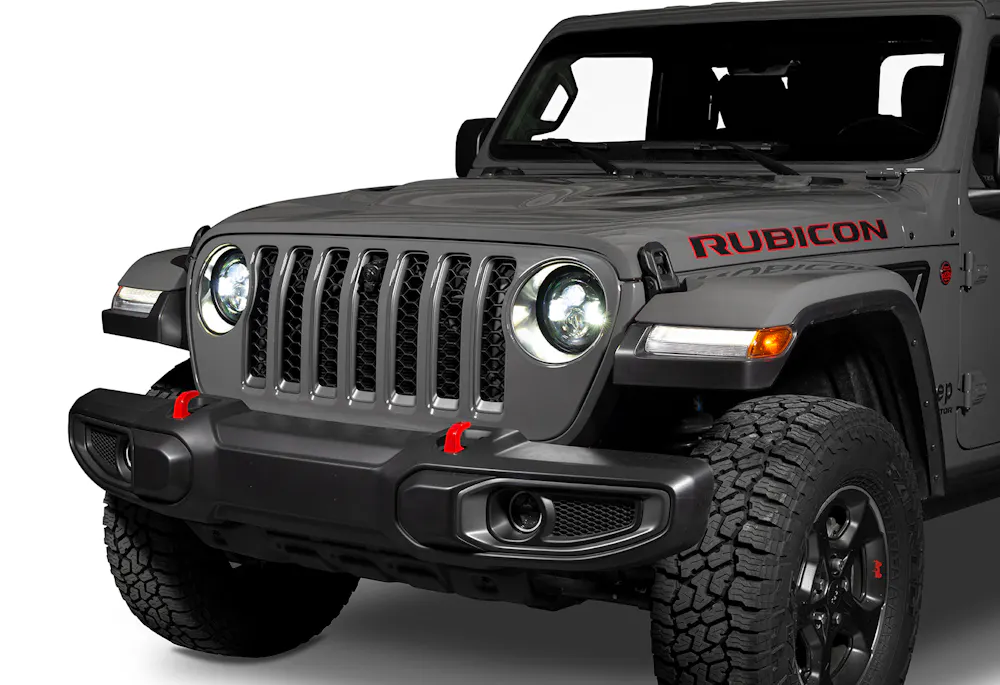

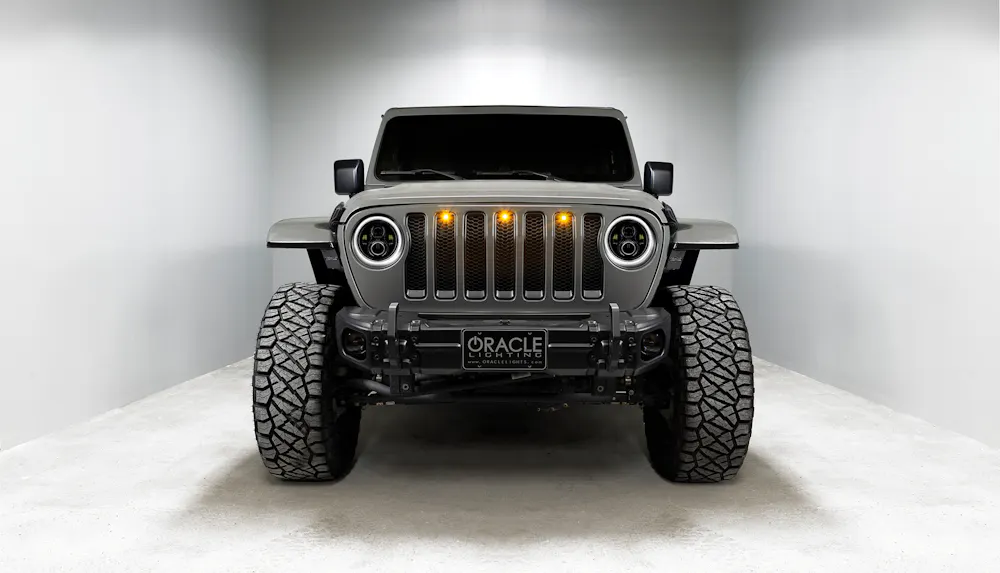

Complete Package for adding High-Performance 7" LED Headlights to your Wrangler JL/Gladiator JT without any fabrication or cutting your factory wiring. This complete Plug-&-Play kit also features Vertical and Horizontal headlight adjustment so you can put the light on the road (where you need it) and not blind oncoming traffic. The Ultimate 7" LED replacement headlight option for the Wrangler JL/Gladiator JT. This rugged solid-state LED design is perfect for the Jeep owner looking for high-quality lighting for better night time visibility without overpaying. Installation is very easy with the included JL/JT-specific "Plug and Play" connectors. You can even choose optional colored Halos for even more customization! Note: DRL wire cannot be used as a power source - Tapping into Park Lights will give manual control over LED accessory during daytime driving - LED accessory will turn on automatically in night mode when switch is set to AUTO - For full automatic control over the LED accessory use fuse F52 in the engine compartment fuse panel.

Features & benefits

High Beam Lumens: 3600 Lumens/4800 Raw Lumens
Color Temperature: 6000K (Cool White Color)
Improvements in brightness and reliability by adding a constant current LED driver to the main circuit board inside of the lamp to control the LED halos.
Wide Beam Pattern with Sharp Cut-Off Line
Easy Plug & Play Installation
2 Year Warranty
DOT and SAE Certified
Increased Reliability- By conditioning the power going into the LEDs this prevents degradation which can shorten the overall lifespan of the product.
Wider Input Voltage Range- The new SMD Halos can operate on a very wide voltage range from 12V-24V so that voltage spikes can not damage the LEDs.
Brighter/ More Even Light- by moving the heat load of the resistors off the PCB we are able to increase the number of LEDs on the circuit board without thermal issues.
LED chips upgraded from a Cree LED to a Phillips Luxeon ZES chip.They deliver a very high efficacy 130LM/W ratio while having lower thermal output.
Low Beam Wattage: 30W Normal/36W Max
Input Voltage of Light: 12-24V DC
Low Beam Lumens: 2200 Lumens/3600 Raw Lumens
High Beam Wattage: 40W Normal/48W Max
Input Voltage of Halo (If Included): 12V DC
Current Draw: 2.50 Amps @ 12V DC / 1.30 Amps @ 24V DC

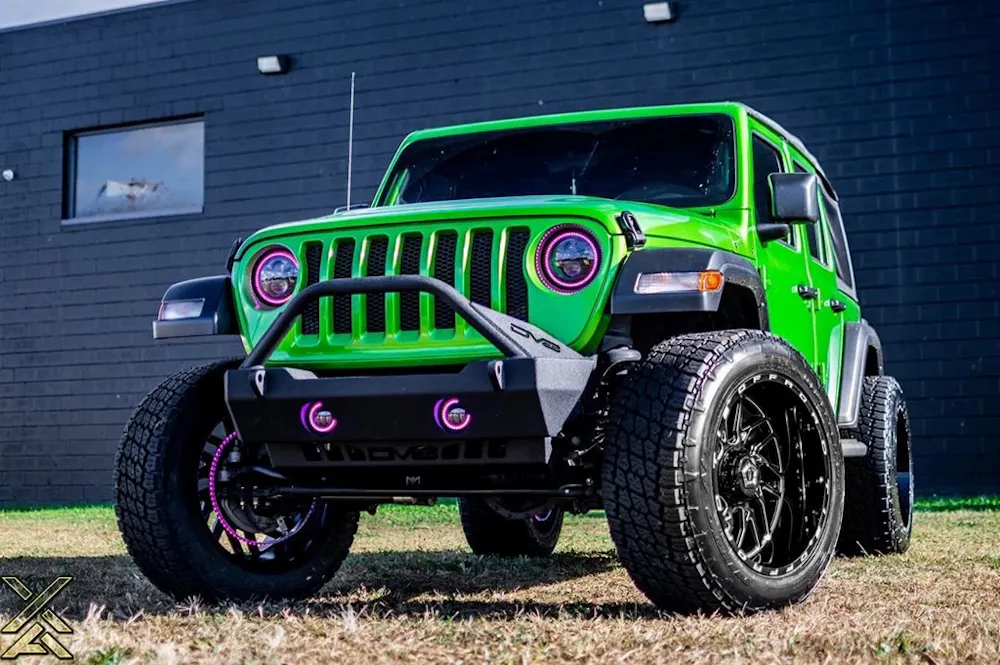

Optional: ORACLE Halo Rings Pre-Installed
Premium Performance Phillips Luxeon ZES LEDs
Die-Cast Housing with Corrosion Resistant Coating
Heavy Duty Solid State Electronics
Hard-coated Polycarbonate Lens

Information

White

Application summary

Year	Make / model
2020-2025	Jeep Gladiator
2018-2025	Jeep Wrangler

Specifications

GTIN: 00810030390497
Weight: 6 lb
Height: 5 in
Length: 16 in
Width: 10 in
Life cycle: Available to Order
AAM brand code: ORL
Warehouse brand code: FQCV
AAIA brand code: FQCV

Attributes

Add-On: N/A
Amp Draw: 2.50 Amps at 12V DC / 1.30 Amps at 24V DC
Amperage Rating: 2.5
Average Rated Life: 60000
Ballast Included: No
Beam Type: High Beam Low Beam
Bezel Color: Black
Brightness: 3600
Bulb Color: 6,000K
Bulb Quantity: 4
Bulb Technology: LED
Bulb Type: H4/H13
Bulbs Included: Yes
California Proposition 65: WARNING: Cancer - www.P65Warnings.ca.gov
Color: White
Color Temperature: 6000K

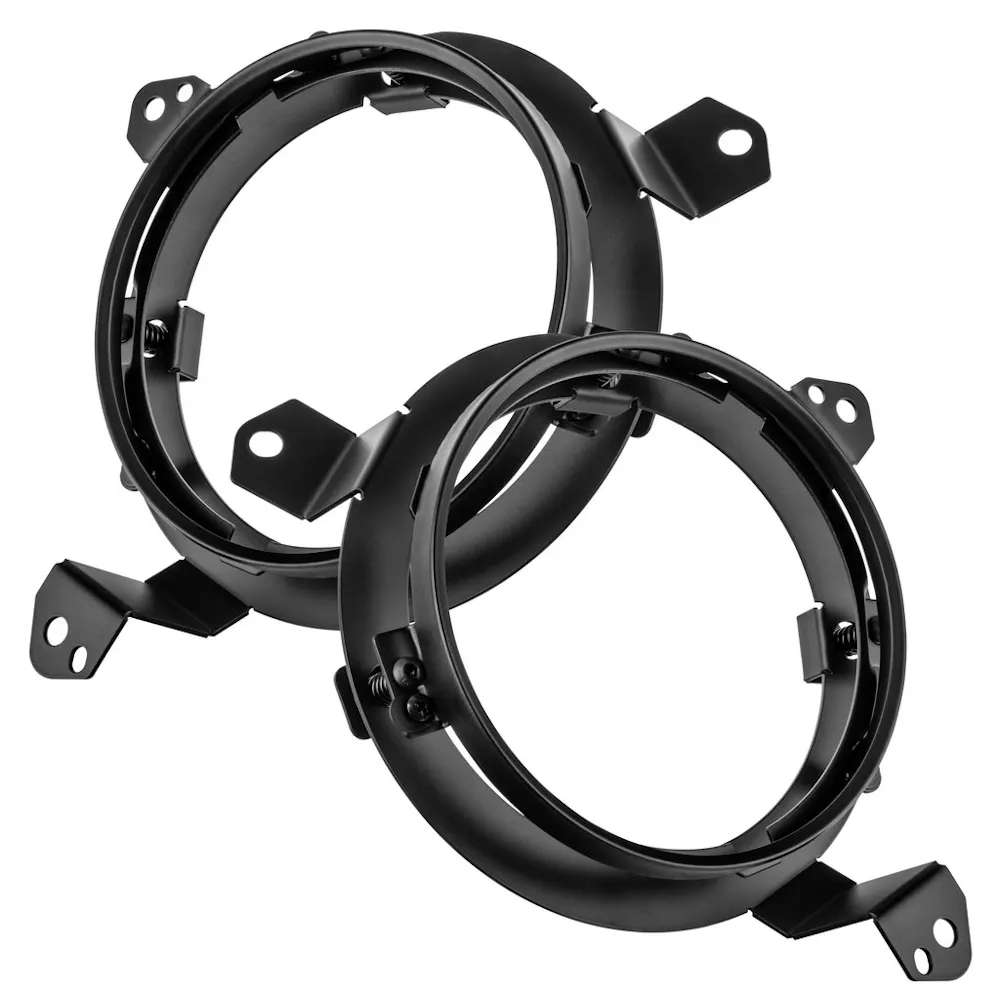

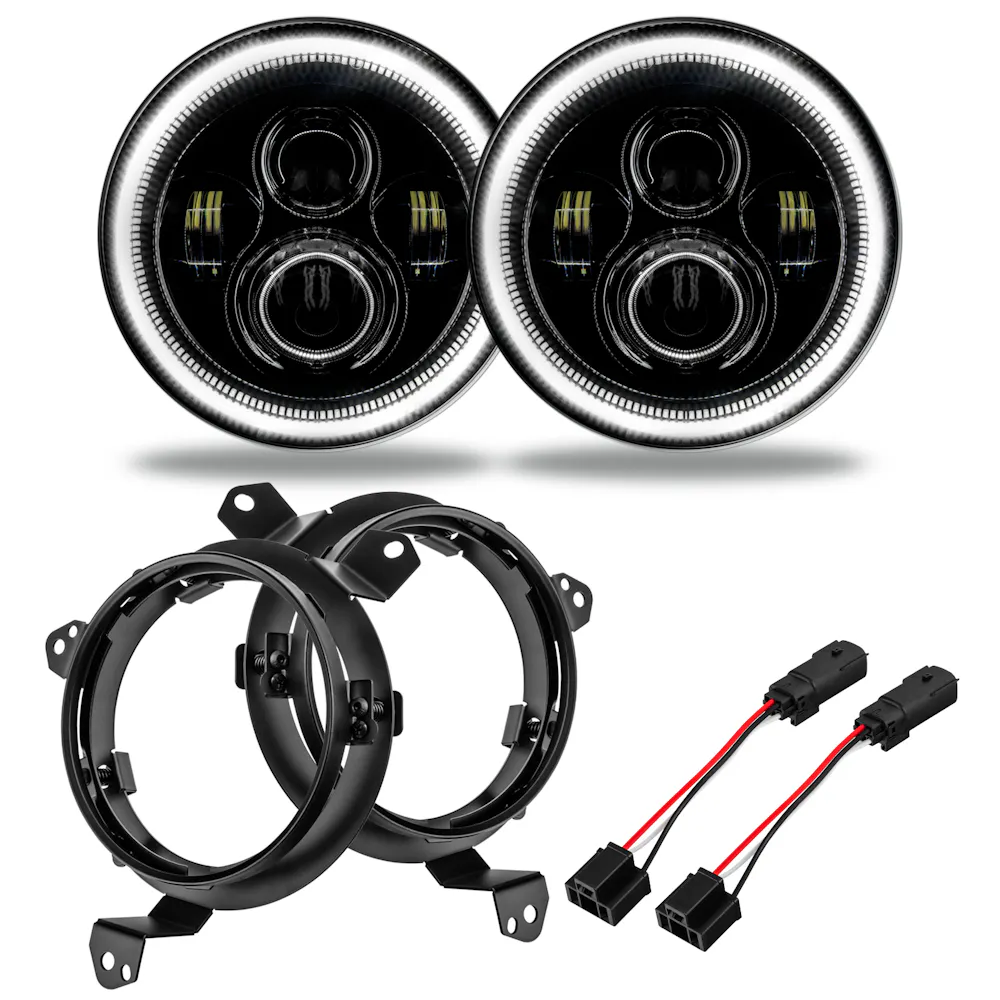

Contents: (2x) ORACLE 7in. High Performance LED Headlights, (2x) Plug & Play Wiring Adapters, (2x) Direct-Fit Beam Adjustable Headlight Brackets
Department of Transportation Approved: Yes
Headlight Type: Sealed Beam
High Beam Lumens: 3600
High Beam Wattage: 48
Housing Color: Black
Housing Material: Cast Aluminum
Kelvin Temperature: 6000K
LED Color: White
Lens Color: Clear
Lens Material: PC (Polycarbonate)
Low Beam Lumens: 2200
Low Beam Wattage: 30W Normal/36W Max
Mounting Hardware Included: Yes
Secondary Amperage Rating: 1.3
Street Legal: Yes
Terminal Type: Blade
Title: 5769J-001 - Headlight Assembly
Voltage: 12
Warranty: 2 Year
Wattage: 48
