Oracle Lighting / 5769-334

Oracle Lighting 5769-334

Part #: 5769-334
UPC: 810030390466

Loading...
Notify me when this item is in stock.

Brand: Oracle Lighting Series: High Powered LED Headlights

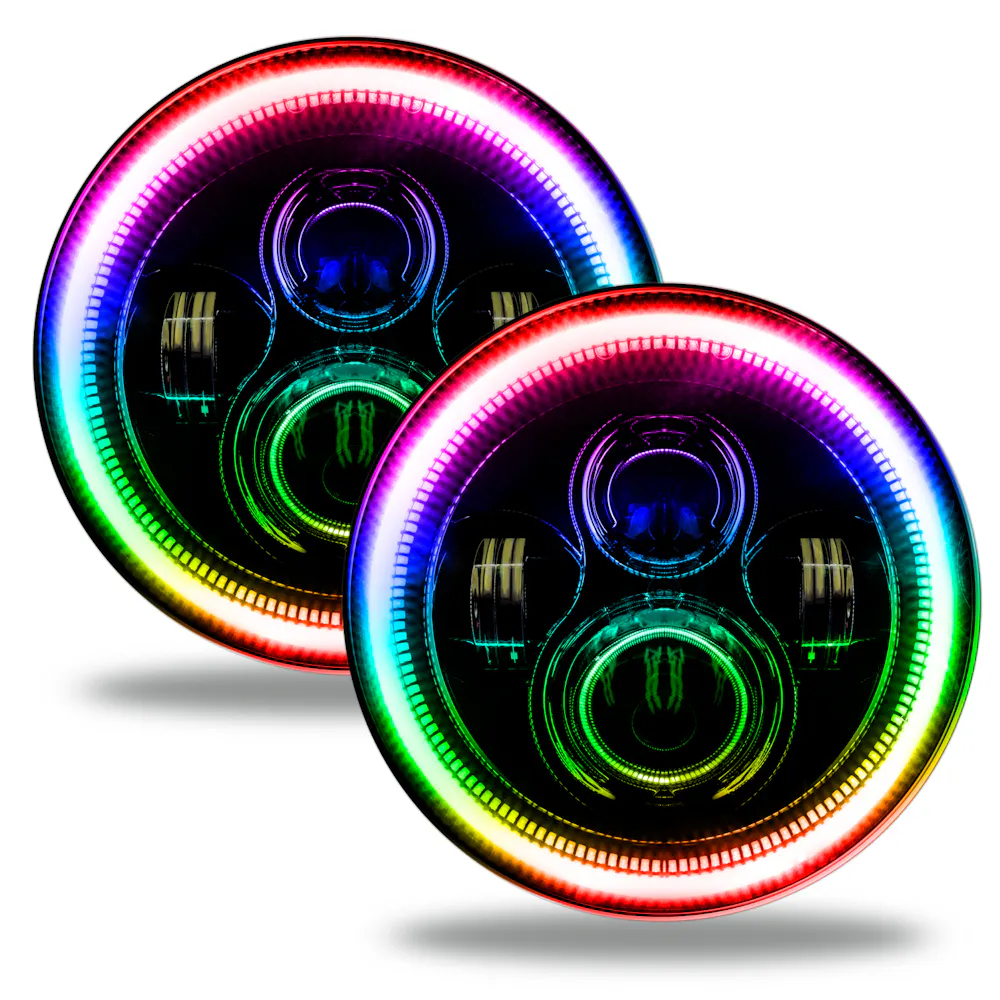

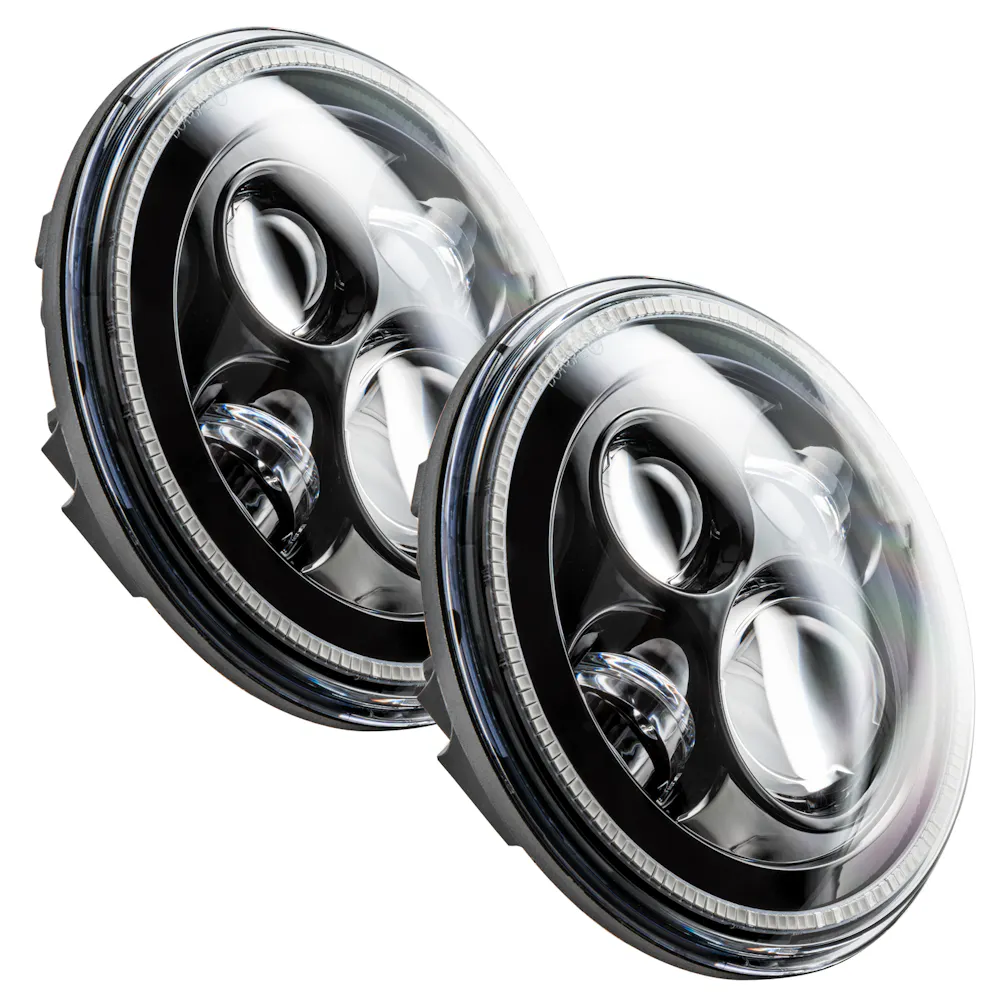

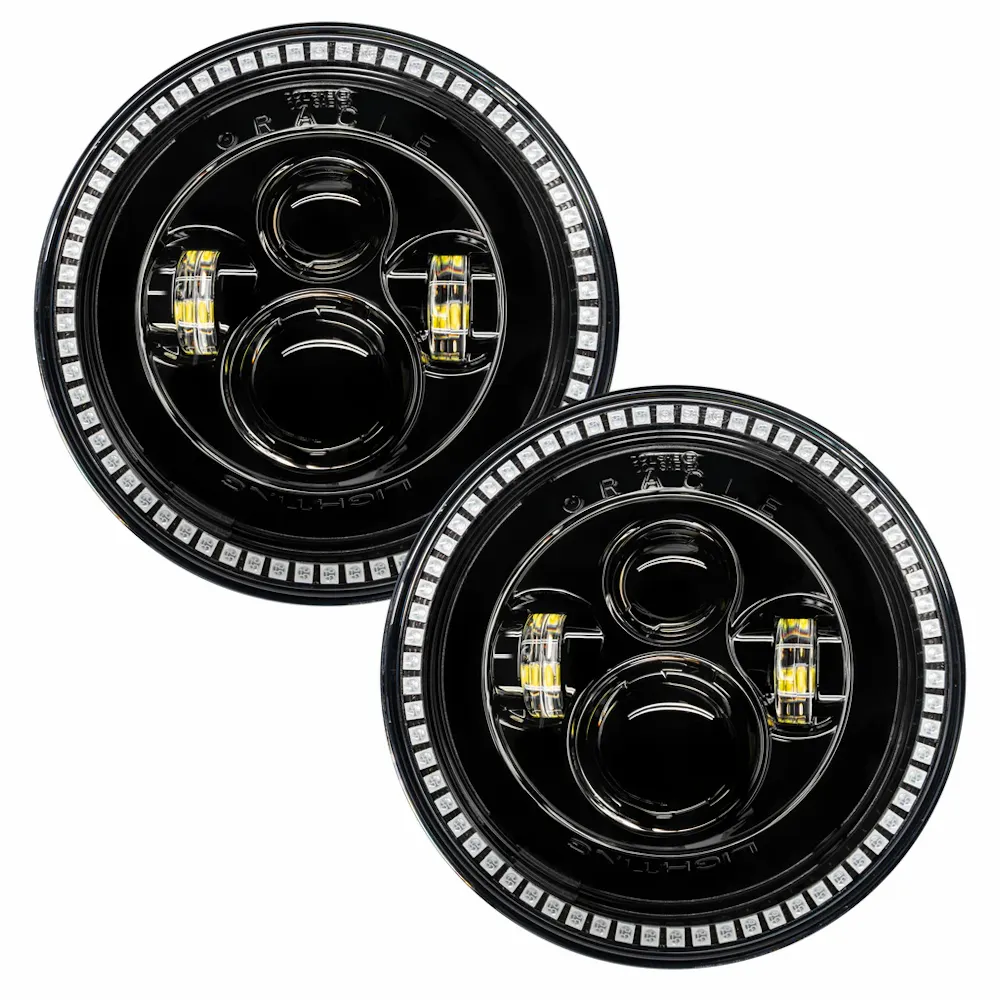

Description: 7" High Powered LED Headlights - Black Bezel - ColorSHIFT - w/No Controller; ORACLE Lighting 7" High Powered LED Headlights - Black Bezel

Description:

pro mess
Log in to order
Proposition 65 WarningCancer - www.P65Warnings.ca.gov

Description

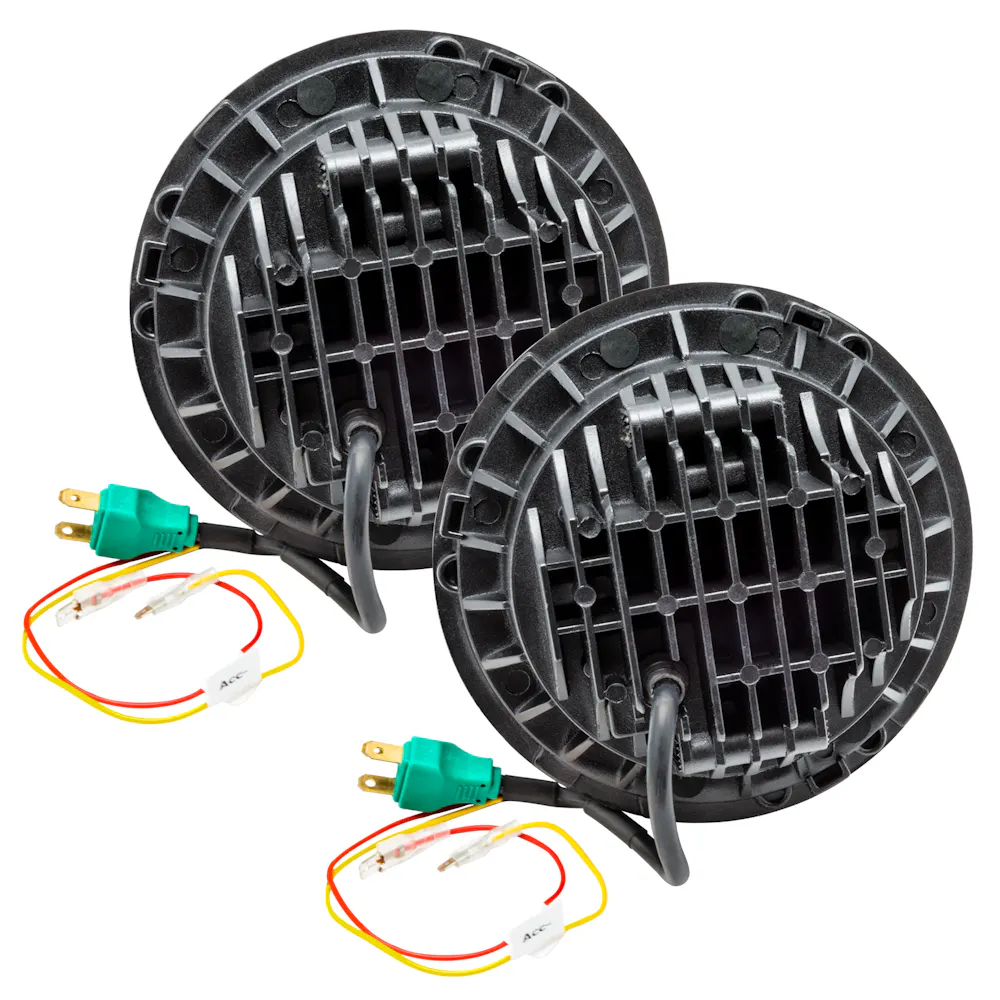

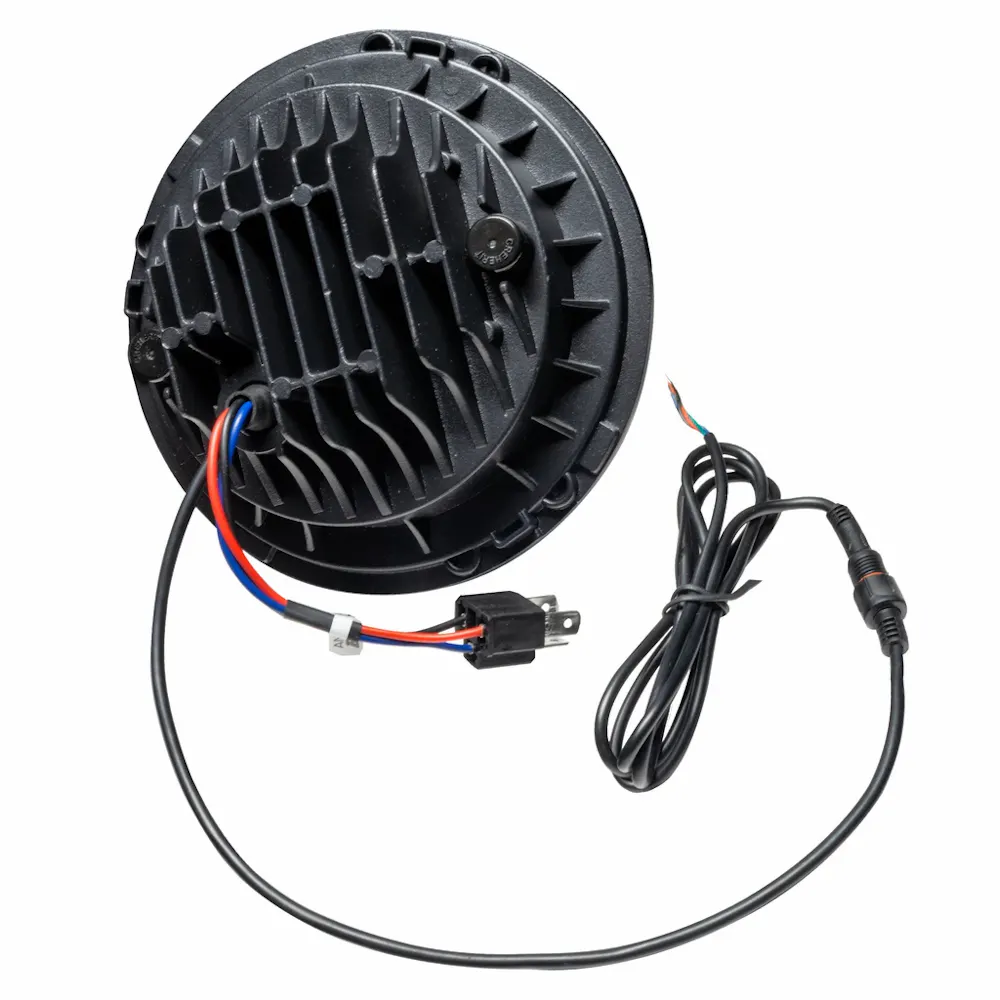

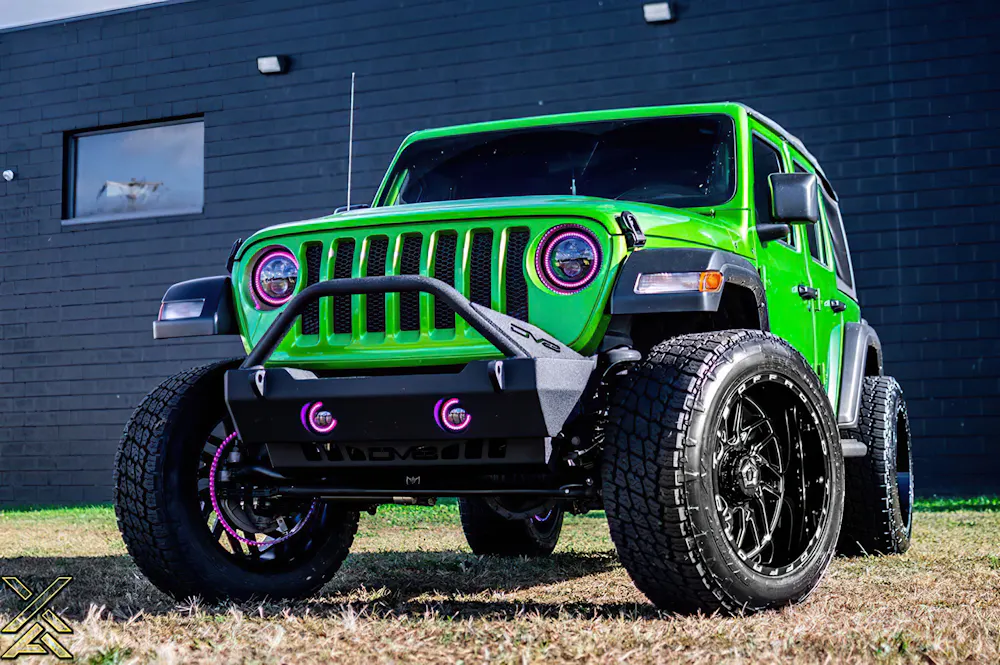

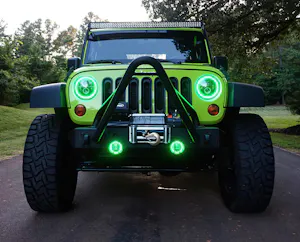

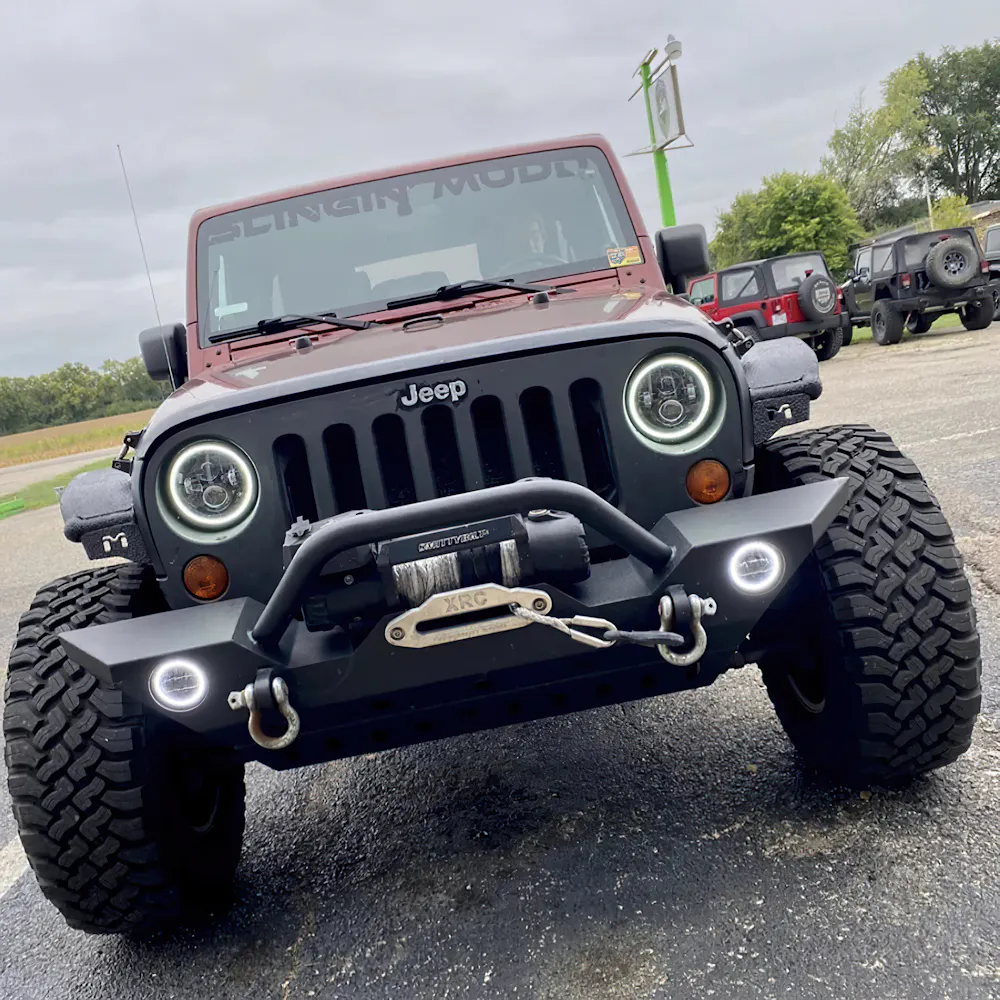

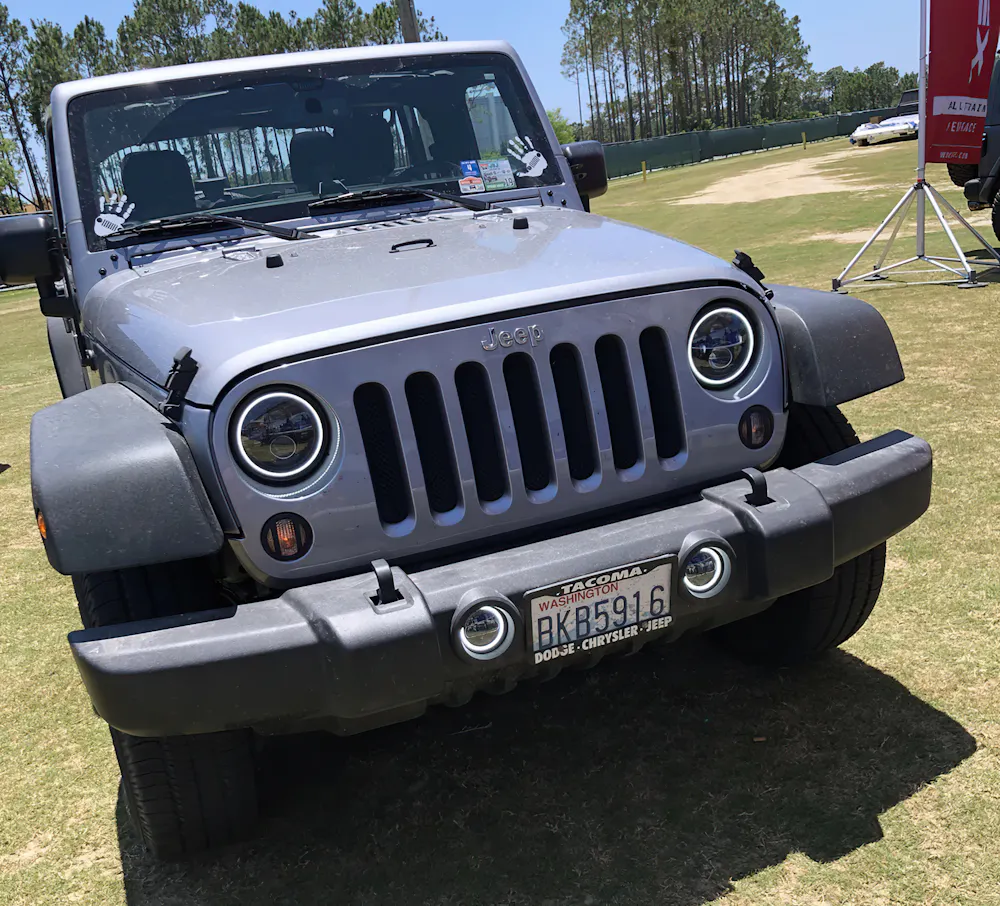

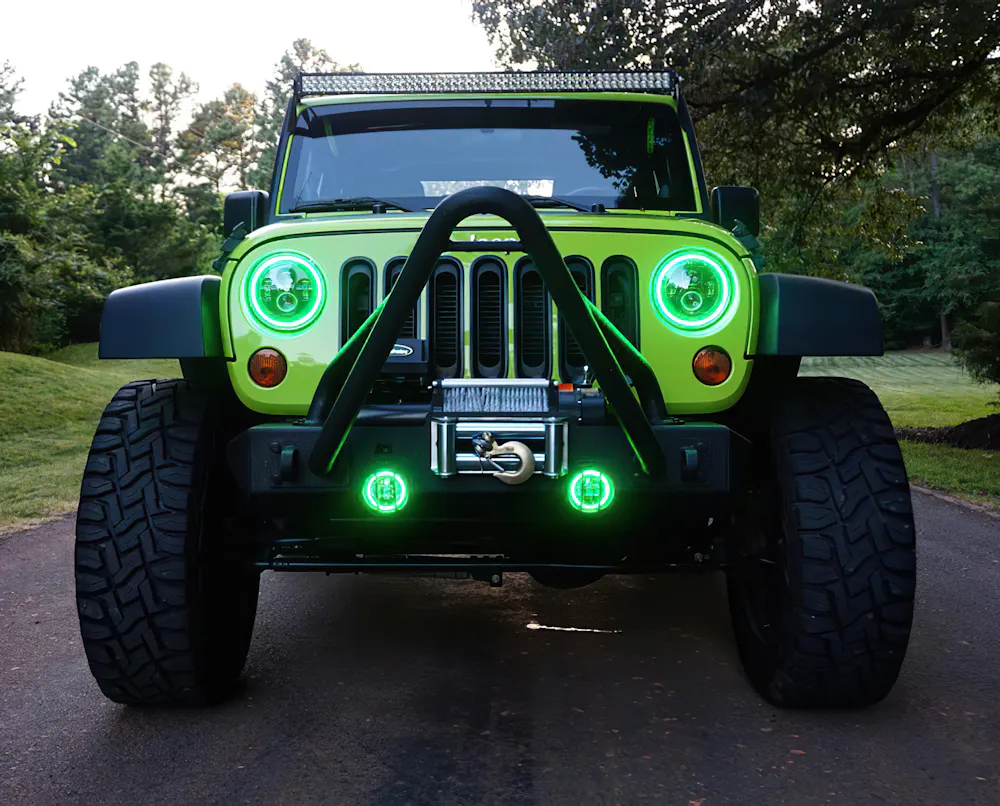

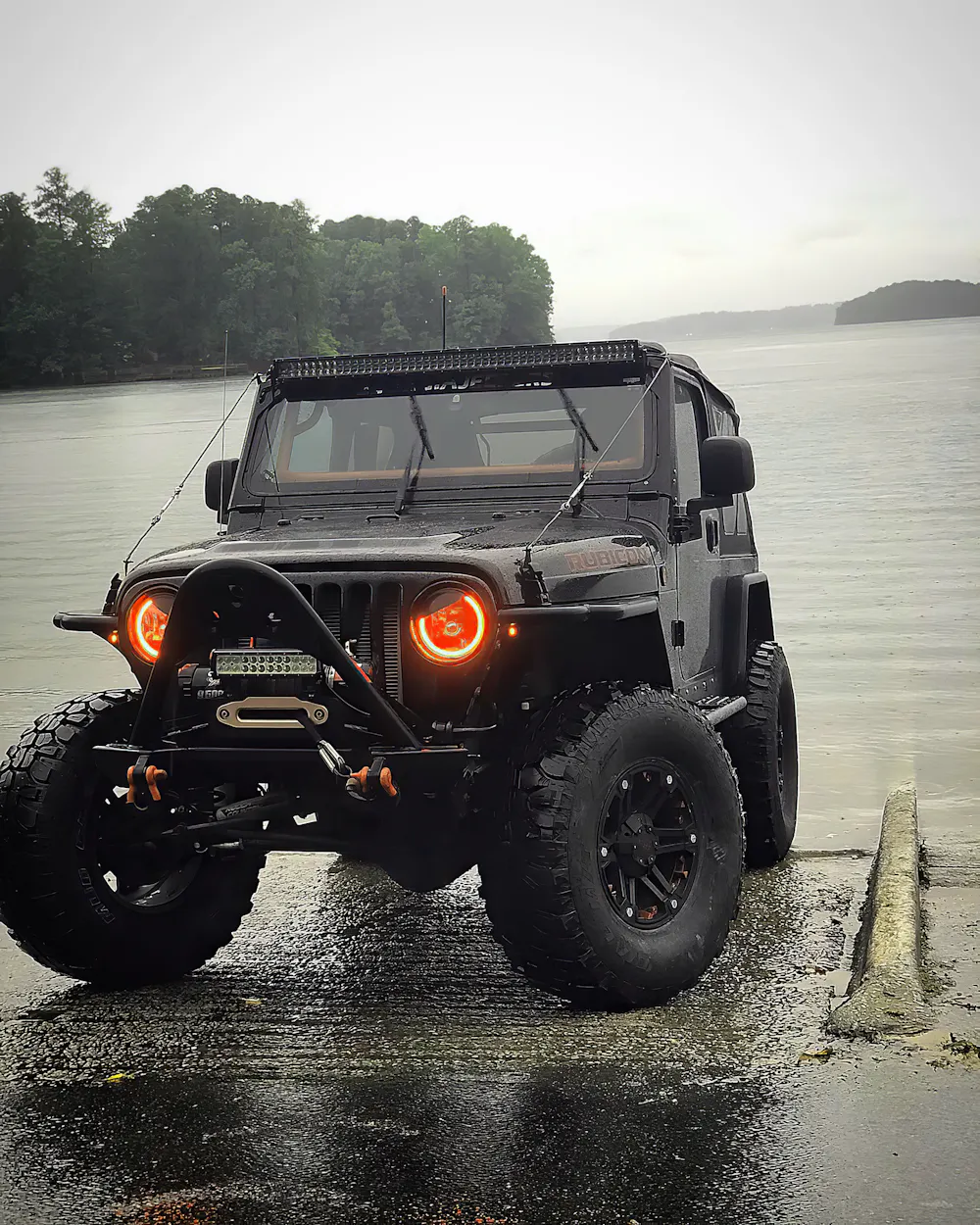

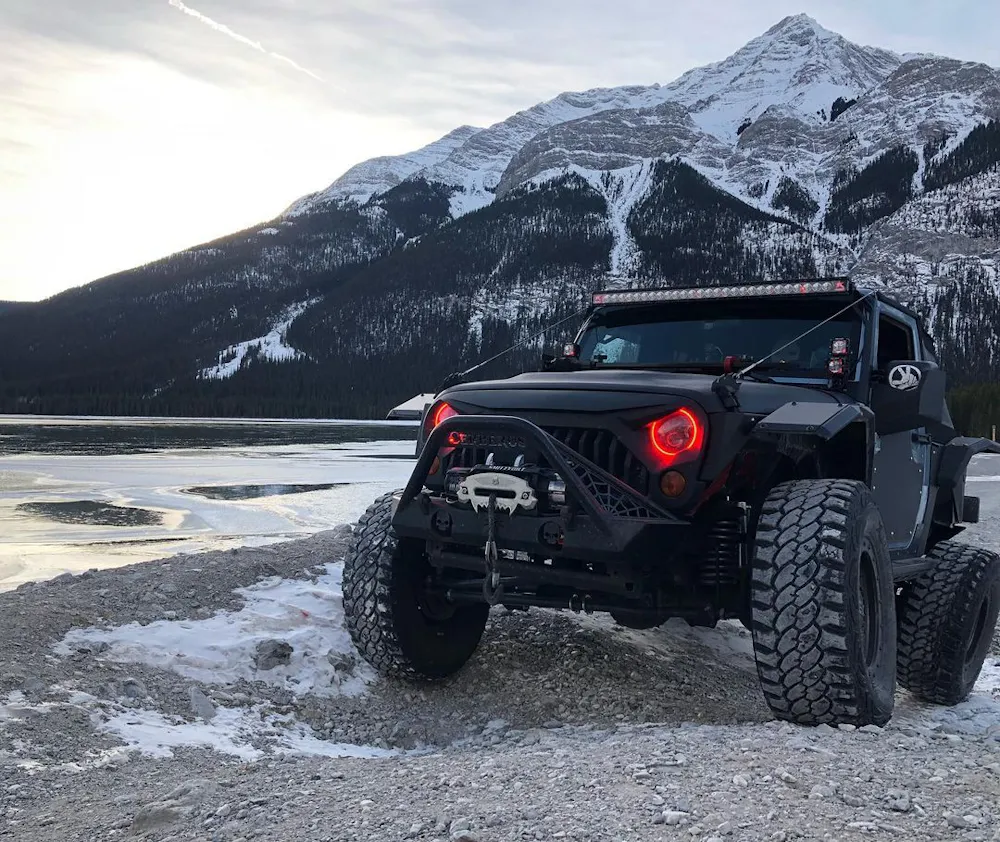

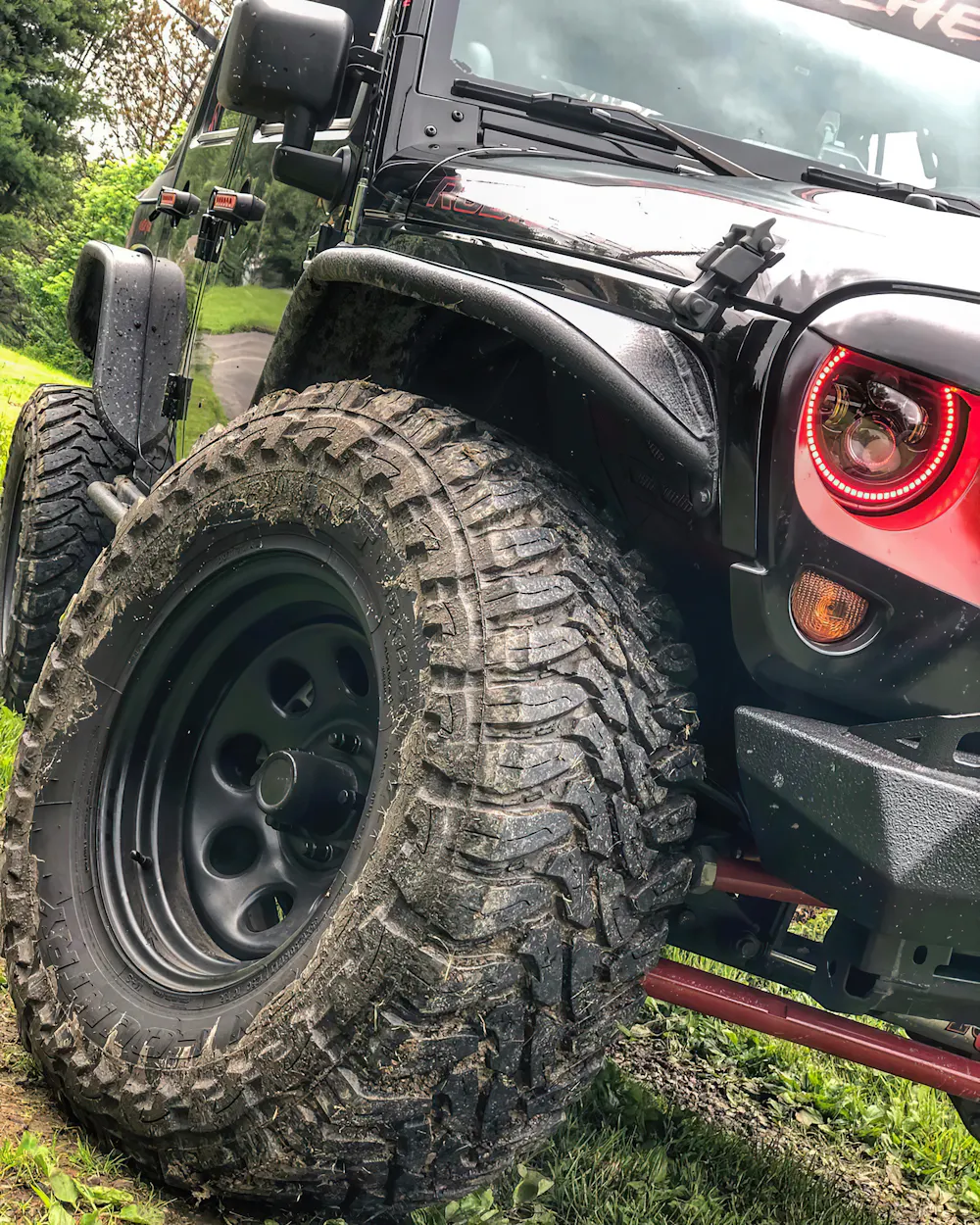

The Ultimate LED replacement headlight option for any vehicle with 7" Sealed Beam lamps. The rugged design is perfect for your Jeep Wrangler, Off-Road Vehicle, Buggies, or Classic Car/ Truck. Installation is very easy with the included H4 and H13 Plug and Play connectors. Each set comes in full color retail-ready packaging and a 2-Year free Replacement Warranty. You can even choose optional colored Halos for even more customization! Improvements in brightness and reliability by adding a constant current LED driver to the main circuit board inside of the lamp to control the halos. NEW! No need for Anti-Flicker Wiring Adapters- The new SMART Integrated Can-Bus system automatically adjusts- preventing flicker issues. Increased Reliability- By conditioning the power going into the LEDs this prevents degradation which can shorten the overall lifespan of the product. Wider Input Voltage Range- The new SMD Halos can operate on a very wide voltage range from 12V-24V so that voltage spike can not damage the LEDs. Brighter LED Halos- by moving the heat load of the resistors off the PCB we are able to increase the number of LEDs on the circuit board without thermal issues. LED chips upgraded from a Cree LED to a Phillips Luxeon ZES chip. They deliver a very high efficacy 130LM/W ratio while having lower thermal output.

Features & benefits

  • Premium Performance Phillips Luxeon ZES LEDs

Information

ColorSHIFT(r) - w/No Controller

Application summary

Year Make / model
1955-1957 Chevrolet Bel Air
1969-1974 Chevrolet Blazer
1960-1974 Chevrolet C10 Pickup
1967-1979 Chevrolet C10 Suburban
1967-1969 Chevrolet Camaro
1969-1979 Chevrolet Nova
1975-1979 Dodge D100
1968-1974 Dodge D100 Pickup
1960-1967 Dodge D100 Series
1977-1979 Dodge D150
1975-1979 Dodge D200
1968-1974 Dodge D200 Pickup
1960-1967 Dodge D200 Series
1975-1979 Dodge D300
1968-1974 Dodge D300 Pickup
1960-1967 Dodge D300 Series
1963 Dodge D400
1978-1979 Dodge D400
1978-1979 Dodge D450
1979 Dodge D50
1962-1971 Dodge D500
1961-1971 Dodge D600
1962-1971 Dodge D700
1970-1976 Dodge Dart
1950-1959 Dodge Power Wagon
1966-1978 Ford Bronco
1969-1974 Ford E-100 Econoline
1969-1974 Ford E-200 Econoline
1969-1974 Ford E-300 Econoline
1961-1967 Ford Econoline
1953-1977 Ford F-100
1975-1977 Ford F-150
1953-1977 Ford F-250
1953-1977 Ford F-350
1964-1973 Ford Mustang
1955-1957 Ford Thunderbird
1961-1974 Jaguar XKE
1959-1983 Jeep CJ5
1976-1986 Jeep CJ7
1962-1969 Jeep Gladiator
1981-1986 Jeep Scrambler
1987-1995 Jeep Wrangler
1997-2017 Jeep Wrangler
2018 Jeep Wrangler JK
1960-1987 Toyota Land Cruiser
1979-1981 Toyota Pickup
1950-1979 Volkswagen Beetle
1968-1974 Volkswagen Campmobile
1955-1974 Volkswagen Karmann Ghia
1973-1974 Volkswagen Thing

Specifications

GTIN
00810030390466
Weight
6 lb
Height
5 in
Length
16 in
Width
10 in
Life cycle
Available to Order
AAM brand code
ORL
Warehouse brand code
FQCV
AAIA brand code
FQCV

Attributes

Add-On
N/A
Amp Draw
2.50 Amps at 12V DC / 1.30 Amps at 24V DC
Amperage Rating
2.5
Average Rated Life
60000
Ballast Included
No
Beam Type
High Beam Low Beam
Bezel Color
Black
Brightness
3600
Bulb Color
6,000K
Bulb Quantity
4
Bulb Technology
LED
Bulb Type
H4/H13
Bulbs Included
Yes
California Proposition 65
WARNING: Cancer - www.P65Warnings.ca.gov
Color
ColorSHIFT No Controller
Color Temperature
6000K
Controller
ColorSHIFT - No Controller
Department of Transportation Approved
Yes
Headlight Type
Sealed Beam
High Beam Lumens
3600
High Beam Wattage
48
Housing Color
Black
Housing Material
Cast Aluminum
Input Voltage of light
12-24V DC
Kelvin Temperature
6000K
LED Color
ColorSHIFT
Lens Color
Clear
Lens Material
PC (Polycarbonate)
Low Beam Lumens
2200
Low Beam Wattage
30W Normal/36W Max
Mounting Hardware Included
No
Secondary Amperage Rating
1.3
Street Legal
Yes
Terminal Type
Blade
Title
5769-334 - ORACLE 7in. High Powered LED Headlights - Black Bezel
Voltage
12
Warranty
2 Year
Wattage
48

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

1955-1957 Chevrolet Bel Air; 1969-1974 Chevrolet Blazer; 1960-1974 Chevrolet C10 Pickup; 1967-1979 Chevrolet C10 Suburban; 1967-1969 Chevrolet Camaro; 1969-1979 Chevrolet Nova; 1975-1979 Dodge D100; 1968-1974 Dodge D100 Pickup; 1960-1967 Dodge D100 Series; 1977-1979 Dodge D150; 1975-1979 Dodge D200; 1968-1974 Dodge D200 Pickup; 1960-1967 Dodge D200 Series; 1975-1979 Dodge D300; 1968-1974 Dodge D300 Pickup; 1960-1967 Dodge D300 Series; 1963 Dodge D400; 1978-1979 Dodge D400; 1978-1979 Dodge D450; 1979 Dodge D50; 1962-1971 Dodge D500; 1961-1971 Dodge D600; 1962-1971 Dodge D700; 1970-1976 Dodge Dart; 1950-1959 Dodge Power Wagon; 1966-1978 Ford Bronco; 1969-1974 Ford E-100 Econoline; 1969-1974 Ford E-200 Econoline; 1969-1974 Ford E-300 Econoline; 1961-1967 Ford Econoline; 1953-1977 Ford F-100; 1975-1977 Ford F-150; 1953-1977 Ford F-250; 1953-1977 Ford F-350; 1964-1973 Ford Mustang; 1955-1957 Ford Thunderbird; 1961-1974 Jaguar XKE; 1959-1983 Jeep CJ5; 1976-1986 Jeep CJ7; 1962-1969 Jeep Gladiator; 1981-1986 Jeep Scrambler; 1987-1995 Jeep Wrangler; 1997-2017 Jeep Wrangler; 2018 Jeep Wrangler JK; 1960-1987 Toyota Land Cruiser; 1979-1981 Toyota Pickup; 1950-1979 Volkswagen Beetle; 1968-1974 Volkswagen Campmobile; 1955-1974 Volkswagen Karmann Ghia; 1973-1974 Volkswagen Thing
