Oracle Lighting / 5769-330

Oracle Lighting 5769-330

Part #: 5769-330
UPC: 810030390442

Loading...
Notify me when this item is in stock.

Brand: Oracle Lighting Series: High Powered LED Headlights

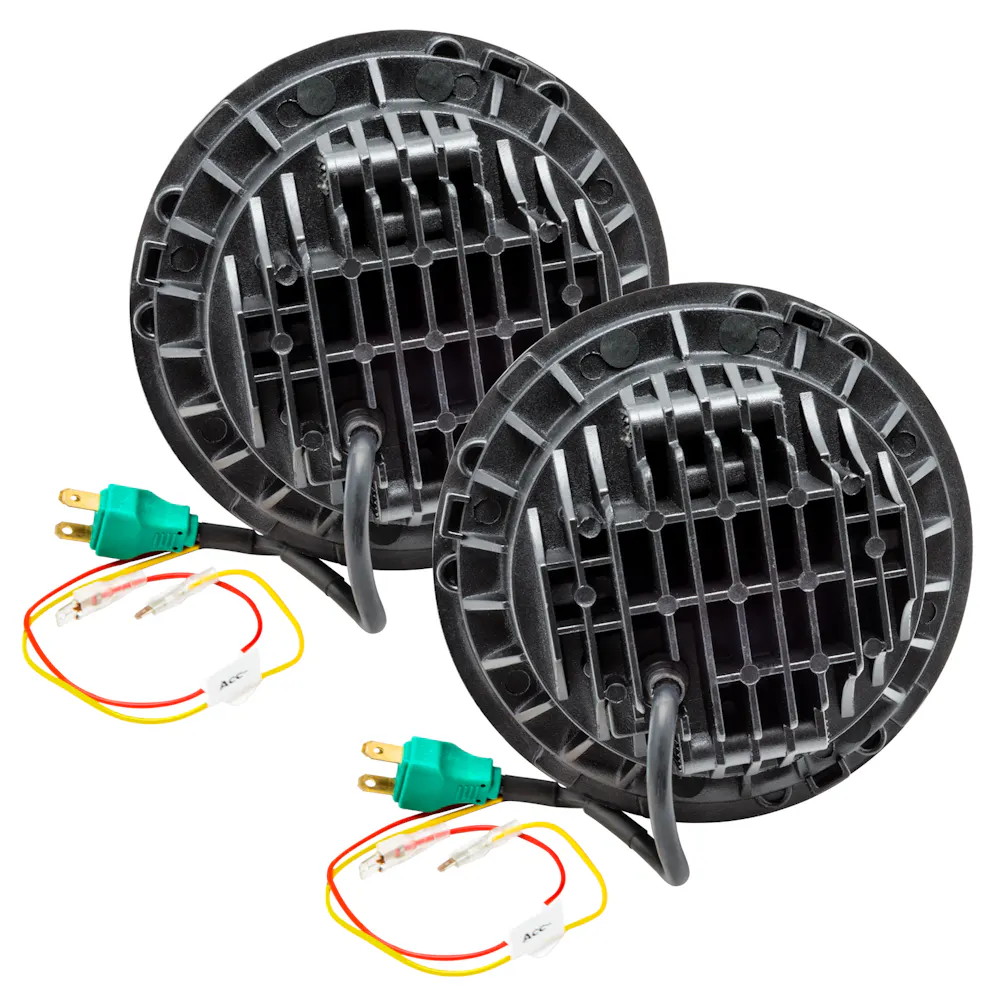

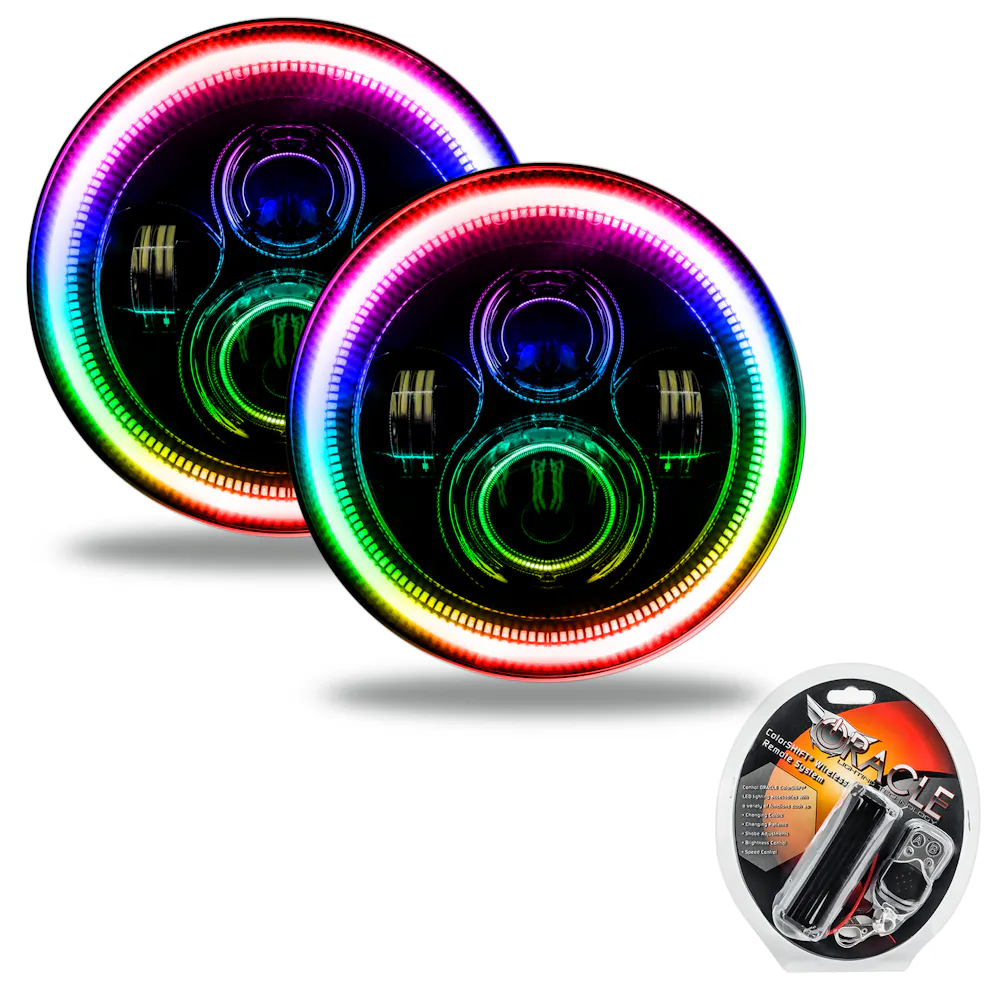

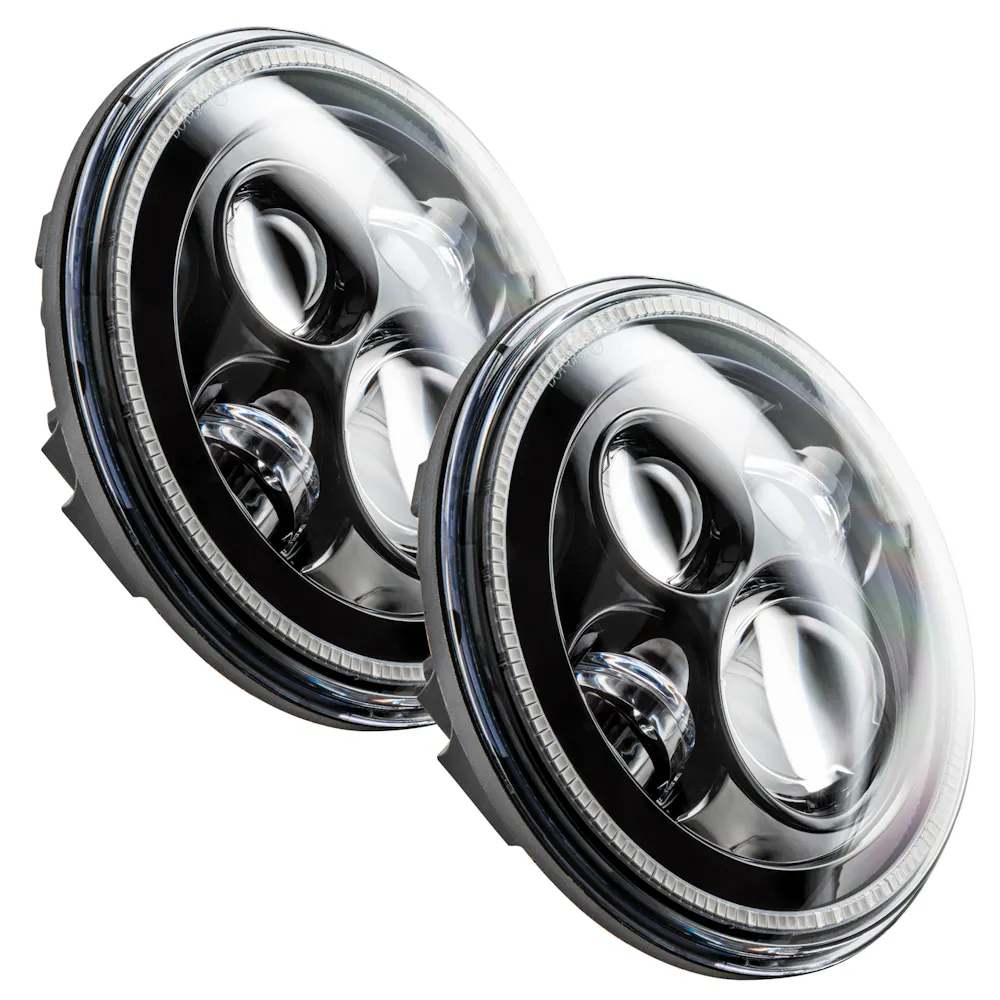

Description: 7" High Powered LED Headlights - Black Bezel - ColorSHIFT - w/RF Controller; The new Integrated Can-Bus system automatically adjusts to prevent flicker issues. The kit comes with H4 and H13 plug and play connectors for simple installation.

Description:

pro mess
Log in to order
Proposition 65 WarningCancer - www.P65Warnings.ca.gov

Description

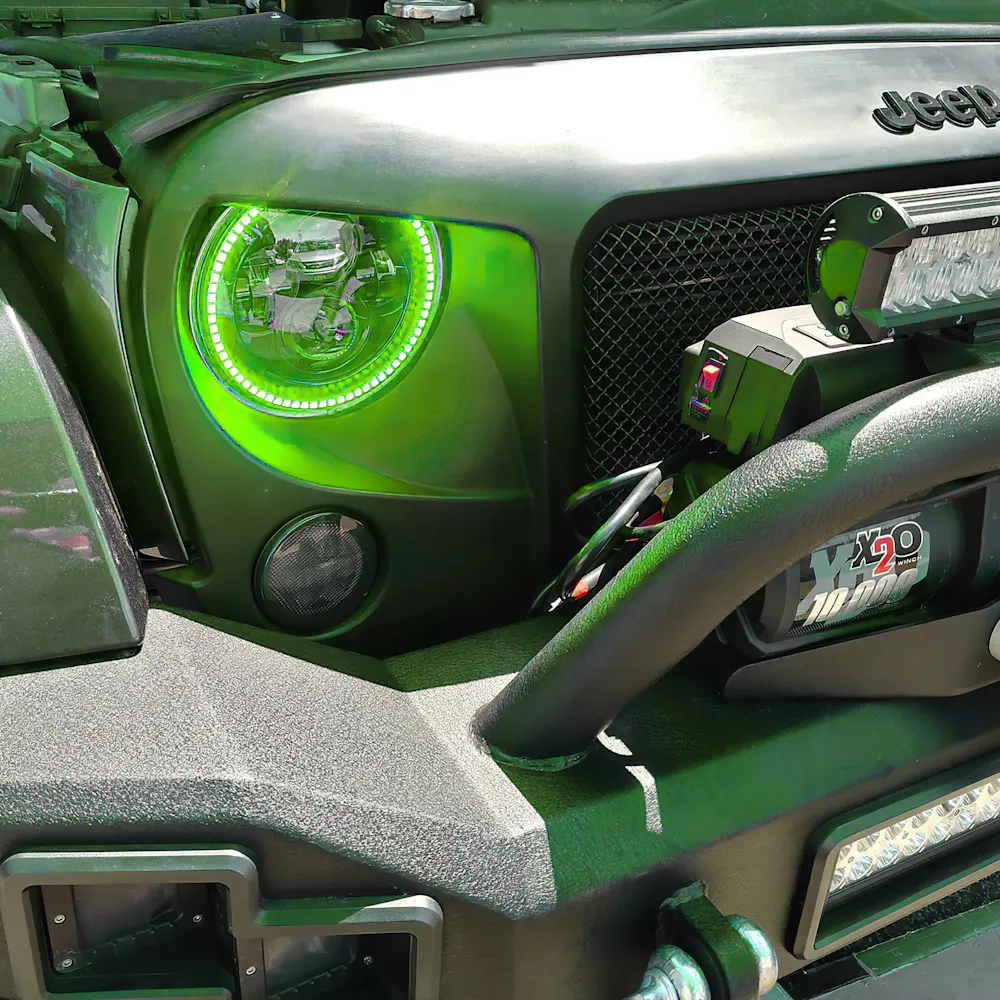

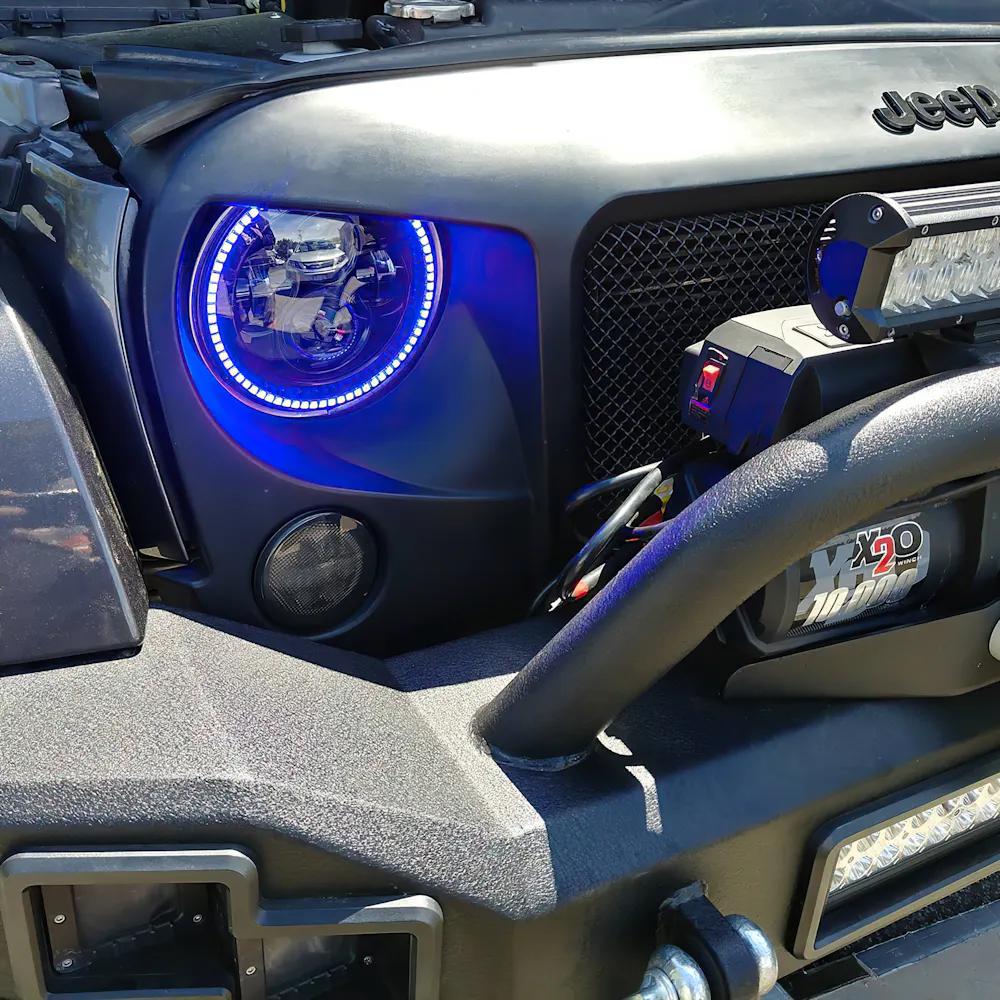

The Ultimate LED replacement headlight option for any vehicle with 7" Sealed Beam lamps. The rugged design is perfect for Off-Roaders, Buggies, or any Classic Wheeler! Installation is very easy with the included H4 and H13 Plug and Play connectors. The kit even includes a set of H13 plugs with built-in warning cancelers at no additional charge! Each set comes in full color retail-ready packaging and a 2-Year free Replacement Warranty. You can even choose from a dozen Halo colors for even more customization! D.O.T. and SAE Certified.

Features & benefits

  • Premium Performance Phillips Luxeon ZES LEDs

Information

ColorSHIFT(R) - w/RF Controller

Application summary

Year Make / model
1955-1957 Chevrolet Bel Air
1969-1974 Chevrolet Blazer
1960-1974 Chevrolet C10 Pickup
1967-1979 Chevrolet C10 Suburban
1967-1969 Chevrolet Camaro
1969-1979 Chevrolet Nova
1975-1979 Dodge D100
1968-1974 Dodge D100 Pickup
1960-1967 Dodge D100 Series
1977-1979 Dodge D150
1975-1979 Dodge D200
1968-1974 Dodge D200 Pickup
1960-1967 Dodge D200 Series
1975-1979 Dodge D300
1968-1974 Dodge D300 Pickup
1960-1967 Dodge D300 Series
1963 Dodge D400
1978-1979 Dodge D400
1978-1979 Dodge D450
1979 Dodge D50
1962-1971 Dodge D500
1961-1971 Dodge D600
1962-1971 Dodge D700
1970-1976 Dodge Dart
1950-1959 Dodge Power Wagon
1966-1978 Ford Bronco
1969-1974 Ford E-100 Econoline
1969-1974 Ford E-200 Econoline
1969-1974 Ford E-300 Econoline
1961-1967 Ford Econoline
1953-1977 Ford F-100
1975-1977 Ford F-150
1953-1977 Ford F-250
1953-1977 Ford F-350
1964-1973 Ford Mustang
1955-1957 Ford Thunderbird
1961-1974 Jaguar XKE
1959-1983 Jeep CJ5
1976-1986 Jeep CJ7
1962-1969 Jeep Gladiator
1981-1986 Jeep Scrambler
1987-1995 Jeep Wrangler
1997-2017 Jeep Wrangler
2018 Jeep Wrangler JK
1960-1987 Toyota Land Cruiser
1979-1981 Toyota Pickup
1950-1979 Volkswagen Beetle
1968-1974 Volkswagen Campmobile
1955-1974 Volkswagen Karmann Ghia
1973-1974 Volkswagen Thing

Specifications

GTIN
00810030390442
Weight
6 lb
Height
5 in
Length
16 in
Width
10 in
Life cycle
Available to Order
AAM brand code
ORL
Warehouse brand code
FQCV
AAIA brand code
FQCV

Attributes

Add-On
N/A
Amp Draw
2.50 Amps at 12V DC / 1.30 Amps at 24V DC
Amperage Rating
2.5
Average Rated Life
60000
Ballast Included
No
Beam Type
High Beam Low Beam
Bezel Color
Black
Brightness
3600
Bulb Color
6,000K
Bulb Quantity
4
Bulb Technology
LED
Bulb Type
H4/H13
Bulbs Included
Yes
California Proposition 65
WARNING: Cancer - www.P65Warnings.ca.gov
Color
ColorSHIFT
Department of Transportation Approved
Yes
Headlight Type
Sealed Beam
High Beam Lumens
3600
High Beam Wattage
48
Housing Color
Black
Housing Material
Cast Aluminum
Input Voltage of light
12-24V DC
LED Color
ColorSHIFT
Lens Color
Clear
Lens Material
PC (Polycarbonate)
Low Beam Lumens
2200
Mounting Hardware Included
No
Secondary Amperage Rating
1.3
Street Legal
Yes
Terminal Type
Blade
Title
5769-330 - ORACLE 7in. High Powered LED Headlights - Black Bezel
Voltage
12
Warranty
2 Year
Wattage
48

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

1955-1957 Chevrolet Bel Air; 1969-1974 Chevrolet Blazer; 1960-1974 Chevrolet C10 Pickup; 1967-1979 Chevrolet C10 Suburban; 1967-1969 Chevrolet Camaro; 1969-1979 Chevrolet Nova; 1975-1979 Dodge D100; 1968-1974 Dodge D100 Pickup; 1960-1967 Dodge D100 Series; 1977-1979 Dodge D150; 1975-1979 Dodge D200; 1968-1974 Dodge D200 Pickup; 1960-1967 Dodge D200 Series; 1975-1979 Dodge D300; 1968-1974 Dodge D300 Pickup; 1960-1967 Dodge D300 Series; 1963 Dodge D400; 1978-1979 Dodge D400; 1978-1979 Dodge D450; 1979 Dodge D50; 1962-1971 Dodge D500; 1961-1971 Dodge D600; 1962-1971 Dodge D700; 1970-1976 Dodge Dart; 1950-1959 Dodge Power Wagon; 1966-1978 Ford Bronco; 1969-1974 Ford E-100 Econoline; 1969-1974 Ford E-200 Econoline; 1969-1974 Ford E-300 Econoline; 1961-1967 Ford Econoline; 1953-1977 Ford F-100; 1975-1977 Ford F-150; 1953-1977 Ford F-250; 1953-1977 Ford F-350; 1964-1973 Ford Mustang; 1955-1957 Ford Thunderbird; 1961-1974 Jaguar XKE; 1959-1983 Jeep CJ5; 1976-1986 Jeep CJ7; 1962-1969 Jeep Gladiator; 1981-1986 Jeep Scrambler; 1987-1995 Jeep Wrangler; 1997-2017 Jeep Wrangler; 2018 Jeep Wrangler JK; 1960-1987 Toyota Land Cruiser; 1979-1981 Toyota Pickup; 1950-1979 Volkswagen Beetle; 1968-1974 Volkswagen Campmobile; 1955-1974 Volkswagen Karmann Ghia; 1973-1974 Volkswagen Thing
