Oracle Lighting / 5769-123

View More

Part #: 5769-123
UPC: 810030392538

Loading availability... Loading...

Notify me when this item is in stock.

Brand: Oracle Lighting Series: Switchback LED Halo Headlights

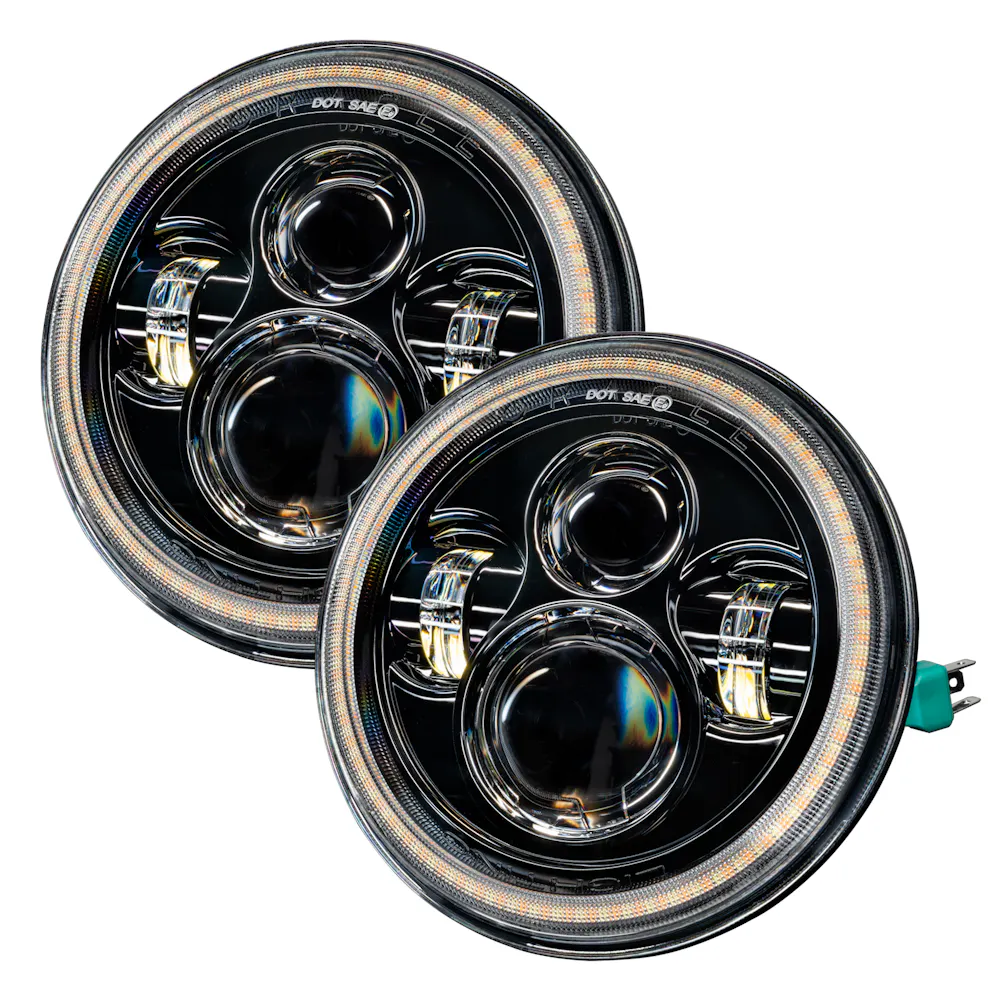

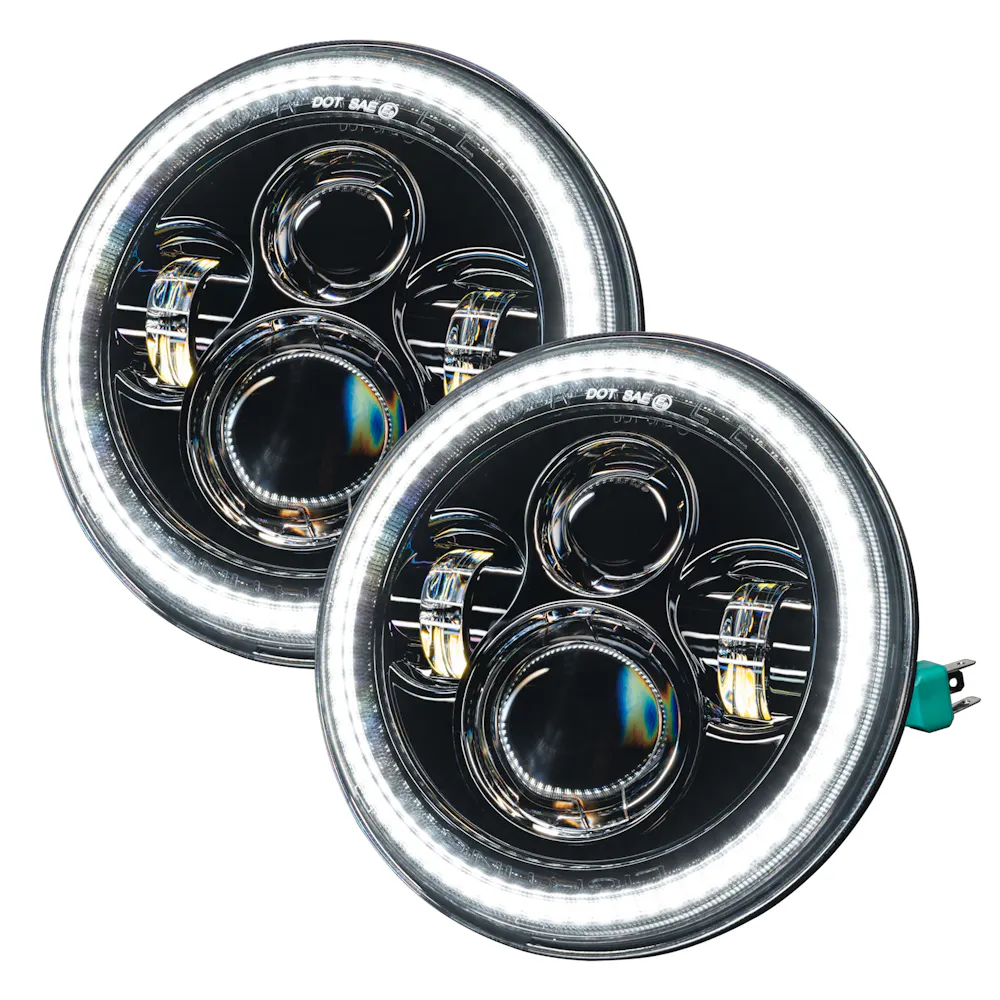

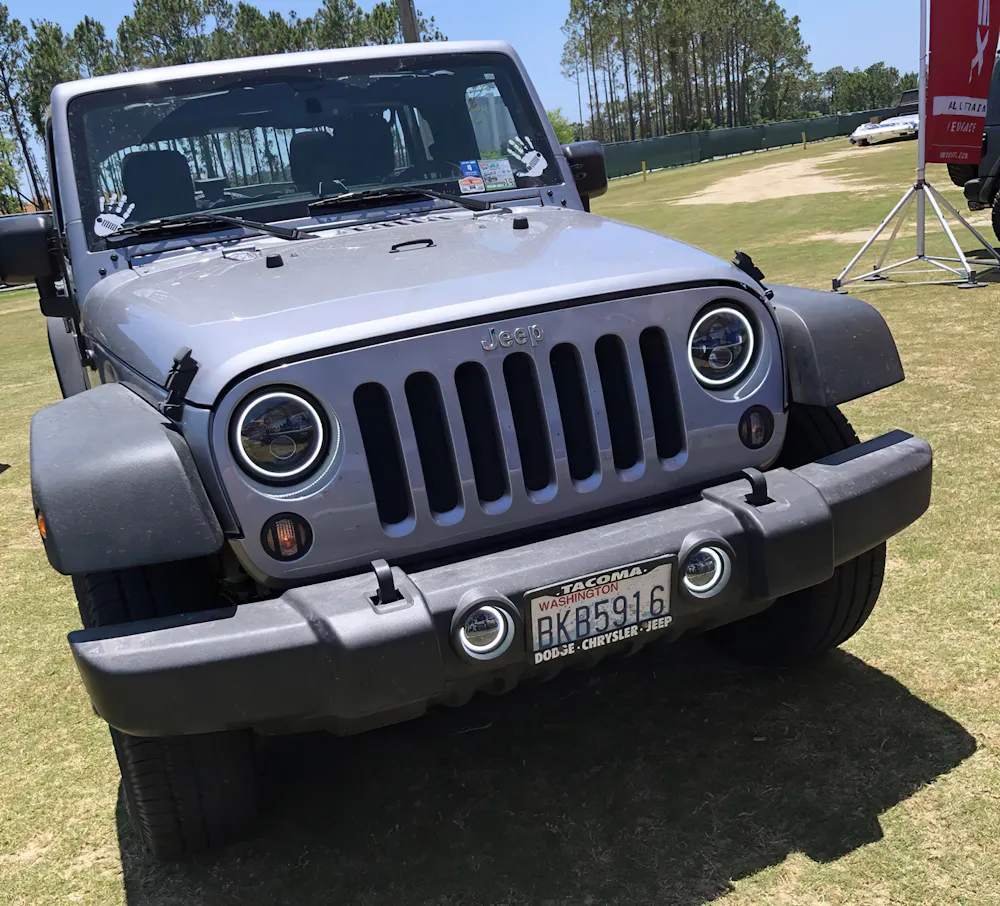

Description: ORACLE Lighting 2007-2018 Jeep Wrangler JK Switchback LED Halo Headlights

pro mess

Cancer - www.P65Warnings.ca.gov

Description

The Ultimate LED replacement Halo Headlight for the Jeep Wrangler JK NOW with an Integrated Amber Switchback Turn Signal! Increase night time visibility with high-quality LED illumination focused through advanced precision optics. Upgraded internal LED driver components allow the LED Low Beam to work with your JK Wrangler without the use of "flicker" adapters or other additional devices. Latest Improvements include: Improvements in brightness and reliability by adding a constant current LED driver to the main circuit board. Increased Reliability of the overall lifespan of the LEDS. Wider Input Voltage Range: The new SMD Halos can operate on a very wide voltage range from 12V-24V so that voltage spike can not damage the LEDs. Brighter/ More Even Light- by moving the heat load of the resistors off the PCB we are able to increase the number of LEDs on the circuit board without thermal issues. LED chips upgraded from a Cree LED to a Phillips Luxeon ZES chip.

Features & benefits

Wide Beam Pattern with Sharp Cut-Off Line

Information

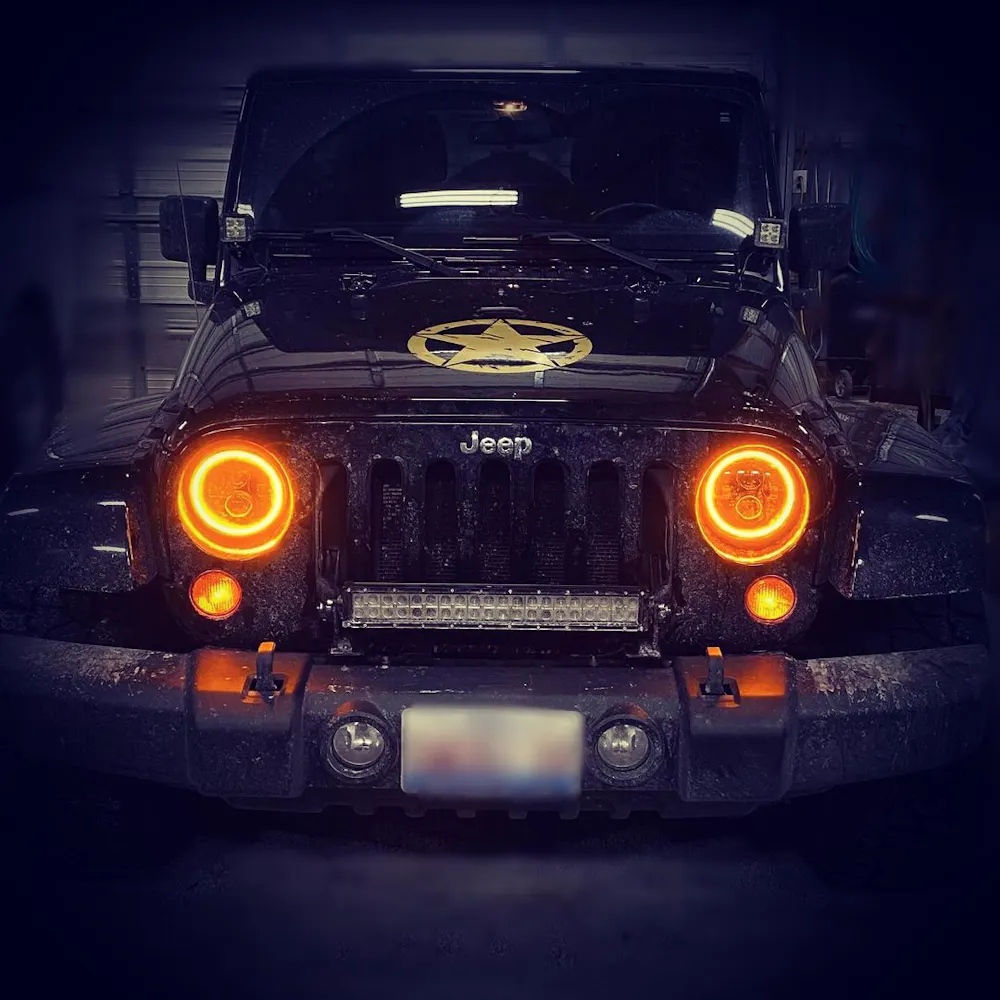

Amber/White - Switchback

Application summary

Year	Make / model
2007-2017	Jeep Wrangler
2018	Jeep Wrangler JK

Specifications

GTIN: 00810030392538
Weight: 6 lb
Height: 5 in
Length: 16 in
Width: 10 in
Life cycle: Available to Order
AAM brand code: ORL
Warehouse brand code: FQCV
AAIA brand code: FQCV

Attributes

Add-On: N/A
Amp Draw: 2.50 Amps at 12V DC / 1.30 Amps at 24V DC
Amperage Rating: 2.5
Average Rated Life: 60000
Ballast Included: No
Beam Type: High Beam Low Beam
Bezel Color: Black
Brightness: 3600
Bulb Color: 6,000K
Bulb Quantity: 4
Bulb Technology: LED
Bulb Type: H4/H13
Bulbs Included: Yes
California Proposition 65: WARNING: Cancer - www.P65Warnings.ca.gov
Color: Amber/White Switchback
Color Temperature: 6000K

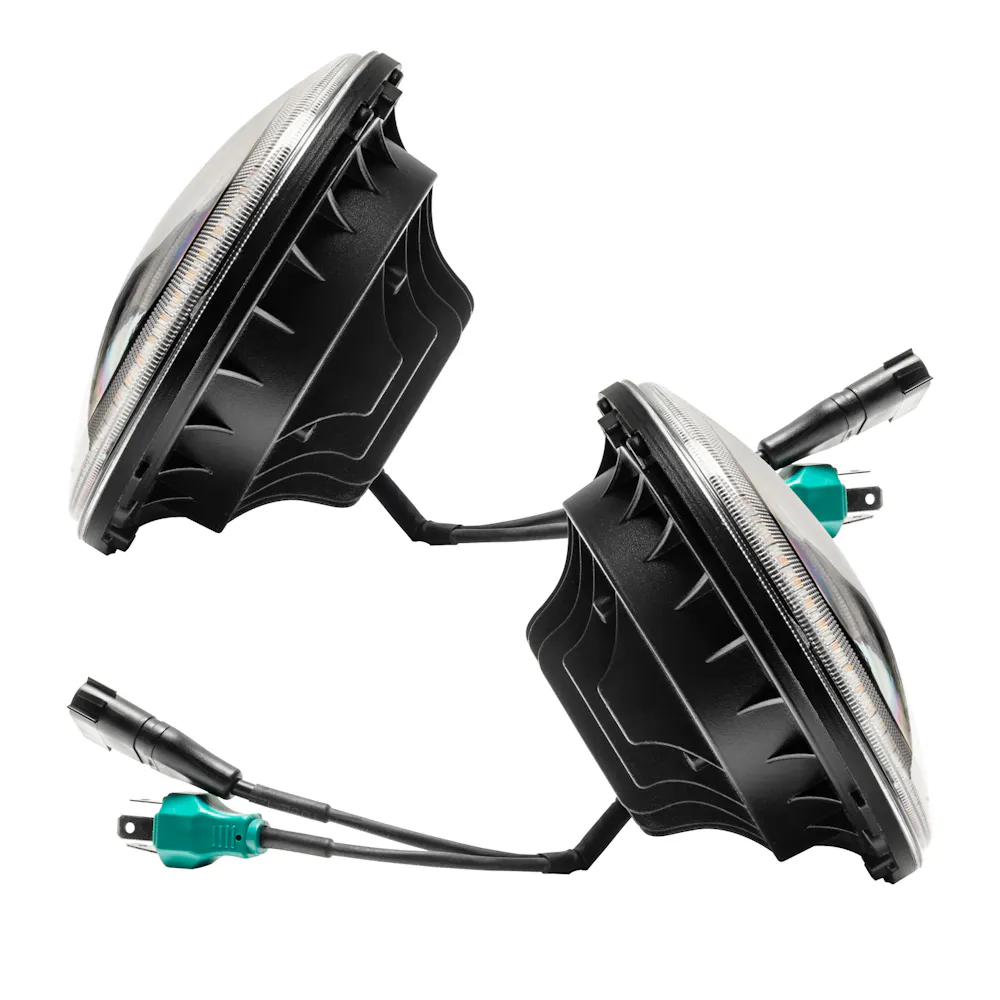

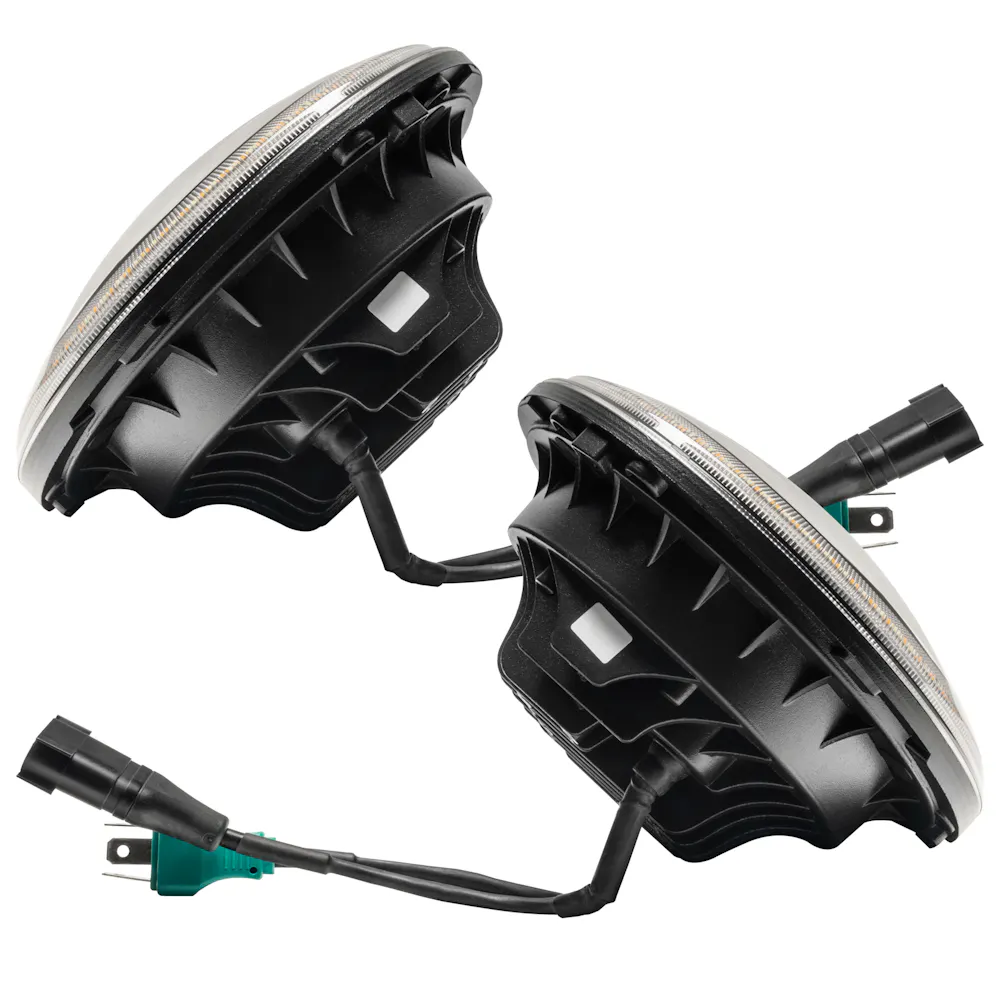

Contents: (2x) ORACLE 7 in. High Powered LED Headlights - Black Bezel, (2x) Plug & Play Wiring Adapters
Department of Transportation Approved: Yes
Headlight Type: Sealed Beam
High Beam Lumens: 3600
High Beam Wattage: 48
Housing Color: Black
Housing Material: Cast Aluminum
Input Voltage: 12V - 24V DC
Kelvin Temperature: 6000K
LED Color: White/Amber
Lens Color: Clear
Lens Material: PC (Polycarbonate)
Low Beam Lumens: 2200
Low Beam Wattage: 30W Normal/36W Max
Mounting Hardware Included: No
Secondary Amperage Rating: 1.3
Street Legal: Yes
Terminal Type: Blade
Title: 5769-023 - ORACLE 2007-2018 Jeep Wrangler JK Switchback LED Halo Headlights
Voltage: 12
Warranty: 2 Year
Wattage: 48 W
