Oracle Lighting · 2070-504
Part #: 2070-504
UPC: 207050420158
Log in for inventory
Notify me when this item is in stock.
pro mess
Description: LED Light Bar Deluxe Rocker Switch - Black; Switch mounts into industry standard panel cutouts and includes rubber mounting gasket. Switch is watertight sealed for various uses.
Description:
Description

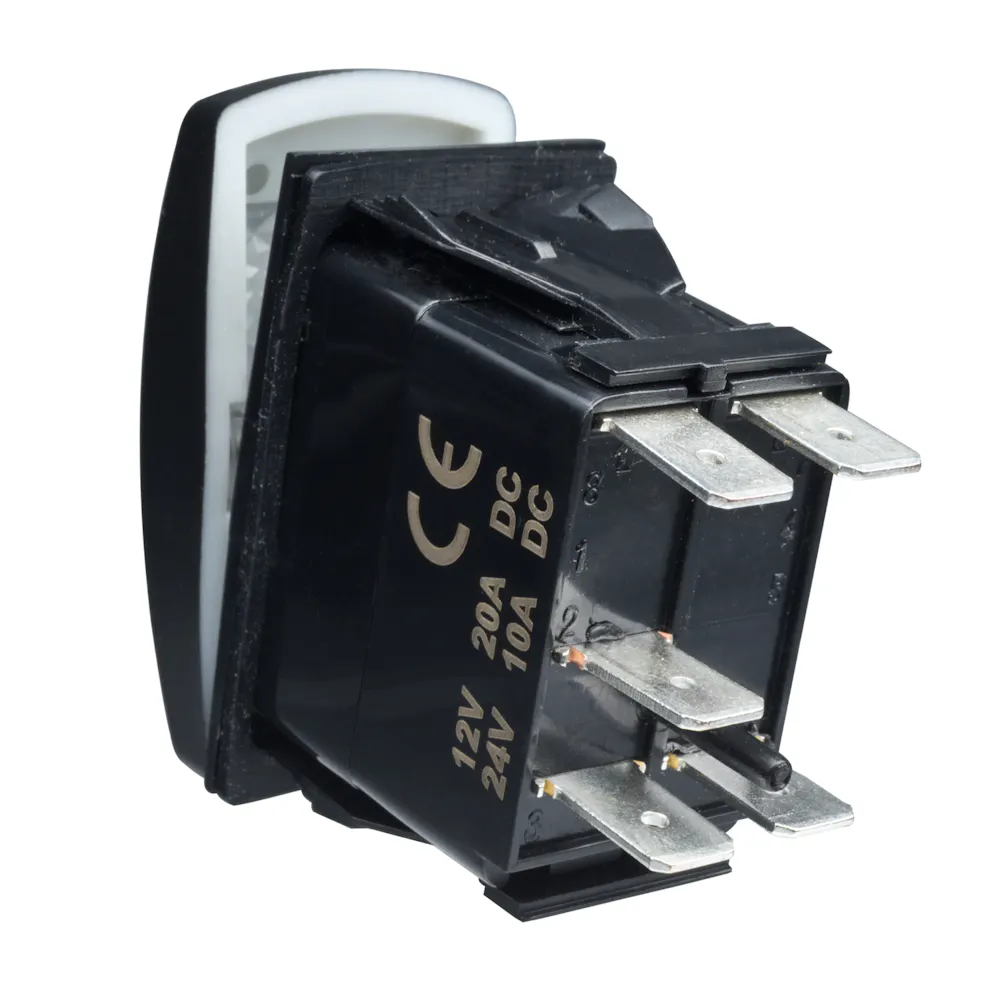

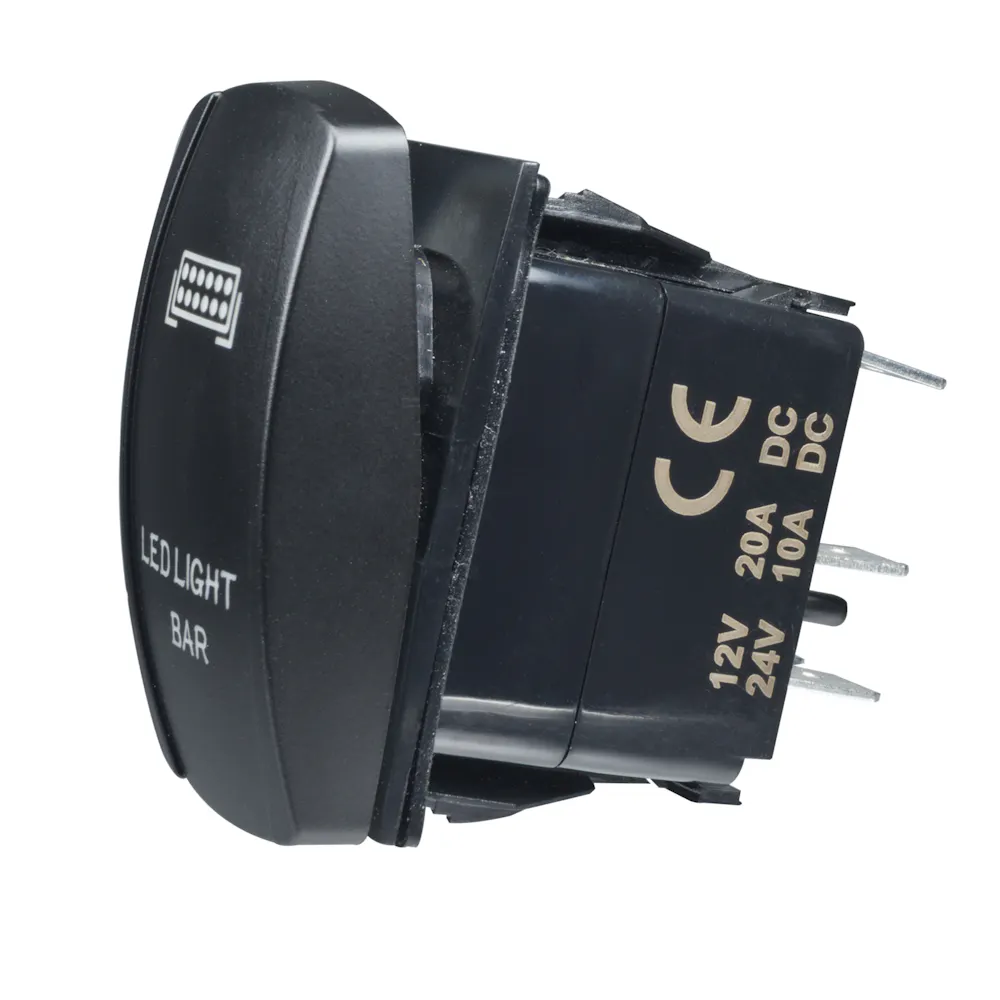

Control your ORACLE Off-Road LED Lights with a simple click! This rocker switch is designed for severe and demanding applications found in off-road vehicles, industrial equipment, heavy equipment, and marine-craft. The lower text illuminates when deactivated, and upper text illuminates when activated. The ORACLE LED Light Bar Deluxe Rocker Switch mounts into industry standard panel cutouts and includes rubber mounting gasket. Product Features: Single Pole / Single Throw (SPST) ON/OFF. Watertight Sealed. Five 1/4" Male Contact Terminals - use Mating 1/4 inch. Female Push ON Connector: CFP-164. Switch Mounting Cutout: 0.830in. by 1.45in. Optimal Panel Thickness: 0.125in (0.030in min. - 0.187in max.) Current Rating: 20A @ 12V. Package Includes: 1 x ORACLE LED Light Bar Deluxe Rocker Switch.
Features & benefits
- Lower text illuminates when deactivated, and upper text illuminates when activated
Information
Black
Specifications
- GTIN
- 00207050420158
- Weight
- 1 lb
- Height
- 9 in
- Length
- 4 in
- Width
- 9 in
- Life cycle
- Available to Order
- AAM brand code
- ORL
- Warehouse brand code
- FQCV
- AAIA brand code
- FQCV
Attributes
- Add-On
- N/A
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Color
- Black
- Contents
- (1x) ORACLE LED Light Bar Deluxe Rocker Switch
- Current Rating
- 20A at 12V
- LED Color
- Black
- Switch Mounting Cutout
- 0.830in. X 1.45in
- Title
- 2070-504 - ORACLE LED Light Bar Deluxe Rocker Switch
Fitment status
This product is universal and will fit your application.
Oracle Lighting 2070-504
