Oracle Lighting · 2009-004
Part #: 2009-004
UPC: 200900420148
Log in for inventory
Notify me when this item is in stock.
pro mess

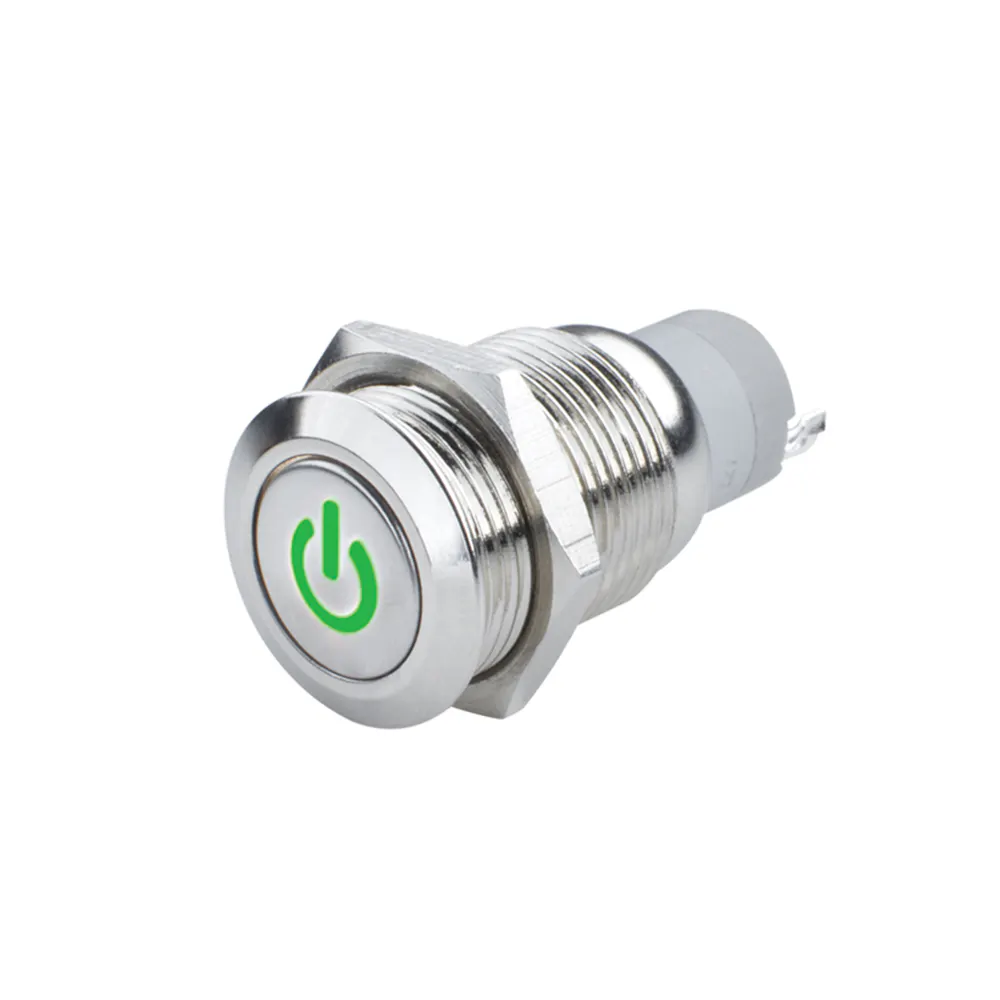

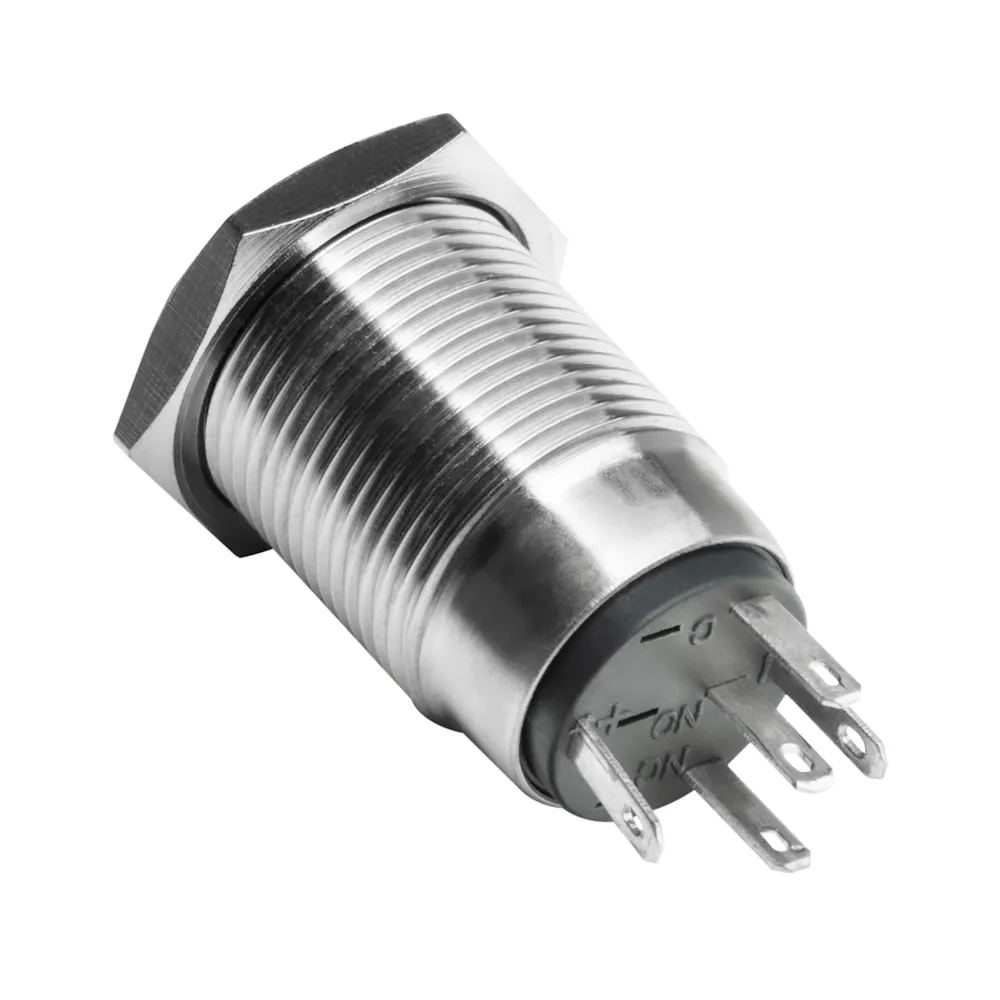

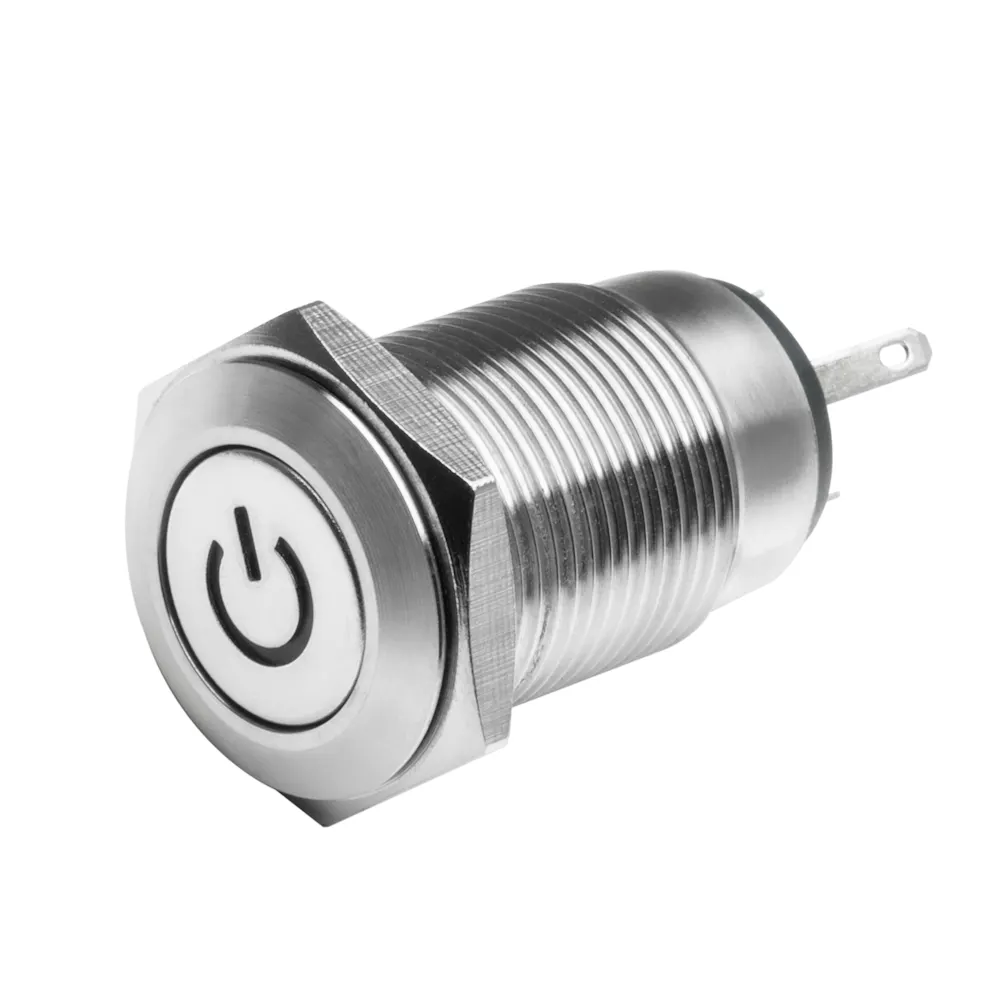

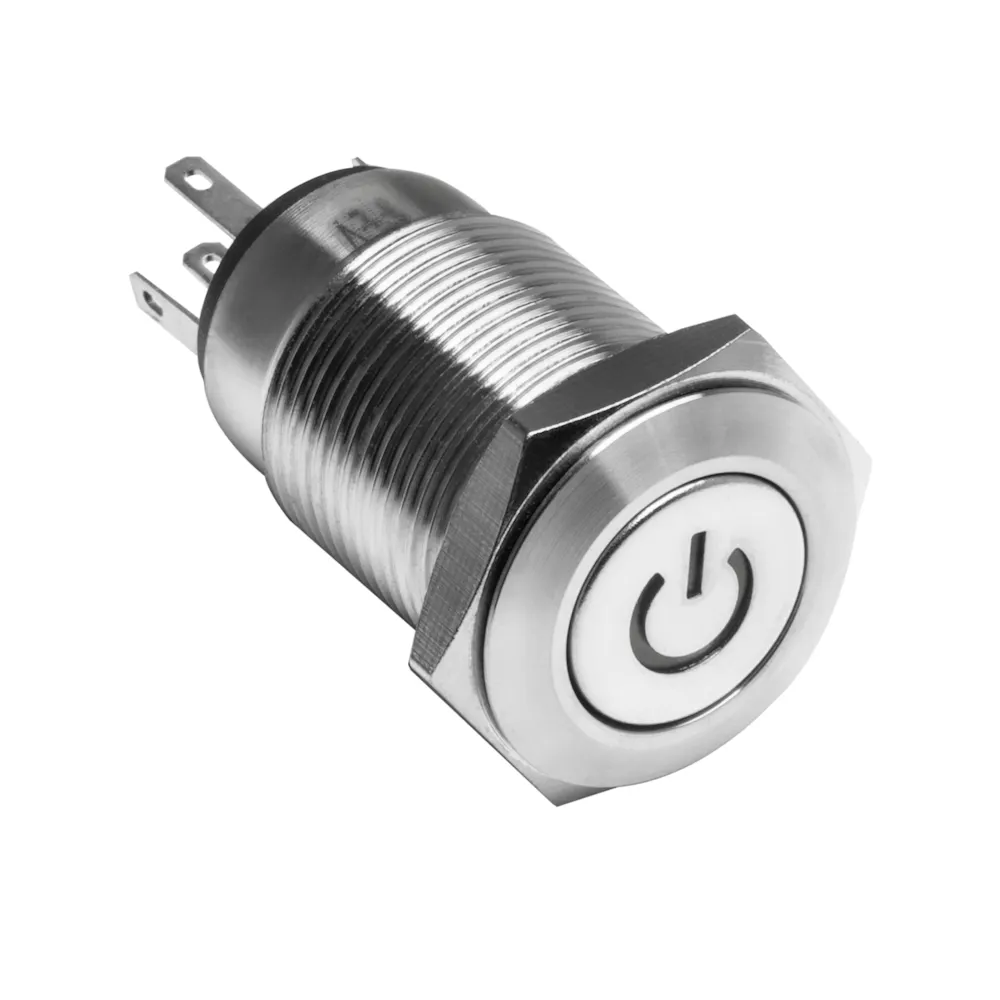

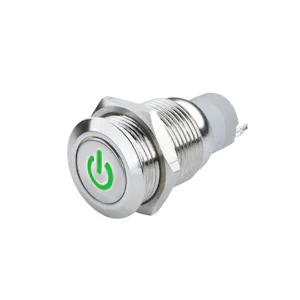

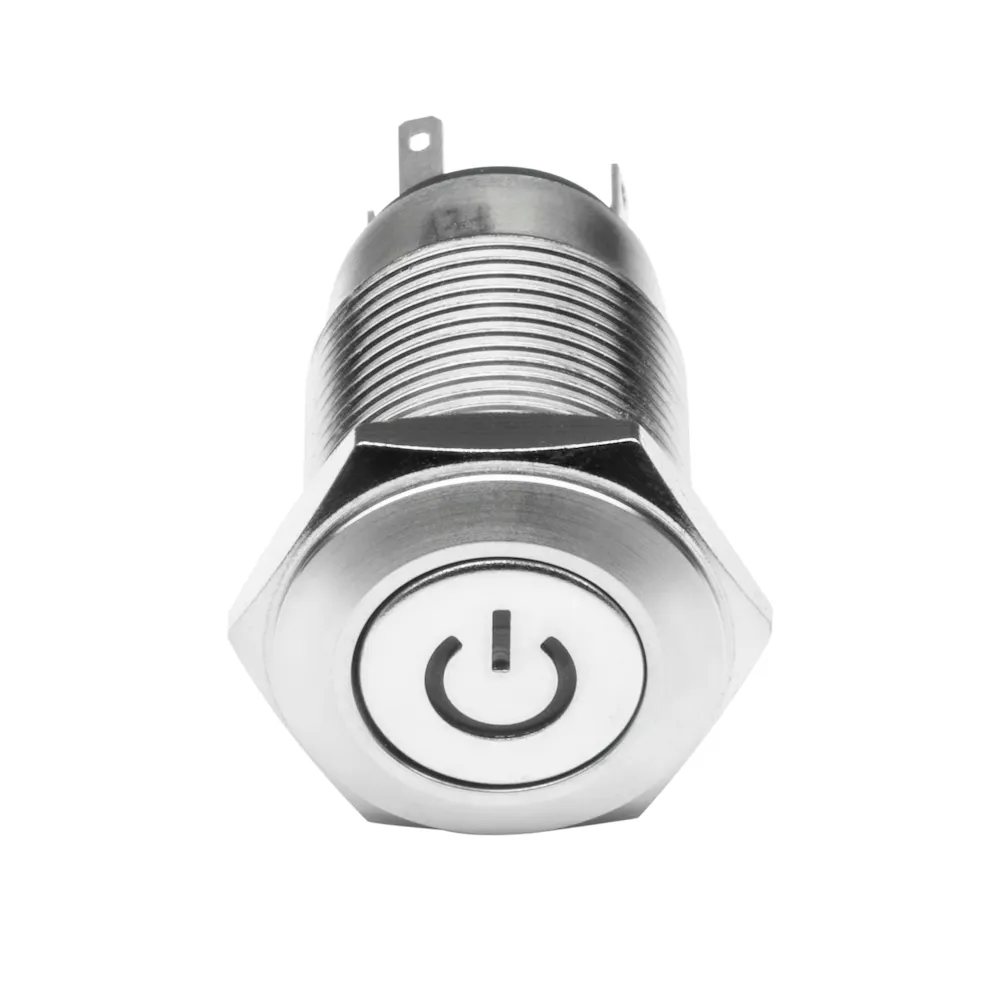

Description: Pre-Wired Power Symbol On/Off Flush Mount LED Switch - Green; The pre-wired switch is made with heavy duty brass and finished with a durable nickel plating. The metal housing provides a click you can feel when engaged.
Description:
Description
Take your interior to the next level with ORACLE Illuminated Flush Switches! The NEW flush mount LED switches now incorporate the power (ORACLE) symbol on each switch to give you a sophisticated style. Each switch features heavy-duty brass assemblies and durable nickel-plated finishes and the metal housings have a definitive click you can feel when engaged. Product Specs: 12 Volt Powered. Requires 16MM Mounting Hole. CE Compliant. Glowing Power Symbol when activated. Mounts flush. Heavy Duty Brass Assembly. Durable Nickel Plated Finish. Package Includes: 1 x ORACLE Power Symbol Flush Mount Switch of your chosen color.
Features & benefits
- Requires 16MM Mounting Hole
Information
Green
Specifications
- GTIN
- 00200900420148
- Weight
- 1 lb
- Height
- 9 in
- Length
- 4 in
- Width
- 9 in
- Life cycle
- Available to Order
- AAM brand code
- ORL
- Warehouse brand code
- FQCV
- AAIA brand code
- FQCV
Attributes
- Add-On
- N/A
- Body Material
- Heavy Duty Brass
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Color
- Green
- Connector Color
- Nickel Plated Silver
- Connector Gender
- Male
- Connector Quantity
- 5
- Contents
- (1x) ORACLE Power Symbol Flush Mount Switch
- Finish
- Nickel Plated
- Indicator Markings
- Yes
- Indicator Markings Color
- Green
- LED Color
- Green
- Mounting Hardware Included
- No
- Switch Type
- Spring Tension
- Terminal Gender
- Male
- Terminal Quantity
- 5
- Terminal Type
- Blade Pin
- Title
- 2009-004 - ORACLE Pre-Wired Power Symbol On/Off Flush Mount LED Switch
- Universal Or Specific Fit
- Universal
- Voltage
- 12V
- Wire Gauge Measurement
- 20
- Wire Quantity
- 5
- Wiring Harness Included
- Yes
- Wiring Harness Length
- 5
Fitment status
This product is universal and will fit your application.
