Oracle Lighting · 1605-001
Part #: 1605-001
UPC: 160500120124
Log in for inventory
Notify me when this item is in stock.
pro mess
Description: 12A RGB LED Amplifier; Our RGB LED amplifier increases the load capacity and extends signal of our RGB controllers.
Description:
Description
The ORACLE 12A RGB LED Amplifier increases the load capability and extends the signal of any of our RGB controllers. An RGB LED Amplifier is needed when exceeding the power capabilities and functions of an RGB controller of approximately more than 98 feet of RGB Flex Strip. Product Specs: Supply voltage: 12-24V. Length: 3.8 in. Width: 1.7 in. Height: .70 in. Max load current: 4 Amps/channel (12 Amps total). Net weight: 3.5 oz. Output: 3 channel Working Temperature: -40-1408F. Static power consumption: < 1 Watt. Output Power: 144 Watts. RoHS compliant, FCC, CE Certified, cULus Classified. 2 Year Warranty. Instructions included.
Features & benefits
- Increases the load capability and extends the signal of any of our RGB controllers
Specifications
- GTIN
- 00160500120124
- Weight
- 2 lb
- Height
- 2 in
- Length
- 4 in
- Width
- 8 in
- Life cycle
- Available to Order
- AAM brand code
- ORL
- Warehouse brand code
- FQCV
- AAIA brand code
- FQCV
Attributes
- Add-On
- N/A
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Color
- N/A
- Connector Shape
- Square
- Dimensions
- Length: 3.8 in., Width: 1.7 in., Height: .70 in.
- Outputs
- 4 Amps/channel (12 Amps total)
- Terminal Gender
- Female
- Terminal Quantity
- 10
- Title
- 1605-001 - ORACLE 12A RGB LED Amplifier
- Warranty
- 2 Year
- Wattage
- 144 Watts
Fitment status
This product is universal and will fit your application.

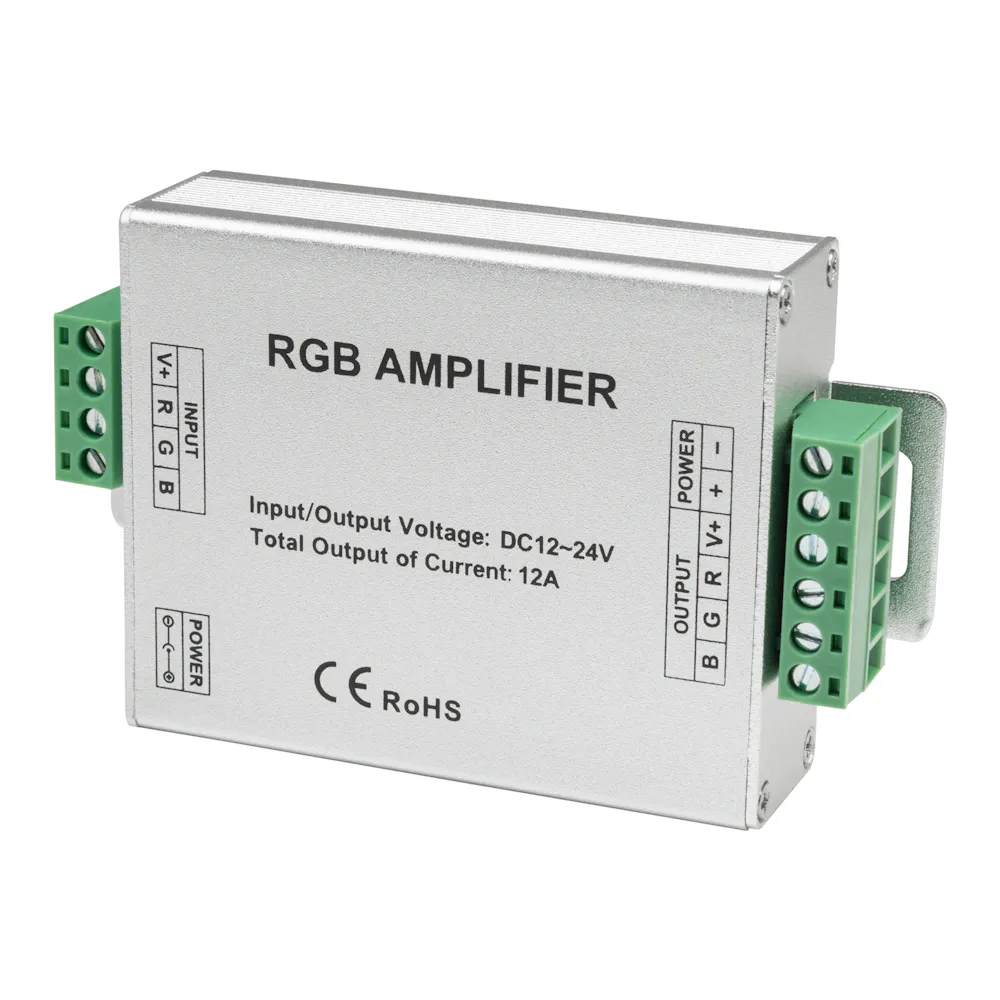

Oracle Lighting 1605-001
