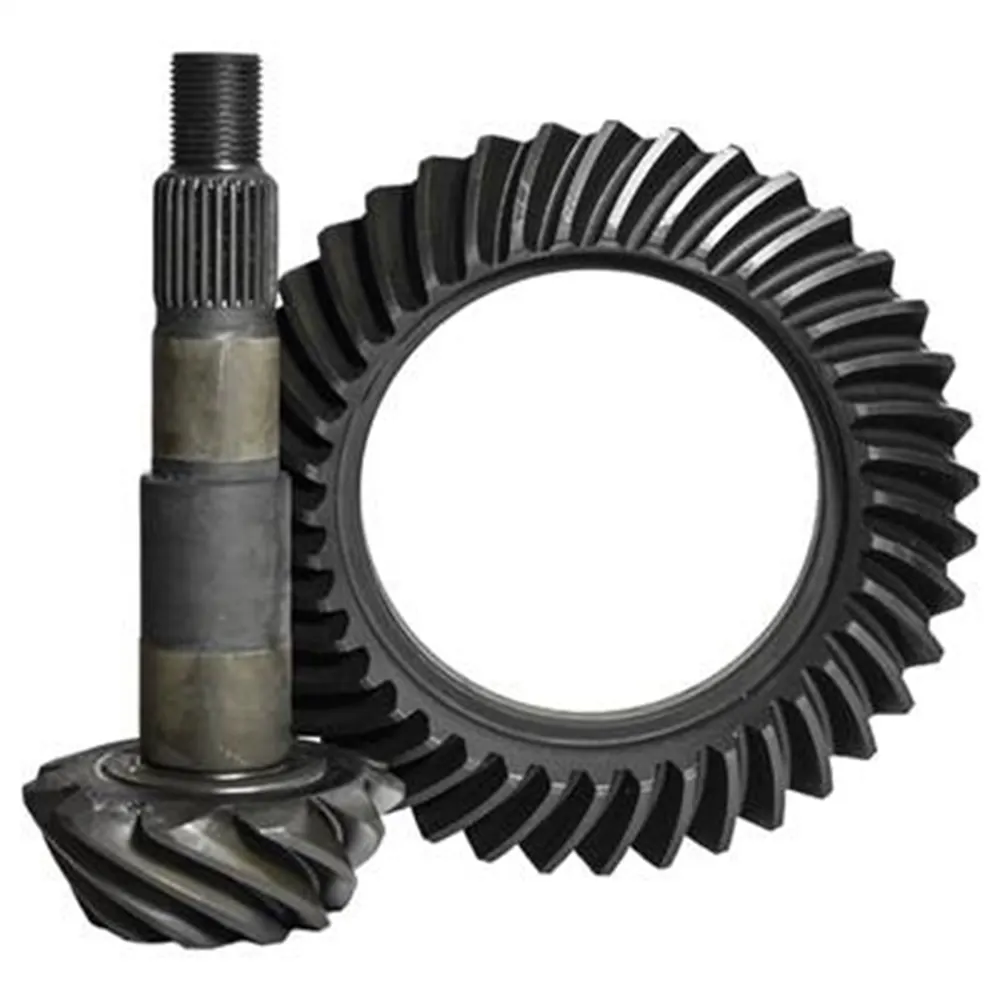

Nitro Gear & Axle · GM7.5-355-NG
Part #: GM7.5-355-NG
UPC: 618089032418
Log in for inventory
Notify me when this item is in stock.
Description: 7.5 & 7.625, 3.55 Ring & Pinion; Ring And Pinion; GM 7.5 in. and 7.625 in.; 3.55 Ratio;
Description:
Description
Nitro gears are manufactured from 8620 steel gear forgings in the same manufacturing facilities as GM, Dodge, Ford and Toyota. They are precision machined using computer controlled processes, heat treated, CNC triple-lapped and Rockwell tested for hardness. These extra steps ensure excellent fitment, ideal contact pattern and smooth, quiet operation.
Features & benefits
- Differential GM 7.5 in./7.625 in.
- 10 Bolt
- 3.55 Gear Ratio
- Tooth Count 39/11
- 27 Spline
- Not Includes Ring Gear Bolts
- Warranty 2 Years
Application summary
| Year | Make / model |
|---|---|
| 1978-1987 | Buick Regal |
| 1985-2003 | Chevrolet Astro |
| 1995-2002 | Chevrolet Blazer |
| 1982-2002 | Chevrolet Camaro |
| 1978-1993 | Chevrolet Caprice |
| 1978-1987 | Chevrolet El Camino |
| 1978-1985 | Chevrolet Impala |
| 1978-1983 | Chevrolet Malibu |
| 1978-1988 | Chevrolet Monte Carlo |
| 1982-2002 | Chevrolet S10 |
| 1983-1994 | Chevrolet S10 Blazer |
| 1978-1987 | GMC Caballero |
| 1992-2002 | GMC Jimmy |
| 1982-1990 | GMC S15 |
| 1983-1991 | GMC S15 Jimmy |
| 1985-2003 | GMC Safari |
| 1991-2002 | GMC Sonoma |
| 1991 | GMC Syclone |
| 1992-1993 | GMC Typhoon |
| 1982-2002 | Pontiac Firebird |
| 1978-1988 | Pontiac Grand Prix |
Specifications
- GTIN
- 00618089032418
- Weight
- 13 lb
- Height
- 5.5 in
- Length
- 15.5 in
- Width
- 11 in
- Life cycle
- Available to Order
- AAM brand code
- NGA
- Warehouse brand code
- FSJK
- AAIA brand code
- FSJK
Attributes
- Axle Type
- GM 7.625 in.
- California Proposition 65
- Yes
- Gear Ratio
- 3.55
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1978-1987 Buick Regal; 1985-2003 Chevrolet Astro; 1995-2002 Chevrolet Blazer; 1982-2002 Chevrolet Camaro; 1978-1993 Chevrolet Caprice; 1978-1987 Chevrolet El Camino; 1978-1985 Chevrolet Impala; 1978-1983 Chevrolet Malibu; 1978-1988 Chevrolet Monte Carlo; 1982-2002 Chevrolet S10; 1983-1994 Chevrolet S10 Blazer; 1978-1987 GMC Caballero; 1992-2002 GMC Jimmy; 1982-1990 GMC S15; 1983-1991 GMC S15 Jimmy; 1985-2003 GMC Safari; 1991-2002 GMC Sonoma; 1991 GMC Syclone; 1992-1993 GMC Typhoon; 1982-2002 Pontiac Firebird; 1978-1988 Pontiac Grand Prix
Resources
Nitro Gear & Axle GM7.5-355-NG
