Motive Gear · GM9-370
Part #: GM9-370
UPC: 698231207901
Loading...
Notify me when this item is in stock.
Description: Precision Differential Ring and Pinion maintains correct power distribution to a; This Differential Ring and Pinion is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Description:
Description
Motive Gear offers some of the toughest drive train components on the market today. If you are looking for the largest line of performance ring and pinion gear options available with gear sets in a wide range of ratios for nearly every application, both on and off-road, check out Motive Gear. Motive Gear products can be found in the winner's circle at racing events worldwide. The superior quality of Motive Gear components is the result of years of racing development, outstanding design and state-of-the-art manufacturing methods. Extensive testing is performed on all products by our in-house engineers.
Features & benefits
- Designed for compatibility with OEM-specified gear oil viscosities, ensuring correct lubrication under all operating conditions.
- Heat-treated alloy steel construction withstands peak torque demands of loaded commercial trucks, preventing gear tooth fatigue and breakage.
- OEM-spec gear ratios preserve intended vehicle speed, performance, and fuel economy characteristics.
- Precision fits to carrier housing bores eliminate shimming uncertainty and simplify installation for experienced drivetrain technicians.
- Precision-machined gears and tight backlash tolerances ensure smooth power transfer and efficient torque distribution between axles.
Information
RP GM 7.75" 3.70 BORG WARNER MG
Application summary
| Year | Make / model |
|---|---|
| 1985-1992 | Chevrolet Camaro |
| 1985-1992 | Pontiac Firebird |
Specifications
- GTIN
- 00698231207901
- Weight
- 13.05 lb
- Height
- 5.25 in
- Length
- 15 in
- Width
- 11 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- MOT
- Warehouse brand code
- MOT
- AAIA brand code
- BHHD
Attributes
- App/Model
- GM 7.75 (M78)
- Axle Type
- GM 8.5 in.
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Cover Bolt Quantity
- 9
- Differential Case Design Type
- GM 7.75 IRS
- Gear Ratio
- 3.7
- Mounting Location
- Rear
- Pinion Gear Tooth Quantity
- 10
- Pinion Shaft Diameter
- 1.376
- Pinion Spline Count
- 27
- Position
- Rear
- Ratio
- 3.70
- Ring Gear Bolt Quantity
- 8
- Ring Gear Diameter
- 7.75
- Ring Gear Material
- 8620 Steel
- Ring Gear Outside Diameter
- 7.75
- Ring Gear Rotation
- Standard
- Ring Gear Tooth Quantity
- 37
- Ring and Pinion Gear Ratio
- 3.70
- Taxonomy
- GM 7.75 IRS
- Taxonomy A
- LD Differential
- Taxonomy B
- Ring and Pinions
- Taxonomy C
- Rear
- Taxonomy D
- 3.70
- Title
- Differential Ring and Pinion
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1985-1992 Chevrolet Camaro; 1985-1992 Pontiac Firebird
Resources
- Brand logo
- Hazardous Materials Info Sheet
- Ring and Pinion Installation Instructions
- Motive Gear Rear Ring & Pinion Install - Jeep TJ Sahara
- Motive Gear Front Ring & Pinion Install - Jeep JT Gladiator
- Motive Gear Rear Ring & Pinion Install - Jeep JT Gladiator
- Logo Image
- Photo - Out of Package
- Photo - Out of Package
- Photo - In Package
- Photo - Lifestyle View
- Photo - Primary
- Regulatory Content Label
- Differential Components #jeeps #offroad #offroading
- S and S Truck Parts Introduction Video

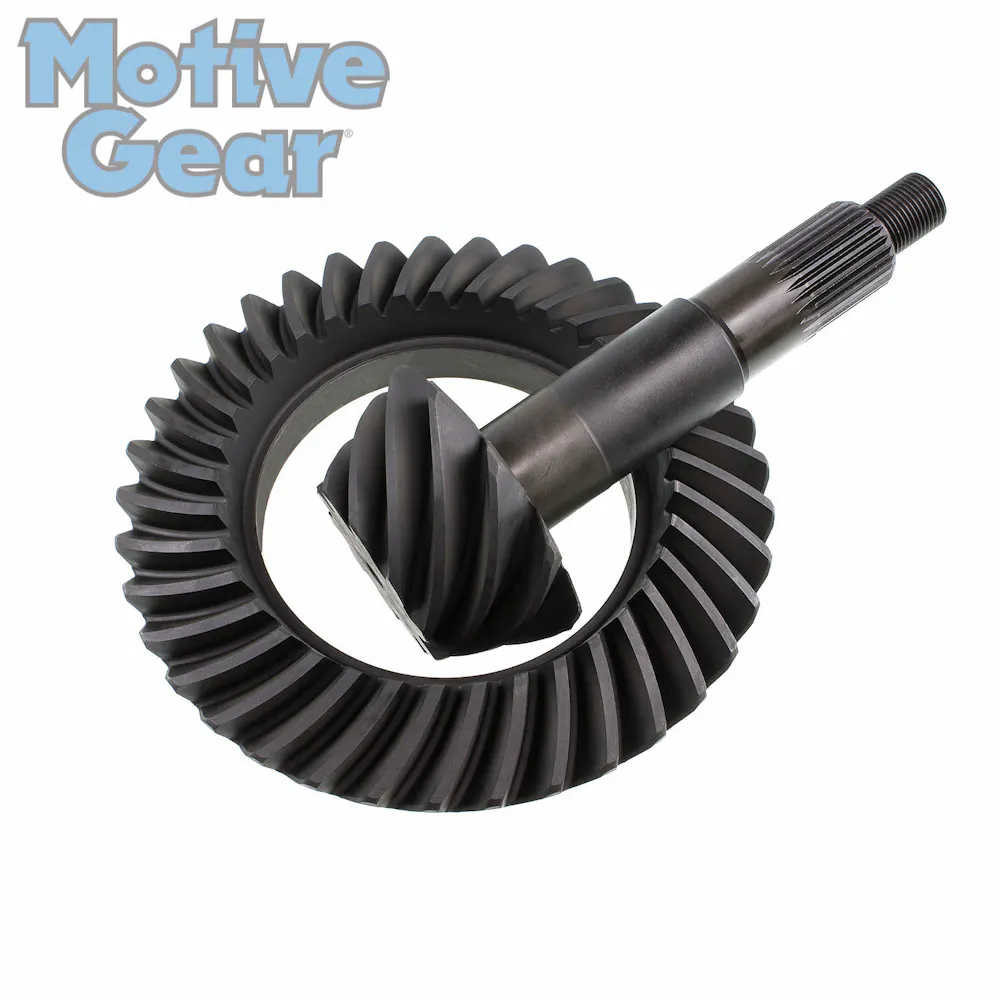

Motive Gear GM9-370
