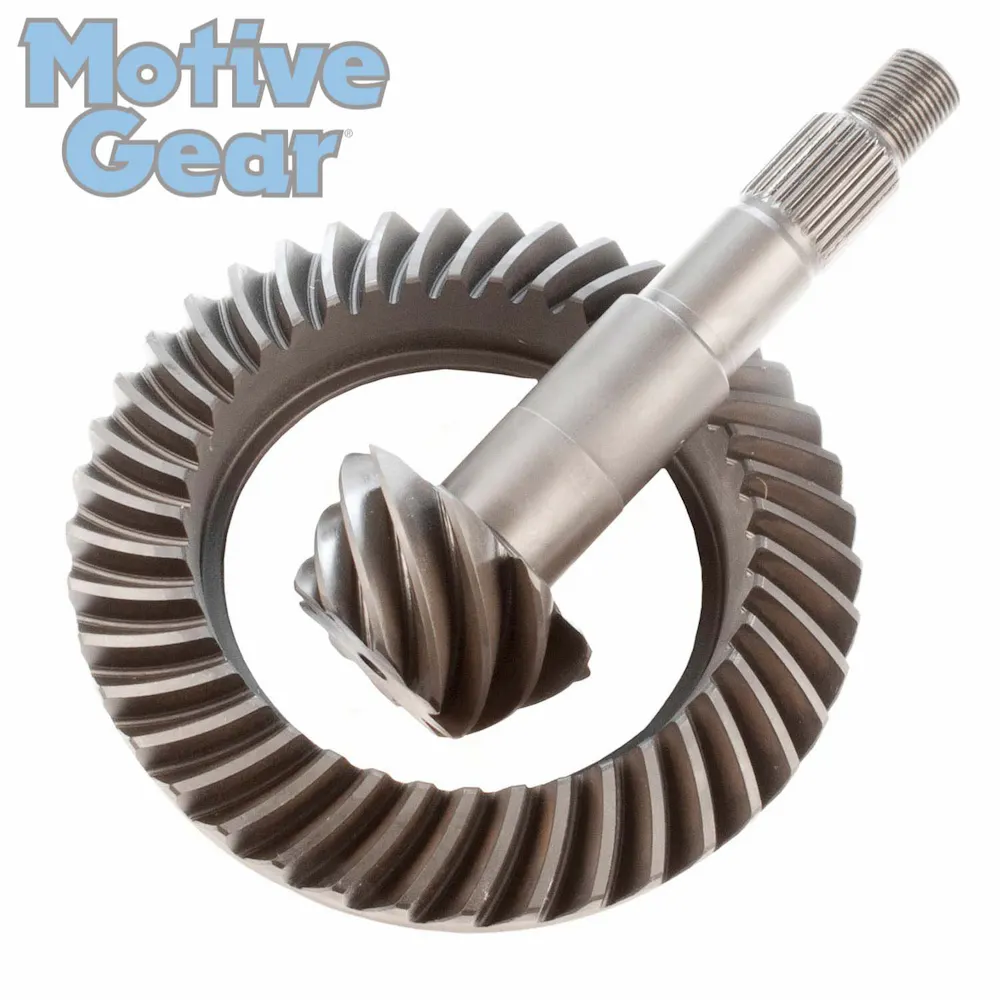

Motive Gear / GM7.5-456A
Part #: GM7.5-456A
UPC: 698231936214
Loading...
Notify me when this item is in stock.
Description: Precision Differential Ring and Pinion maintains correct power distribution to a; This Differential Ring and Pinion is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Description:
Description
Motive Gear offers some of the toughest drive train components on the market today. If you are looking for the largest line of performance ring and pinion gear options available with gear sets in a wide range of ratios for nearly every application, both on and off-road, check out Motive Gear. Motive Gear products can be found in the winner's circle at racing events worldwide. The superior quality of Motive Gear components is the result of years of racing development, outstanding design and state-of-the-art manufacturing methods. Extensive testing is performed on all products by our in-house engineers.
Features & benefits
- Designed for compatibility with OEM-specified gear oil viscosities, ensuring correct lubrication under all operating conditions.
- Heat-treated alloy steel construction withstands peak torque demands of loaded commercial trucks, preventing gear tooth fatigue and breakage.
- OEM-spec gear ratios preserve intended vehicle speed, performance, and fuel economy characteristics.
- Precision fits to carrier housing bores eliminate shimming uncertainty and simplify installation for experienced drivetrain technicians.
- Precision-machined gears and tight backlash tolerances ensure smooth power transfer and efficient torque distribution between axles.
Information
DIFFERENTIAL RING & PINION FOR GM 7.5"/7.625" (10 BOLT); A-LINE RING & PINION; 4.56 RATIO; REQUIRES A 3.23 & NUMERICALLY HIGHER RATIO CARRIER FOR GM 7.6" IFS; A-LINE RING & PINION; 4.56 RATIO; REQUIRES A 3.23 & NUMERICALLY HIGHER RATIO CARRIER
Application summary
| Year | Make / model |
|---|---|
| 1973-1975 | Buick Apollo |
| 1977-1981 | Buick Century |
| 1991-1996 | Buick Commercial Chassis |
| 1976-1985 | Buick Electra |
| 1977-1983 | Buick Estate Wagon |
| 1975-1985 | Buick LeSabre |
| 1977-1979 | Buick Opel |
| 1977-1987 | Buick Regal |
| 1977-1978 | Buick Riviera |
| 1991-1996 | Buick Roadmaster |
| 1975-1979 | Buick Skylark |
| 1987-1990 | Cadillac Brougham |
| 1982-1984 | Cadillac DeVille |
| 1982-1990 | Cadillac Fleetwood |
| 1985-2005 | Chevrolet Astro |
| 1995-2001 | Chevrolet Blazer |
| 1982-2002 | Chevrolet Camaro |
| 1977-1996 | Chevrolet Caprice |
| 2004-2013 | Chevrolet Colorado |
| 1977-1987 | Chevrolet El Camino |
| 1977-1985 | Chevrolet Impala |
| 1994-1996 | Chevrolet Impala |
| 1975 | Chevrolet Malibu |
| 1978-1983 | Chevrolet Malibu |
| 1978-1988 | Chevrolet Monte Carlo |
| 1976-1979 | Chevrolet Nova |
| 1982-2004 | Chevrolet S10 |
| 1983-1994 | Chevrolet S10 Blazer |
| 2004-2012 | GMC Canyon |
| 1992-2005 | GMC Jimmy |
| 1982-1990 | GMC S15 |
| 1983-1991 | GMC S15 Jimmy |
| 1985-2005 | GMC Safari |
| 1991-2004 | GMC Sonoma |
| 1991 | GMC Syclone |
| 2006-2010 | Hummer H3 |
| 2009-2010 | Hummer H3T |
| 2003-2008 | Isuzu Ascender |
| 1981-1995 | Isuzu Pickup |
| 1991-2002 | Isuzu Rodeo |
| 1977-1984 | Oldsmobile 98 |
| 1991-1994 | Oldsmobile Bravada |
| 1996-2004 | Oldsmobile Bravada |
| 1977-1984 | Oldsmobile Custom Cruiser |
| 1977-1981 | Oldsmobile Cutlass |
| 1985-1987 | Oldsmobile Cutlass |
| 1978-1984 | Oldsmobile Cutlass Calais |
| 1980-1983 | Oldsmobile Cutlass Cruiser |
| 1977-1980 | Oldsmobile Cutlass Salon |
| 1977-1984 | Oldsmobile Cutlass Supreme |
| 1977-1985 | Oldsmobile Delta 88 |
| 1976-1979 | Oldsmobile Omega |
| 1975-1986 | Pontiac Bonneville |
| 1975-1981 | Pontiac Catalina |
| 1977-2002 | Pontiac Firebird |
| 1978-1980 | Pontiac Grand Am |
| 1977-1983 | Pontiac Grand LeMans |
| 1977-1987 | Pontiac Grand Prix |
| 1977-1978 | Pontiac Grand Safari |
| 1977-1981 | Pontiac Laurentian |
| 1977-1981 | Pontiac LeMans |
| 1977-1986 | Pontiac Parisienne |
| 1977-1979 | Pontiac Phoenix |
| 1976-1977 | Pontiac Ventura |
Specifications
- GTIN
- 00698231936214
- Weight
- 12.7 lb
- Height
- 5.25 in
- Length
- 15 in
- Width
- 11 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- MOT
- Warehouse brand code
- MOT
- AAIA brand code
- BHHD
Attributes
- App/Model
- GM 7.625"
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Cover Bolt Quantity
- 10
- Differential Carrier Break
- 3.23 Ratio and Higher
- Differential Case Design Type
- GM 7.6 IFS
- Gear Ratio
- 4.56
- Mounting Location
- Rear
- Pinion Gear Tooth Quantity
- 9
- Pinion Shaft Diameter
- 1.438
- Pinion Spline Count
- 27
- Position
- Rear
- Ratio
- 4.56
- Ring Gear Bolt Quantity
- 10
- Ring Gear Diameter
- 7.5
- Ring Gear Material
- 8620 Steel
- Ring Gear Outside Diameter
- 7.5
- Ring Gear Rotation
- Standard
- Ring Gear Tooth Quantity
- 41
- Ring and Pinion Gear Ratio
- 4.56
- Taxonomy
- Differential LD
- Taxonomy A
- LD Differential
- Taxonomy B
- Ring and Pinions
- Taxonomy C
- Rear
- Taxonomy D
- 4.56
- Title
- Differential Ring and Pinion
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1973-1975 Buick Apollo; 1977-1981 Buick Century; 1991-1996 Buick Commercial Chassis; 1976-1985 Buick Electra; 1977-1983 Buick Estate Wagon; 1975-1985 Buick LeSabre; 1977-1979 Buick Opel; 1977-1987 Buick Regal; 1977-1978 Buick Riviera; 1991-1996 Buick Roadmaster; 1975-1979 Buick Skylark; 1987-1990 Cadillac Brougham; 1982-1984 Cadillac DeVille; 1982-1990 Cadillac Fleetwood; 1985-2005 Chevrolet Astro; 1995-2001 Chevrolet Blazer; 1982-2002 Chevrolet Camaro; 1977-1996 Chevrolet Caprice; 2004-2013 Chevrolet Colorado; 1977-1987 Chevrolet El Camino; 1977-1985 Chevrolet Impala; 1994-1996 Chevrolet Impala; 1975 Chevrolet Malibu; 1978-1983 Chevrolet Malibu; 1978-1988 Chevrolet Monte Carlo; 1976-1979 Chevrolet Nova; 1982-2004 Chevrolet S10; 1983-1994 Chevrolet S10 Blazer; 2004-2012 GMC Canyon; 1992-2005 GMC Jimmy; 1982-1990 GMC S15; 1983-1991 GMC S15 Jimmy; 1985-2005 GMC Safari; 1991-2004 GMC Sonoma; 1991 GMC Syclone; 2006-2010 Hummer H3; 2009-2010 Hummer H3T; 2003-2008 Isuzu Ascender; 1981-1995 Isuzu Pickup; 1991-2002 Isuzu Rodeo; 1977-1984 Oldsmobile 98; 1991-1994 Oldsmobile Bravada; 1996-2004 Oldsmobile Bravada; 1977-1984 Oldsmobile Custom Cruiser; 1977-1981 Oldsmobile Cutlass; 1985-1987 Oldsmobile Cutlass; 1978-1984 Oldsmobile Cutlass Calais; 1980-1983 Oldsmobile Cutlass Cruiser; 1977-1980 Oldsmobile Cutlass Salon; 1977-1984 Oldsmobile Cutlass Supreme; 1977-1985 Oldsmobile Delta 88; 1976-1979 Oldsmobile Omega; 1975-1986 Pontiac Bonneville; 1975-1981 Pontiac Catalina; 1977-2002 Pontiac Firebird; 1978-1980 Pontiac Grand Am; 1977-1983 Pontiac Grand LeMans; 1977-1987 Pontiac Grand Prix; 1977-1978 Pontiac Grand Safari; 1977-1981 Pontiac Laurentian; 1977-1981 Pontiac LeMans; 1977-1986 Pontiac Parisienne; 1977-1979 Pontiac Phoenix; 1976-1977 Pontiac Ventura
