Motive Gear · GM10L-30
Part #: GM10L-30
UPC: 698231589304
Loading...
Notify me when this item is in stock.

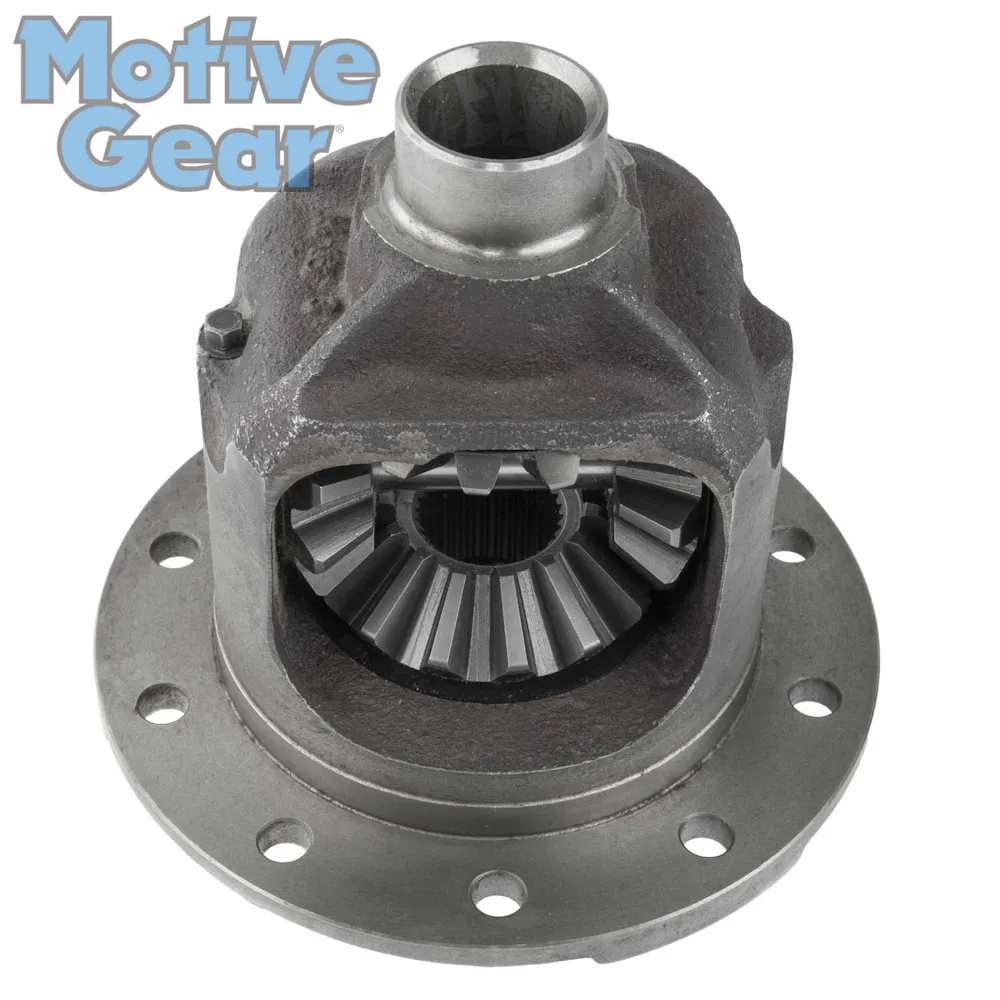

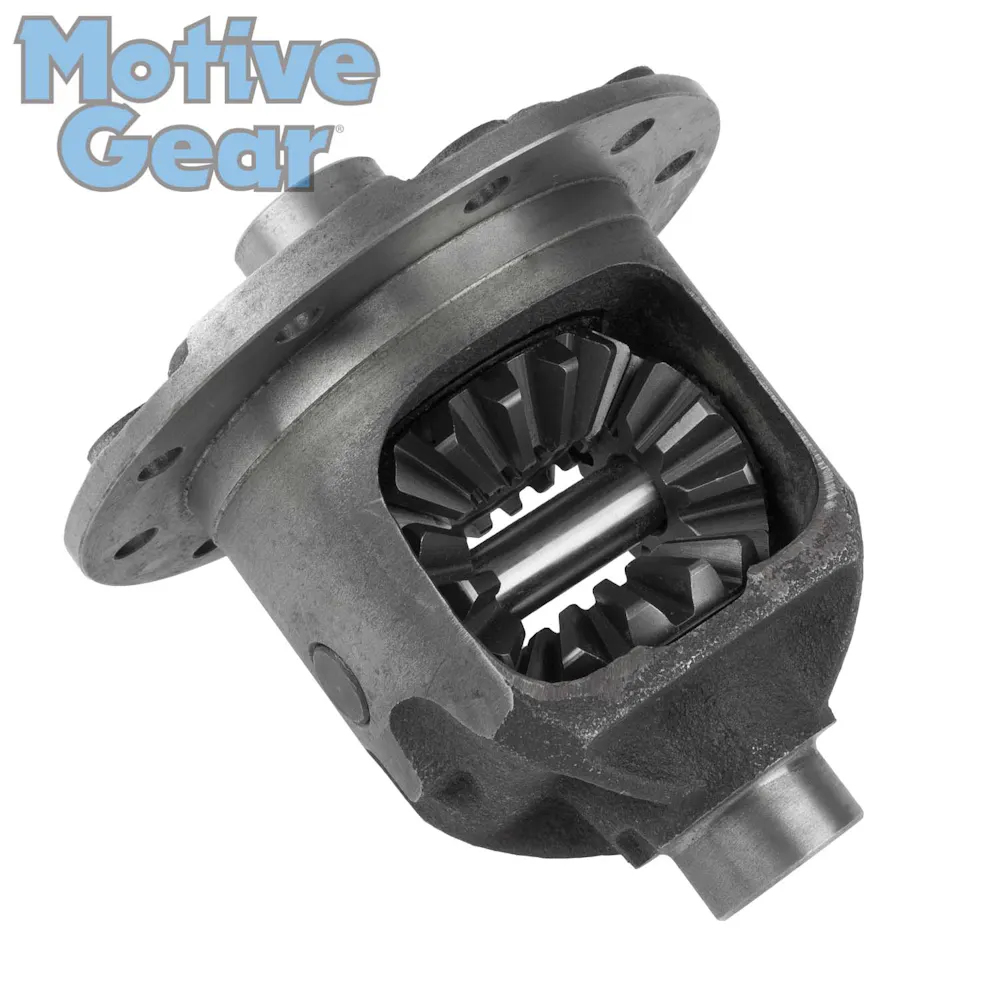

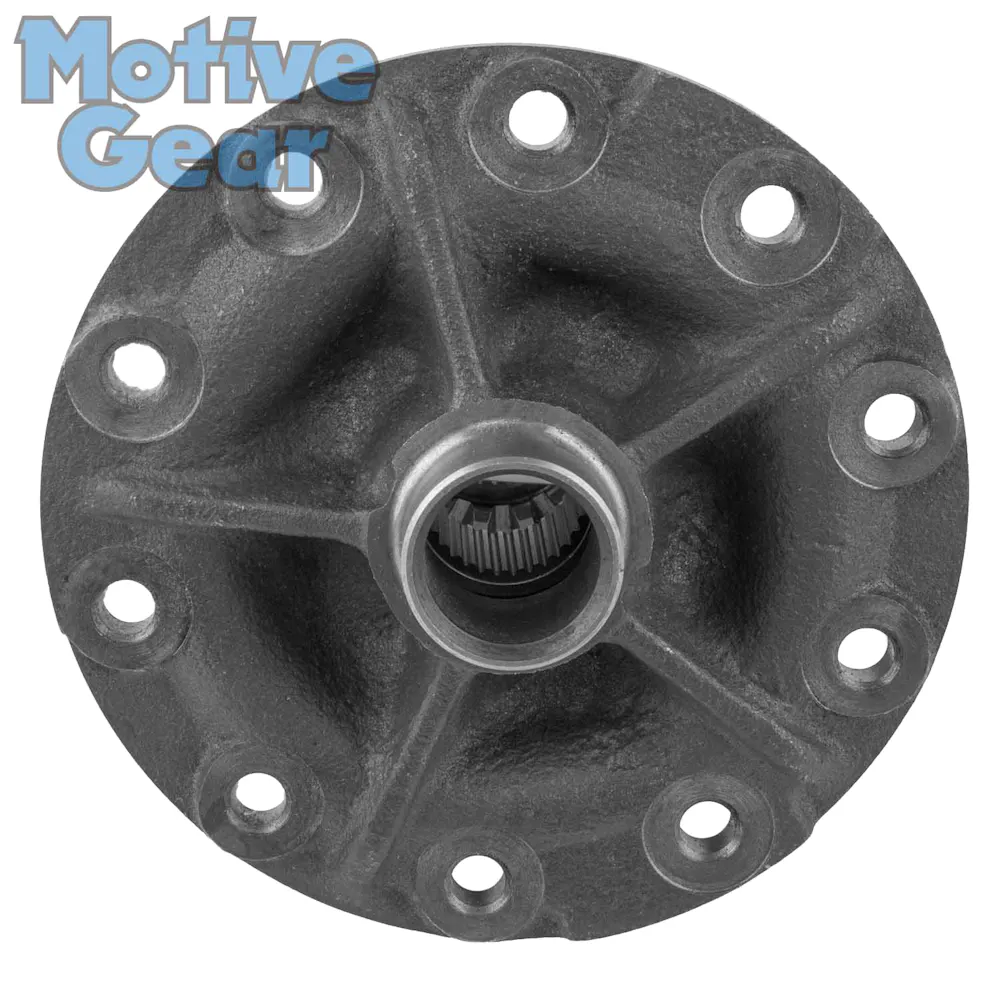

Description: Precision Differential Carrier maintains correct power distribution to all drive; This Differential Carrier is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Description:
Description
Motive Gear offers some of the toughest drive train components on the market today. If you are looking for the largest line of performance ring and pinion gear options available with gear sets in a wide range of ratios for nearly every application, both on and off-road, check out Motive Gear. Motive Gear products can be found in the winner's circle at racing events worldwide. The superior quality of Motive Gear components is the result of years of racing development, outstanding design and state-of-the-art manufacturing methods. Extensive testing is performed on all products by our in-house engineers.
Features & benefits
- Designed for compatibility with OEM-specified gear oil viscosities, ensuring correct lubrication under all operating conditions.
- Heat-treated alloy steel construction withstands peak torque demands of loaded commercial trucks, preventing gear tooth fatigue and breakage.
- OEM-spec gear ratios preserve intended vehicle speed, performance, and fuel economy characteristics.
- Precision fits to carrier housing bores eliminate shimming uncertainty and simplify installation for experienced drivetrain technicians.
- Precision-machined gears and tight backlash tolerances ensure smooth power transfer and efficient torque distribution between axles.
Information
OLC GM 8.5" 30 SPL
Application summary
| Year | Make / model |
|---|---|
| 1991-1996 | Buick Commercial Chassis |
| 1988-1989 | Buick Electra |
| 1988-1990 | Buick LeSabre |
| 1991-1996 | Buick Roadmaster |
| 1988-1992 | Cadillac Brougham |
| 1992-1996 | Cadillac Commercial Chassis |
| 1999-2000 | Cadillac Escalade |
| 1993-1996 | Cadillac Fleetwood |
| 1988-2001 | Chevrolet Blazer |
| 1988-1999 | Chevrolet C1500 |
| 1992-1999 | Chevrolet C1500 Suburban |
| 1991 | Chevrolet C2500 |
| 1992-1996 | Chevrolet C2500 Suburban |
| 1988-1996 | Chevrolet Caprice |
| 1996-2012 | Chevrolet Express 1500 |
| 1996 | Chevrolet Express 2500 |
| 1988-1995 | Chevrolet G10 |
| 1988-1995 | Chevrolet G20 |
| 1994-1996 | Chevrolet Impala |
| 1988-1998 | Chevrolet K1500 |
| 1992-1999 | Chevrolet K1500 Suburban |
| 1989-1991 | Chevrolet K2500 |
| 1992-1996 | Chevrolet K2500 Suburban |
| 1988 | Chevrolet R10 Suburban |
| 1989-1991 | Chevrolet R1500 Suburban |
| 1988 | Chevrolet R20 |
| 1988 | Chevrolet R20 Suburban |
| 1989-1991 | Chevrolet R2500 Suburban |
| 1988-2001 | Chevrolet S10 |
| 1988-1994 | Chevrolet S10 Blazer |
| 1995-1999 | Chevrolet Tahoe |
| 1988 | Chevrolet V10 Suburban |
| 1989-1991 | Chevrolet V1500 Suburban |
| 1988 | Chevrolet V20 Suburban |
| 1989-1991 | Chevrolet V2500 Suburban |
| 1982-1986 | GMC C1500 |
| 1988-1999 | GMC C1500 |
| 1992-1999 | GMC C1500 Suburban |
| 1991 | GMC C2500 |
| 1992-1996 | GMC C2500 Suburban |
| 1998 | GMC C3500 |
| 1988-1995 | GMC G1500 |
| 1988-1995 | GMC G2500 |
| 1980-2001 | GMC Jimmy |
| 1982-1986 | GMC K1500 |
| 1988-1998 | GMC K1500 |
| 1992-1999 | GMC K1500 Suburban |
| 1989-1991 | GMC K2500 |
| 1992-1996 | GMC K2500 Suburban |
| 1987 | GMC R1500 |
| 1988-1991 | GMC R1500 Suburban |
| 1988-1991 | GMC R2500 Suburban |
| 1996-2002 | GMC Savana 1500 |
| 1996 | GMC Savana 2500 |
| 1991-2000 | GMC Sonoma |
| 1987 | GMC V1500 |
| 1988-1991 | GMC V1500 Suburban |
| 1988-1991 | GMC V2500 Suburban |
| 1992-1999 | GMC Yukon |
| 1988-1989 | Oldsmobile Custom Cruiser |
| 1988-1989 | Pontiac Safari |
Specifications
- GTIN
- 00698231589304
- Weight
- 15.2 lb
- Height
- 8 in
- Length
- 8 in
- Width
- 8 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- MOT
- Warehouse brand code
- MOT
- AAIA brand code
- BHHD
Attributes
- App/Model
- GM 8.5
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Differential Case Design Type
- GM 8.5
- Position
- Rear
- Taxonomy
- Differential Carriers
- Taxonomy A
- LD Differential
- Taxonomy B
- Carriers & Spools
- Taxonomy C
- Open Carrier Cases-Loaded
- Taxonomy D
- Rear
- Title
- Differential Carrier
- Type
- Loaded
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1991-1996 Buick Commercial Chassis; 1988-1989 Buick Electra; 1988-1990 Buick LeSabre; 1991-1996 Buick Roadmaster; 1988-1992 Cadillac Brougham; 1992-1996 Cadillac Commercial Chassis; 1999-2000 Cadillac Escalade; 1993-1996 Cadillac Fleetwood; 1988-2001 Chevrolet Blazer; 1988-1999 Chevrolet C1500; 1992-1999 Chevrolet C1500 Suburban; 1991 Chevrolet C2500; 1992-1996 Chevrolet C2500 Suburban; 1988-1996 Chevrolet Caprice; 1996-2012 Chevrolet Express 1500; 1996 Chevrolet Express 2500; 1988-1995 Chevrolet G10; 1988-1995 Chevrolet G20; 1994-1996 Chevrolet Impala; 1988-1998 Chevrolet K1500; 1992-1999 Chevrolet K1500 Suburban; 1989-1991 Chevrolet K2500; 1992-1996 Chevrolet K2500 Suburban; 1988 Chevrolet R10 Suburban; 1989-1991 Chevrolet R1500 Suburban; 1988 Chevrolet R20; 1988 Chevrolet R20 Suburban; 1989-1991 Chevrolet R2500 Suburban; 1988-2001 Chevrolet S10; 1988-1994 Chevrolet S10 Blazer; 1995-1999 Chevrolet Tahoe; 1988 Chevrolet V10 Suburban; 1989-1991 Chevrolet V1500 Suburban; 1988 Chevrolet V20 Suburban; 1989-1991 Chevrolet V2500 Suburban; 1982-1986 GMC C1500; 1988-1999 GMC C1500; 1992-1999 GMC C1500 Suburban; 1991 GMC C2500; 1992-1996 GMC C2500 Suburban; 1998 GMC C3500; 1988-1995 GMC G1500; 1988-1995 GMC G2500; 1980-2001 GMC Jimmy; 1982-1986 GMC K1500; 1988-1998 GMC K1500; 1992-1999 GMC K1500 Suburban; 1989-1991 GMC K2500; 1992-1996 GMC K2500 Suburban; 1987 GMC R1500; 1988-1991 GMC R1500 Suburban; 1988-1991 GMC R2500 Suburban; 1996-2002 GMC Savana 1500; 1996 GMC Savana 2500; 1991-2000 GMC Sonoma; 1987 GMC V1500; 1988-1991 GMC V1500 Suburban; 1988-1991 GMC V2500 Suburban; 1992-1999 GMC Yukon; 1988-1989 Oldsmobile Custom Cruiser; 1988-1989 Pontiac Safari
