Motive Gear / FS10-30
Part #: FS10-30
UPC: 698231016978
Loading...
Notify me when this item is in stock.
Description: Precision Differential Spool maintains correct power distribution to all drive a; This Differential Spool is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Description:
Description
Motive Gear offers some of the toughest drive train components on the market today. If you are looking for the largest line of performance ring and pinion gear options available with gear sets in a wide range of ratios for nearly every application, both on and off-road, check out Motive Gear. Motive Gear products can be found in the winner's circle at racing events worldwide. The superior quality of Motive Gear components is the result of years of racing development, outstanding design and state-of-the-art manufacturing methods. Extensive testing is performed on all products by our in-house engineers.
Features & benefits
- Designed for compatibility with OEM-specified gear oil viscosities, ensuring correct lubrication under all operating conditions.
- Heat-treated alloy steel construction withstands peak torque demands of loaded commercial trucks, preventing gear tooth fatigue and breakage.
- OEM-spec gear ratios preserve intended vehicle speed, performance, and fuel economy characteristics.
- Precision fits to carrier housing bores eliminate shimming uncertainty and simplify installation for experienced drivetrain technicians.
- Precision-machined gears and tight backlash tolerances ensure smooth power transfer and efficient torque distribution between axles.
Information
DIFFERENTIAL SPOOL FOR GM 8.5" (10 BOLT); 30 SPLINE; FULL SPOOL; 2.73 CARRIER & UP; 1999 & LATER REQUIRES USE OF BEARING LM603049 & RACE LM603012; 1998 & EARLIER USE BEARING LM102949 & RACE LM102911; 45 DEGREE PRESSURE ANGLE; C-CLIP ELIMINATOR R
Application summary
| Year | Make / model |
|---|---|
| 1991-1996 | Buick Commercial Chassis |
| 1988-1990 | Buick Electra |
| 2004-2007 | Buick Rainier |
| 1991-1996 | Buick Roadmaster |
| 1991-1992 | Cadillac Brougham |
| 1999-2000 | Cadillac Escalade |
| 2002-2017 | Cadillac Escalade |
| 2003-2017 | Cadillac Escalade ESV |
| 2002-2013 | Cadillac Escalade EXT |
| 2007-2013 | Chevrolet Avalanche |
| 2002-2006 | Chevrolet Avalanche 1500 |
| 1988-2005 | Chevrolet Blazer |
| 1988-1999 | Chevrolet C1500 |
| 1992-1999 | Chevrolet C1500 Suburban |
| 1988-1996 | Chevrolet Caprice |
| 2007-2014 | Chevrolet Colorado |
| 1996-2014 | Chevrolet Express 1500 |
| 1988-1995 | Chevrolet G10 |
| 1988-1995 | Chevrolet G20 |
| 1994-1996 | Chevrolet Impala |
| 1988-1999 | Chevrolet K1500 |
| 1993-1999 | Chevrolet K1500 Suburban |
| 1988-1991 | Chevrolet K2500 |
| 1988 | Chevrolet R10 Suburban |
| 1989-1991 | Chevrolet R1500 Suburban |
| 1994-2004 | Chevrolet S10 |
| 1988-1994 | Chevrolet S10 Blazer |
| 1999-2017 | Chevrolet Silverado 1500 |
| 2007 | Chevrolet Silverado 1500 Classic |
| 2001-2003 | Chevrolet Silverado 1500 HD |
| 2005-2006 | Chevrolet Silverado 1500 HD |
| 2007 | Chevrolet Silverado 1500 HD Classic |
| 2003-2006 | Chevrolet SSR |
| 2014-2017 | Chevrolet Suburban |
| 1995-2014 | Chevrolet Suburban 1500 |
| 2000-2013 | Chevrolet Suburban 2500 |
| 1995-2017 | Chevrolet Tahoe |
| 2002-2005 | Chevrolet Trailblazer |
| 2007-2009 | Chevrolet Trailblazer |
| 2002-2006 | Chevrolet Trailblazer EXT |
| 1988 | Chevrolet V10 Suburban |
| 1989-1991 | Chevrolet V1500 Suburban |
| 1988 | Chevrolet V20 Suburban |
| 1989-1991 | Chevrolet V2500 Suburban |
| 1988-1999 | GMC C1500 |
| 1992-1999 | GMC C1500 Suburban |
| 2004-2012 | GMC Canyon |
| 2002-2009 | GMC Envoy |
| 2002-2006 | GMC Envoy XL |
| 2004-2005 | GMC Envoy XUV |
| 1988-1995 | GMC G1500 |
| 1988-1995 | GMC G2500 |
| 1994-2005 | GMC Jimmy |
| 1988-1999 | GMC K1500 |
| 1992-1999 | GMC K1500 Suburban |
| 1988-1991 | GMC K2500 |
| 1988-1991 | GMC R1500 Suburban |
| 1996-2014 | GMC Savana 1500 |
| 2007-2017 | GMC Sierra |
| 1999-2017 | GMC Sierra 1500 |
| 2007 | GMC Sierra 1500 Classic |
| 1994-2004 | GMC Sonoma |
| 1992-1993 | GMC Typhoon |
| 1988-1991 | GMC V1500 Suburban |
| 1988-1991 | GMC V2500 Suburban |
| 1992-2017 | GMC Yukon |
| 2015-2017 | GMC Yukon XL |
| 2000-2014 | GMC Yukon XL 1500 |
Specifications
- GTIN
- 00698231016978
- Weight
- 9.25 lb
- Height
- 9.75 in
- Length
- 8.5 in
- Width
- 8.5 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- MOT
- Warehouse brand code
- MOT
- AAIA brand code
- BHHD
Attributes
- App/Model
- GM 8.625"
- Axle Type
- GM 8.5 in.
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Differential Carrier Break
- 2.73 Ratio and Higher
- Differential Case Design Type
- GM 8.5
- Position
- Rear
- Pressure Angle
- 45
- Spline Count
- 30
- Spline Quantity
- 30
- Taxonomy
- GM 8.5
- Taxonomy A
- LD Differential
- Taxonomy B
- Carriers & Spools
- Taxonomy C
- Full Spools
- Taxonomy D
- Rear
- Title
- Differential Spool
- Type
- Spool
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1991-1996 Buick Commercial Chassis; 1988-1990 Buick Electra; 2004-2007 Buick Rainier; 1991-1996 Buick Roadmaster; 1991-1992 Cadillac Brougham; 1999-2000 Cadillac Escalade; 2002-2017 Cadillac Escalade; 2003-2017 Cadillac Escalade ESV; 2002-2013 Cadillac Escalade EXT; 2007-2013 Chevrolet Avalanche; 2002-2006 Chevrolet Avalanche 1500; 1988-2005 Chevrolet Blazer; 1988-1999 Chevrolet C1500; 1992-1999 Chevrolet C1500 Suburban; 1988-1996 Chevrolet Caprice; 2007-2014 Chevrolet Colorado; 1996-2014 Chevrolet Express 1500; 1988-1995 Chevrolet G10; 1988-1995 Chevrolet G20; 1994-1996 Chevrolet Impala; 1988-1999 Chevrolet K1500; 1993-1999 Chevrolet K1500 Suburban; 1988-1991 Chevrolet K2500; 1988 Chevrolet R10 Suburban; 1989-1991 Chevrolet R1500 Suburban; 1994-2004 Chevrolet S10; 1988-1994 Chevrolet S10 Blazer; 1999-2017 Chevrolet Silverado 1500; 2007 Chevrolet Silverado 1500 Classic; 2001-2003 Chevrolet Silverado 1500 HD; 2005-2006 Chevrolet Silverado 1500 HD; 2007 Chevrolet Silverado 1500 HD Classic; 2003-2006 Chevrolet SSR; 2014-2017 Chevrolet Suburban; 1995-2014 Chevrolet Suburban 1500; 2000-2013 Chevrolet Suburban 2500; 1995-2017 Chevrolet Tahoe; 2002-2005 Chevrolet Trailblazer; 2007-2009 Chevrolet Trailblazer; 2002-2006 Chevrolet Trailblazer EXT; 1988 Chevrolet V10 Suburban; 1989-1991 Chevrolet V1500 Suburban; 1988 Chevrolet V20 Suburban; 1989-1991 Chevrolet V2500 Suburban; 1988-1999 GMC C1500; 1992-1999 GMC C1500 Suburban; 2004-2012 GMC Canyon; 2002-2009 GMC Envoy; 2002-2006 GMC Envoy XL; 2004-2005 GMC Envoy XUV; 1988-1995 GMC G1500; 1988-1995 GMC G2500; 1994-2005 GMC Jimmy; 1988-1999 GMC K1500; 1992-1999 GMC K1500 Suburban; 1988-1991 GMC K2500; 1988-1991 GMC R1500 Suburban; 1996-2014 GMC Savana 1500; 2007-2017 GMC Sierra; 1999-2017 GMC Sierra 1500; 2007 GMC Sierra 1500 Classic; 1994-2004 GMC Sonoma; 1992-1993 GMC Typhoon; 1988-1991 GMC V1500 Suburban; 1988-1991 GMC V2500 Suburban; 1992-2017 GMC Yukon; 2015-2017 GMC Yukon XL; 2000-2014 GMC Yukon XL 1500; ...
Resources
- Brand logo
- Hazardous Materials Info Sheet
- Motive Gear Rear Ring & Pinion Install - Jeep TJ Sahara
- Motive Gear Front Ring & Pinion Install - Jeep JT Gladiator
- Motive Gear Rear Ring & Pinion Install - Jeep JT Gladiator
- Logo Image
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Primary
- Regulatory Content Label
- Differential Components #jeeps #offroad #offroading
- S and S Truck Parts Introduction Video

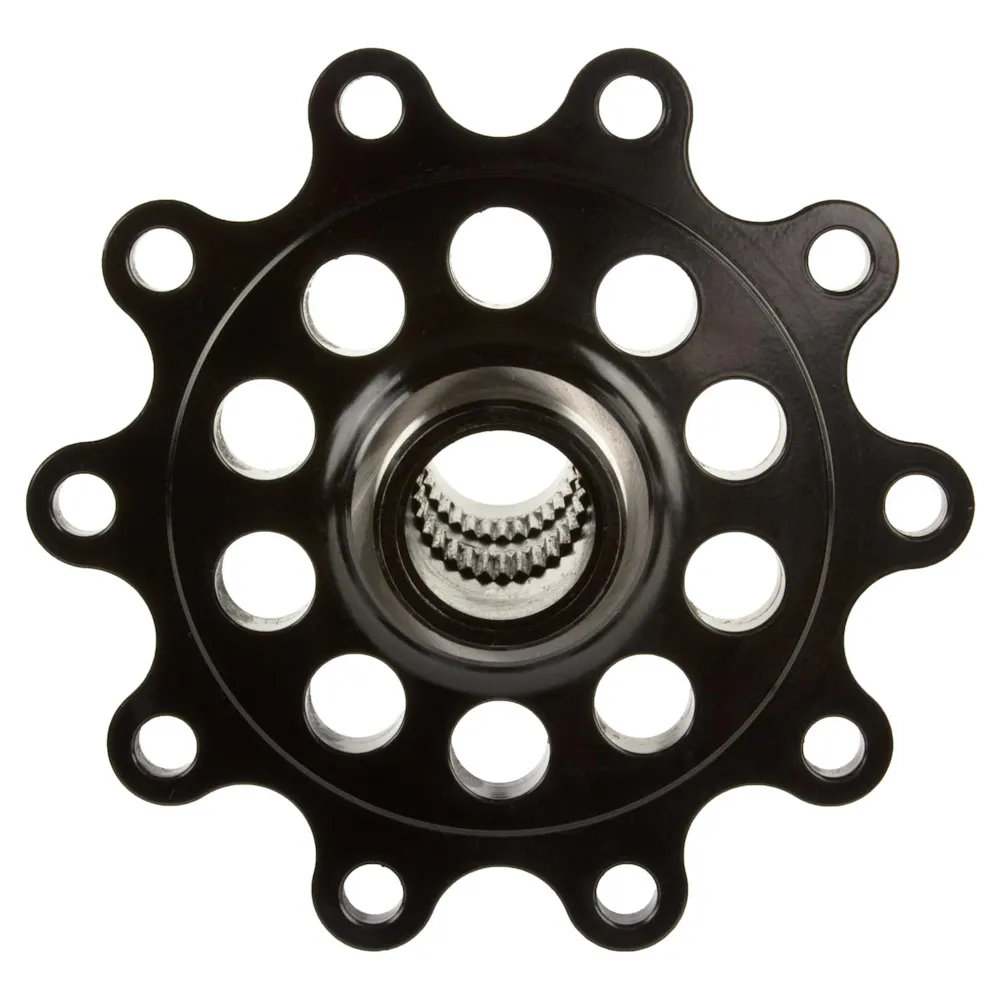

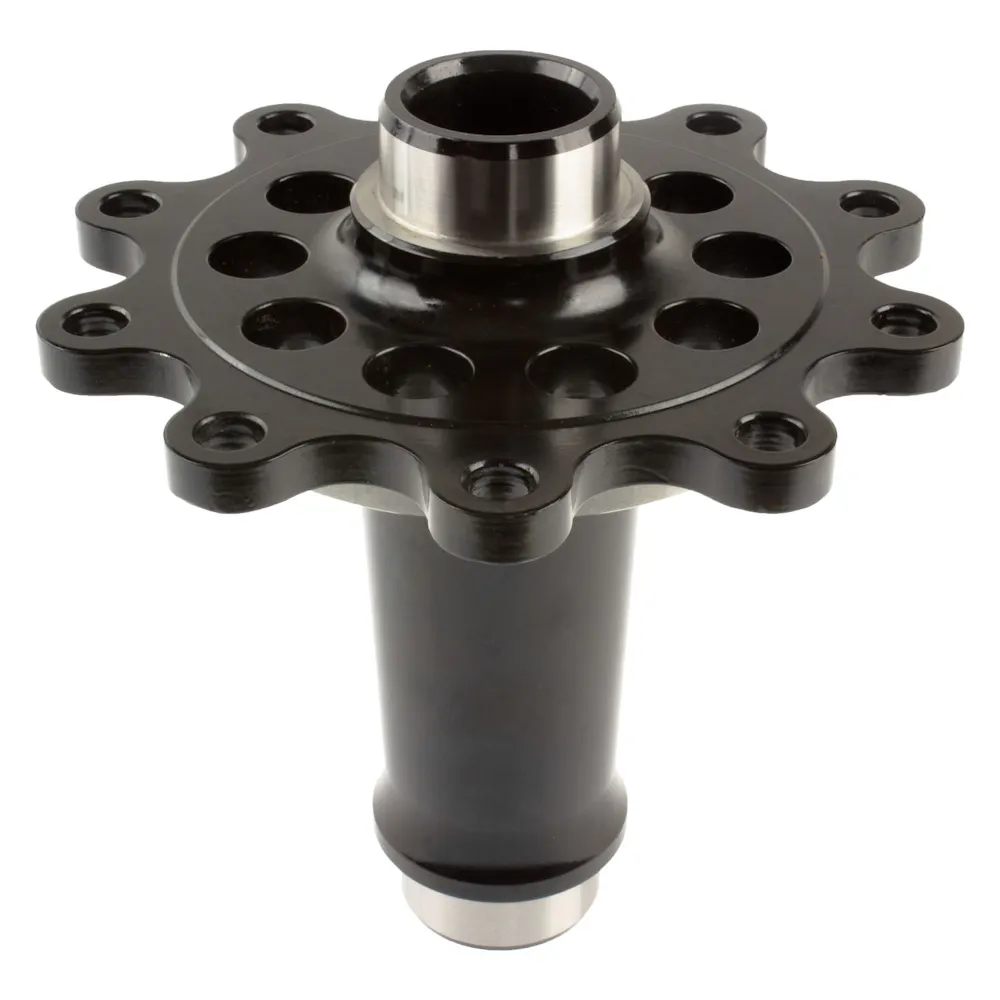

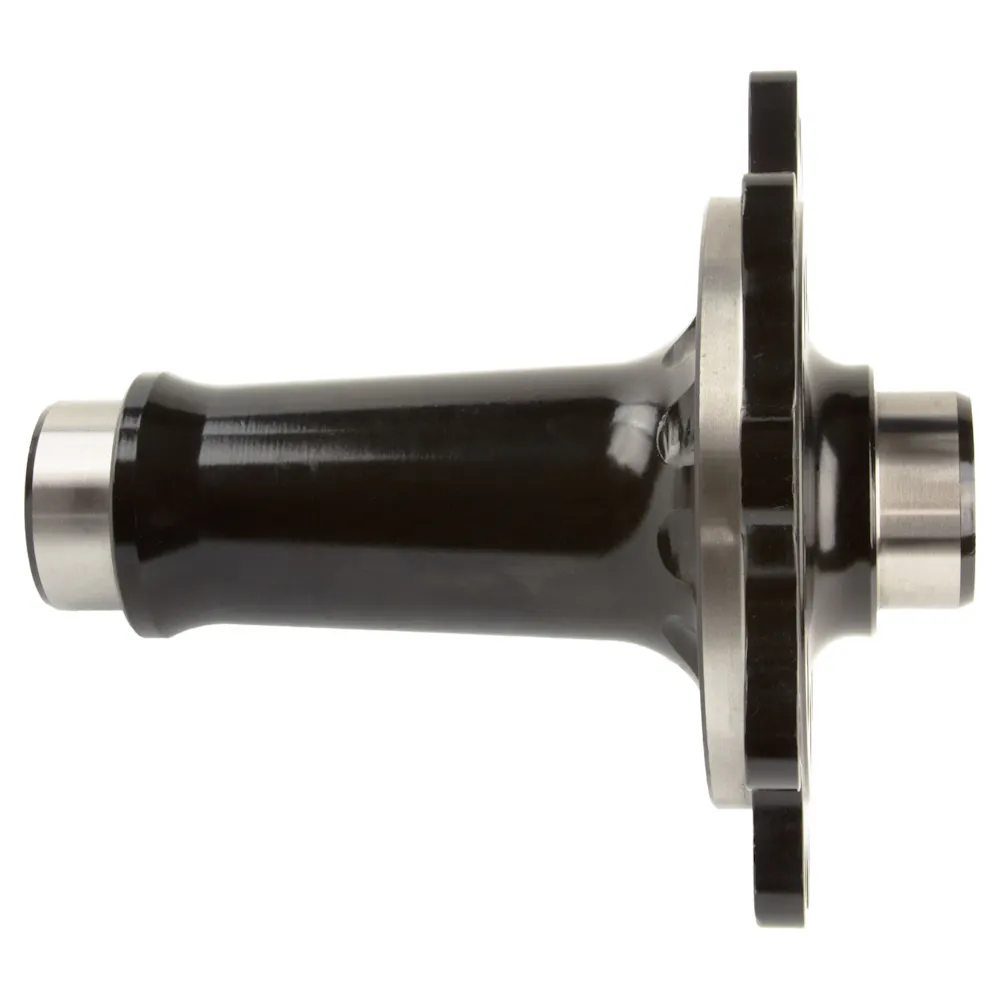

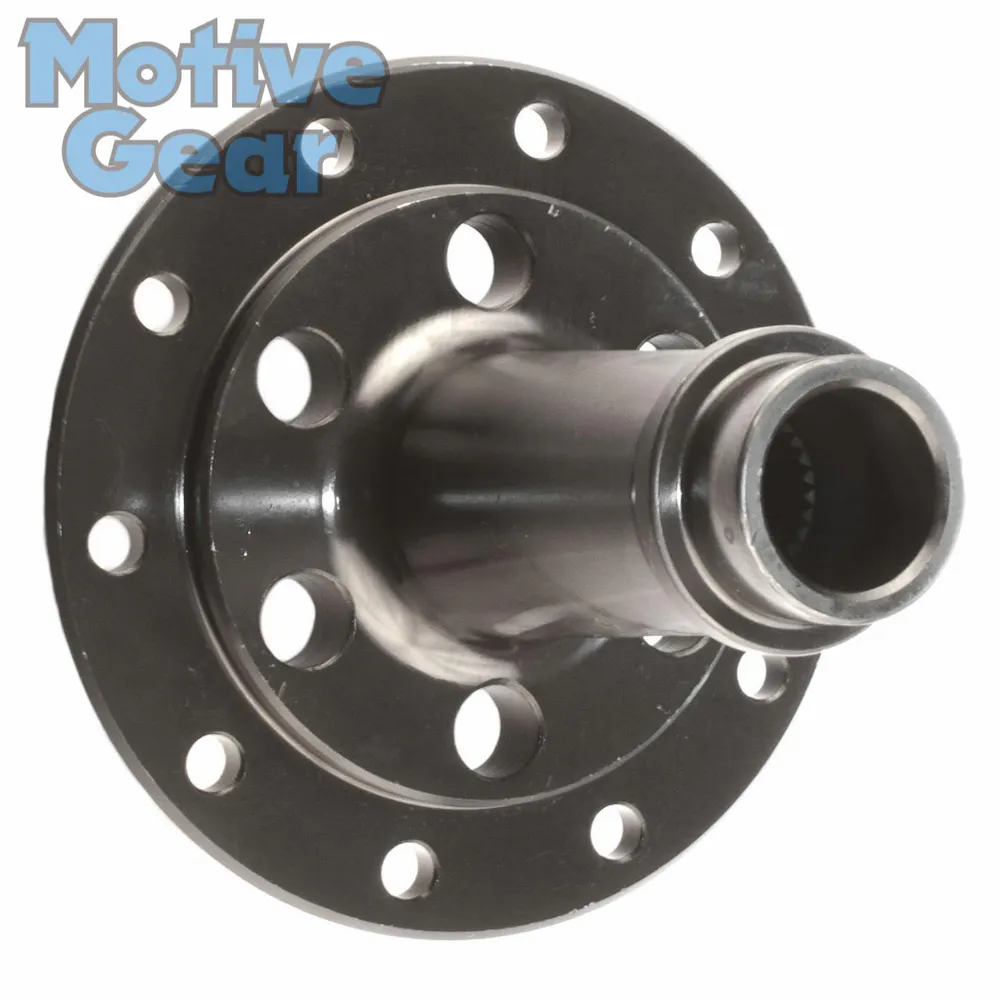

Motive Gear FS10-30
