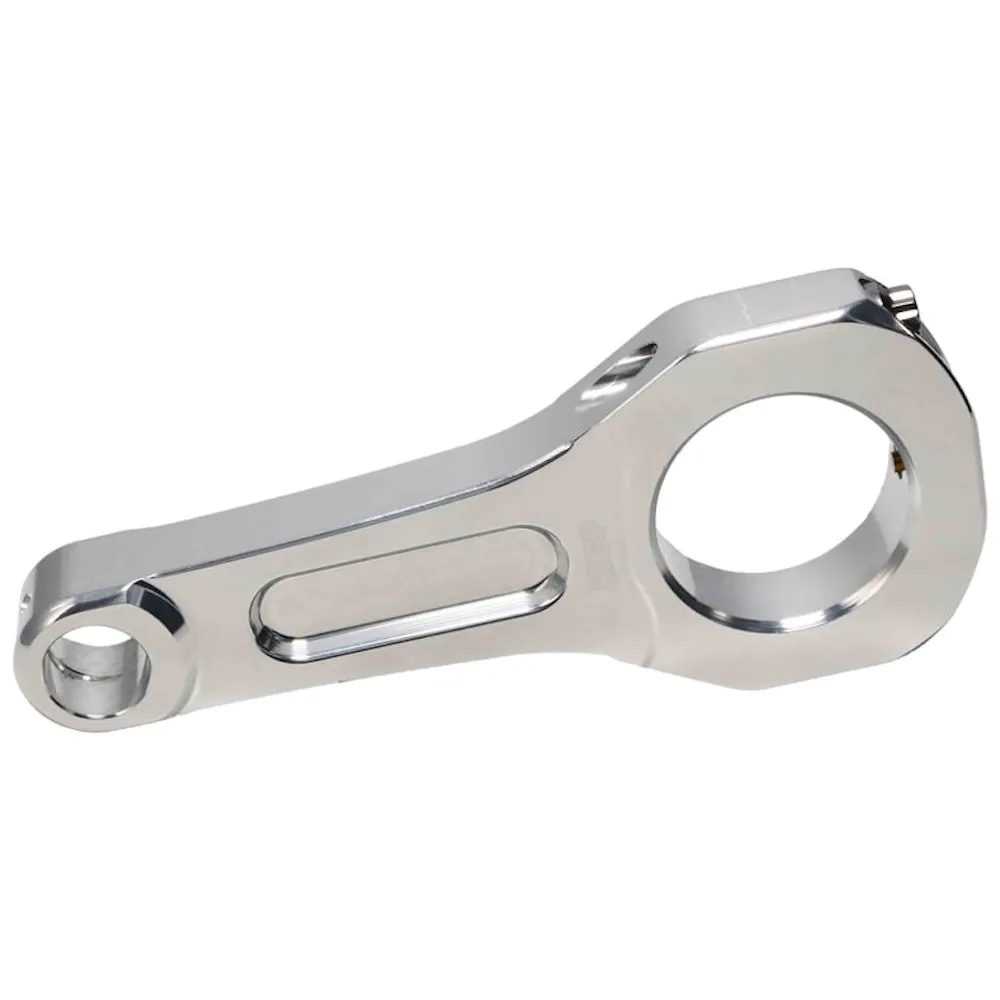

MGP Connecting Rods / MGP-LS-6125
Part #: MGP-LS-6125
UPC: 193564426697
Loading...
Notify me when this item is in stock.
Description: Connecting Rod Set, Chevrolet LS/LT, 6.125 in. Length, Set of 8; MGP Chevrolet LS/LT Connecting Rod Set, 6.125 in. Rod Length, 0.927 in. Pin, 7/16 in. Bolt Length, ARP L-19 Bolt Material, Set of 8
Description:
Description
Machined from a proprietary billet aluminum material, MGP rods feature massive strength, durability, and precision in a lightweight package. Unique features such as full radial serrations ensure zero cap movement in the most demanding environments and a proprietary MGP Hard Bore small-end process reduces wear and bore deformation.
Features & benefits
- Micro-finishing: Micro-finish processing in the small end bore extends the lifespan of the rod. Tolerance of the wrist pin is held to .0002 regarding size, roundness, and taper.
- Billet Aluminum: Machined from proprietary billet material providing superior strength and durability
- Precision Lightening: FEA Modeled to reduce weight while increasing strength via precision CNC machining
- Integrated Locking Serration: I.L.S. system on the rod cap and rod main body ensures precise alignment and prevents cap walk
- Washer Integration: Integrated hat washer assembly is retained by connecting rod cap for easy installation
- Precision Honing: Journal bore precision machined holding tolerance .0002 regarding size, roundness, and taper
Information
Do not leave rods torqued either in a box or in an engine for a period longer than six months without any heat cycles. If rods are not in use, all rod bolts need to be loosened to take preload off the bolts and then re-torqued prior to use. DO NOT STEP TORQUE. Lubricant: Valvoline VR1 50W motor oil OR Straight 50W
Application summary
| Year | Make / model |
|---|---|
| 2001-2004 | Avanti II |
| 2008-2009 | Buick Allure |
| 2008-2009 | Buick LaCrosse |
| 2022-2026 | Cadillac CT5 |
| 2016 | Cadillac CTS |
| 2018-2019 | Cadillac CTS |
| 2023-2026 | Cadillac Escalade |
| 2023-2026 | Cadillac Escalade ESV |
| 1998-2002 | Chevrolet Camaro |
| 2010-2024 | Chevrolet Camaro |
| 1997-2004 | Chevrolet Corvette |
| 2006-2026 | Chevrolet Corvette |
| 2006-2009 | Chevrolet Impala |
| 2006-2007 | Chevrolet Monte Carlo |
| 2014-2017 | Chevrolet SS |
| 1998-2002 | Pontiac Firebird |
| 2009 | Pontiac G8 |
| 2005-2008 | Pontiac Grand Prix |
| 2004 | Pontiac GTO |
Specifications
- GTIN
- 00193564426697
- Weight
- 12 lb
- Height
- 4 in
- Length
- 10.5 in
- Width
- 10.5 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- MGP
- Warehouse brand code
- HXSB
- AAIA brand code
- HXSB
Attributes
- Big End Bore
- 2.225
- Big End Width
- 0.940
- Bolt Diameter
- 7/16
- Bolt Material
- ARP L-19
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Category Hierarchy
- Connecting Rods
- Center To Center Length
- 6.125
- EBAY Category ID
- 262124
- Emissions Code
- 3
- Engine
- LS/LT
- Engine - Web
- LS/LT
- Engine Type
- ICE
- Grade Type
- Performance
- Hollow Or Solid
- Solid
- Industry
- Automotive
- Length Center Bore To Center Bore
- 6.125
- Main Bearing Bore Diameter
- 2.225
- Main Bearing Cap Bolt Quantity
- 2
- Make
- Chevrolet
- Make - Web
- Chevrolet
- Out of Stock Message
- Call for Availability
- Pin End Bore
- 0.927
- Pin End Bore Width
- 1.050
- Pin End Width
- 1.050
- Product Market
- Domestic
- Product Type
- Engine Connecting Rod Set
- Rod Quantity
- 8
- Title
- Chevrolet LS/LT Connecting Rod Set, 6.125 in. Length, Set of 8
- Title - Web
- Chevrolet LS/LT Connecting Rod Set, 6.125 in. Length, Set of 8
- Weight
- 615
- Wrist Pin Bore Diameter
- 0.927
- Wrist Pin Journal Bushing Width
- 1.050
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2001-2004 Avanti II; 2008-2009 Buick Allure; 2008-2009 Buick LaCrosse; 2022-2026 Cadillac CT5; 2016 Cadillac CTS; 2018-2019 Cadillac CTS; 2023-2026 Cadillac Escalade; 2023-2026 Cadillac Escalade ESV; 1998-2002 Chevrolet Camaro; 2010-2024 Chevrolet Camaro; 1997-2004 Chevrolet Corvette; 2006-2026 Chevrolet Corvette; 2006-2009 Chevrolet Impala; 2006-2007 Chevrolet Monte Carlo; 2014-2017 Chevrolet SS; 1998-2002 Pontiac Firebird; 2009 Pontiac G8; 2005-2008 Pontiac Grand Prix; 2004 Pontiac GTO
