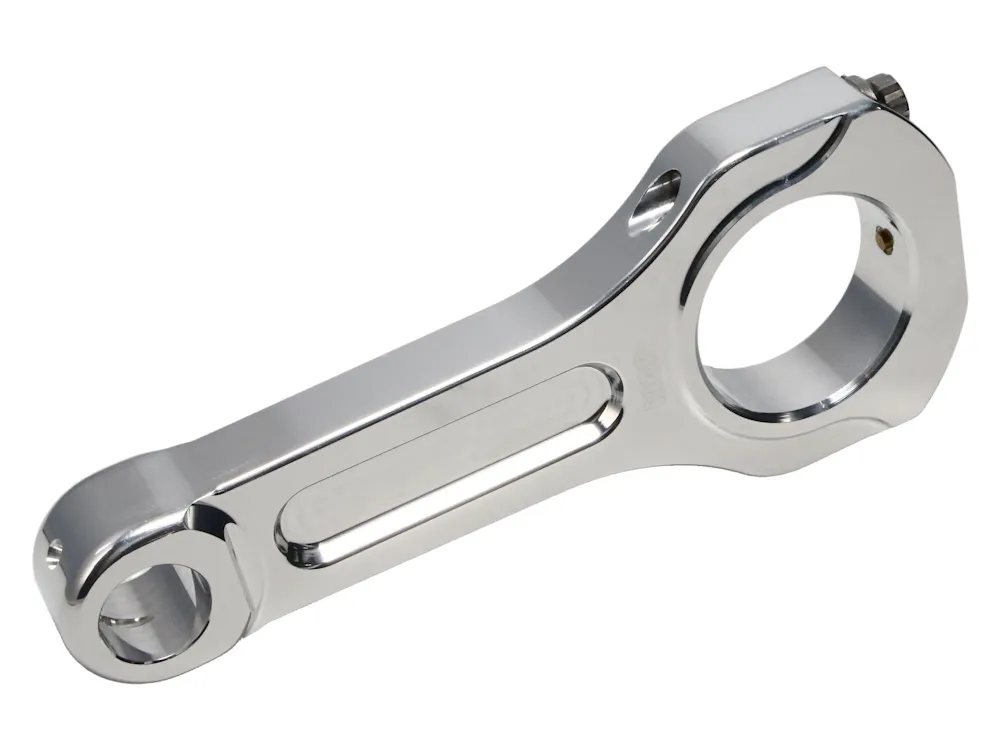

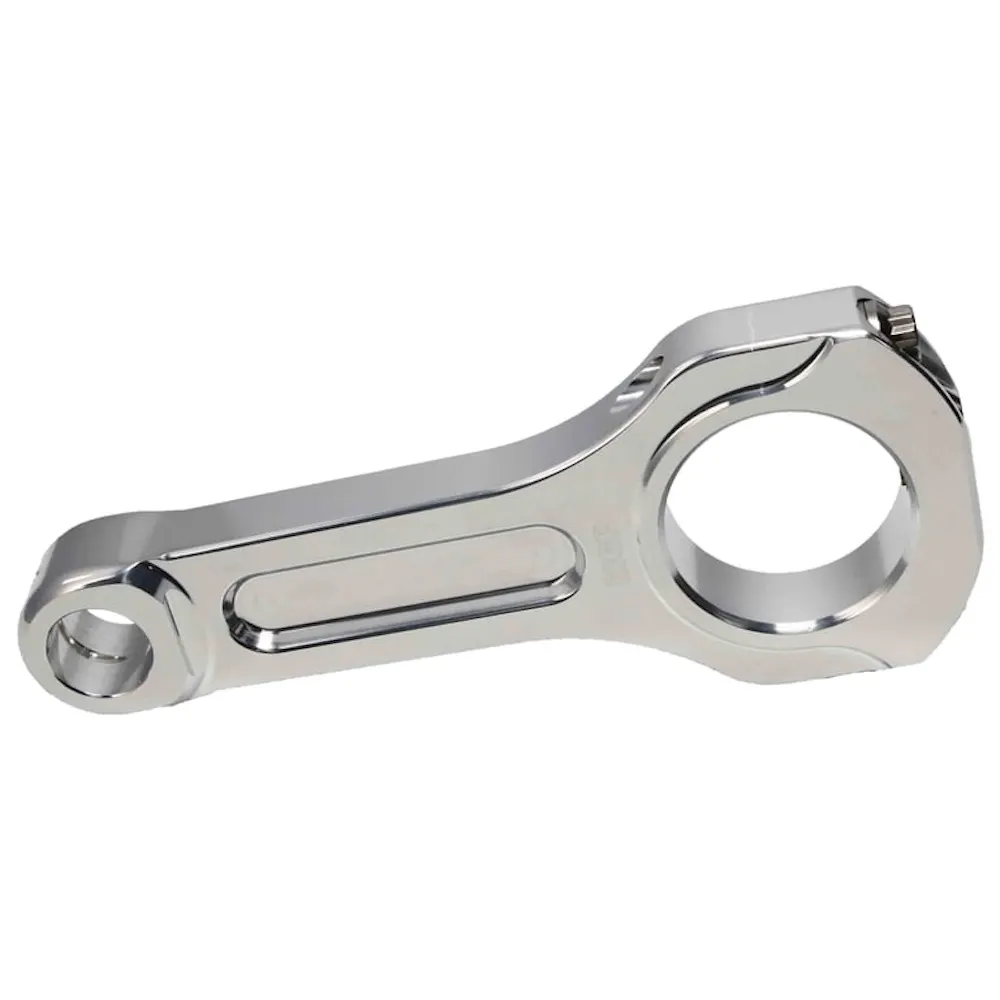

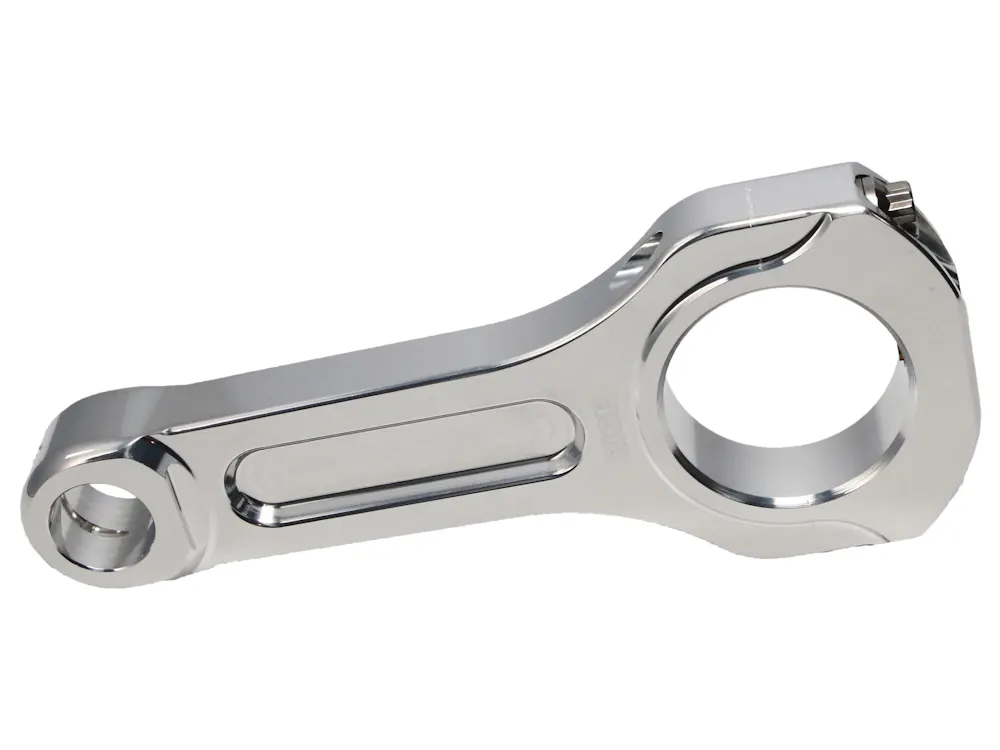

MGP Connecting Rods / MGP-BBC-6635
Part #: MGP-BBC-6635
UPC: 193564426659
Loading...
Notify me when this item is in stock.
Description: Connecting Rod Set, Chevrolet BBC, 6.635 in. Length, Set of 8; MGP Chevrolet BBC Connecting Rod Set, 6.635 in. Rod Length, 0.990 in. Pin, 7/16 in. Bolt Length, ARP L-19 Bolt Material, Set of 8
Description:
Description
Machined from a proprietary billet aluminum material, MGP rods feature massive strength, durability, and precision in a lightweight package. Unique features such as full radial serrations ensure zero cap movement in the most demanding environments and a proprietary MGP Hard Bore small-end process reduces wear and bore deformation.
Features & benefits
- Micro-finishing: Micro-finish processing in the small end bore extends the lifespan of the rod. Tolerance of the wrist pin is held to .0002 regarding size, roundness, and taper
- Billet Aluminum: Machined from proprietary billet material providing superior strength and durability
- Precision Lightening: FEA Modeled to reduce weight while increasing strength via precision CNC machining
- Integrated Locking Serration: I.L.S. system on the rod cap and rod main body ensures precise alignment and prevents cap walk
- Washer Integration: Integrated hat washer assembly is retained by connecting rod cap for easy installation
- Precision Honing: Journal bore precision machined holding tolerance .0002 regarding size, roundness, and taper
Information
Do not leave rods torqued either in a box or in an engine for a period longer than six months without any heat cycles. If rods are not in use, all rod bolts need to be loosened to take preload off the bolts and then re-torqued prior to use. DO NOT STEP TORQUE. Lubricant: Valvoline VR1 50W motor oil OR Straight 50W
Specifications
- GTIN
- 00193564426659
- Weight
- 12 lb
- Height
- 4 in
- Length
- 10.5 in
- Width
- 10.5 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- MGP
- Warehouse brand code
- HXSB
- AAIA brand code
- HXSB
Attributes
- Big End Bore
- 2.325
- Big End Width
- 0.990
- Bolt Diameter
- 7/16
- Bolt Material
- ARP L-19
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Category Hierarchy
- Connecting Rods
- Center To Center Length
- 6.635
- EBAY Category ID
- 262124
- Emissions Code
- 3
- Engine
- BBC
- Engine - Web
- BBC
- Engine Type
- ICE
- Grade Type
- Performance
- Hollow Or Solid
- Solid
- Industry
- Automotive
- Length Center Bore To Center Bore
- 6.635
- Main Bearing Bore Diameter
- 2.325
- Main Bearing Cap Bolt Quantity
- 2
- Make
- Chevrolet
- Make - Web
- Chevrolet
- Out of Stock Message
- Call for Availability
- Pin End Bore
- 0.990
- Pin End Bore Width
- 1.150
- Pin End Width
- 1.150
- Product Market
- Domestic
- Product Type
- Engine Connecting Rod Set
- Rod Quantity
- 8
- Title
- Chevrolet BBC Connecting Rod Set, 6.635 in. Length, Set of 8
- Title - Web
- Chevrolet BBC Connecting Rod Set, 6.635 in. Length, Set of 8
- Wrist Pin Bore Diameter
- 0.990
- Wrist Pin Journal Bushing Width
- 1.150
Fitment status
This product is universal and will fit your application.
