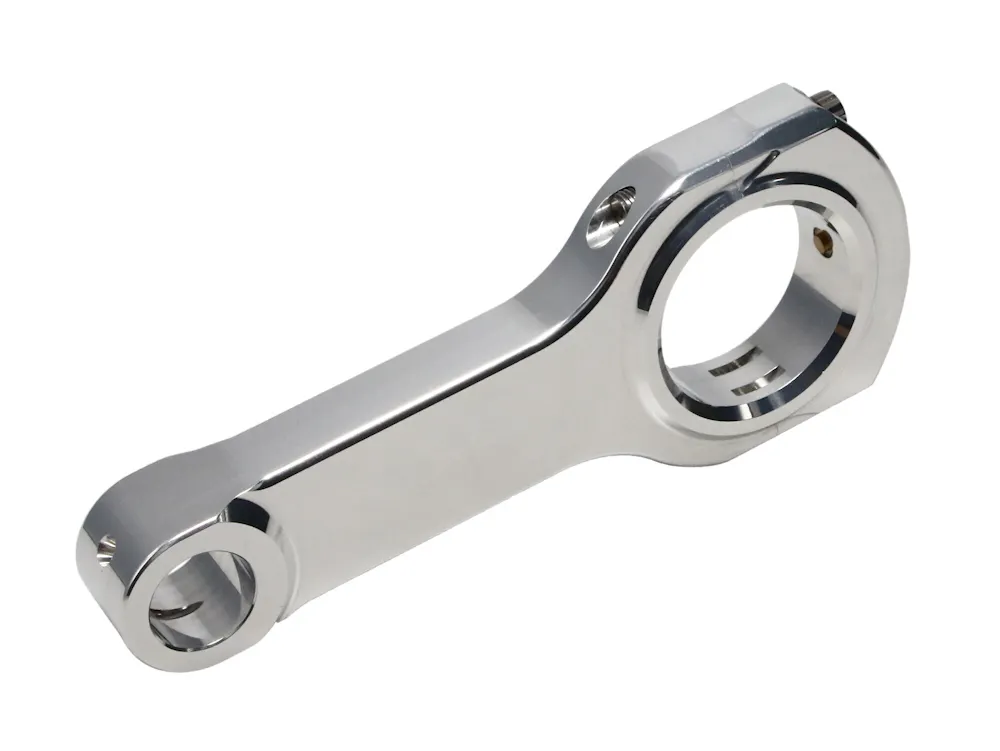

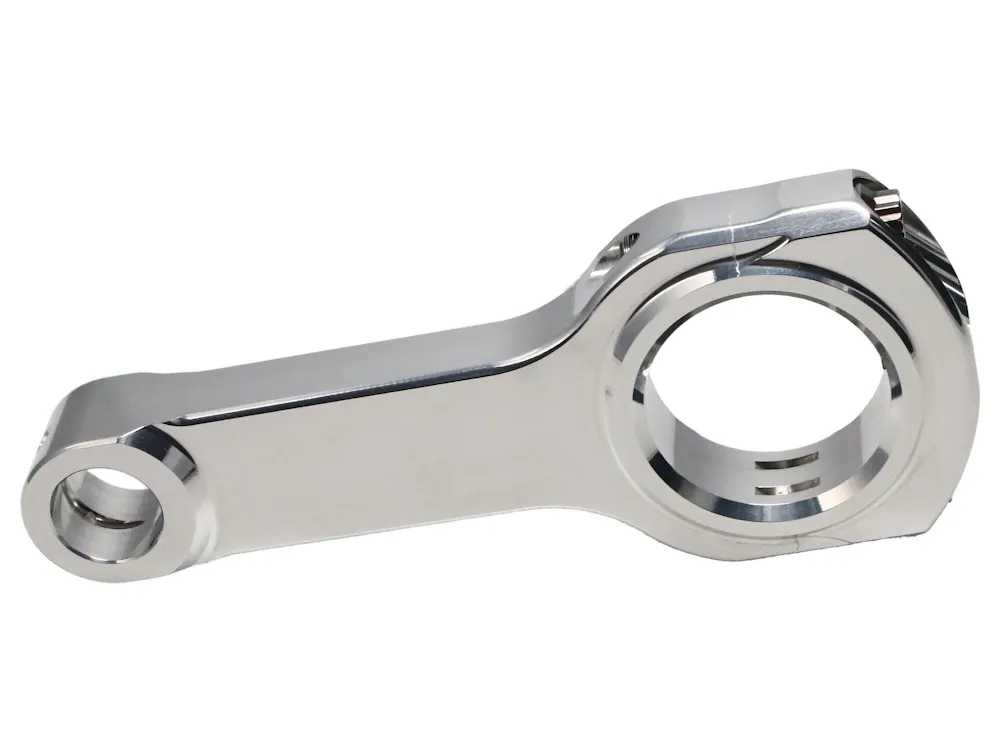

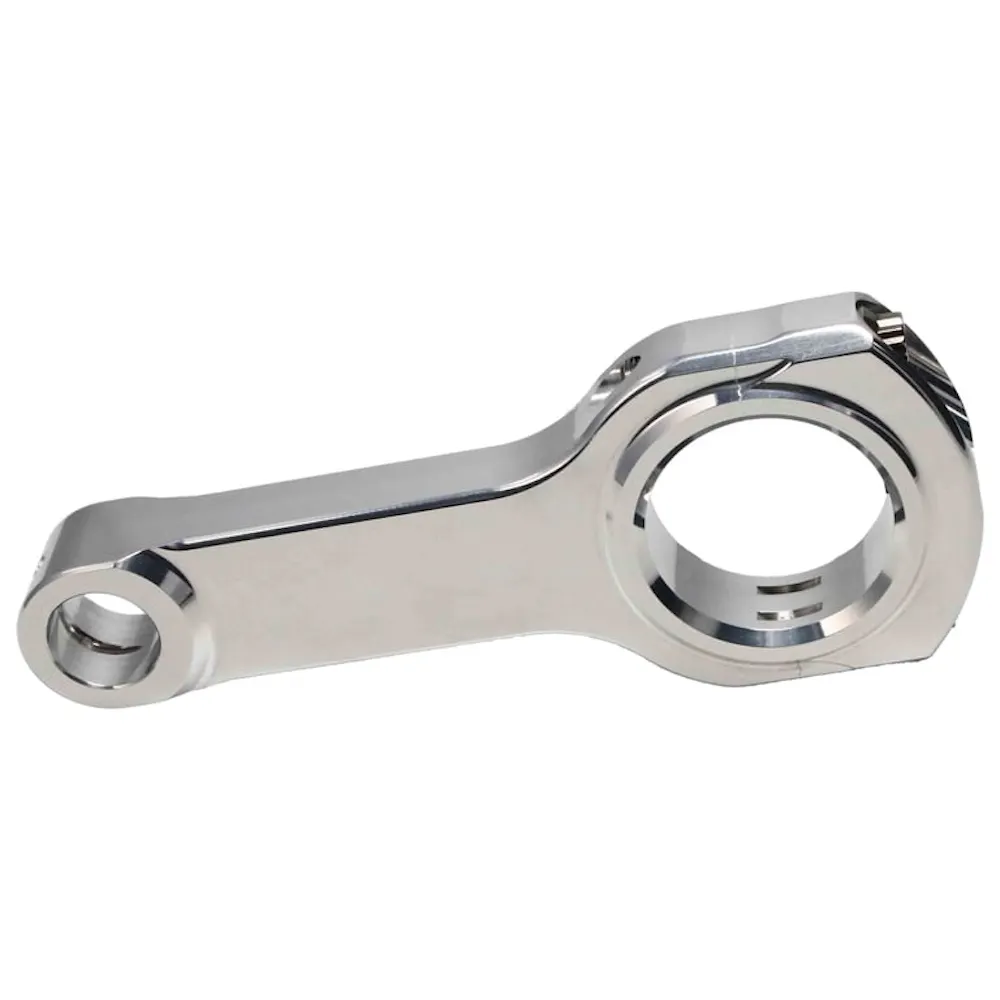

MGP Connecting Rods / MGP-2JZ-5580-1888
Part #: MGP-2JZ-5580-1888
UPC: 193564426581
Loading...
Notify me when this item is in stock.
Description: Connecting Rod Set, Toyota 2JZ-GTE, 5.580 in. Length, Set of 6; MGP Toyota 2JZ-GTE Connecting Rod Set, 5.580 in. Rod Length, 0.866 in. Pin, 3/8 in. ARP L-19 Bolt, Set of 6
Description:
Description
Machined from a proprietary billet aluminum material, MGP rods feature massive strength, durability, and precision in a lightweight package. Unique features such as full radial serrations ensure zero cap movement in the most demanding environments and a proprietary MGP Hard Bore small-end process reduces wear and bore deformation.
Features & benefits
- Micro-finishing: Micro-finish processing in the small end bore extends the lifespan of the rod. Tolerance of the wrist pin is held to .0002 regarding size, roundness, and taper.
- Billet Aluminum: Machined from proprietary billet material providing superior strength and durability
- Precision Lightening: FEA Modeled to reduce weight while increasing strength via precision CNC machining
- Integrated Locking Serration: I.L.S. system on the rod cap and rod main body ensures precise alignment and prevents cap walk
- Washer Integration: Integrated hat washer assembly is retained by connecting rod cap for easy installation
- Precision Honing: Journal bore precision machined holding tolerance .0002 regarding size, roundness, and taper
Information
Do not leave rods torqued either in a box or in an engine for a period longer than six months without any heat cycles. If rods are not in use, all rod bolts need to be loosened to take preload off the bolts and then re-torqued prior to use. DO NOT STEP TORQUE. Lubricant: Valvoline VR1 50W motor oil OR Straight 50W
Application summary
| Year | Make / model |
|---|---|
| 1993-2003 | Lexus GS300 |
| 2001-2003 | Lexus IS300 |
| 1992-2000 | Lexus SC300 |
| 1993-1998 | Toyota Supra |
Specifications
- GTIN
- 00193564426581
- Weight
- 8 lb
- Height
- 4 in
- Length
- 10.5 in
- Width
- 10.5 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- MGP
- Warehouse brand code
- HXSB
- AAIA brand code
- HXSB
Attributes
- Big End Bore
- 2.015
- Big End Width
- 1.025
- Bolt Diameter
- 3/8
- Bolt Material
- ARP L-19
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Category Hierarchy
- Connecting Rods
- Center To Center Length
- 5.580
- EBAY Category ID
- 262124
- Emissions Code
- 3
- Engine
- 2JZGTE
- Engine - Web
- 2JZGTE
- Engine Type
- ICE
- Grade Type
- Performance
- Hollow Or Solid
- Solid
- Industry
- Automotive
- Length Center Bore To Center Bore
- 5.580
- Main Bearing Bore Diameter
- 2.015
- Main Bearing Cap Bolt Quantity
- 2
- Make
- Toyota
- Make - Web
- Toyota
- Out of Stock Message
- Call for Availability
- Pin End Bore
- 0.866
- Pin End Bore Width
- 1.080
- Pin End Width
- 1.080
- Product Market
- Sport Compact
- Product Type
- Engine Connecting Rod Set
- Rod Quantity
- 6
- Title
- Toyota 2JZGTE Connecting Rod Set, 5.580 in. Length, Set of 6
- Title - Web
- Toyota 2JZGTE Connecting Rod Set, 5.580 in. Length, Set of 6
- Wrist Pin Bore Diameter
- 0.866
- Wrist Pin Journal Bushing Width
- 1.080
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1993-2003 Lexus GS300; 2001-2003 Lexus IS300; 1992-2000 Lexus SC300; 1993-1998 Toyota Supra
