Melling Engine Parts / Melling Tool Co. · M544
Part #: M544
UPC: 729295105527
Loading...
Notify me when this item is in stock.

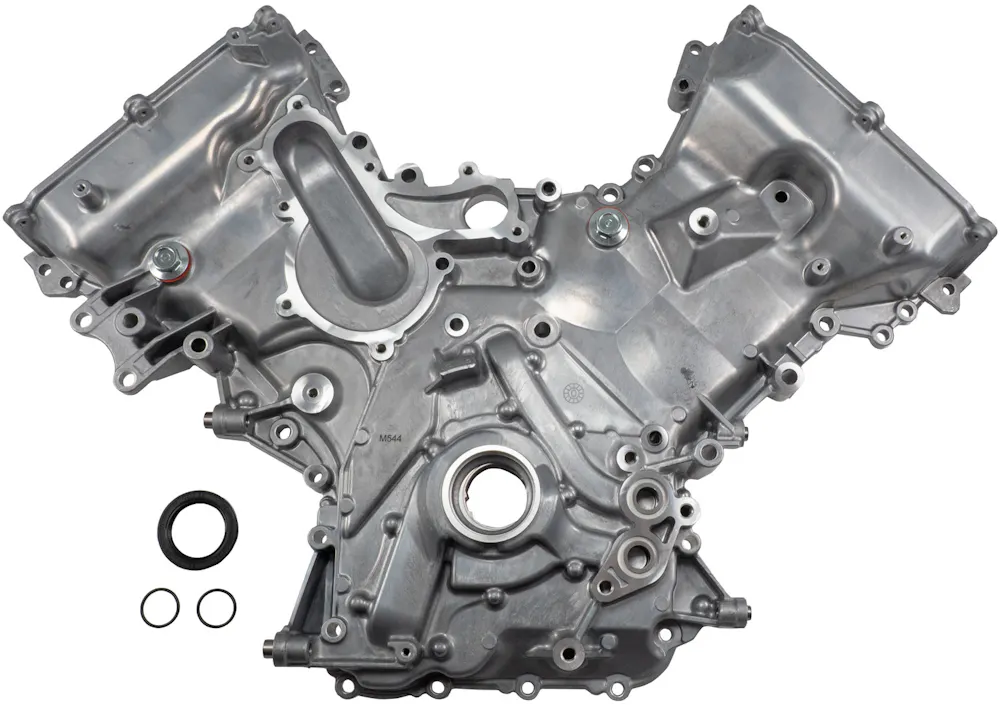

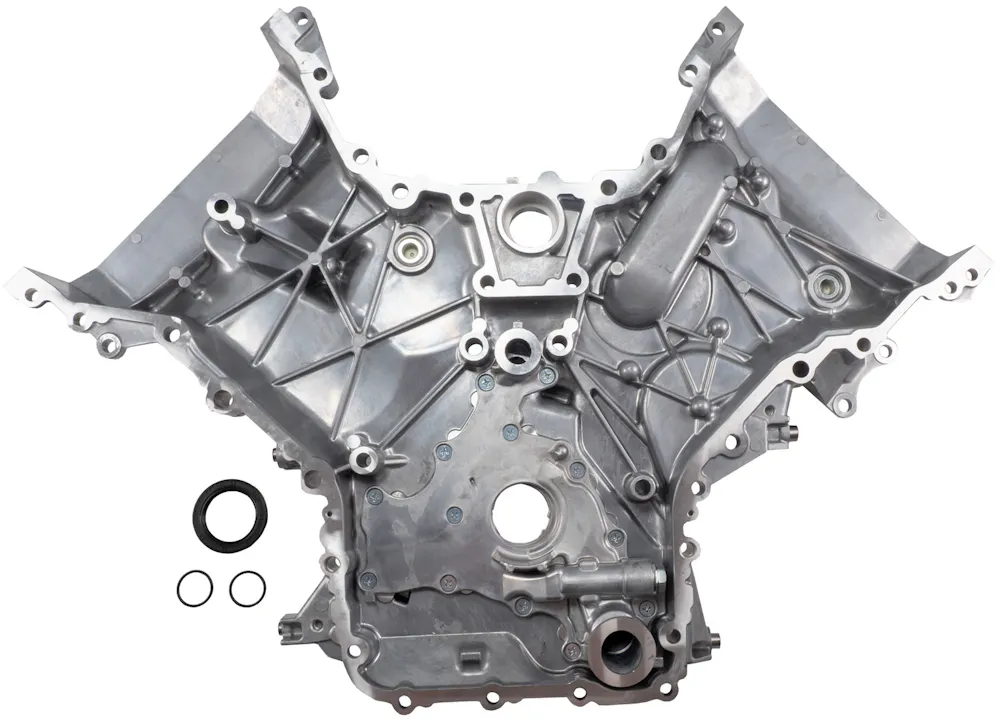

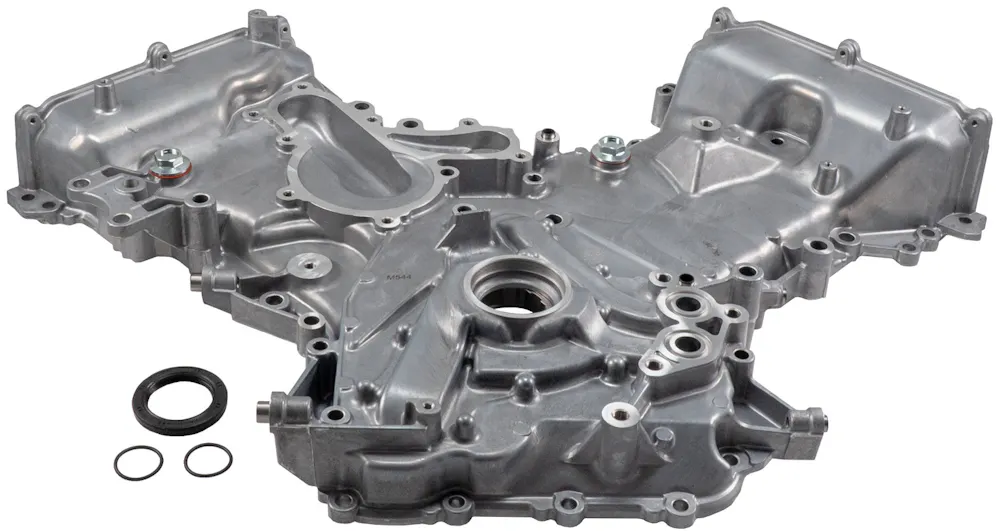

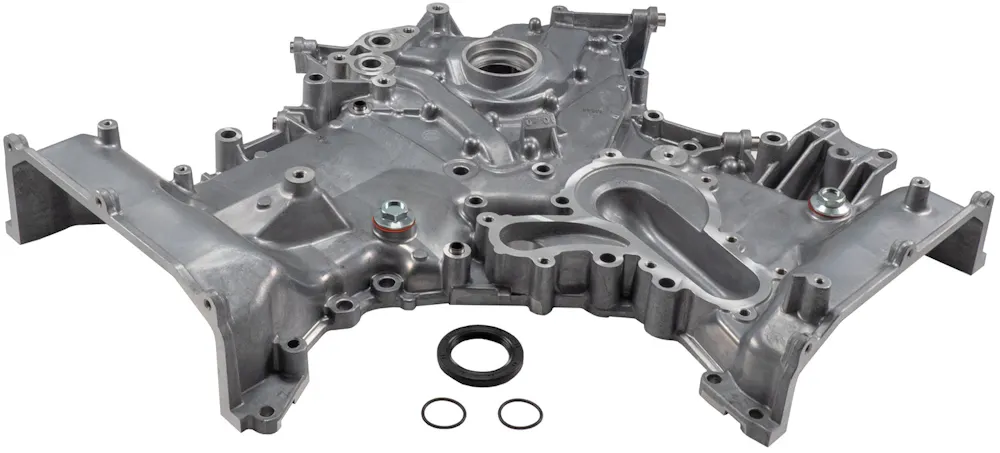

Description: Stock Replacement Oil Pump Timing Cover Assembly
Description:
Description
Melling oil pump timing cover assemblies provide dependable performance every time in every application. Every Melling oil pump timing cover assembly is engineered and assembled to the highest production standards from high quality materials. All Melling oil pumps use the latest in gear and gerotor technology to provide the highest level of quality and performance. Gears are machined to close tolerances to ensure proper engine pressure and correct, efficient pump operation. End plates are precision ground for maximum wear resistance. Every Melling oil pump timing cover assembly is individually tested for pressure and flow under conditions designed to duplicate actual engine operating conditions.
Features & benefits
- Manufactured from high quality materials for consistent durable wear
- Designed for long-life and worry-free performance
- Meets or exceeds original equipment specifications
- Melling oil pumps are tested for pressure and flow under operating conditions to ensure quality
- Precision engineered for optimum fit and function
Application summary
| Year | Make / model |
|---|---|
| 2008-2011 | Lexus LX570 |
| 2013-2021 | Lexus LX570 |
| 2008-2011 | Toyota Land Cruiser |
| 2013-2021 | Toyota Land Cruiser |
| 2008-2022 | Toyota Sequoia |
| 2007-2021 | Toyota Tundra |
Specifications
- GTIN
- 00729295105527
- Weight
- 17.4 lb
- Height
- 5 in
- Length
- 24 in
- Width
- 24.5 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- MEL
- Warehouse brand code
- BCBC
- AAIA brand code
- BCBC
Attributes
- Adjustable Relief Valve Included
- No
- Alternate Pressure Springs Included
- No
- Bolts Included
- No
- Bushing Included
- No
- California Proposition 65
- No
- Cotter Pin Included
- No
- Cover Material
- Aluminum
- Drive Shaft Included
- Not Applicable
- Drive Type
- Crankshaft
- Finish
- Rust Preventative
- Gasket or Seal Included
- Yes
- Gear Material
- Not Applicable
- Gears Included
- Not Applicable
- Governor Spinner Included
- No
- Grade Type
- Standard Replacement
- Guide Included
- No
- Housing Material
- Aluminum
- Inlet Size (in)
- 0.630
- Inlet Size (mm)
- 16.00
- Intermediate Shaft Included
- No
- Mounting Hole Diameter (in)
- Not Applicable
- Mounting Hole Diameter (mm)
- Not Applicable
- Mounting Hole Quantity
- 61
- Nylon Bushing Included
- No
- O-Ring Included
- Yes
- Oil Pump Pressure Type
- Standard Pressure
- Oil Pump Volume Type
- Standard Volume
- Pick Up Tube Diameter (in)
- 0.630
- Pick Up Tube Diameter (mm)
- 16.00
- Pickup Screen Included
- No
- Pump Cover Included
- Yes
- Rotor Material
- Powdered Metal
- Shaft Material
- Not Applicable
- Spacer Included
- No
- Timing Cover Included
- Yes
- Title
- Engine Oil Pump Timing Cover Assembly
- Washers Included
- No
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2008-2011 Lexus LX570; 2013-2021 Lexus LX570; 2008-2011 Toyota Land Cruiser; 2013-2021 Toyota Land Cruiser; 2008-2022 Toyota Sequoia; 2007-2021 Toyota Tundra
