Melling Engine Parts / Melling Tool Co. · M538
Part #: M538
UPC: 729295105282
Log in for inventory
Notify me when this item is in stock.
Description: Stock Replacement Oil Pump; M538 Stock Replacement : Standard Volume, Standard Pressure, Aluminum Oil Pump
Description:
Description
Melling oil pumps provide dependable performance every time in every application. Every Melling oil pump is engineered and assembled to the highest production standards from high quality materials. All Melling oil pumps use the latest in gear and gerotor technology to provide the highest level of quality and performance. Gears are machined to close tolerances to ensure proper engine pressure and correct, efficient pump operation. End plates are precision ground for maximum wear resistance. Every Melling oil pump is individually tested for pressure and flow under conditions designed to duplicate actual engine operating conditions.
Application summary
| Year | Make / model |
|---|---|
| 2009-2010 | Pontiac Vibe |
| 2012-2014 | Scion xD |
| 2009-2019 | Toyota Corolla |
| 2009-2014 | Toyota Matrix |
Specifications
- GTIN
- 00729295105282
- Weight
- 2.4 lb
- Height
- 5.25 in
- Length
- 8 in
- Width
- 6 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- MEL
- Warehouse brand code
- BCBC
- AAIA brand code
- BCBC
Attributes
- Bolts Included
- No
- Bushing Included
- No
- California Proposition 65
- No
- Cotter Pin Included
- No
- Cover Material
- Aluminum
- Drive Shaft Included
- No
- Drive Type
- Drive Shaft
- Finish
- Rust Preventative
- Gasket Or Seal Included
- No
- Gear Material
- Steel
- Gears Included
- Yes
- Governor Spinner Included
- No
- Grade Type
- Standard Replacement
- Guide Included
- No
- Height
- 5.84
- Housing Material
- Cast Aluminum
- Inlet Size (in)
- 0.550
- Inlet Size (mm)
- 14.00
- Intermediate Shaft Included
- No
- Mounting Hole Diameter
- 0.375
- Mounting Hole Quantity
- 2
- Nylon Bushing Included
- No
- O-Ring Included
- No
- Oil Pump Type
- Rotary
- Pick Up Tube Diameter
- 0.55
- Pickup Screen Included
- Yes
- Pump Cover Included
- Yes
- Shaft Material
- Not Applicable
- Spacer Included
- No
- Timing Cover Included
- No
- Title
- Engine Oil Pump
- Washers Included
- No
- Width
- 5.61
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2009-2010 Pontiac Vibe; 2012-2014 Scion xD; 2009-2019 Toyota Corolla; 2009-2014 Toyota Matrix
Resources
- Brand logo
- Photo - Out of Package
- Photo - Primary
- Engine Priming Tank - Melling # MPL-201
- Oil Pump Volume and Pressure Explanation
- How to Measure the Health of your Engine - By Melling Engine Parts
- Spanish Version: Oil Pump Volume and Pressure by Melling
- Measuring Bearing clearances in an engine - they have a major impact on oil pressure
- Grease in Oil Pumps??? Tech Tip from Melling Engine Parts

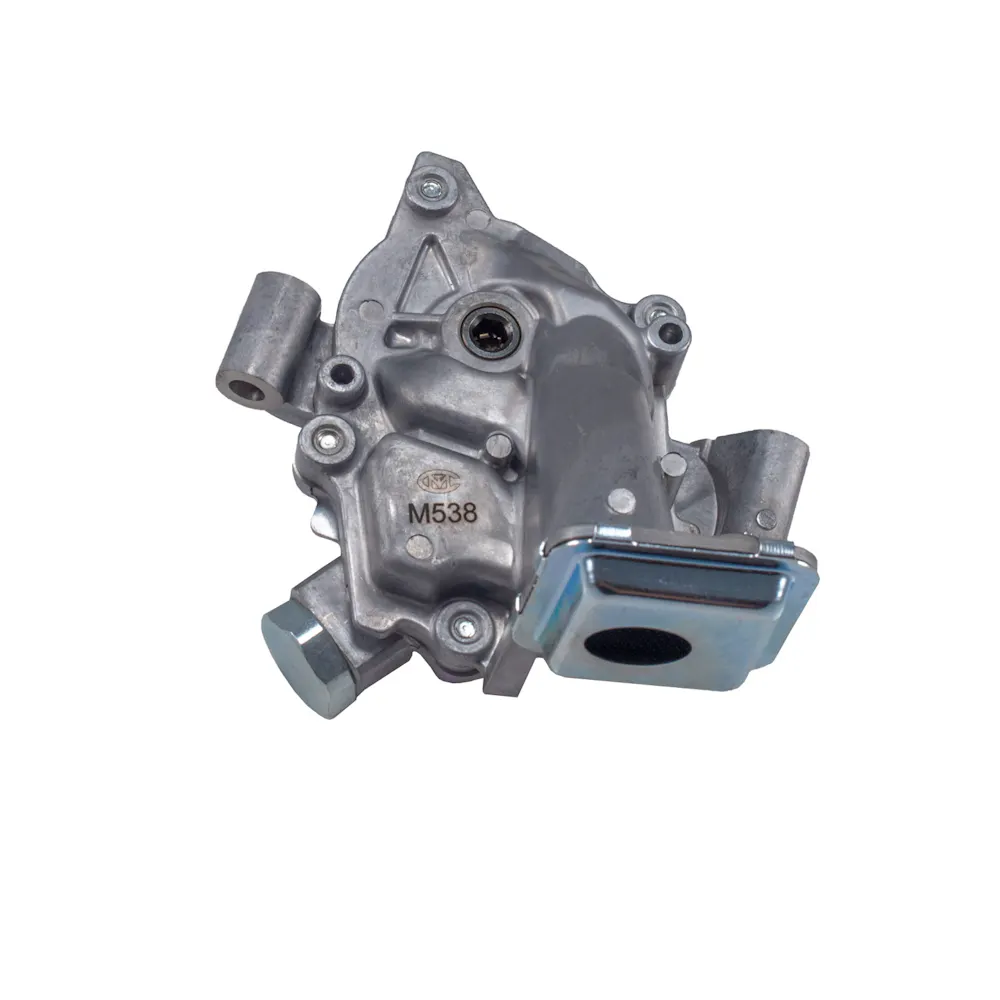

Melling Engine Parts / Melling Tool Co. M538
