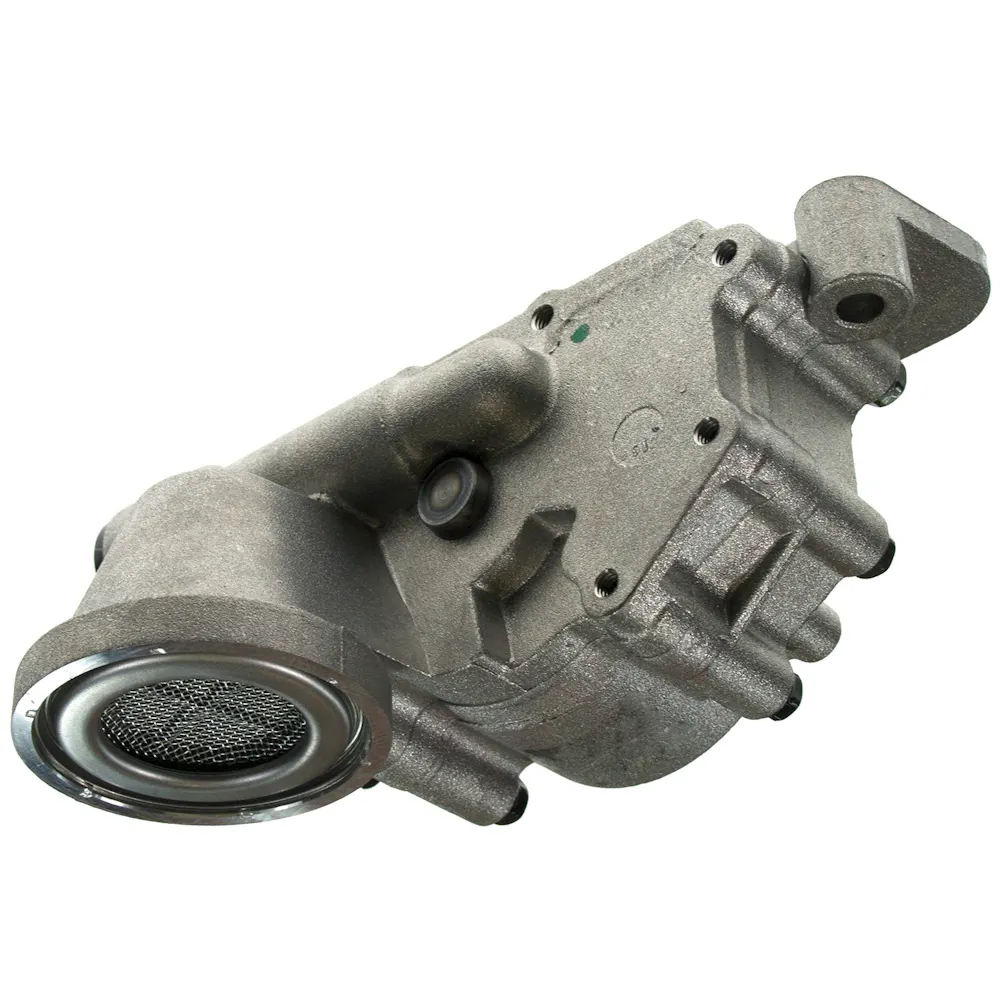

Melling Engine Parts / Melling Tool Co. · M513
Part #: M513
UPC: 729295104612
Log in for inventory
Notify me when this item is in stock.
Description: Stock Replacement Oil Pump; M513 Stock Replacement : Standard Volume, Standard Pressure, Aluminum Oil Pump With Gasket
Description:
Description
Melling oil pumps provide dependable performance every time in every application. Every Melling oil pump is engineered and assembled to the highest production standards from high quality materials. All Melling oil pumps use the latest in gear and gerotor technology to provide the highest level of quality and performance. Gears are machined to close tolerances to ensure proper engine pressure and correct, efficient pump operation. End plates are precision ground for maximum wear resistance. Every Melling oil pump is individually tested for pressure and flow under conditions designed to duplicate actual engine operating conditions.
Features & benefits
- Precision engineered for optimum fit and function
- Manufactured from high quality materials for consistent durable wear
- Designed for long-life and worry-free performance
- Meets or exceeds original equipment specifications
Application summary
| Year | Make / model |
|---|---|
| 2006-2011 | Hyundai Azera |
| 2007-2010 | Hyundai Entourage |
| 2009-2011 | Hyundai Genesis |
| 2010-2011 | Hyundai Genesis Coupe |
| 2007-2009 | Hyundai Santa Fe |
| 2006-2010 | Hyundai Sonata |
| 2007-2011 | Hyundai Veracruz |
| 2007-2009 | Kia Amanti |
| 2009-2010 | Kia Borrego |
| 2006-2010 | Kia Sedona |
| 2007-2009 | Kia Sorento |
Specifications
- GTIN
- 00729295104612
- Weight
- 3.35 lb
- Height
- 5.25 in
- Length
- 8 in
- Width
- 6 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- MEL
- Warehouse brand code
- BCBC
- AAIA brand code
- BCBC
Attributes
- Bolts Included
- No
- Bushing Included
- No
- California Proposition 65
- No
- Cotter Pin Included
- No
- Cover Material
- Aluminum
- Drive Shaft Included
- No
- Drive Type
- Drive Shaft
- Finish
- Rust Preventative
- Gasket Or Seal Included
- Yes
- Gears Included
- Yes
- Governor Spinner Included
- No
- Grade Type
- Standard Replacement
- Guide Included
- No
- Height
- 3.47
- Housing Material
- Aluminum
- Inlet Size (in)
- Not Applicable
- Inlet Size (mm)
- Not Applicable
- Intermediate Shaft Included
- No
- Mounting Hole Diameter
- 0.375
- Mounting Hole Quantity
- 3
- Nylon Bushing Included
- No
- O-Ring Included
- No
- Oil Pump Type
- Gear
- Pick Up Tube Diameter
- 2.000
- Pickup Screen Included
- No
- Pump Cover Included
- Yes
- Rotor Material
- Powdered Metal
- Shaft Material
- Not Applicable
- Spacer Included
- No
- Timing Cover Included
- No
- Title
- Engine Oil Pump
- Washers Included
- No
- Width
- 7.25
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2006-2011 Hyundai Azera; 2007-2010 Hyundai Entourage; 2009-2011 Hyundai Genesis; 2010-2011 Hyundai Genesis Coupe; 2007-2009 Hyundai Santa Fe; 2006-2010 Hyundai Sonata; 2007-2011 Hyundai Veracruz; 2007-2009 Kia Amanti; 2009-2010 Kia Borrego; 2006-2010 Kia Sedona; 2007-2009 Kia Sorento
