Melling Engine Parts / Melling Tool Co. · M490
Part #: M490
UPC: 729295105503
Log in for inventory
Notify me when this item is in stock.
Description: Stock Replacement Oil Pump; M490 Stock Replacement : Standard Volume, Standard Pressure, Aluminum Oil Pump With Gasket
Description:
Description
Made in USA. Melling oil pumps provide dependable performance every time in every application. Every Melling oil pump is engineered and assembled to the highest production standards from high quality materials. All Melling oil pumps use the latest in gear and gerotor technology to provide the highest level of quality and performance. Gears are machined to close tolerances to ensure proper engine pressure and correct, efficient pump operation. End plates are precision ground for maximum wear resistance. Every Melling oil pump is individually tested for pressure and flow under conditions designed to duplicate actual engine operating conditions.
Application summary
| Year | Make / model |
|---|---|
| 2018-2024 | Ford Expedition |
| 2020-2023 | Ford Explorer |
| 2017-2024 | Ford F-150 |
| 2020-2024 | Ford Police Interceptor Utility |
| 2020-2024 | Ford Transit-150 |
| 2020-2024 | Ford Transit-250 |
| 2020-2024 | Ford Transit-350 |
| 2020-2024 | Ford Transit-350 HD |
| 2018-2024 | Lincoln Navigator |
Specifications
- GTIN
- 00729295105503
- Weight
- 8.45 lb
- Height
- 5.75 in
- Length
- 14.75 in
- Width
- 6.25 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- MEL
- Warehouse brand code
- BCBC
- AAIA brand code
- BCBC
Attributes
- Bolts Included
- No
- Bushing Included
- No
- California Proposition 65
- No
- Cotter Pin Included
- No
- Cover Material
- Aluminum
- Drive Type
- Crankshaft
- Finish
- Rust Preventative
- Gasket Or Seal Included
- Yes
- Gear Material
- Stainless Steel
- Gears Included
- Not Applicable
- Governor Spinner Included
- No
- Grade Type
- Standard Replacement
- Guide Included
- No
- Height
- 10.000
- Housing Material
- Cast Aluminum
- Inlet Size (in)
- 1.000
- Inlet Size (mm)
- 25.40
- Intermediate Shaft Included
- No
- Mounting Hole Diameter
- 0.250
- Mounting Hole Quantity
- 4
- Nylon Bushing Included
- No
- O-Ring Included
- Yes
- Oil Pump Type
- Cresent
- Pick Up Screen Diameter
- 1.000
- Pick Up Tube Diameter
- 1.000
- Pickup Screen Included
- No
- Pump Cover Included
- Yes
- Rotor Material
- Powdered Metal
- Shaft Material
- Not Applicable
- Solenoid Included
- Yes
- Spacer Included
- No
- Timing Cover Included
- No
- Title
- Engine Oil Pump
- Washers Included
- No
- Width
- 7.500
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2018-2024 Ford Expedition; 2020-2023 Ford Explorer; 2017-2024 Ford F-150; 2020-2024 Ford Police Interceptor Utility; 2020-2024 Ford Transit-150; 2020-2024 Ford Transit-250; 2020-2024 Ford Transit-350; 2020-2024 Ford Transit-350 HD; 2018-2024 Lincoln Navigator
Resources
- Brand logo
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Primary
- Engine Priming Tank - Melling # MPL-201
- Oil Pump Volume and Pressure Explanation
- How to Measure the Health of your Engine - By Melling Engine Parts
- Spanish Version: Oil Pump Volume and Pressure by Melling
- Measuring Bearing clearances in an engine - they have a major impact on oil pressure
- Grease in Oil Pumps??? Tech Tip from Melling Engine Parts

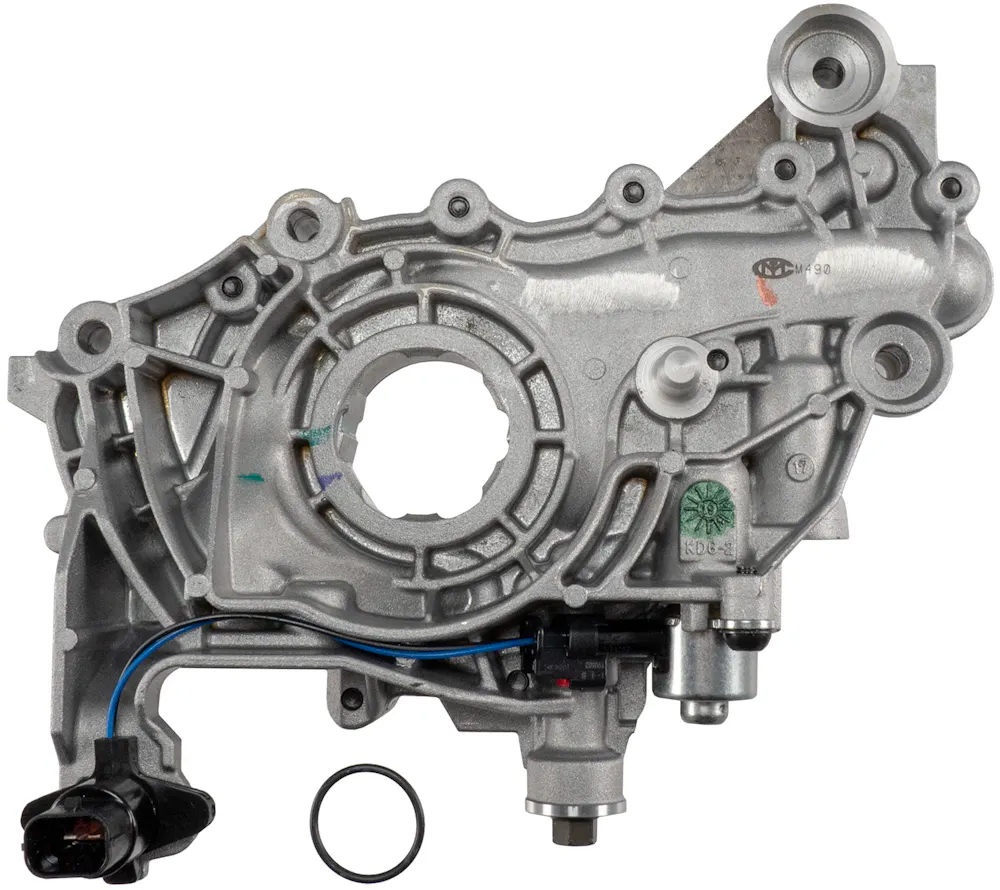

Melling Engine Parts / Melling Tool Co. M490
