Melling Engine Parts / Melling Tool Co. · M373
Part #: M373
UPC: 729295104216
Loading...
Notify me when this item is in stock.

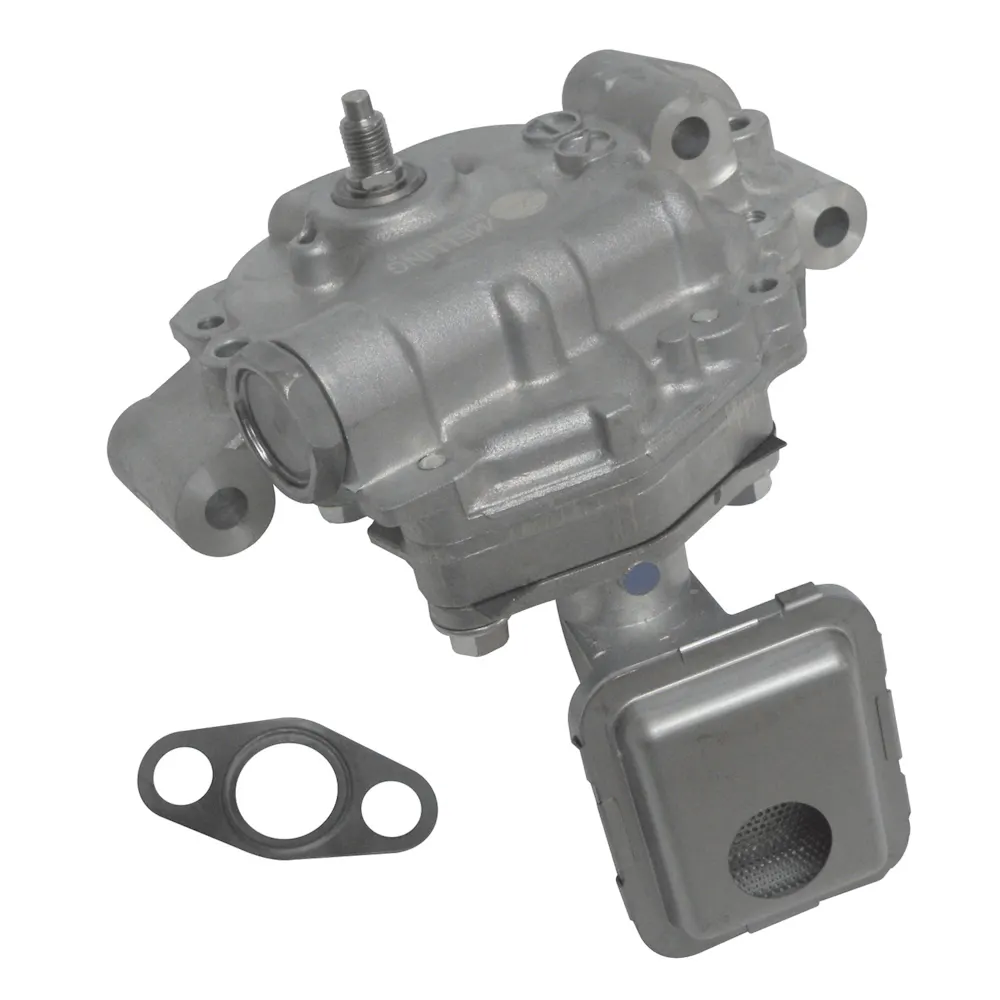

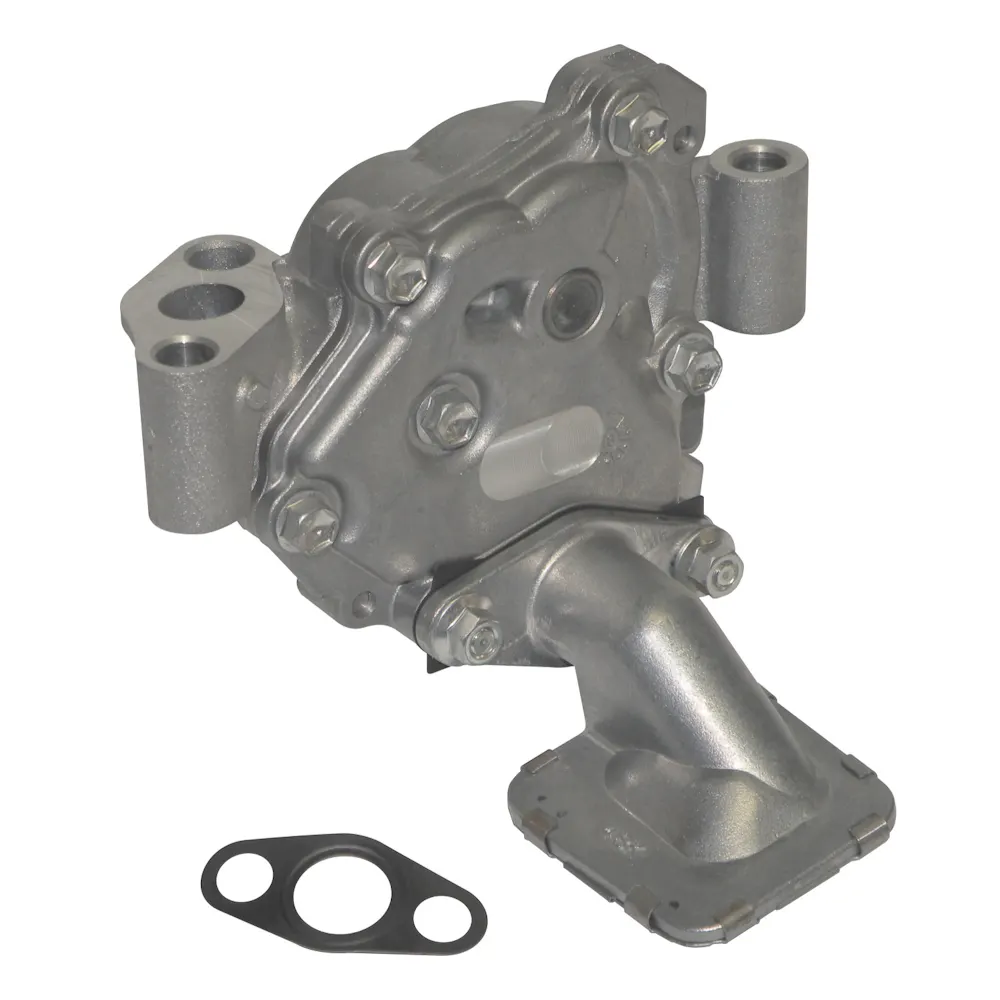

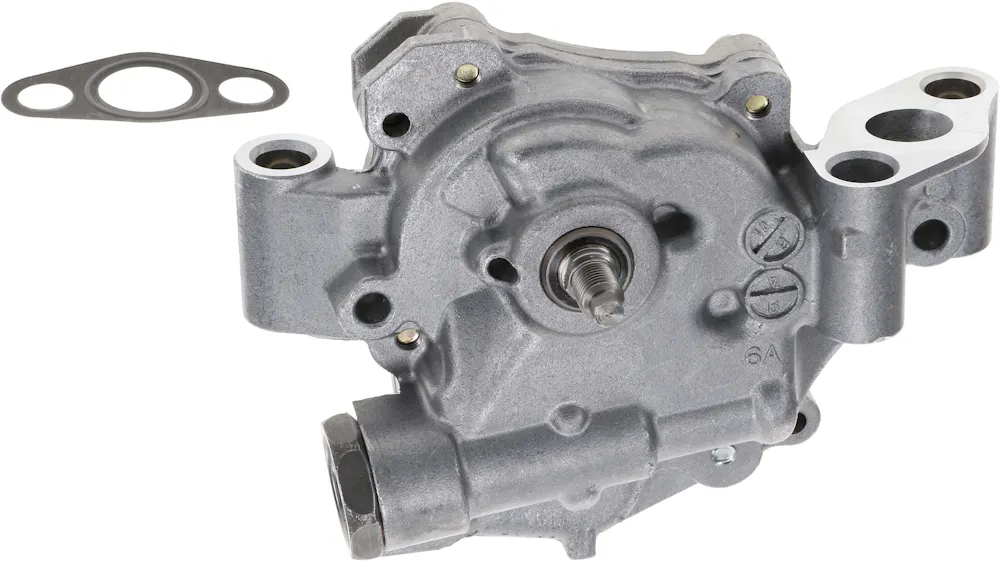

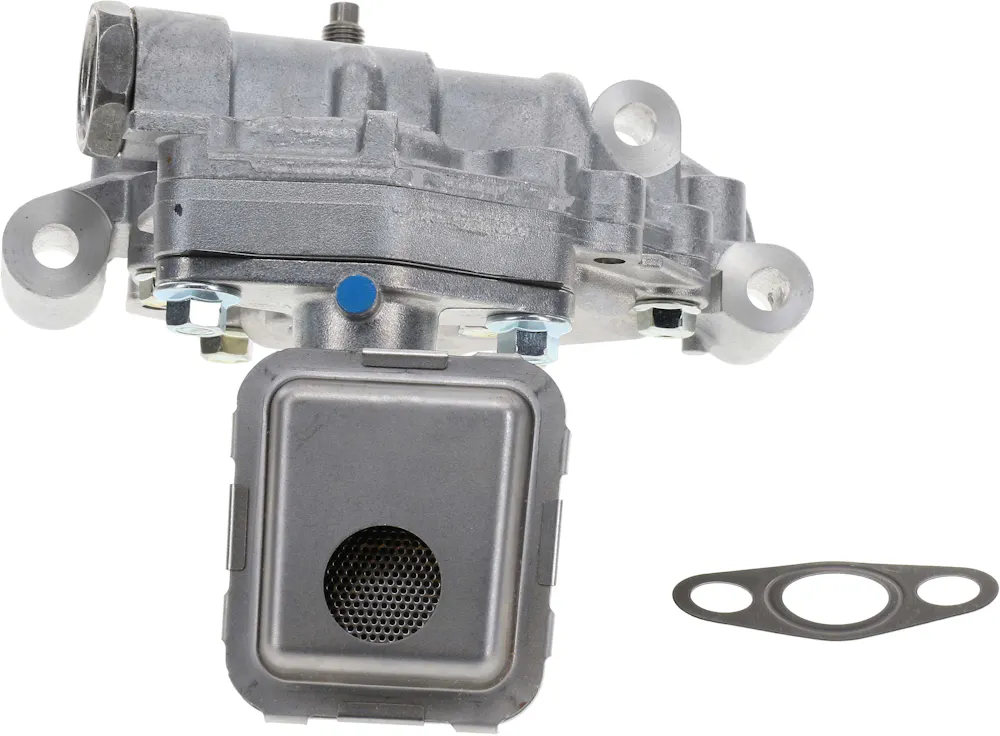

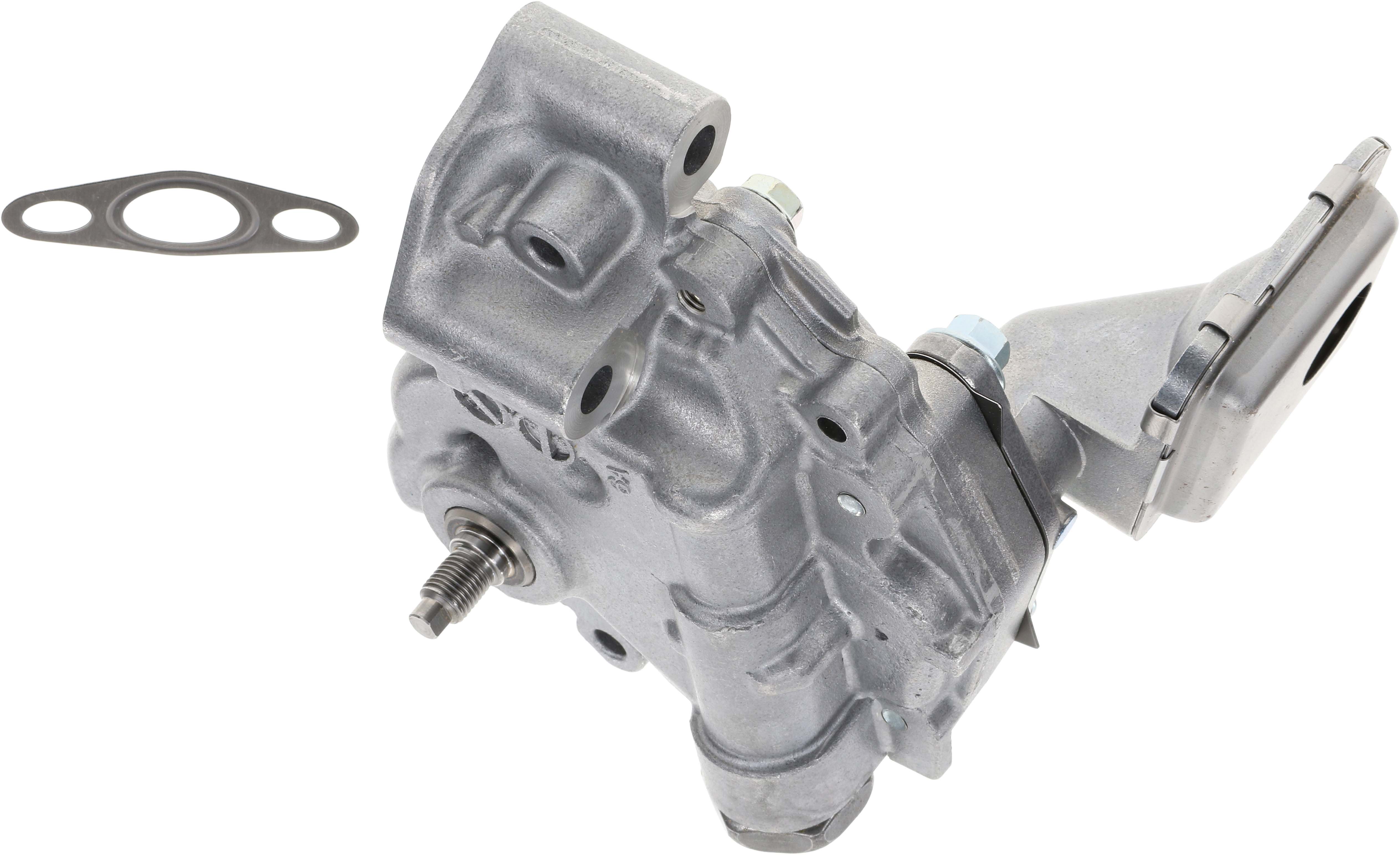

Description: Stock Replacement Oil Pump; M373 Stock Replacement : Standard Volume, Standard Pressure, Cast Iron Oil Pump With Gasket
Description:
Description
Melling oil pumps provide dependable performance every time in every application. Every Melling oil pump is engineered and assembled to the highest production standards from high quality materials. All Melling oil pumps use the latest in gear and gerotor technology to provide the highest level of quality and performance. Gears are machined to close tolerances to ensure proper engine pressure and correct, efficient pump operation. End plates are precision ground for maximum wear resistance. Every Melling oil pump is individually tested for pressure and flow under conditions designed to duplicate actual engine operating conditions.
Features & benefits
- Manufactured from high quality materials for consistent durable wear
- Designed for long-life and worry-free performance
- Meets or exceeds original equipment specifications
- Precision engineered for optimum fit and function
Application summary
| Year | Make / model |
|---|---|
| 2010-2012 | Lexus HS250h |
| 2009-2010 | Pontiac Vibe |
| 2005-2010 | Scion tC |
| 2008-2015 | Scion xB |
| 2002-2011 | Toyota Camry |
| 2009-2010 | Toyota Corolla |
| 2001-2007 | Toyota Highlander |
| 2009-2013 | Toyota Matrix |
| 2004-2008 | Toyota RAV4 |
| 2002-2008 | Toyota Solara |
Specifications
- GTIN
- 00729295104216
- Weight
- 2.5 lb
- Height
- 5.25 in
- Length
- 8 in
- Width
- 6 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- MEL
- Warehouse brand code
- BCBC
- AAIA brand code
- BCBC
Attributes
- Bolts Included
- No
- Bushing Included
- No
- California Proposition 65
- No
- Cotter Pin Included
- No
- Cover Material
- Cast Iron
- Drive Shaft Included
- No
- Drive Type
- Drive Shaft
- Finish
- Rust Preventative
- Gasket Or Seal Included
- Yes
- Gears Included
- Yes
- Governor Spinner Included
- No
- Grade Type
- Standard Replacement
- Guide Included
- No
- Height
- 5.81
- Housing Material
- Cast Iron
- Inlet Size (in)
- 0.500
- Inlet Size (mm)
- 13.00
- Intermediate Shaft Included
- No
- Mounting Hole Diameter
- 0.315
- Mounting Hole Quantity
- 3
- Nylon Bushing Included
- No
- O-Ring Included
- No
- Oil Pump Type
- Gear
- Pick Up Screen Diameter
- 0.500
- Pick Up Tube Diameter
- 0.500
- Pickup Screen Included
- Yes
- Pump Cover Included
- Yes
- Rotor Material
- Powdered Metal
- Shaft Material
- Not Applicable
- Spacer Included
- No
- Timing Cover Included
- No
- Title
- Engine Oil Pump
- Washers Included
- No
- Width
- 6.06
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2010-2012 Lexus HS250h; 2009-2010 Pontiac Vibe; 2005-2010 Scion tC; 2008-2015 Scion xB; 2002-2011 Toyota Camry; 2009-2010 Toyota Corolla; 2001-2007 Toyota Highlander; 2009-2013 Toyota Matrix; 2004-2008 Toyota RAV4; 2002-2008 Toyota Solara
