Melling Engine Parts / Melling Tool Co. · M366

Melling Engine Parts / Melling Tool Co. M366

Part #: M366
UPC: 729295104162

Loading availability... Loading...

Notify me when this item is in stock.

Brand: Melling Engine Parts / Melling Tool Co. Series: Stock Replacement Oil Pumps

Log in to order

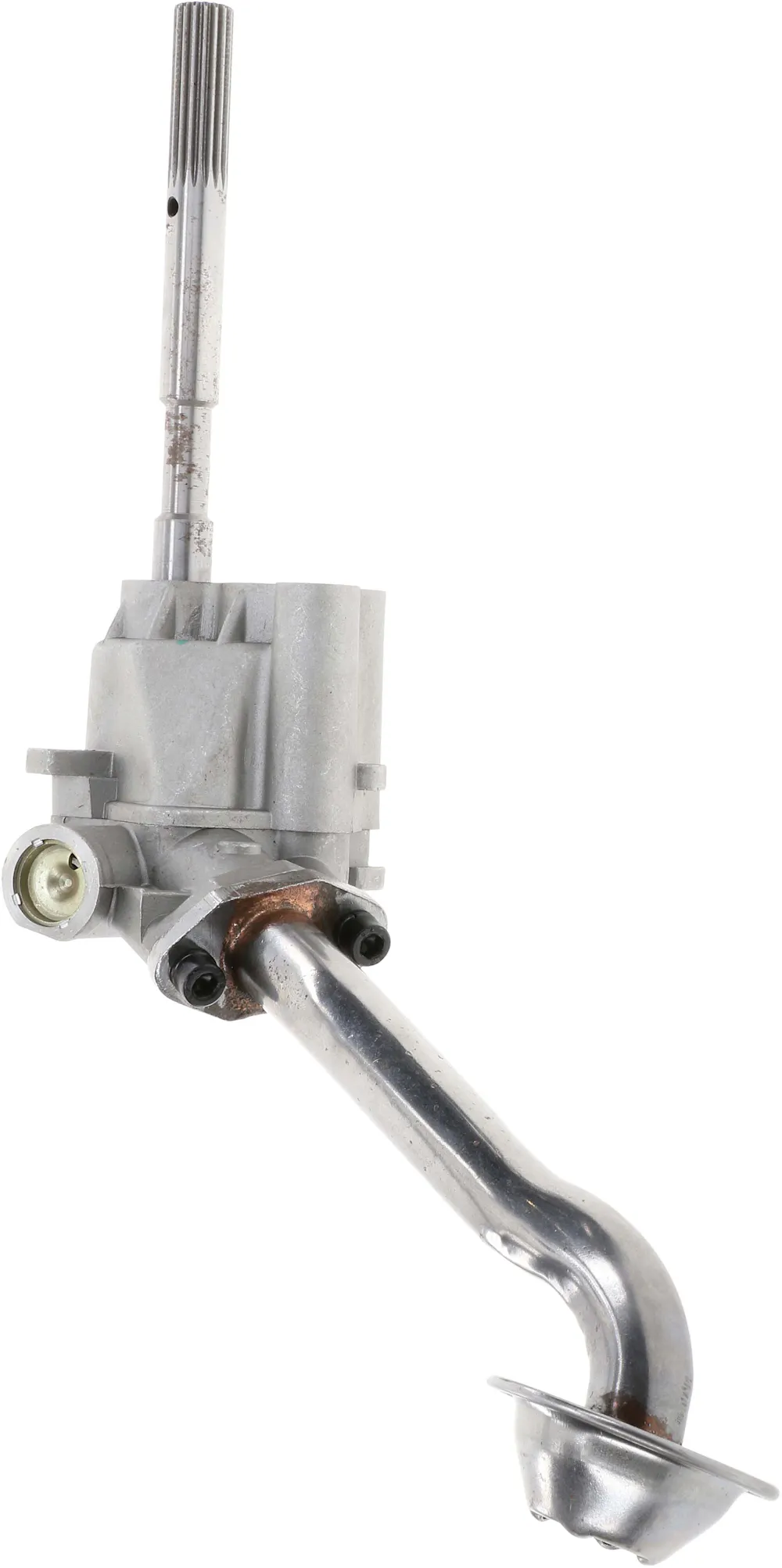

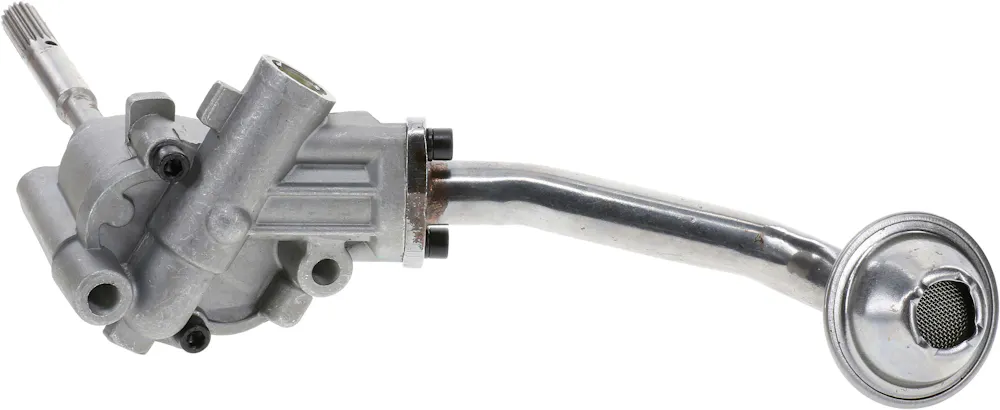

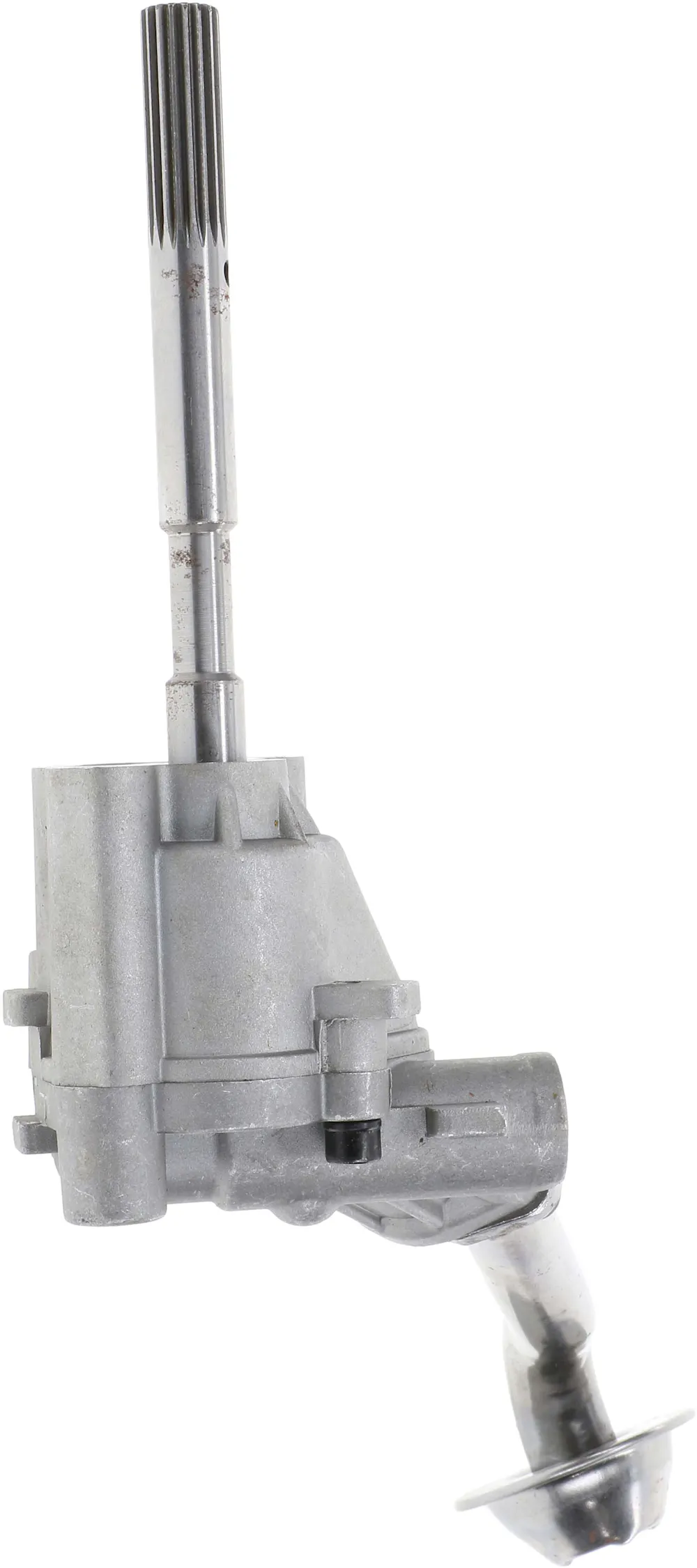

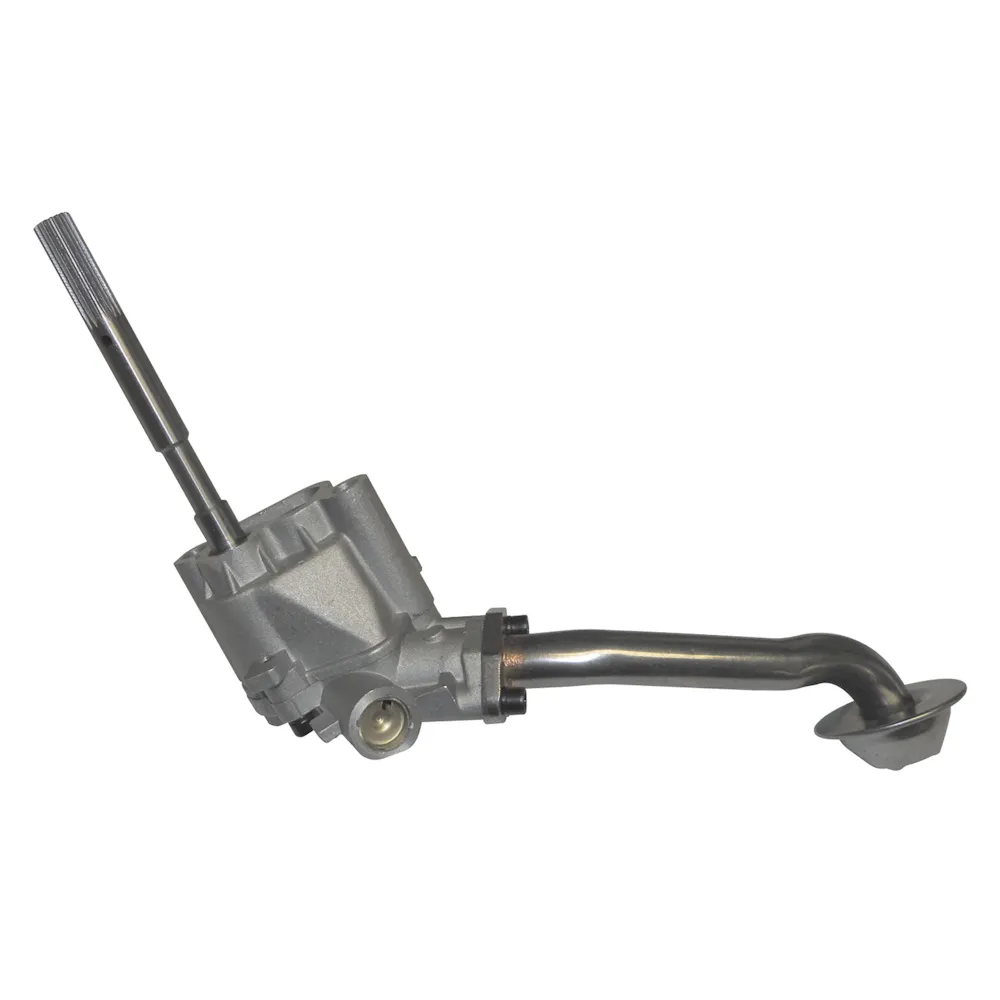

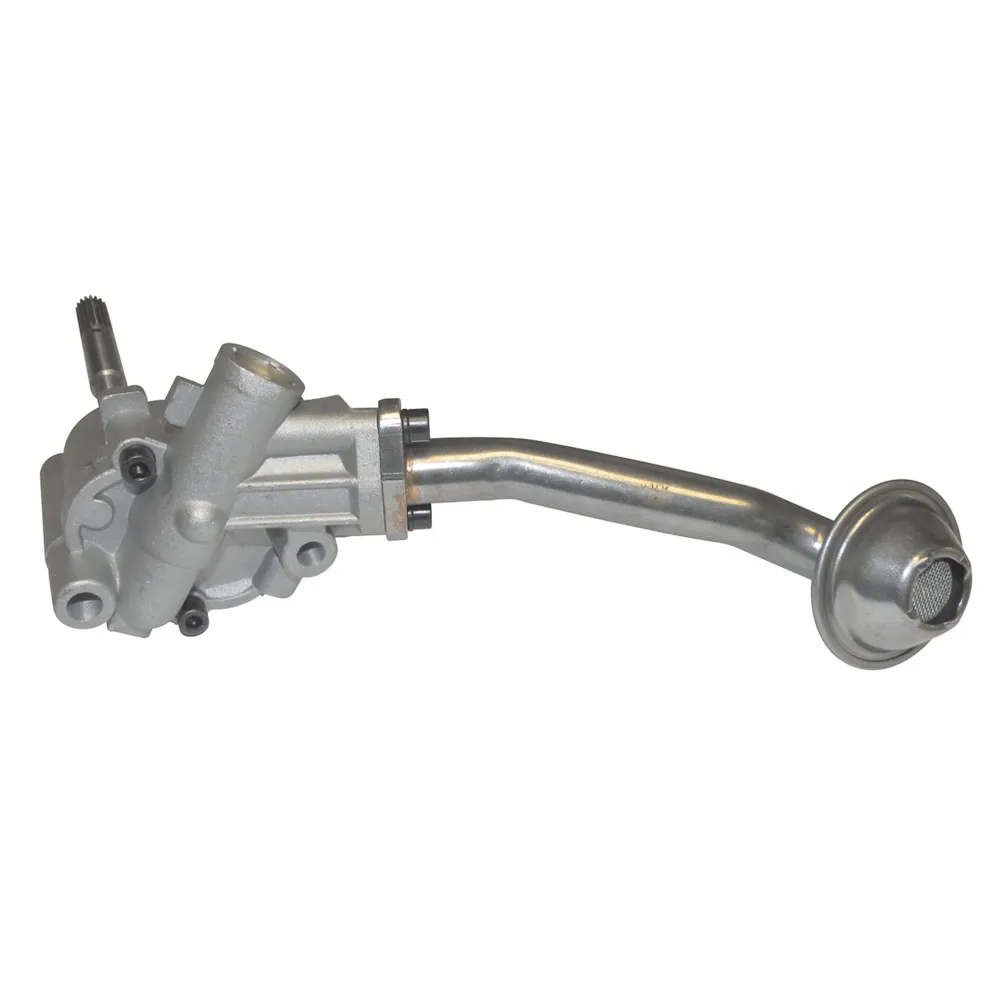

Description: Stock Replacement Oil Pump; M366 Stock Replacement : Standard Volume, Standard Pressure, Cast Iron Oil Pump

Description

Melling oil pumps provide dependable performance every time in every application. Every Melling oil pump is engineered and assembled to the highest production standards from high quality materials. All Melling oil pumps use the latest in gear and gerotor technology to provide the highest level of quality and performance. Gears are machined to close tolerances to ensure proper engine pressure and correct, efficient pump operation. End plates are precision ground for maximum wear resistance. Every Melling oil pump is individually tested for pressure and flow under conditions designed to duplicate actual engine operating conditions.

Features & benefits

Manufactured from high quality materials for consistent durable wear
Melling oil pumps are tested for pressure and flow under operating conditions to ensure quality
Designed for long-life and worry-free performance
Precision engineered for optimum fit and function

Application summary

Year	Make / model
1997-2000	Audi A4
1997-2000	Audi A4 Quattro
1998-2001	Volkswagen Passat

Specifications

GTIN: 00729295104162
Weight: 3 lb
Height: 4.5 in
Length: 13.5 in
Width: 9.25 in
EO: Legal US
Life cycle: Available to Order
AAM brand code: MEL
Warehouse brand code: BCBC
AAIA brand code: BCBC

Attributes

Bolts Included: No
Bushing Included: No
California Proposition 65: No
Cotter Pin Included: No
Cover Material: Cast Iron
Drive Shaft Included: No
Drive Type: Drive Shaft
Finish: Rust Preventative
Gasket Or Seal Included: No
Gear Material: Steel
Gears Included: Yes
Governor Spinner Included: No
Grade Type: Standard Replacement
Guide Included: No
Height: 11.75
Housing Material: Cast Iron
Inlet Size (in): 0.787
Inlet Size (mm): 20.00
Intermediate Shaft Included: No
Mounting Hole Diameter: 0.375
Mounting Hole Quantity: 2
Nylon Bushing Included: No
O-Ring Included: No
Oil Pump Type: Gear
Pick Up Tube Diameter: 0.787
Pickup Screen Included: Yes
Pump Cover Included: Yes
Shaft Material: Not Applicable
Spacer Included: No
Timing Cover Included: No
Title: Engine Oil Pump
Washers Included: No
Width: 2.75

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

1997-2000 Audi A4; 1997-2000 Audi A4 Quattro; 1998-2001 Volkswagen Passat

Resources

Retail View

Warehouse	In Stock

Year	Make/Model
1997-2000	Audi A4
1997-2000	Audi A4 Quattro
1998-2001	Volkswagen Passat
