Melling Engine Parts / Melling Tool Co. · M365-395S
Part #: M365-395S
UPC: 729295105206
Loading...
Notify me when this item is in stock.

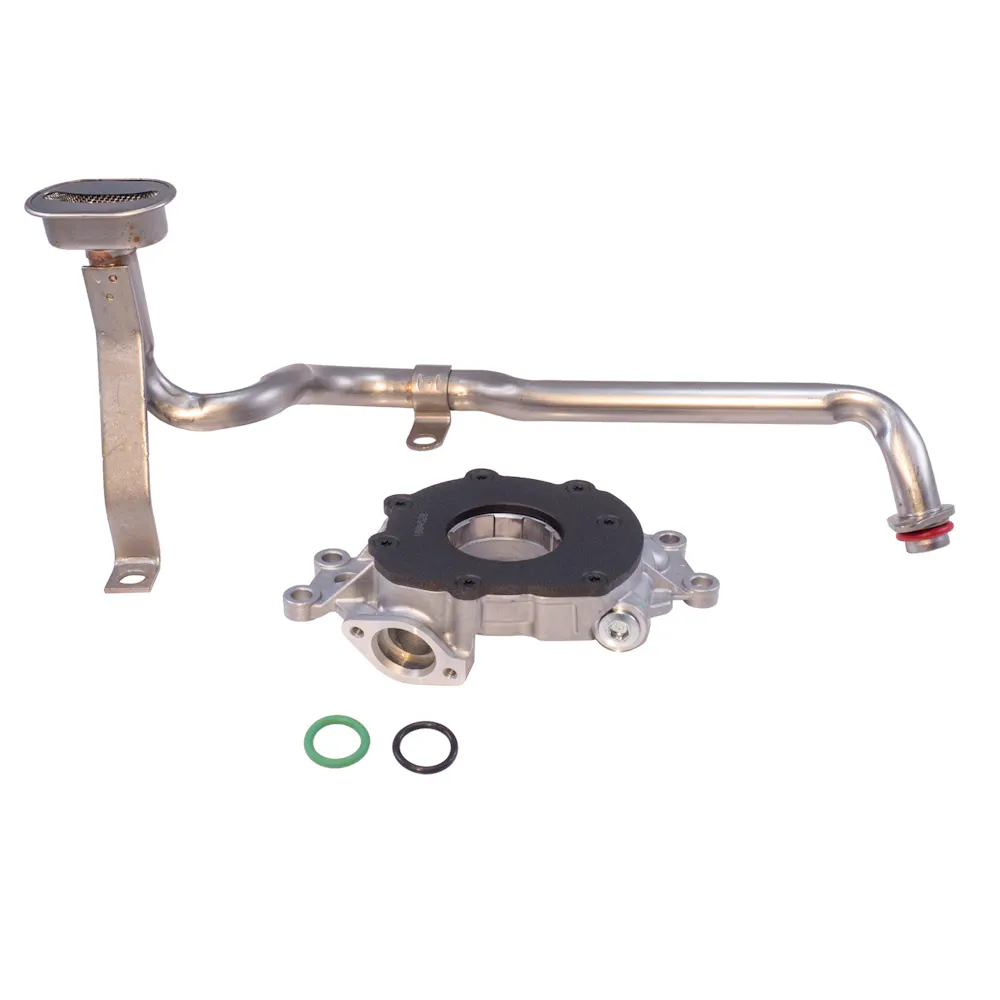

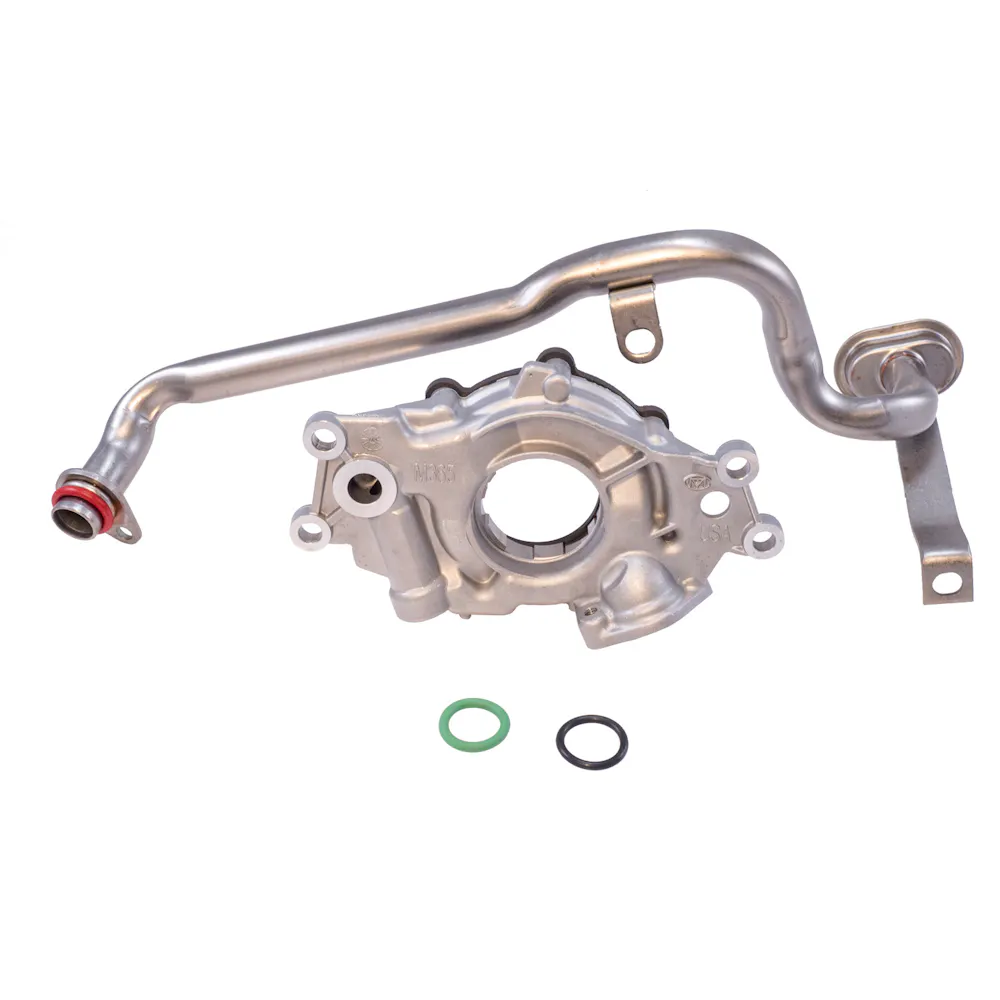

Description: Stock Replacement Oil Pump With Screen; M365-395S Stock Replacement : Standard Volume, Standard Pressure, Aluminum Oil Pump With Gasket
Description:
Description
Made in USA. Melling oil pumps provide dependable performance every time in every application. Every Melling oil pump is engineered and assembled to the highest production standards from high quality materials. All Melling oil pumps use the latest in gear and gerotor technology to provide the highest level of quality and performance. Gears are machined to close tolerances to ensure proper engine pressure and correct, efficient pump operation. End plates are precision ground for maximum wear resistance. Every Melling oil pump is individually tested for pressure and flow under conditions designed to duplicate actual engine operating conditions.
Features & benefits
- Manufactured from high quality materials for consistent durable wear
- Designed for long-life and worry-free performance
- Meets or exceeds original equipment specifications
- Precision engineered for optimum fit and function
Application summary
| Year | Make / model |
|---|---|
| 2007-2014 | Cadillac Escalade |
| 2007-2014 | Cadillac Escalade ESV |
| 2007-2013 | Cadillac Escalade EXT |
| 2007-2009 | Chevrolet Avalanche |
| 2011-2013 | Chevrolet Avalanche |
| 2009 | Chevrolet Express 1500 |
| 2007-2013 | Chevrolet Silverado 1500 |
| 2007-2014 | Chevrolet Suburban 1500 |
| 2008-2011 | Chevrolet Tahoe |
| 2009 | GMC Savana 1500 |
| 2007-2013 | GMC Sierra 1500 |
| 2007-2014 | GMC Yukon |
| 2007-2014 | GMC Yukon XL 1500 |
Specifications
- GTIN
- 00729295105206
- Weight
- 4.75 lb
- Height
- 6 in
- Length
- 21 in
- Width
- 9 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- MEL
- Warehouse brand code
- BCBC
- AAIA brand code
- BCBC
Attributes
- Bolts Included
- No
- Bushing Included
- No
- California Proposition 65
- No
- Cotter Pin Included
- No
- Cover Material
- Aluminum
- Drive Shaft Included
- No
- Drive Type
- Crankshaft
- Finish
- Rust Preventative
- Gasket Or Seal Included
- Yes
- Gears Included
- Not Applicable
- Governor Spinner Included
- No
- Grade Type
- Standard Replacement
- Guide Included
- No
- Height
- 119.0
- Housing Material
- Aluminum
- Inlet Size (in)
- 1.090
- Inlet Size (mm)
- 28.00
- Intermediate Shaft Included
- Not Applicable
- Mounting Hole Diameter
- 0.375
- Mounting Hole Quantity
- 4
- Nylon Bushing Included
- No
- O-Ring Included
- Yes
- Oil Pump Type
- Rotary
- Pick Up Screen Diameter
- 1.09
- Pick Up Tube Diameter
- 1.090
- Pickup Screen Included
- Yes
- Pump Cover Included
- Yes
- Rotor Material
- Powdered Metal
- Shaft Material
- Not Applicable
- Spacer Included
- No
- Timing Cover Included
- No
- Title
- Engine Oil Pump
- Washers Included
- No
- Width
- 210.0
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2007-2014 Cadillac Escalade; 2007-2014 Cadillac Escalade ESV; 2007-2013 Cadillac Escalade EXT; 2007-2009 Chevrolet Avalanche; 2011-2013 Chevrolet Avalanche; 2009 Chevrolet Express 1500; 2007-2013 Chevrolet Silverado 1500; 2007-2014 Chevrolet Suburban 1500; 2008-2011 Chevrolet Tahoe; 2009 GMC Savana 1500; 2007-2013 GMC Sierra 1500; 2007-2014 GMC Yukon; 2007-2014 GMC Yukon XL 1500
