Melling Engine Parts / Melling Tool Co. · M355
Part #: M355
UPC: 729295104117
Loading...
Notify me when this item is in stock.

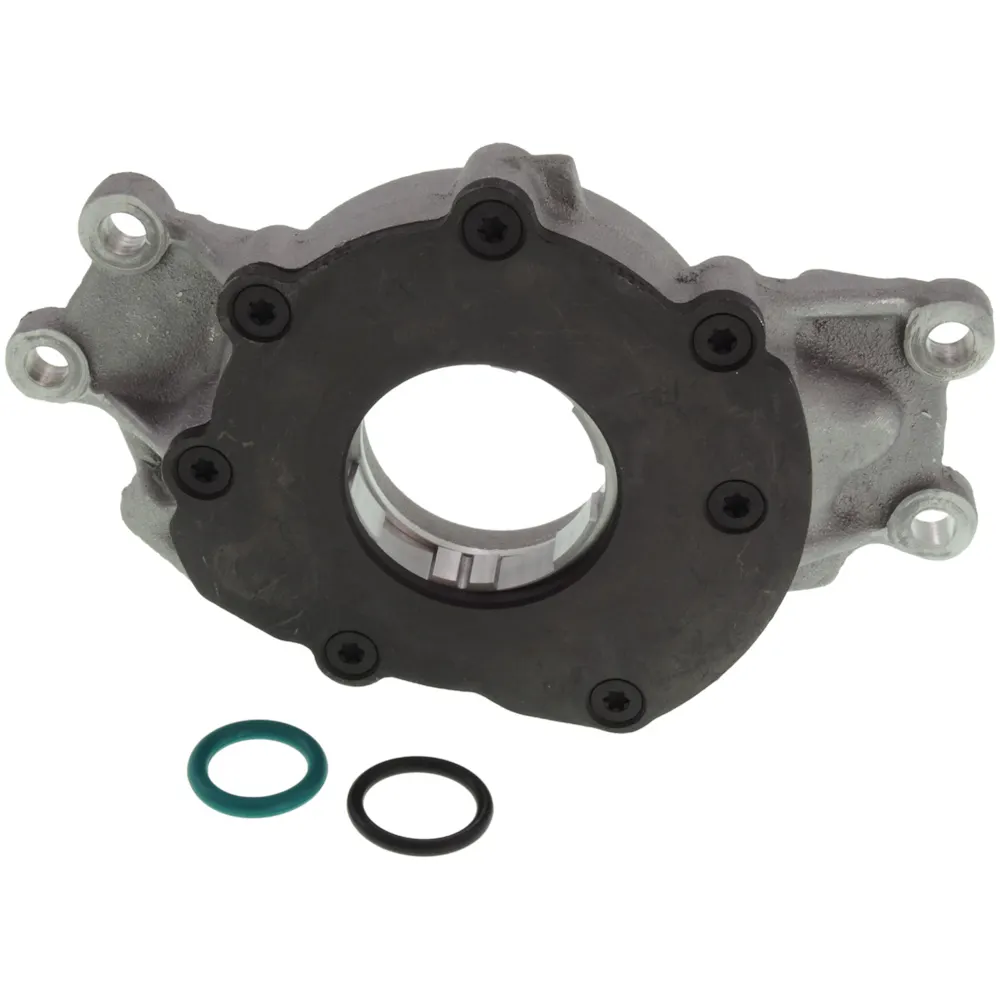

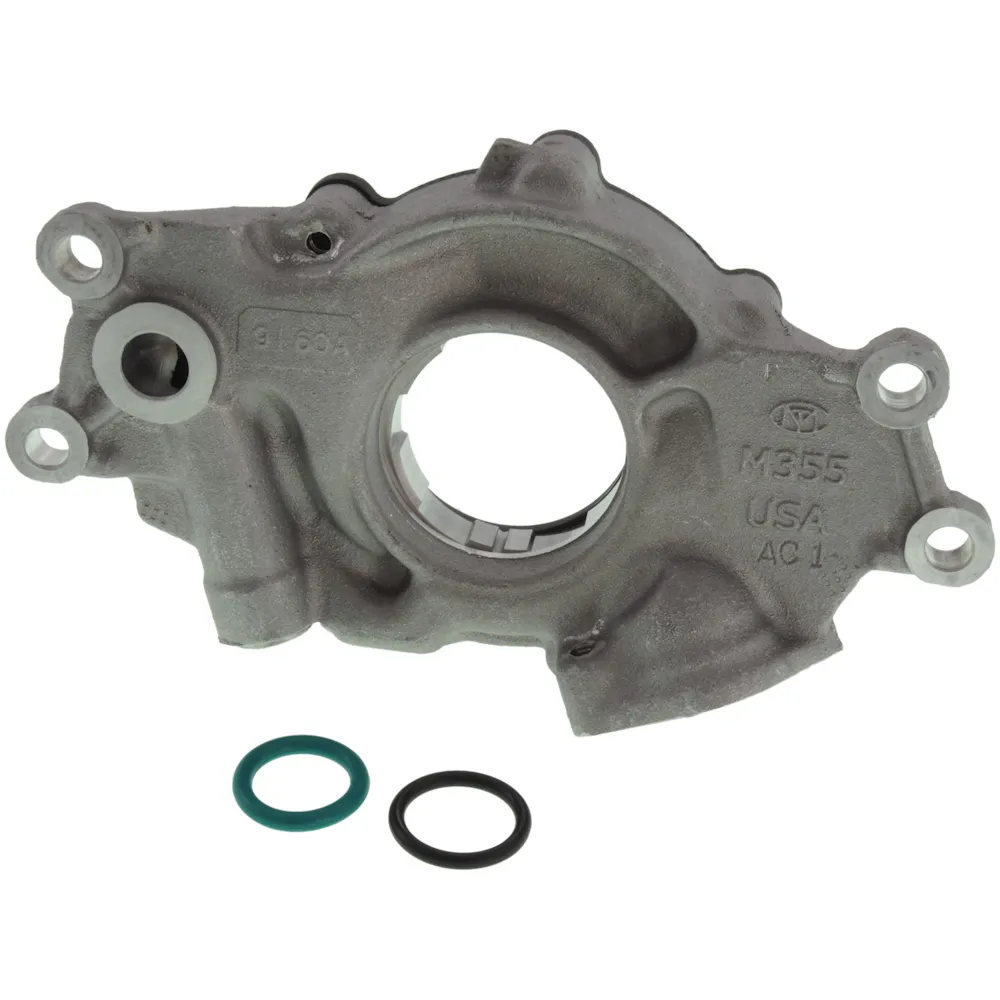

Description: Stock Replacement Oil Pump; M355 Stock Replacement : Standard Volume, Standard Pressure, Aluminum Oil Pump With Gasket
Description:
Description
Made in USA. Melling oil pumps provide dependable performance every time in every application. Every Melling oil pump is engineered and assembled to the highest production standards from high quality materials. All Melling oil pumps use the latest in gear and gerotor technology to provide the highest level of quality and performance. Gears are machined to close tolerances to ensure proper engine pressure and correct, efficient pump operation. End plates are precision ground for maximum wear resistance. Every Melling oil pump is individually tested for pressure and flow under conditions designed to duplicate actual engine operating conditions.
Features & benefits
- Manufactured from high quality materials for consistent durable wear
- Precision engineered for optimum fit and function
- Meets or exceeds original equipment specifications
Application summary
| Year | Make / model |
|---|---|
| 2005-2006 | Buick Rainier |
| 2006 | Chevrolet Impala |
| 2006 | Chevrolet Monte Carlo |
| 2006 | Chevrolet Trailblazer |
| 2005-2006 | Chevrolet Trailblazer EXT |
| 2005-2006 | GMC Envoy |
| 2005-2006 | GMC Envoy XL |
| 2005 | GMC Envoy XUV |
| 2003-2006 | Isuzu Ascender |
| 2005-2006 | Pontiac Grand Prix |
| 2005-2007 | Saab 9-7x |
Specifications
- GTIN
- 00729295104117
- Weight
- 2.9 lb
- Height
- 2.5 in
- Length
- 8.25 in
- Width
- 6 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- MEL
- Warehouse brand code
- BCBC
- AAIA brand code
- BCBC
Attributes
- Bolts Included
- No
- Bushing Included
- No
- California Proposition 65
- No
- Cotter Pin Included
- No
- Cover Material
- Aluminum
- Drive Shaft Included
- No
- Drive Type
- Crankshaft
- Finish
- Rust Preventative
- Gasket Or Seal Included
- Yes
- Gears Included
- Not Applicable
- Governor Spinner Included
- No
- Grade Type
- Standard Replacement
- Guide Included
- No
- Height
- 4.56
- Housing Material
- Aluminum
- Inlet Size (in)
- 0.875
- Inlet Size (mm)
- 22.00
- Intermediate Shaft Included
- Not Applicable
- Mounting Hole Diameter
- 0.375
- Mounting Hole Quantity
- 4
- Nylon Bushing Included
- No
- O-Ring Included
- Yes
- Oil Pump Type
- Rotary
- Pick Up Screen Diameter
- 1.08
- Pick Up Tube Diameter
- 0.875
- Pickup Screen Included
- No
- Pump Cover Included
- Yes
- Rotor Material
- Powdered Metal
- Shaft Material
- Not Applicable
- Spacer Included
- No
- Timing Cover Included
- No
- Title
- Engine Oil Pump
- Washers Included
- No
- Width
- 8.0
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2005-2006 Buick Rainier; 2006 Chevrolet Impala; 2006 Chevrolet Monte Carlo; 2006 Chevrolet Trailblazer; 2005-2006 Chevrolet Trailblazer EXT; 2005-2006 GMC Envoy; 2005-2006 GMC Envoy XL; 2005 GMC Envoy XUV; 2003-2006 Isuzu Ascender; 2005-2006 Pontiac Grand Prix; 2005-2007 Saab 9-7x
Resources
- Brand logo
- Installation Instructions
- Photo - Out of Package
- Photo - Primary
- Engine Priming Tank - Melling # MPL-201
- Oil Pump Volume and Pressure Explanation
- GM LS oil pump pressure relief spring selection from MELLING
- How to Measure the Health of your Engine - By Melling Engine Parts
- Spanish Version: Oil Pump Volume and Pressure by Melling
- GM LS Oil Pump installation tips from Melling Performance Parts
- GM LS Oil Pump Screen Tube O Ring Installation Tips from Melling
- Measuring Bearing clearances in an engine - they have a major impact on oil pressure
- Grease in Oil Pumps??? Tech Tip from Melling Engine Parts
- How to Prime your GM LS Engine Oil Pump by Melling
- SPANISH - Melling How to prime your GM LS Oil Pump
- How to replace the oil pump bypass pressure spring in GM LS & similar designed oil pumps
