Melling Engine Parts / Melling Tool Co. · M353-368S
Part #: M353-368S
UPC: 729295105060
Loading...
Notify me when this item is in stock.
Description: Stock Replacement Oil Pump With Screen; M353-368S Stock Replacement : Standard Volume, Standard Pressure, Aluminum Oil Pump
Description:
Description
Made in USA. Melling oil pumps provide dependable performance every time in every application. Every Melling oil pump is engineered and assembled to the highest production standards from high quality materials. All Melling oil pumps use the latest in gear and gerotor technology to provide the highest level of quality and performance. Gears are machined to close tolerances to ensure proper engine pressure and correct, efficient pump operation. End plates are precision ground for maximum wear resistance. Every Melling oil pump is individually tested for pressure and flow under conditions designed to duplicate actual engine operating conditions.
Features & benefits
- Precision engineered for optimum fit and function
- Manufactured from high quality materials for consistent durable wear
- Designed for long-life and worry-free performance
- Meets or exceeds original equipment specifications
Application summary
| Year | Make / model |
|---|---|
| 2010 | Buick Allure |
| 2008-2017 | Buick Enclave |
| 2010-2016 | Buick LaCrosse |
| 2010-2016 | Cadillac SRX |
| 2013-2019 | Cadillac XTS |
| 2012 | Chevrolet Captiva Sport |
| 2008-2017 | Chevrolet Equinox |
| 2012-2019 | Chevrolet Impala |
| 2014-2016 | Chevrolet Impala Limited |
| 2008-2012 | Chevrolet Malibu |
| 2009-2017 | Chevrolet Traverse |
| 2007-2016 | GMC Acadia |
| 2017 | GMC Acadia Limited |
| 2010-2017 | GMC Terrain |
| 2007-2009 | Pontiac G6 |
| 2008 | Pontiac Torrent |
| 2007-2009 | Saturn Aura |
| 2007-2010 | Saturn Outlook |
| 2008-2010 | Saturn Vue |
| 2007-2009 | Suzuki XL-7 |
Specifications
- GTIN
- 00729295105060
- Weight
- 4.22 lb
- Height
- 4.25 in
- Length
- 10.75 in
- Width
- 5 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- MEL
- Warehouse brand code
- BCBC
- AAIA brand code
- BCBC
Attributes
- Bolts Included
- Yes
- Bushing Included
- No
- California Proposition 65
- No
- Cotter Pin Included
- No
- Cover Material
- Aluminum
- Drive Shaft Included
- No
- Drive Type
- Crankshaft
- Finish
- Rust Preventative
- Gasket Or Seal Included
- No
- Gears Included
- Not Applicable
- Governor Spinner Included
- No
- Grade Type
- Standard Replacement
- Guide Included
- No
- Height
- 5.28
- Housing Material
- Aluminum
- Inlet Size (in)
- 0.838
- Inlet Size (mm)
- 21.00
- Intermediate Shaft Included
- Not Applicable
- Mounting Hole Diameter
- 0.375
- Mounting Hole Quantity
- 3
- Nylon Bushing Included
- No
- O-Ring Included
- No
- Oil Pump Type
- Rotary
- Pick Up Tube Diameter
- 0.838
- Pickup Screen Included
- Yes
- Pump Cover Included
- Yes
- Rotor Material
- Powdered Metal
- Shaft Material
- Not Applicable
- Spacer Included
- No
- Timing Cover Included
- No
- Title
- Engine Oil Pump
- Washers Included
- No
- Width
- 7.25
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2010 Buick Allure; 2008-2017 Buick Enclave; 2010-2016 Buick LaCrosse; 2010-2016 Cadillac SRX; 2013-2019 Cadillac XTS; 2012 Chevrolet Captiva Sport; 2008-2017 Chevrolet Equinox; 2012-2019 Chevrolet Impala; 2014-2016 Chevrolet Impala Limited; 2008-2012 Chevrolet Malibu; 2009-2017 Chevrolet Traverse; 2007-2016 GMC Acadia; 2017 GMC Acadia Limited; 2010-2017 GMC Terrain; 2007-2009 Pontiac G6; 2008 Pontiac Torrent; 2007-2009 Saturn Aura; 2007-2010 Saturn Outlook; 2008-2010 Saturn Vue; 2007-2009 Suzuki XL-7
Resources
- Brand logo
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Primary
- Engine Priming Tank - Melling # MPL-201
- Oil Pump Volume and Pressure Explanation
- How to Measure the Health of your Engine - By Melling Engine Parts
- Spanish Version: Oil Pump Volume and Pressure by Melling
- Measuring Bearing clearances in an engine - they have a major impact on oil pressure
- Grease in Oil Pumps??? Tech Tip from Melling Engine Parts

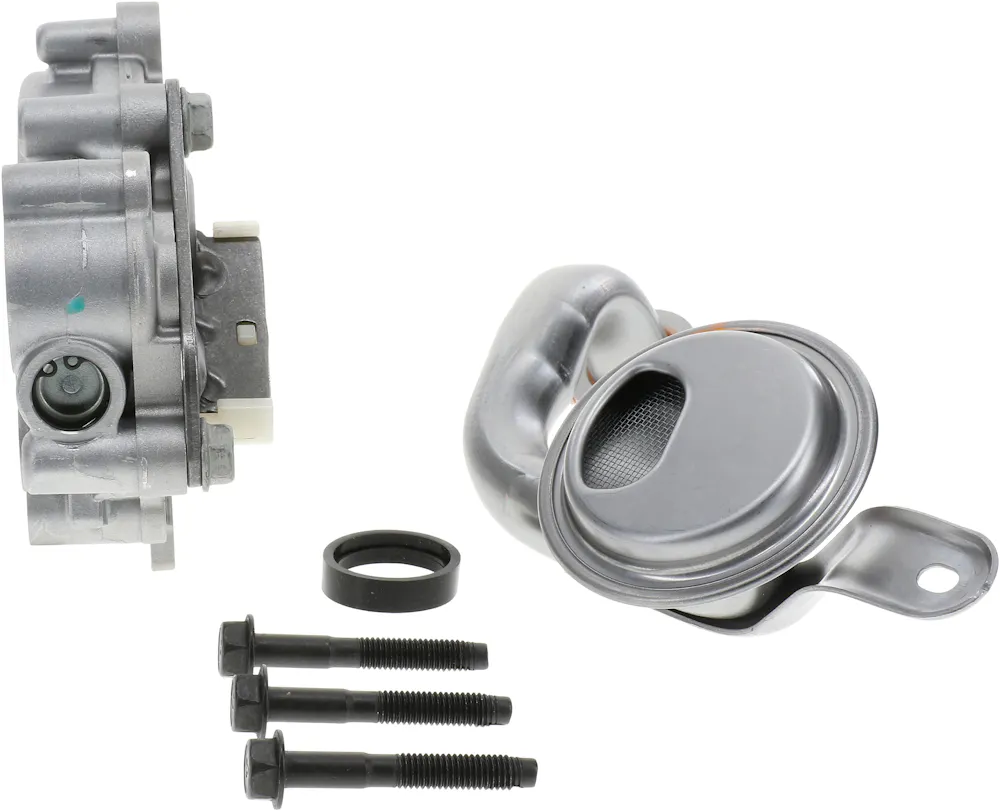

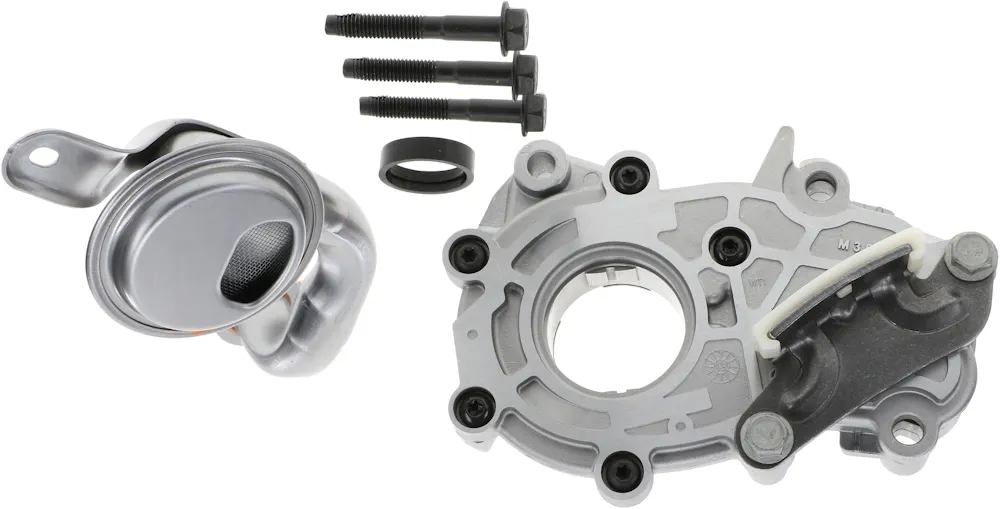

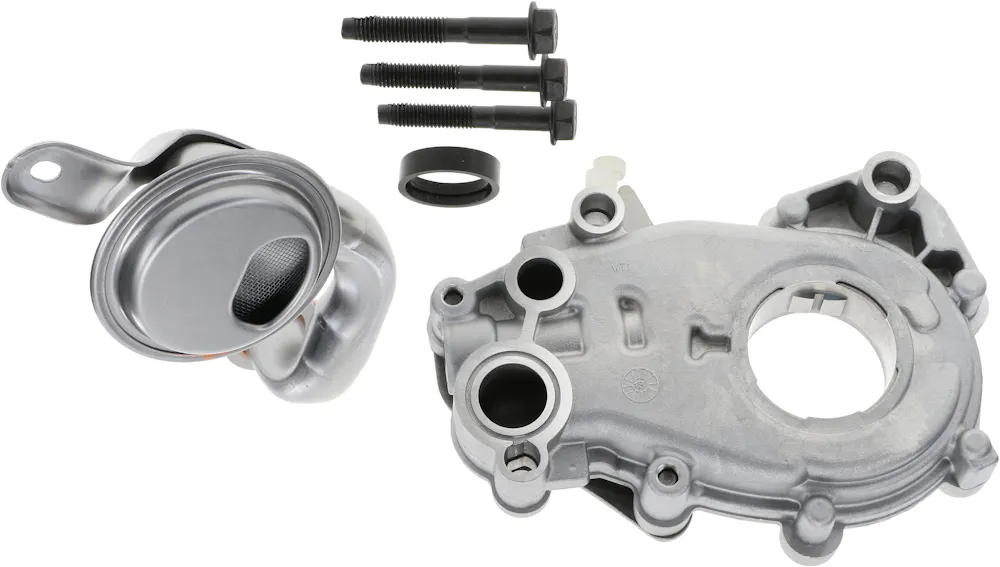

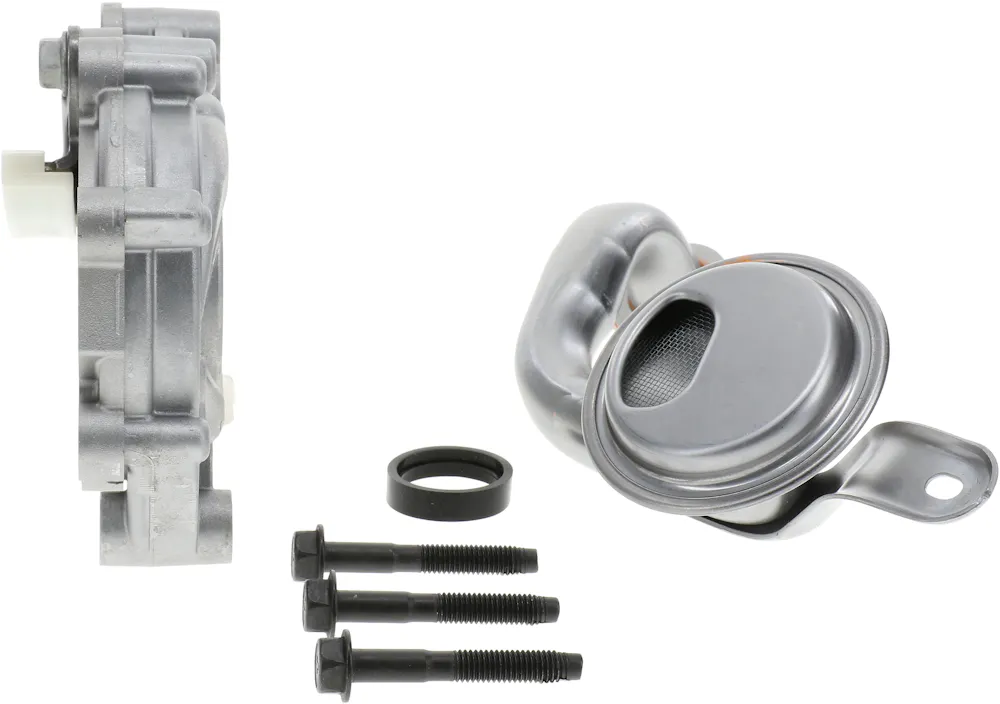

Melling Engine Parts / Melling Tool Co. M353-368S
