Melling Engine Parts / Melling Tool Co. / M352
Part #: M352
UPC: 729295104407
Loading...
Notify me when this item is in stock.

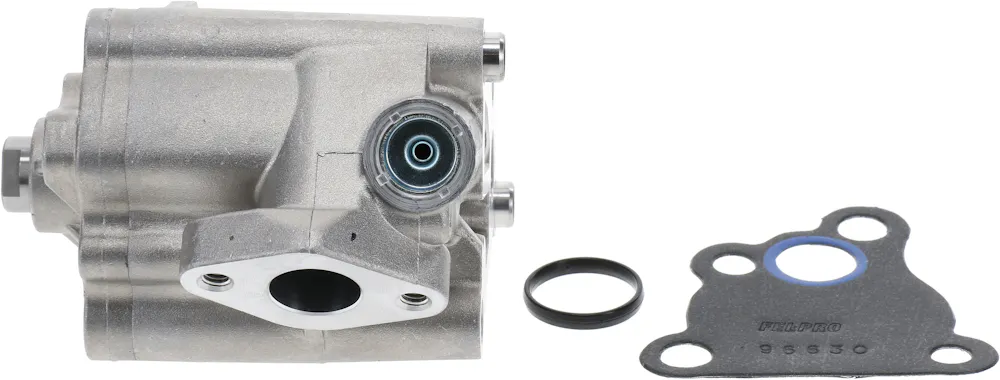

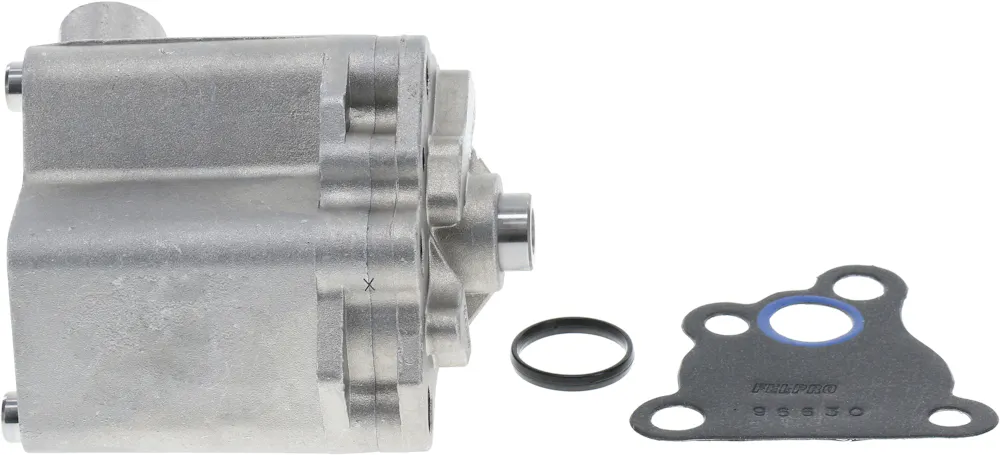

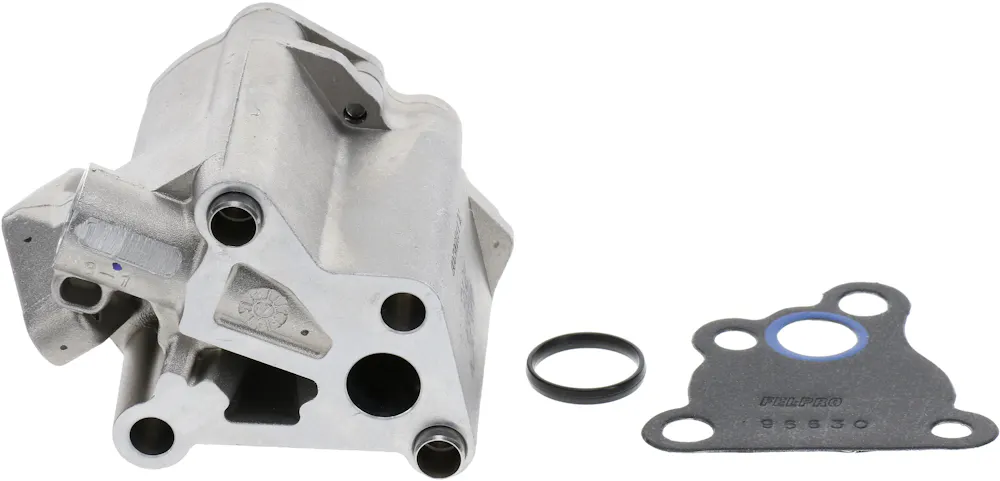

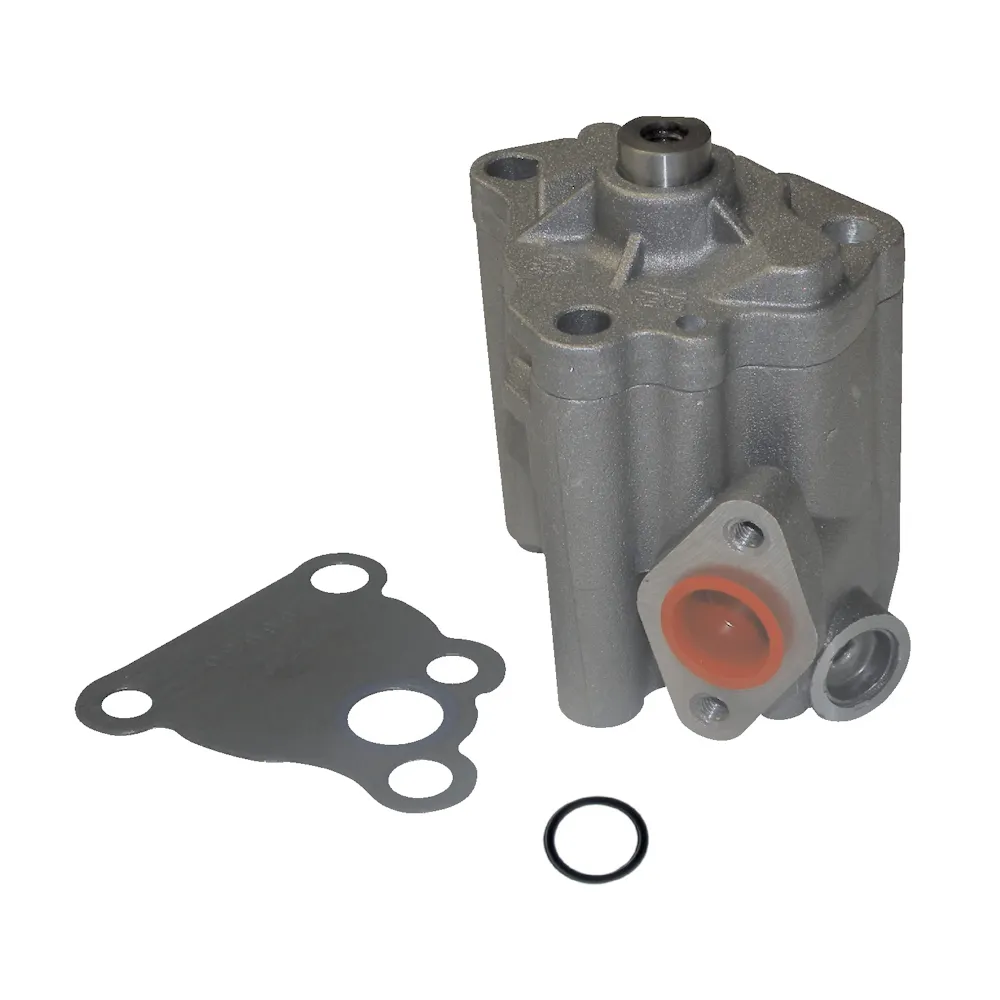

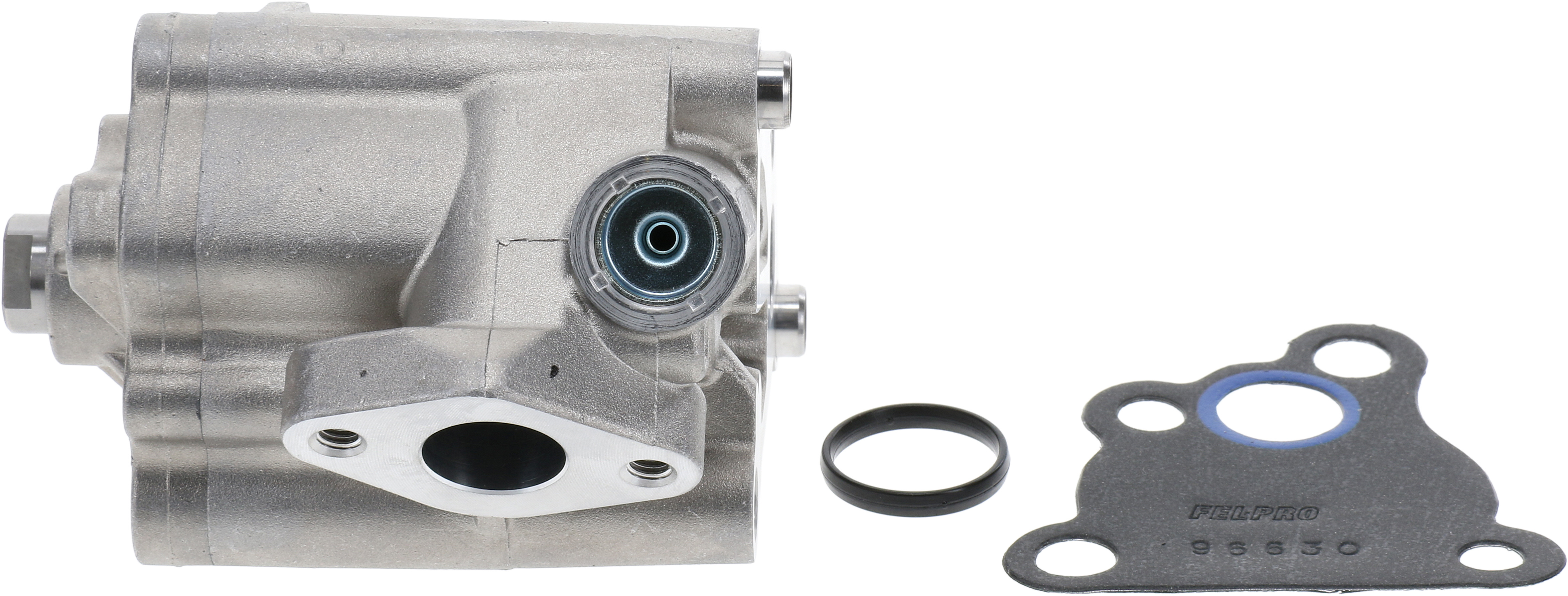

Description: Stock Replacement Oil Pump; M352 Stock Replacement : Standard Volume, Standard Pressure, Aluminum Oil Pump With Gasket
Description:
Description
Melling oil pumps provide dependable performance every time in every application. Every Melling oil pump is engineered and assembled to the highest production standards from high quality materials. All Melling oil pumps use the latest in gear and gerotor technology to provide the highest level of quality and performance. Gears are machined to close tolerances to ensure proper engine pressure and correct, efficient pump operation. End plates are precision ground for maximum wear resistance. Every Melling oil pump is individually tested for pressure and flow under conditions designed to duplicate actual engine operating conditions.
Features & benefits
- Manufactured from high quality materials for consistent durable wear
- Designed for long-life and worry-free performance
- Meets or exceeds original equipment specifications
- Precision engineered for optimum fit and function
Application summary
| Year | Make / model |
|---|---|
| 2005-2024 | Ford Escape |
| 2003-2007 | Ford Focus |
| 2006-2020 | Ford Fusion |
| 2022-2024 | Ford Maverick |
| 2014-2022 | Ford Transit Connect |
| 2021-2024 | Lincoln Corsair |
| 2011-2012 | Lincoln MKZ |
| 2004-2013 | Mazda 3 |
| 2006-2010 | Mazda 5 |
| 2012-2016 | Mazda 5 |
| 2003-2014 | Mazda 6 |
| 2007-2012 | Mazda CX-7 |
| 2006-2015 | Mazda MX-5 Miata |
| 2005-2006 | Mazda Tribute |
| 2008-2011 | Mazda Tribute |
| 2005-2011 | Mercury Mariner |
| 2006-2011 | Mercury Milan |
Specifications
- GTIN
- 00729295104407
- Weight
- 2.05 lb
- Height
- 4 in
- Length
- 6 in
- Width
- 5 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- MEL
- Warehouse brand code
- BCBC
- AAIA brand code
- BCBC
Attributes
- Bolts Included
- No
- Bushing Included
- No
- California Proposition 65
- No
- Cotter Pin Included
- No
- Cover Material
- Aluminum
- Drive Shaft Included
- No
- Drive Type
- Drive Shaft
- Finish
- Rust Preventative
- Gasket Or Seal Included
- Yes
- Gear Material
- Steel
- Gears Included
- Yes
- Governor Spinner Included
- No
- Grade Type
- Standard Replacement
- Guide Included
- No
- Height
- 4.105
- Housing Material
- Aluminum
- Inlet Size (in)
- 0.700
- Inlet Size (mm)
- 18.00
- Intermediate Shaft Included
- Not Applicable
- Mounting Hole Diameter
- 0.355
- Mounting Hole Quantity
- 4
- Nylon Bushing Included
- No
- O-Ring Included
- No
- Oil Pump Type
- Gear
- Pick Up Tube Diameter
- 0.700
- Pickup Screen Included
- No
- Pump Cover Included
- Yes
- Shaft Material
- Not Applicable
- Spacer Included
- No
- Timing Cover Included
- No
- Title
- Engine Oil Pump
- Washers Included
- No
- Width
- 4.11
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2005-2024 Ford Escape; 2003-2007 Ford Focus; 2006-2020 Ford Fusion; 2022-2024 Ford Maverick; 2014-2022 Ford Transit Connect; 2021-2024 Lincoln Corsair; 2011-2012 Lincoln MKZ; 2004-2013 Mazda 3; 2006-2010 Mazda 5; 2012-2016 Mazda 5; 2003-2014 Mazda 6; 2007-2012 Mazda CX-7; 2006-2015 Mazda MX-5 Miata; 2005-2006 Mazda Tribute; 2008-2011 Mazda Tribute; 2005-2011 Mercury Mariner; 2006-2011 Mercury Milan
