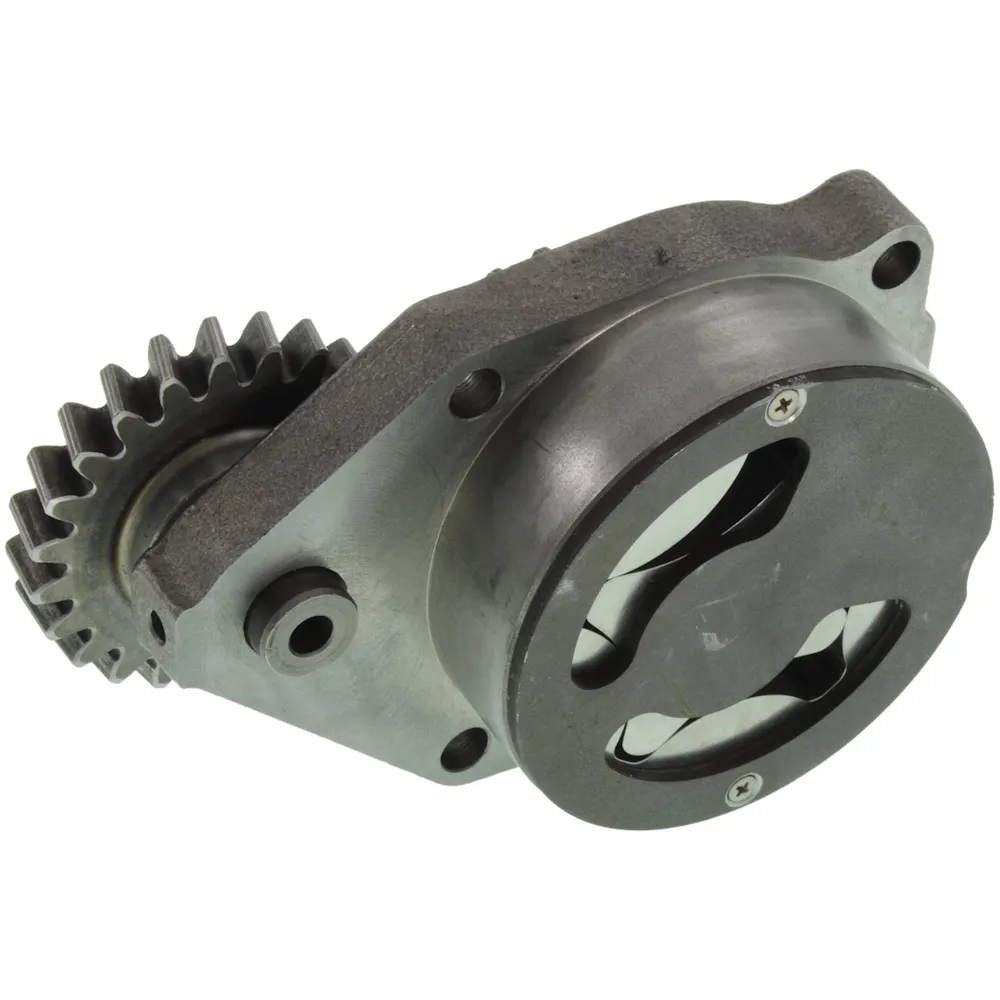

Melling Engine Parts / Melling Tool Co. · M350
Part #: M350
UPC: 729295103936
Loading...
Notify me when this item is in stock.
Description: Stock Replacement Oil Pump; M350 Stock Replacement : Standard Volume, Standard Pressure, Cast Iron Oil Pump
Description:
Description
Made in USA. Melling oil pumps provide dependable performance every time in every application. Every Melling oil pump is engineered and assembled to the highest production standards from high quality materials. All Melling oil pumps use the latest in gear and gerotor technology to provide the highest level of quality and performance. Gears are machined to close tolerances to ensure proper engine pressure and correct, efficient pump operation. End plates are precision ground for maximum wear resistance. Every Melling oil pump is individually tested for pressure and flow under conditions designed to duplicate actual engine operating conditions.
Features & benefits
- Manufactured from high quality materials for consistent durable wear
- Designed for long-life and worry-free performance
- Precision engineered for optimum fit and function
Application summary
| Year | Make / model |
|---|---|
| 1999-2003 | American LaFrance ALF Eagle |
| 2008-2010 | American LaFrance Condor |
| 2012-2013 | American LaFrance Condor |
| 2000-2004 | American LaFrance Metropolitan |
| 2009-2014 | Autocar LLC. Xpeditor |
| 2003-2010 | Autocar LLC. Xpeditor WX |
| 2003-2010 | Autocar LLC. Xpeditor WXLL |
| 2003-2006 | Autocar LLC. Xpeditor WXR |
| 1989-2005 | Blue Bird All American FE |
| 1989-2015 | Blue Bird All American RE |
| 1993-2004 | Blue Bird Commercial Bus |
| 2006-2007 | Blue Bird Commercial Bus |
| 1991-1996 | Blue Bird SHL All American |
| 2004 | Blue Bird SHL Commercial |
| 1997 | Blue Bird SHL TC2000 |
| 1993-2000 | Blue Bird TC2000 |
| 2002 | Blue Bird TC2000 |
| 1995 | Blue Bird Wanderlodge |
| 2000-2003 | Country Coach Allure |
| 2004 | Country Coach Motorhome Inspire |
| 2000-2002 | Country Coach Motorhome Intrigue |
| 2003 | Country Coach Motorhome LTC Chassis |
| 2009-2010 | Country Coach Motorhome Magna |
| 1989-1992 | Crane Carrier Centurion |
| 1994-1998 | Crane Carrier Centurion |
| 2003 | Crane Carrier Centurion |
| 2007 | Crane Carrier Centurion |
| 1999-2002 | Crane Carrier Equipment Carrier |
| 2004 | Crane Carrier Equipment Carrier |
| 1991-2000 | Crane Carrier IRL |
| 1987-2010 | Crane Carrier Low Entry |
| 1988-1990 | Crown Coach School Bus |
| 1992-1993 | Diamond Reo C120 |
| 1994 | Duplex D9400 |
| 1994 | Duplex D9500 |
| 2005 | El Dorado Axess |
| 1997-2001 | El Dorado E-Z Rider |
| 2003 | El Dorado E-Z Rider |
| 2002 | El Dorado E-Z Rider II |
| 2004-2005 | El Dorado E-Z Rider II |
| 2007-2008 | El Dorado E-Z Rider II Max |
| 1995 | El Dorado Escort RE |
| 1997 | El Dorado Escort RE |
| 1999-2007 | El Dorado Escort RE |
| 1995-2005 | El Dorado Transmark RE |
| 2007 | El Dorado Transmark XHF |
| 1992-2017 | Emergency One Emergency One |
| 1989-1992 | Federal Motors Federal Motors |
| 1993 | Flxible Transit Bus Metro 30 |
| 1995 | Flxible Transit Bus Metro 30 |
| 1994-1995 | Flxible Transit Bus Metro 35 |
| 1992-1995 | Flxible Transit Bus Metro 40 |
| 1993-1997 | Ford CFT8000 |
| 1993-1998 | Ford FT900 |
| 1993-1997 | Ford L8000F |
| 1997-1998 | Ford L8501 |
| 1998 | Ford L8511 |
| 1996-1998 | Ford L8513 |
| 1993-1997 | Ford LA8000F |
| 1993-1997 | Ford LNT8000F |
| 1993-1997 | Ford LS8000F |
| 1993-1997 | Ford LT8000F |
| 1997-1998 | Ford LT8501 |
Specifications
- GTIN
- 00729295103936
- Weight
- 5.5 lb
- Height
- 4 in
- Length
- 6 in
- Width
- 5 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- MEL
- Warehouse brand code
- BCBC
- AAIA brand code
- BCBC
Attributes
- Bolts Included
- No
- Bushing Included
- No
- California Proposition 65
- No
- Cotter Pin Included
- No
- Cover Material
- Cast Iron
- Drive Shaft Included
- No
- Drive Type
- Crankshaft
- Finish
- Rust Preventative
- Gasket Or Seal Included
- No
- Gear Material
- Steel
- Gears Included
- Yes
- Governor Spinner Included
- No
- Grade Type
- Standard Replacement
- Guide Included
- No
- Height
- 2.38
- Housing Material
- Cast Iron
- Inlet Size (in)
- Not Applicable
- Inlet Size (mm)
- Not Applicable
- Intermediate Shaft Included
- Not Applicable
- Mounting Hole Diameter
- 0.315
- Mounting Hole Quantity
- 4
- Nylon Bushing Included
- No
- O-Ring Included
- No
- Oil Pump Type
- Gear
- Pickup Screen Included
- No
- Pump Cover Included
- Yes
- Rotor Material
- Powdered Metal
- Shaft Material
- Not Applicable
- Spacer Included
- No
- Timing Cover Included
- No
- Title
- Engine Oil Pump
- Washers Included
- No
- Width
- 5.32
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1999-2003 American LaFrance ALF Eagle; 2008-2010 American LaFrance Condor; 2012-2013 American LaFrance Condor; 2000-2004 American LaFrance Metropolitan; 2009-2014 Autocar LLC. Xpeditor; 2003-2010 Autocar LLC. Xpeditor WX; 2003-2010 Autocar LLC. Xpeditor WXLL; 2003-2006 Autocar LLC. Xpeditor WXR; 1989-2005 Blue Bird All American FE; 1989-2015 Blue Bird All American RE; 1993-2004 Blue Bird Commercial Bus; 2006-2007 Blue Bird Commercial Bus; 1991-1996 Blue Bird SHL All American; 2004 Blue Bird SHL Commercial; 1997 Blue Bird SHL TC2000; 1993-2000 Blue Bird TC2000; 2002 Blue Bird TC2000; 1995 Blue Bird Wanderlodge; 2000-2003 Country Coach Allure; 2004 Country Coach Motorhome Inspire; 2000-2002 Country Coach Motorhome Intrigue; 2003 Country Coach Motorhome LTC Chassis; 2009-2010 Country Coach Motorhome Magna; 1989-1992 Crane Carrier Centurion; 1994-1998 Crane Carrier Centurion; 2003 Crane Carrier Centurion; 2007 Crane Carrier Centurion; 1999-2002 Crane Carrier Equipment Carrier; 2004 Crane Carrier Equipment Carrier; 1991-2000 Crane Carrier IRL; 1987-2010 Crane Carrier Low Entry; 1988-1990 Crown Coach School Bus; 1992-1993 Diamond Reo C120; 1994 Duplex D9400; 1994 Duplex D9500; 2005 El Dorado Axess; 1997-2001 El Dorado E-Z Rider; 2003 El Dorado E-Z Rider; 2002 El Dorado E-Z Rider II; 2004-2005 El Dorado E-Z Rider II; 2007-2008 El Dorado E-Z Rider II Max; 1995 El Dorado Escort RE; 1997 El Dorado Escort RE; 1999-2007 El Dorado Escort RE; 1995-2005 El Dorado Transmark RE; 2007 El Dorado Transmark XHF; 1992-2017 Emergency One Emergency One; 1989-1992 Federal Motors Federal Motors; 1993 Flxible Transit Bus Metro 30; 1995 Flxible Transit Bus Metro 30; 1994-1995 Flxible Transit Bus Metro 35; 1992-1995 Flxible Transit Bus Metro 40; 1993-1997 Ford CFT8000; 1993-1998 Ford FT900; 1993-1997 Ford L8000F; 1997-1998 Ford L8501; 1998 Ford L8511; 1996-1998 Ford L8513; 1993-1997 Ford LA8000F; 1993-1997 Ford LNT8000F; 1993-1997 Ford LS8000F; 1993-1997 Ford LT8000F; 1997-1998 Ford LT8501; ...
Resources
- Brand logo
- Installation Instructions
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Primary
- Engine Priming Tank - Melling # MPL-201
- Oil Pump Volume and Pressure Explanation
- How to Measure the Health of your Engine - By Melling Engine Parts
- Spanish Version: Oil Pump Volume and Pressure by Melling
- Measuring Bearing clearances in an engine - they have a major impact on oil pressure
- Grease in Oil Pumps??? Tech Tip from Melling Engine Parts
