Melling Engine Parts / Melling Tool Co. / M341
Part #: M341
UPC: 729295103769
Loading...
Notify me when this item is in stock.

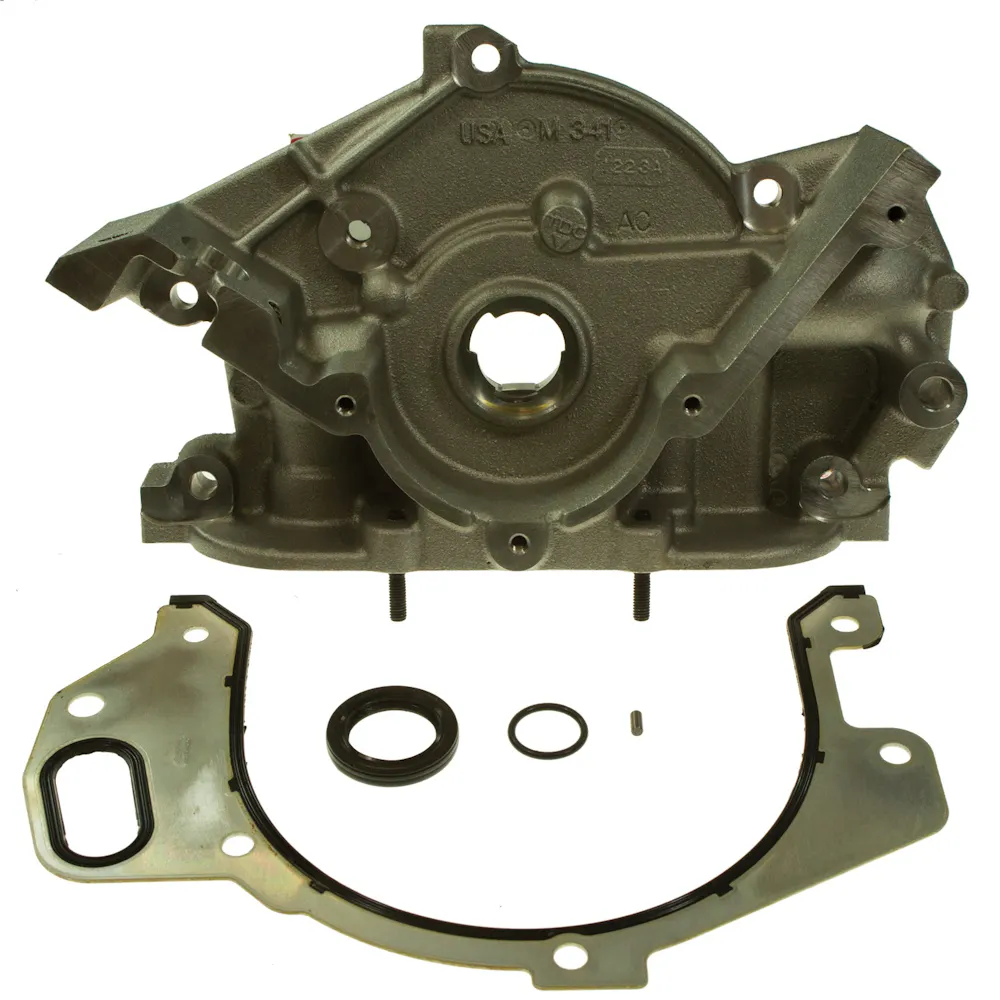

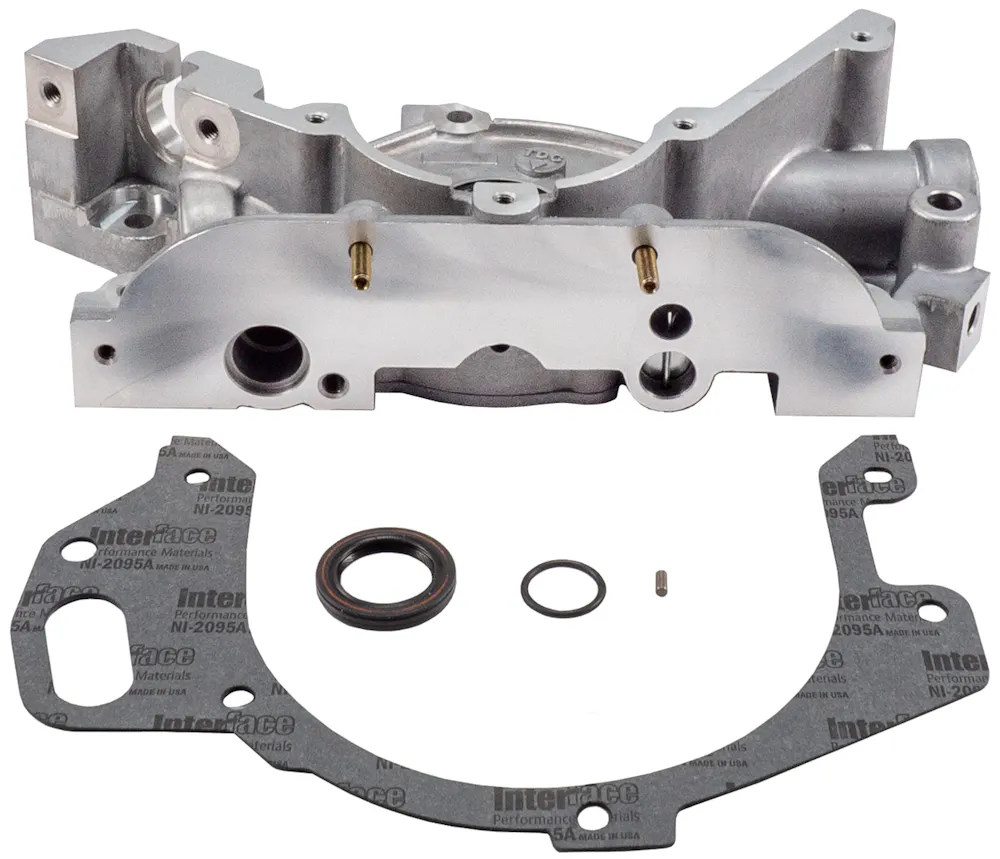

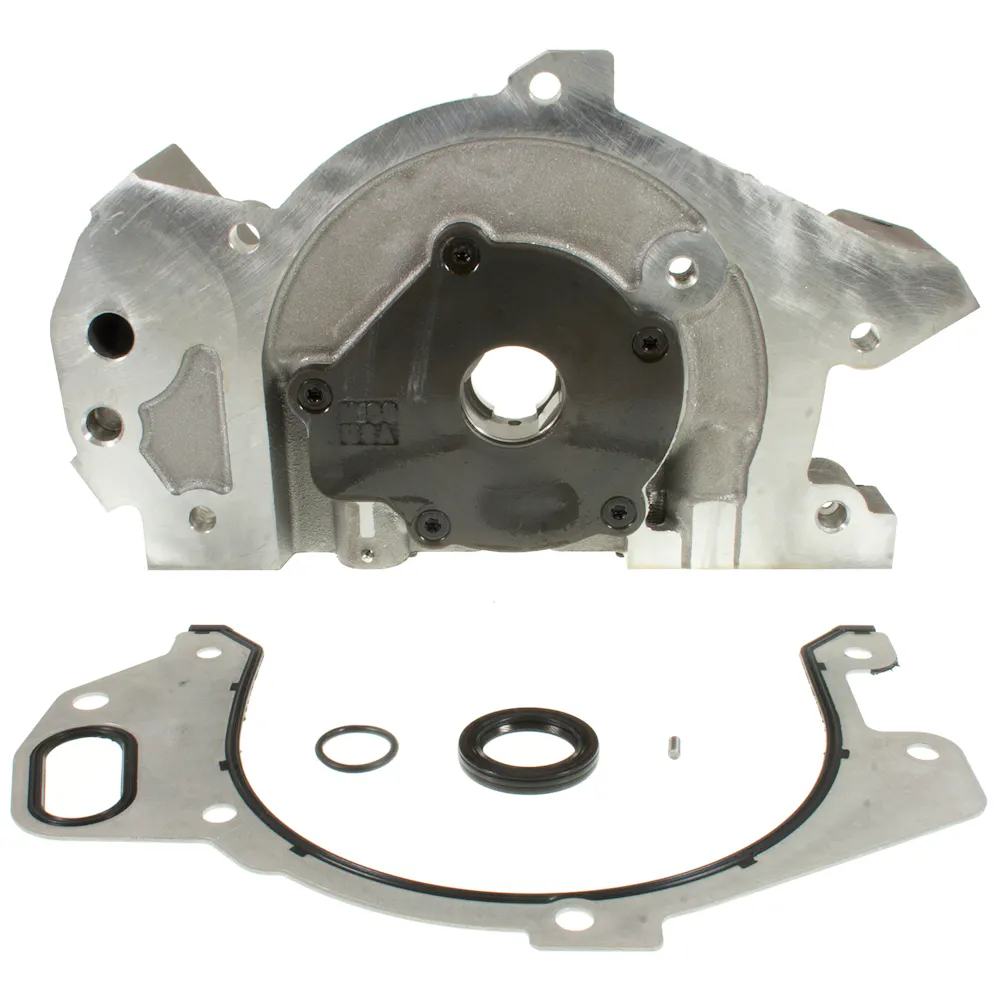

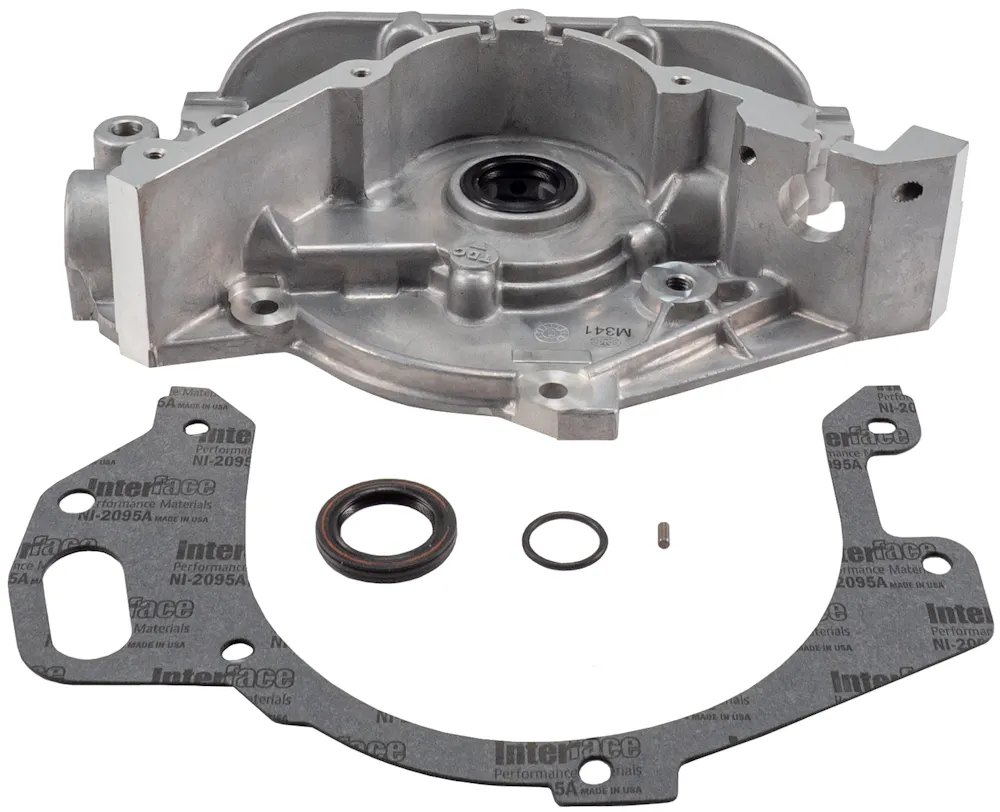

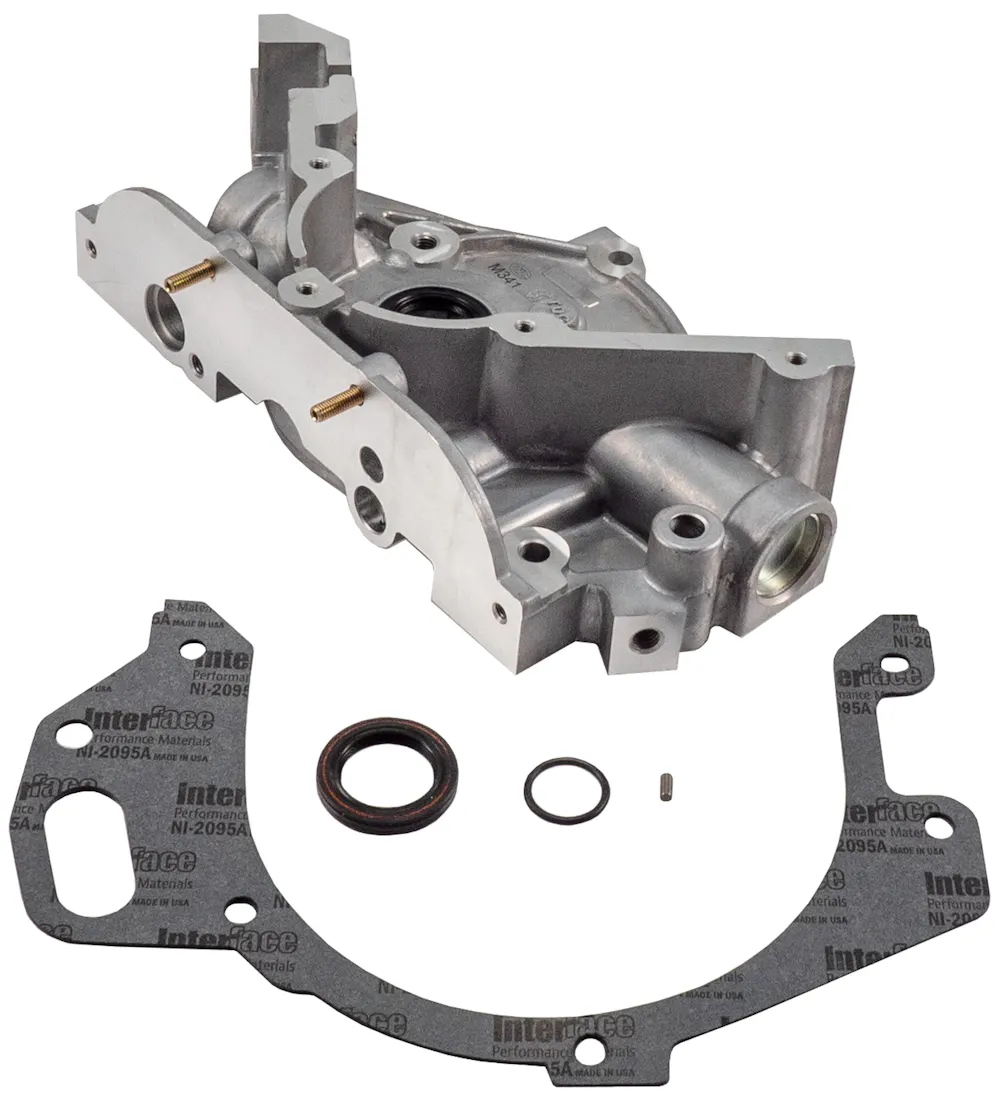

Description: Stock Replacement Oil Pump; M341 Stock Replacement : Standard Volume, Standard Pressure, Aluminum Oil Pump With Gasket
Description:
Description
Made in USA. Melling oil pumps provide dependable performance every time in every application. Every Melling oil pump is engineered and assembled to the highest production standards from high quality materials. All Melling oil pumps use the latest in gear and gerotor technology to provide the highest level of quality and performance. Gears are machined to close tolerances to ensure proper engine pressure and correct, efficient pump operation. End plates are precision ground for maximum wear resistance. Every Melling oil pump is individually tested for pressure and flow under conditions designed to duplicate actual engine operating conditions.
Features & benefits
- Precision engineered for optimum fit and function
- Manufactured from high quality materials for consistent durable wear
- Designed for long-life and worry-free performance
- Meets or exceeds original equipment specifications
Application summary
| Year | Make / model |
|---|---|
| 1999-2004 | Chrysler 300M |
| 1998-2004 | Chrysler Concorde |
| 1998-2004 | Chrysler Intrepid |
| 1999-2001 | Chrysler LHS |
| 2001-2002 | Chrysler Prowler |
| 1998-2004 | Dodge Intrepid |
| 1999-2001 | Plymouth Prowler |
Specifications
- GTIN
- 00729295103769
- Weight
- 6.7 lb
- Height
- 4.5 in
- Length
- 13.5 in
- Width
- 9.25 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- MEL
- Warehouse brand code
- BCBC
- AAIA brand code
- BCBC
Attributes
- Bolts Included
- No
- Bushing Included
- No
- California Proposition 65
- No
- Cotter Pin Included
- No
- Cover Material
- Aluminum
- Drive Shaft Included
- No
- Drive Type
- Crankshaft
- Finish
- Rust Preventative
- Gasket Or Seal Included
- Yes
- Gears Included
- Not Applicable
- Governor Spinner Included
- No
- Grade Type
- Standard Replacement
- Guide Included
- No
- Height
- 7.75
- Housing Material
- Aluminum
- Inlet Size (in)
- 0.787
- Inlet Size (mm)
- 20.00
- Intermediate Shaft Included
- No
- Mounting Hole Diameter
- 0.375
- Mounting Hole Quantity
- 6
- Nylon Bushing Included
- No
- O-Ring Included
- Yes
- Oil Pump Type
- Rotary
- Pick Up Screen Diameter
- 0.81
- Pick Up Tube Diameter
- 0.787
- Pickup Screen Included
- No
- Pump Cover Included
- Yes
- Rotor Material
- Powdered Metal
- Shaft Material
- Not Applicable
- Spacer Included
- No
- Timing Cover Included
- No
- Title
- Engine Oil Pump
- Washers Included
- No
- Width
- 12.0
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1999-2004 Chrysler 300M; 1998-2004 Chrysler Concorde; 1998-2004 Chrysler Intrepid; 1999-2001 Chrysler LHS; 2001-2002 Chrysler Prowler; 1998-2004 Dodge Intrepid; 1999-2001 Plymouth Prowler
