Melling Engine Parts / Melling Tool Co. · M176HV-332S
Part #: M176HV-332S
UPC: 729295105497
Log in for inventory
Notify me when this item is in stock.

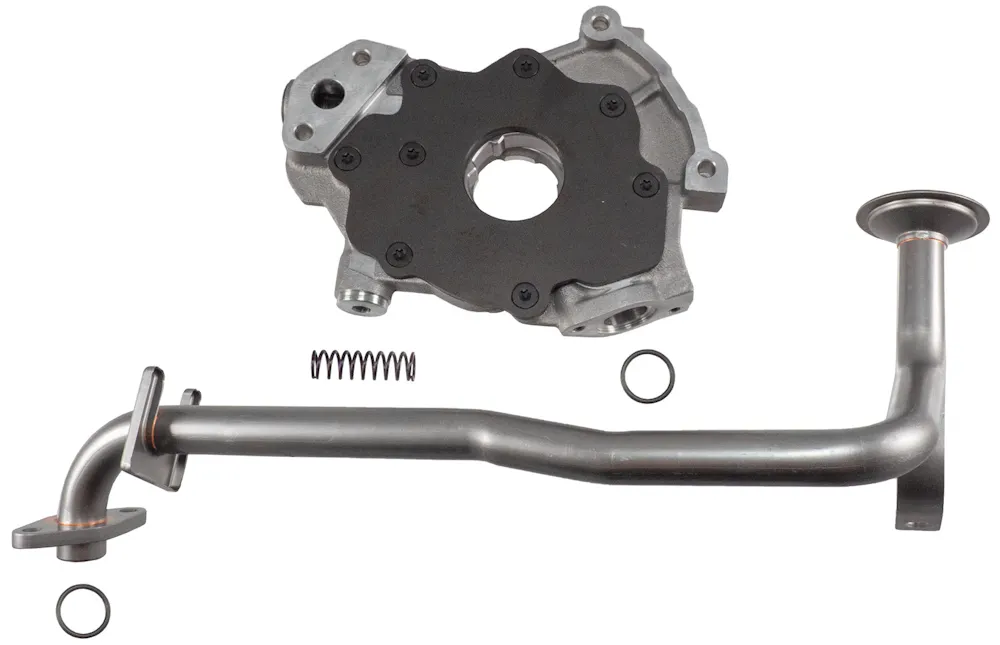

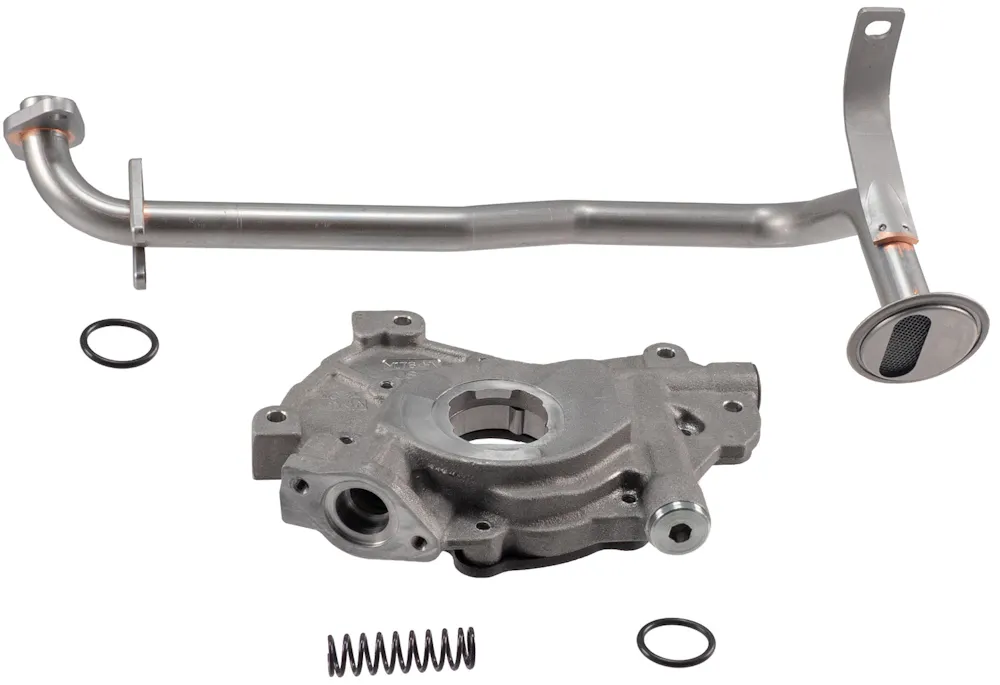

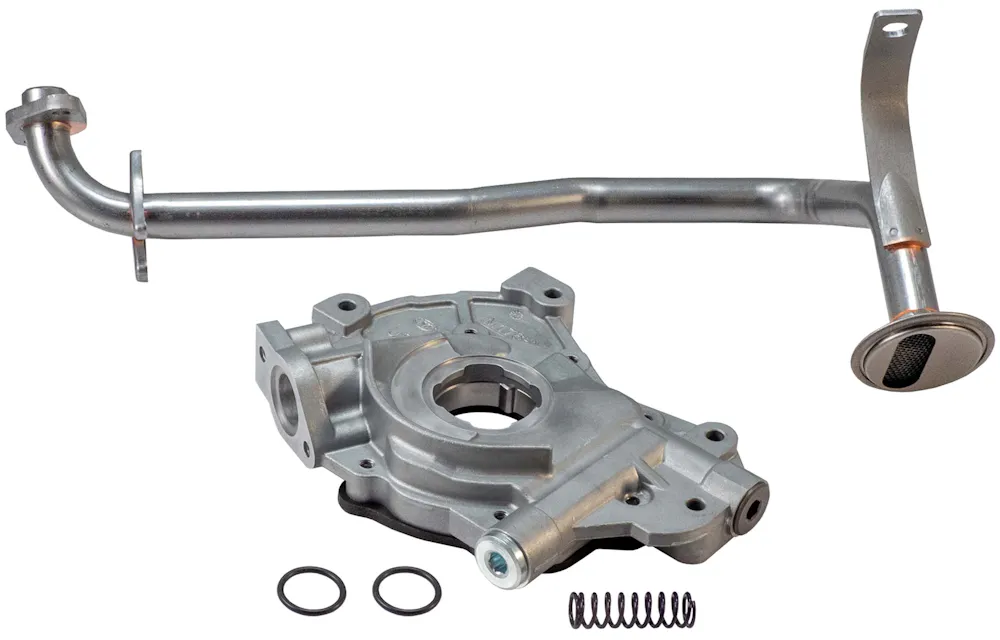

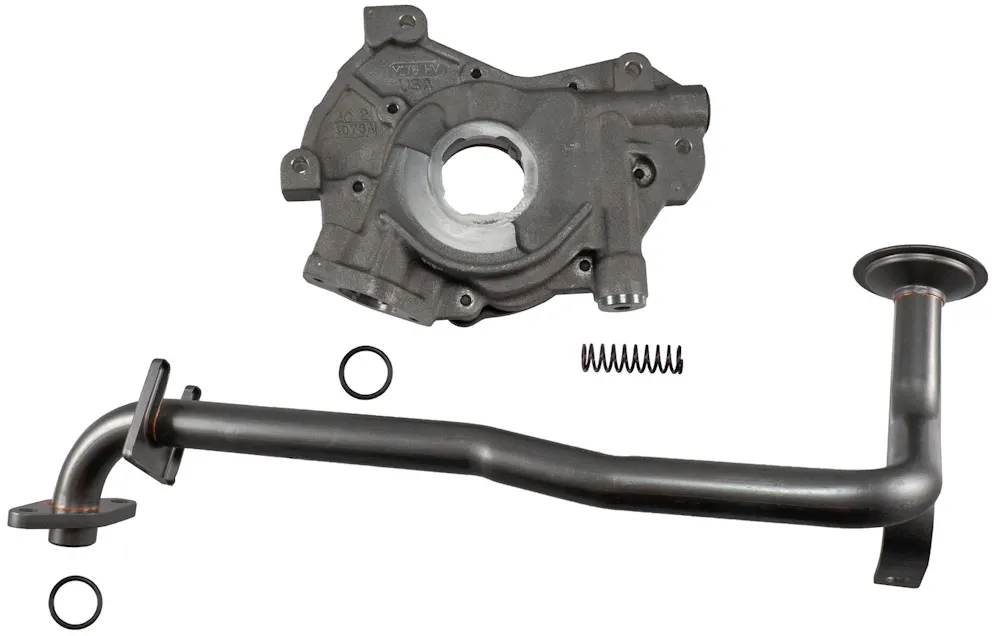

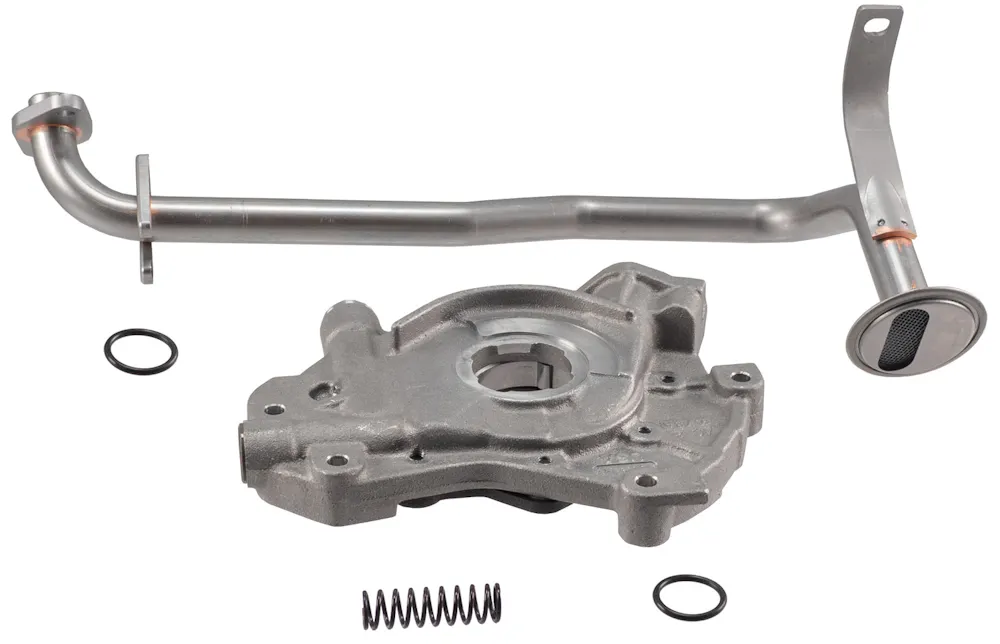

Description: High Volume Replacement Oil Pump; M176HV-332S Stock Replacement : High Volume, Standard Pressure, Aluminum Oil Pump With Gasket
Description:
Description
Made in USA. Melling oil pumps provide dependable performance every time in every application. Every Melling oil pump is engineered and assembled to the highest production standards from high quality materials. All Melling oil pumps use the latest in gear and gerotor technology to provide the highest level of quality and performance. Gears are machined to close tolerances to ensure proper engine pressure and correct, efficient pump operation. End plates are precision ground for maximum wear resistance. Every Melling oil pump is individually tested for pressure and flow under conditions designed to duplicate actual engine operating conditions.
Application summary
| Year | Make / model |
|---|---|
| 2005-2007 | Ford E-150 |
| 2005 | Ford E-150 Club Wagon |
| 2005-2006 | Ford E-250 |
| 2000-2002 | Ford Expedition |
| 2000-2003 | Ford F-150 |
| 2004 | Ford F-150 Heritage |
| 2002 | Lincoln Blackwood |
| 2000-2004 | Lincoln Navigator |
Specifications
- GTIN
- 00729295105497
- Weight
- 5.25 lb
- Height
- 6 in
- Length
- 21 in
- Width
- 9 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- MEL
- Warehouse brand code
- BCBC
- AAIA brand code
- BCBC
Attributes
- Bolts Included
- No
- Bushing Included
- No
- California Proposition 65
- No
- Cotter Pin Included
- No
- Cover Material
- Aluminum
- Drive Shaft Included
- No
- Drive Type
- Crankshaft
- Finish
- Rust Preventative
- Gasket Or Seal Included
- Yes
- Gears Included
- Not Applicable
- Governor Spinner Included
- No
- Grade Type
- Improved Design
- Guide Included
- No
- Height
- 6.25
- Housing Material
- Aluminum
- Inlet Size (in)
- 0.811
- Inlet Size (mm)
- 20.00
- Intermediate Shaft Included
- No
- Mounting Hole Diameter
- 0.25
- Mounting Hole Quantity
- 4
- Nylon Bushing Included
- No
- O-Ring Included
- Yes
- Oil Pump Type
- Rotary
- Pick Up Tube Diameter
- 0.811
- Pickup Screen Included
- Yes
- Pump Cover Included
- Yes
- Rotor Material
- Stainless Steel
- Shaft Material
- Not Applicable
- Spacer Included
- No
- Timing Cover Included
- No
- Title
- Engine Oil Pump
- Washers Included
- No
- Width
- 8.0
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2005-2007 Ford E-150; 2005 Ford E-150 Club Wagon; 2005-2006 Ford E-250; 2000-2002 Ford Expedition; 2000-2003 Ford F-150; 2004 Ford F-150 Heritage; 2002 Lincoln Blackwood; 2000-2004 Lincoln Navigator
