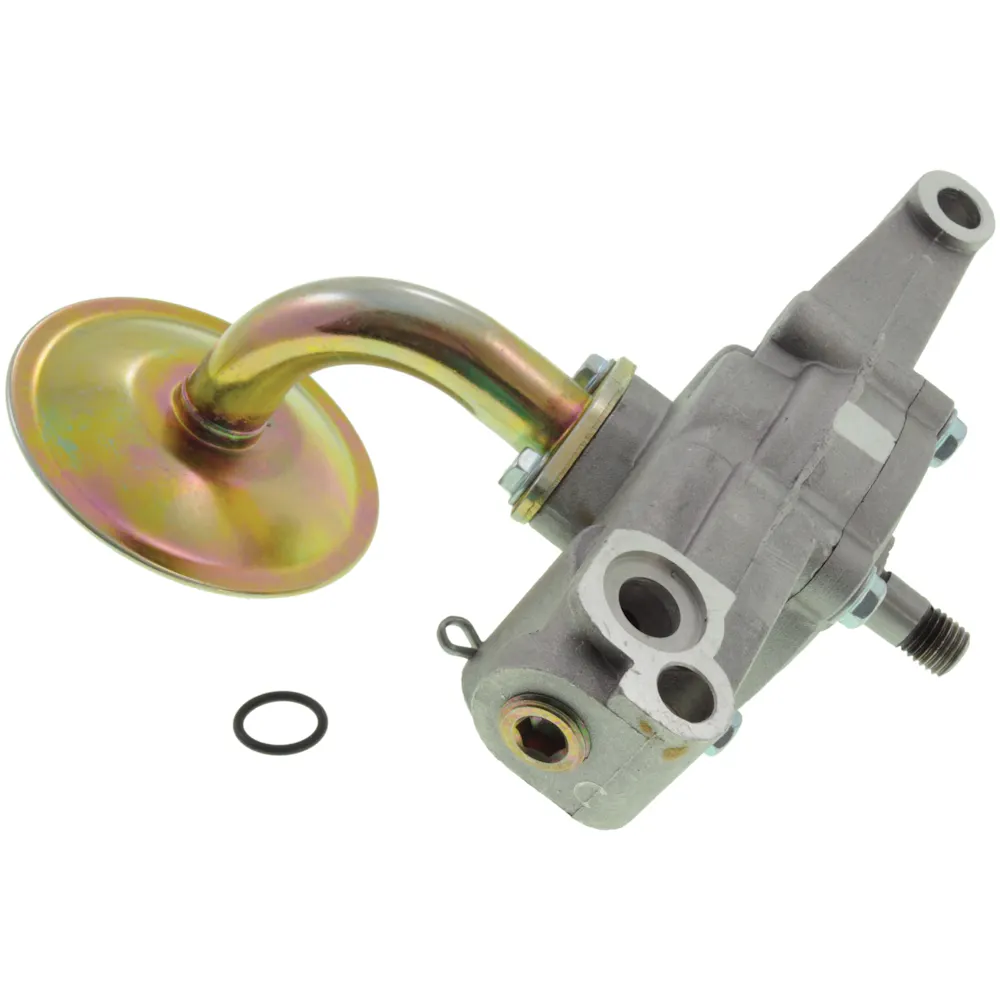

Melling Engine Parts / Melling Tool Co. · M163
Part #: M163
UPC: 729295102458
Log in for inventory
Notify me when this item is in stock.
Description: Stock Replacement Oil Pump; M163 Stock Replacement : Standard Volume, Standard Pressure, Cast Iron Oil Pump With Gasket
Description:
Description
Melling oil pumps provide dependable performance every time in every application. Every Melling oil pump is engineered and assembled to the highest production standards from high quality materials. All Melling oil pumps use the latest in gear and gerotor technology to provide the highest level of quality and performance. Gears are machined to close tolerances to ensure proper engine pressure and correct, efficient pump operation. End plates are precision ground for maximum wear resistance. Every Melling oil pump is individually tested for pressure and flow under conditions designed to duplicate actual engine operating conditions.
Features & benefits
- Precision engineered for optimum fit and function
- Manufactured from high quality materials for consistent durable wear
- Designed for long-life and worry-free performance
- Meets or exceeds original equipment specifications
Application summary
| Year | Make / model |
|---|---|
| 1972-1982 | Ford Courier |
| 1971-1972 | Mazda 616 |
| 1979-1983 | Mazda 626 |
| 1972-1974 | Mazda 808 |
| 1972-1976 | Mazda B1600 |
| 1977-1978 | Mazda B1800 |
| 1979-1984 | Mazda B2000 |
Specifications
- GTIN
- 00729295102458
- Weight
- 2.69 lb
- Height
- 3.25 in
- Length
- 8.25 in
- Width
- 8.25 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- MEL
- Warehouse brand code
- BCBC
- AAIA brand code
- BCBC
Attributes
- Bolts Included
- No
- Bushing Included
- No
- California Proposition 65
- No
- Cotter Pin Included
- Yes
- Cover Material
- Cast Iron
- Drive Shaft Included
- No
- Drive Type
- Drive Shaft
- Finish
- Rust Preventative
- Gasket Or Seal Included
- Yes
- Gear Material
- Steel
- Gears Included
- Yes
- Governor Spinner Included
- No
- Grade Type
- Standard Replacement
- Guide Included
- No
- Height
- 7.25
- Housing Material
- Cast Iron
- Inlet Size (in)
- 0.630
- Inlet Size (mm)
- 16.00
- Intermediate Shaft Included
- No
- Mounting Hole Diameter
- 0.375
- Mounting Hole Quantity
- 2
- Nylon Bushing Included
- No
- O-Ring Included
- Yes
- Oil Pump Type
- Gear
- Pick Up Tube Diameter
- 0.630
- Pickup Screen Included
- Yes
- Pump Cover Included
- Yes
- Shaft Material
- Not Applicable
- Spacer Included
- No
- Timing Cover Included
- No
- Title
- Engine Oil Pump
- Washers Included
- No
- Width
- 7.18
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1972-1982 Ford Courier; 1971-1972 Mazda 616; 1979-1983 Mazda 626; 1972-1974 Mazda 808; 1972-1976 Mazda B1600; 1977-1978 Mazda B1800; 1979-1984 Mazda B2000
