Melling Engine Parts / Melling Tool Co. / M-86CHV
Part #: M-86CHV
UPC: 729295101581
Loading...
Notify me when this item is in stock.

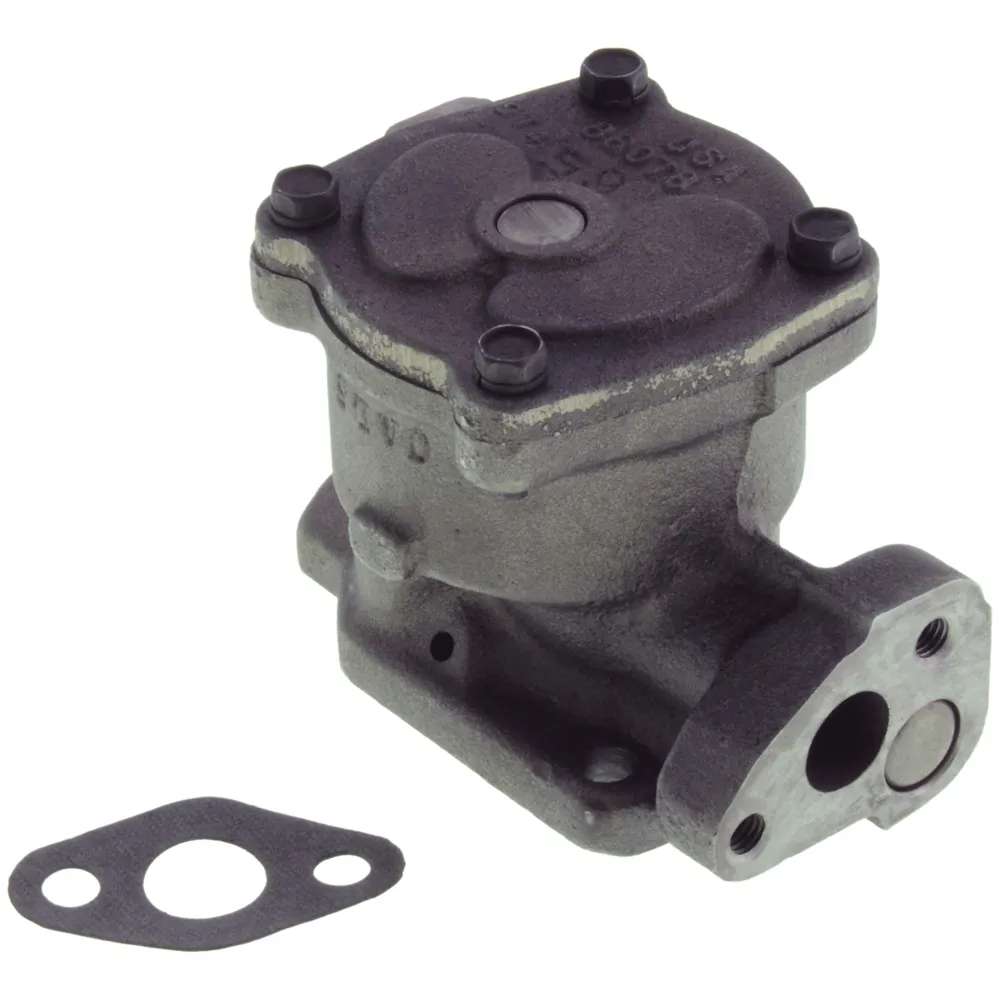

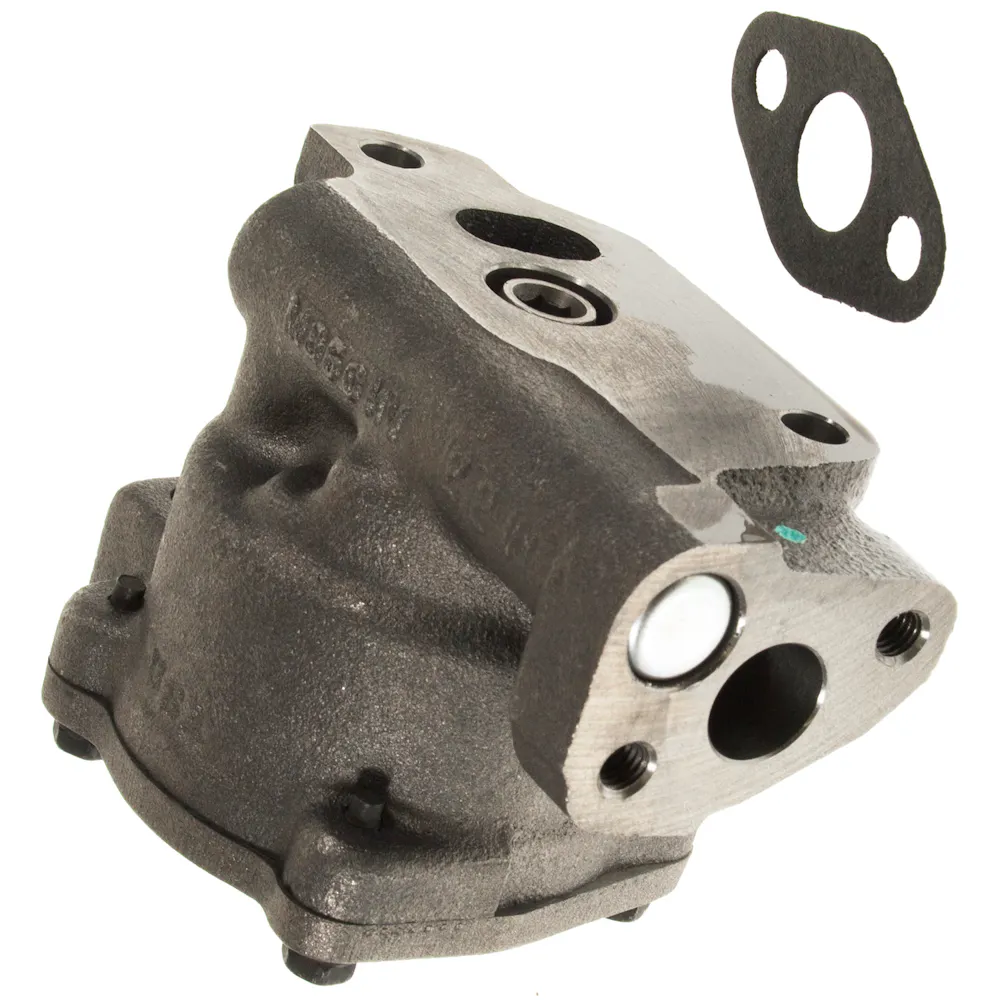

Description: High Volume Replacement Oil Pump; M-86CHV Stock Replacement : High Volume, Standard Pressure, Cast Iron Oil Pump
Description:
Description
Made in USA. Melling high volume oil pumps increase the amount of oil flow by an average of 20% through the engine improving oil pressure at idle providing dependable performance every time in every application. Every Melling high volume oil pump is engineered and assembled to the highest production standards from high quality materials. All Melling high volume oil pumps use the latest in gear and gerotor technology to provide the highest level of quality and performance. High volume gears are machined to close tolerances to ensure proper engine pressure and correct, efficient pump operation. End plates are precision ground for maximum wear resistance. Every Melling oil pump is individually tested for pressure and flow under conditions designed to duplicate actual engine operating conditions.
Features & benefits
- Manufactured from high quality materials for consistent durable wear
- Designed for long-life and worry-free performance
- High volume oil pump supplies additional oil to engines when necessary for high performance applications or low oil pressure issues
- Meets or exceeds original equipment specifications
- Precision engineered for optimum fit and function
Application summary
| Year | Make / model |
|---|---|
| 1977-1982 | Ford Courier |
| 1978-1983 | Ford Fairmont |
| 1981-1982 | Ford Granada |
| 1983-1985 | Ford LTD |
| 1979-1985 | Ford Mustang |
| 1989 | Ford Mustang |
| 1974-1978 | Ford Mustang II |
| 1974-1980 | Ford Pinto |
| 1983-1988 | Ford Ranger |
| 1983-1988 | Ford Thunderbird |
| 1975-1980 | Mercury Bobcat |
| 1975-1977 | Mercury Capri |
| 1979-1986 | Mercury Capri |
| 1981-1982 | Mercury Cougar |
| 1983-1986 | Mercury Marquis |
| 1978-1983 | Mercury Zephyr |
Specifications
- GTIN
- 00729295101581
- Weight
- 5.25 lb
- Height
- 4 in
- Length
- 6 in
- Width
- 5 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- MEL
- Warehouse brand code
- BCBC
- AAIA brand code
- BCBC
Attributes
- Bolts Included
- No
- Bushing Included
- No
- California Proposition 65
- No
- Cotter Pin Included
- No
- Cover Material
- Cast Iron
- Drive Shaft Included
- No
- Drive Type
- Drive Shaft
- Finish
- Rust Preventative
- Gasket Or Seal Included
- No
- Gear Material
- Steel
- Gears Included
- Yes
- Governor Spinner Included
- No
- Grade Type
- Improved Design
- Guide Included
- No
- Height
- 3.35
- Housing Material
- Cast Iron
- Inlet Size (in)
- 0.550
- Inlet Size (mm)
- 14.00
- Intermediate Shaft Included
- No
- Mounting Hole Diameter
- 0.375
- Mounting Hole Quantity
- 2
- Nylon Bushing Included
- No
- O-Ring Included
- No
- Oil Pump Type
- Gear
- Pick Up Tube Diameter
- 0.550
- Pickup Screen Included
- No
- Pump Cover Included
- Yes
- Shaft Material
- Not Applicable
- Spacer Included
- No
- Timing Cover Included
- No
- Title
- Engine Oil Pump
- Washers Included
- No
- Width
- 4.86
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1977-1982 Ford Courier; 1978-1983 Ford Fairmont; 1981-1982 Ford Granada; 1983-1985 Ford LTD; 1979-1985 Ford Mustang; 1989 Ford Mustang; 1974-1978 Ford Mustang II; 1974-1980 Ford Pinto; 1983-1988 Ford Ranger; 1983-1988 Ford Thunderbird; 1975-1980 Mercury Bobcat; 1975-1977 Mercury Capri; 1979-1986 Mercury Capri; 1981-1982 Mercury Cougar; 1983-1986 Mercury Marquis; 1978-1983 Mercury Zephyr
