Melling Engine Parts / Melling Tool Co. · M-81A
Part #: M-81A
UPC: 729295101376
Log in for inventory
Notify me when this item is in stock.

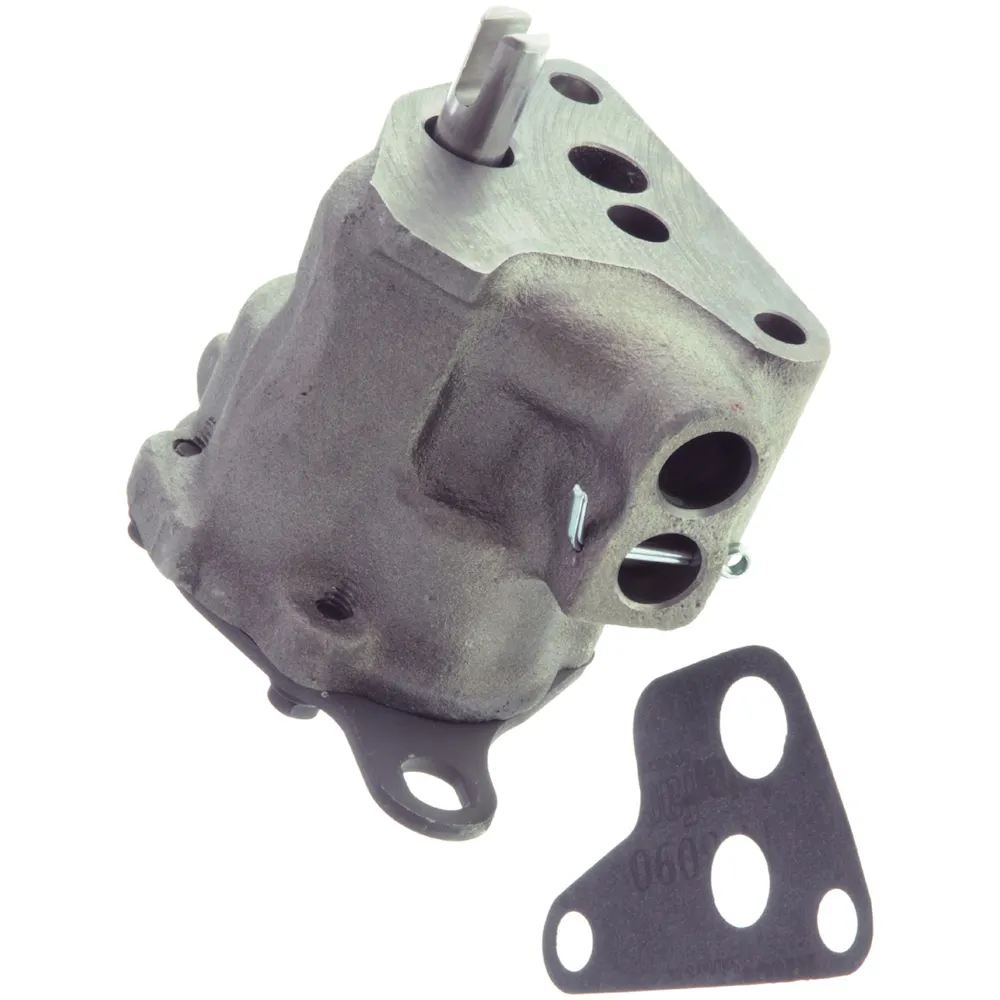

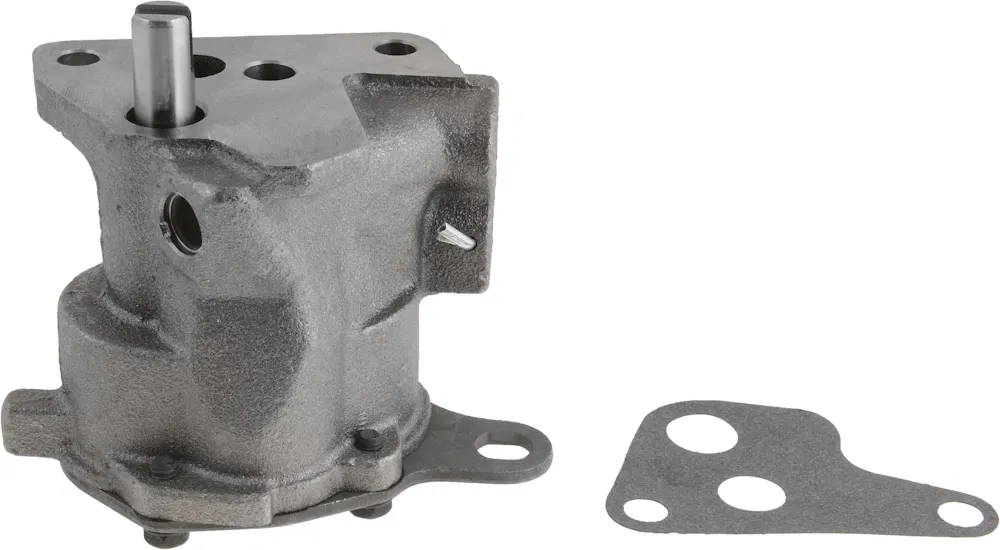

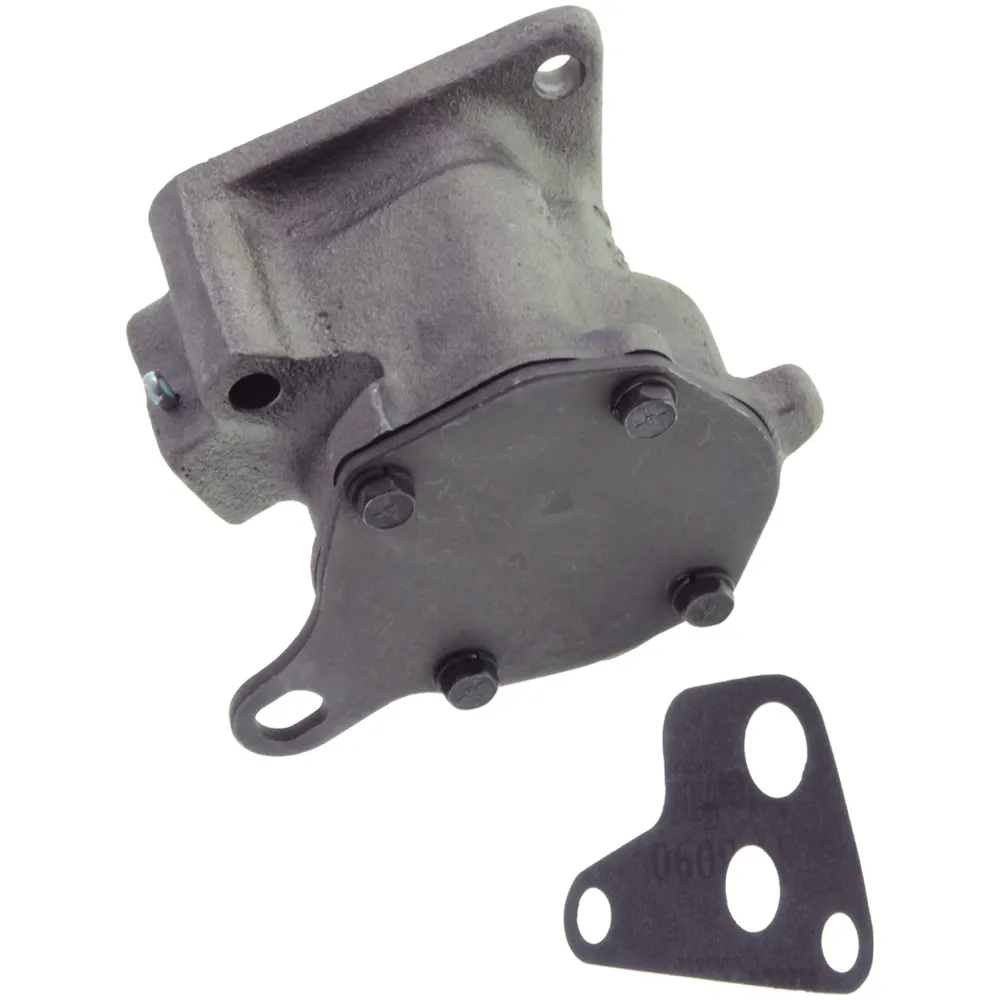

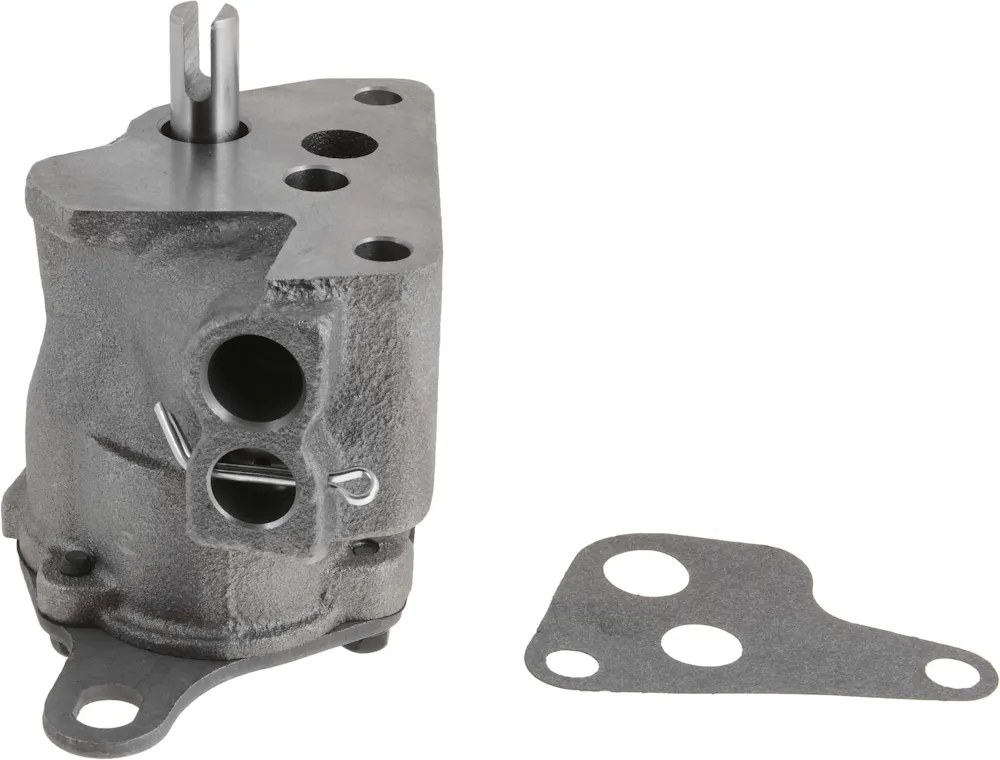

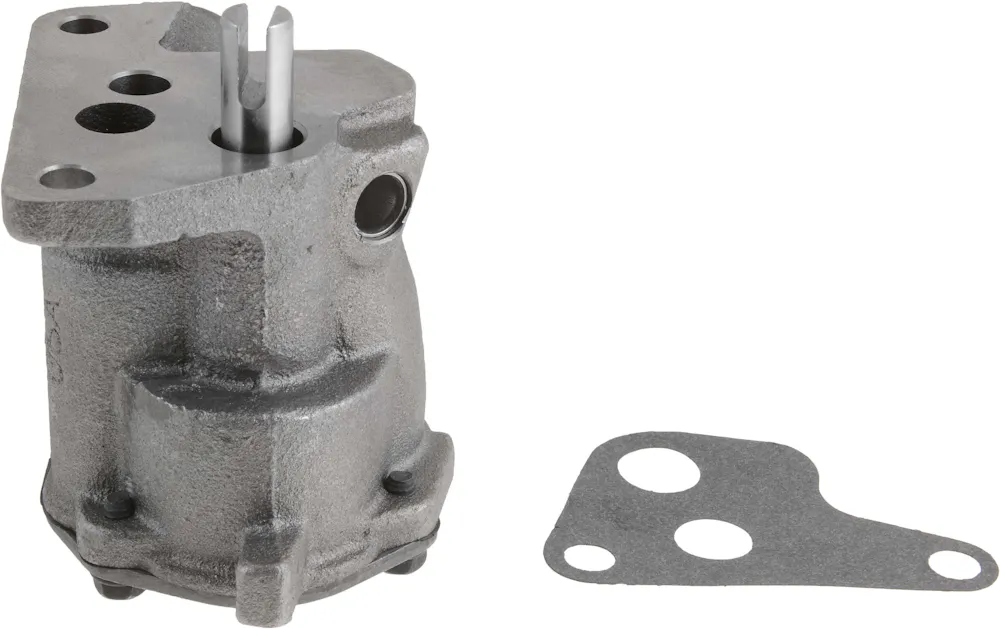

Description: Stock Replacement Oil Pump; M-81A Stock Replacement : Standard Volume, Standard Pressure, Cast Iron Oil Pump With Gasket
Description:
Description
Made in USA. Melling oil pumps provide dependable performance every time in every application. Every Melling oil pump is engineered and assembled to the highest production standards from high quality materials. All Melling oil pumps use the latest in gear and gerotor technology to provide the highest level of quality and performance. Gears are machined to close tolerances to ensure proper engine pressure and correct, efficient pump operation. End plates are precision ground for maximum wear resistance. Every Melling oil pump is individually tested for pressure and flow under conditions designed to duplicate actual engine operating conditions.
Features & benefits
- Precision engineered for optimum fit and function
- Manufactured from high quality materials for consistent durable wear
- Designed for long-life and worry-free performance
- Meets or exceeds original equipment specifications
Application summary
| Year | Make / model |
|---|---|
| 1982-1983 | American Motors Concord |
| 1982-1988 | American Motors Eagle |
| 1982-1983 | American Motors Spirit |
| 1996-2002 | Dodge Dakota |
| 1988-1989 | Eagle Premier |
| 1981-2001 | Jeep Cherokee |
| 1981-1983 | Jeep CJ5 |
| 1981-1986 | Jeep CJ7 |
| 1986-1992 | Jeep Comanche |
| 1981-1983 | Jeep DJ5 |
| 1993-2004 | Jeep Grand Cherokee |
| 1984-1986 | Jeep Grand Wagoneer |
| 1981-1987 | Jeep J10 |
| 1981-1986 | Jeep Scrambler |
| 1997-2006 | Jeep TJ |
| 1981-1990 | Jeep Wagoneer |
| 1987-1995 | Jeep Wrangler |
| 1997-2006 | Jeep Wrangler |
Specifications
- GTIN
- 00729295101376
- Weight
- 4.08 lb
- Height
- 4 in
- Length
- 6 in
- Width
- 5 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- MEL
- Warehouse brand code
- BCBC
- AAIA brand code
- BCBC
Attributes
- Bolts Included
- No
- Bushing Included
- No
- California Proposition 65
- No
- Cotter Pin Included
- Yes
- Cover Material
- Cast Iron
- Drive Shaft Included
- No
- Drive Type
- Drive Shaft
- Finish
- Rust Preventative
- Gasket Or Seal Included
- Yes
- Gear Material
- Steel
- Gears Included
- Yes
- Governor Spinner Included
- No
- Grade Type
- Standard Replacement
- Guide Included
- No
- Height
- 3.42
- Housing Material
- Cast Iron
- Inlet Size (in)
- 0.630
- Inlet Size (mm)
- 16.00
- Intermediate Shaft Included
- No
- Mounting Hole Diameter
- 0.375
- Mounting Hole Quantity
- 2
- Nylon Bushing Included
- No
- O-Ring Included
- No
- Oil Pump Type
- Gear
- Pick Up Tube Diameter
- 0.630
- Pickup Screen Included
- No
- Pump Cover Included
- Yes
- Shaft Material
- Not Applicable
- Spacer Included
- No
- Timing Cover Included
- No
- Title
- Engine Oil Pump
- Washers Included
- No
- Width
- 3.9
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1982-1983 American Motors Concord; 1982-1988 American Motors Eagle; 1982-1983 American Motors Spirit; 1996-2002 Dodge Dakota; 1988-1989 Eagle Premier; 1981-2001 Jeep Cherokee; 1981-1983 Jeep CJ5; 1981-1986 Jeep CJ7; 1986-1992 Jeep Comanche; 1981-1983 Jeep DJ5; 1993-2004 Jeep Grand Cherokee; 1984-1986 Jeep Grand Wagoneer; 1981-1987 Jeep J10; 1981-1986 Jeep Scrambler; 1997-2006 Jeep TJ; 1981-1990 Jeep Wagoneer; 1987-1995 Jeep Wrangler; 1997-2006 Jeep Wrangler
Resources
- Brand logo
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Primary
- Engine Priming Tank - Melling # MPL-201
- Oil Pump Volume and Pressure Explanation
- How to Measure the Health of your Engine - By Melling Engine Parts
- Spanish Version: Oil Pump Volume and Pressure by Melling
- Measuring Bearing clearances in an engine - they have a major impact on oil pressure
- Grease in Oil Pumps??? Tech Tip from Melling Engine Parts
