Melling Engine Parts / Melling Tool Co. · M-77G
Part #: M-77G
UPC: 729295101208
Loading...
Notify me when this item is in stock.

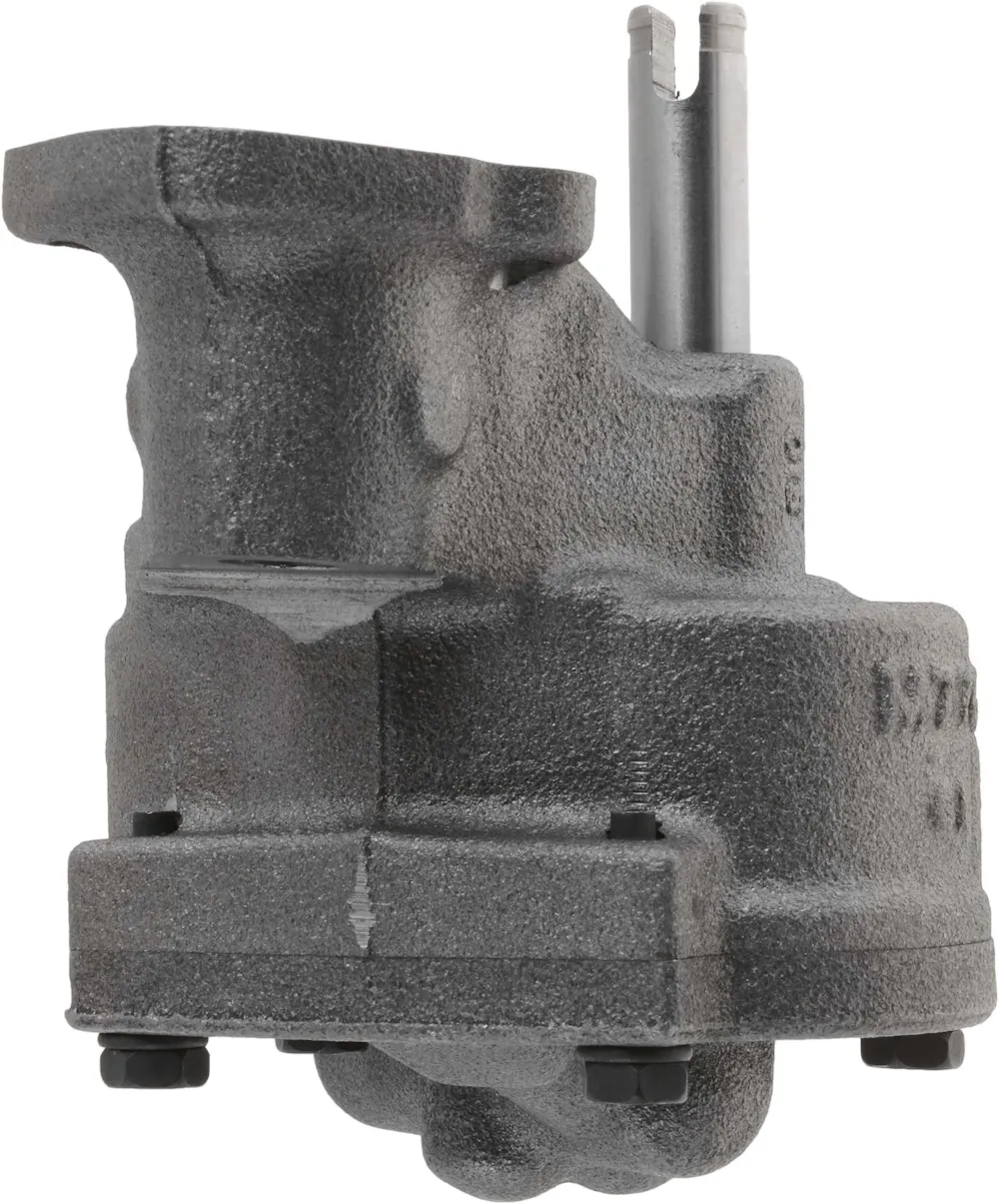

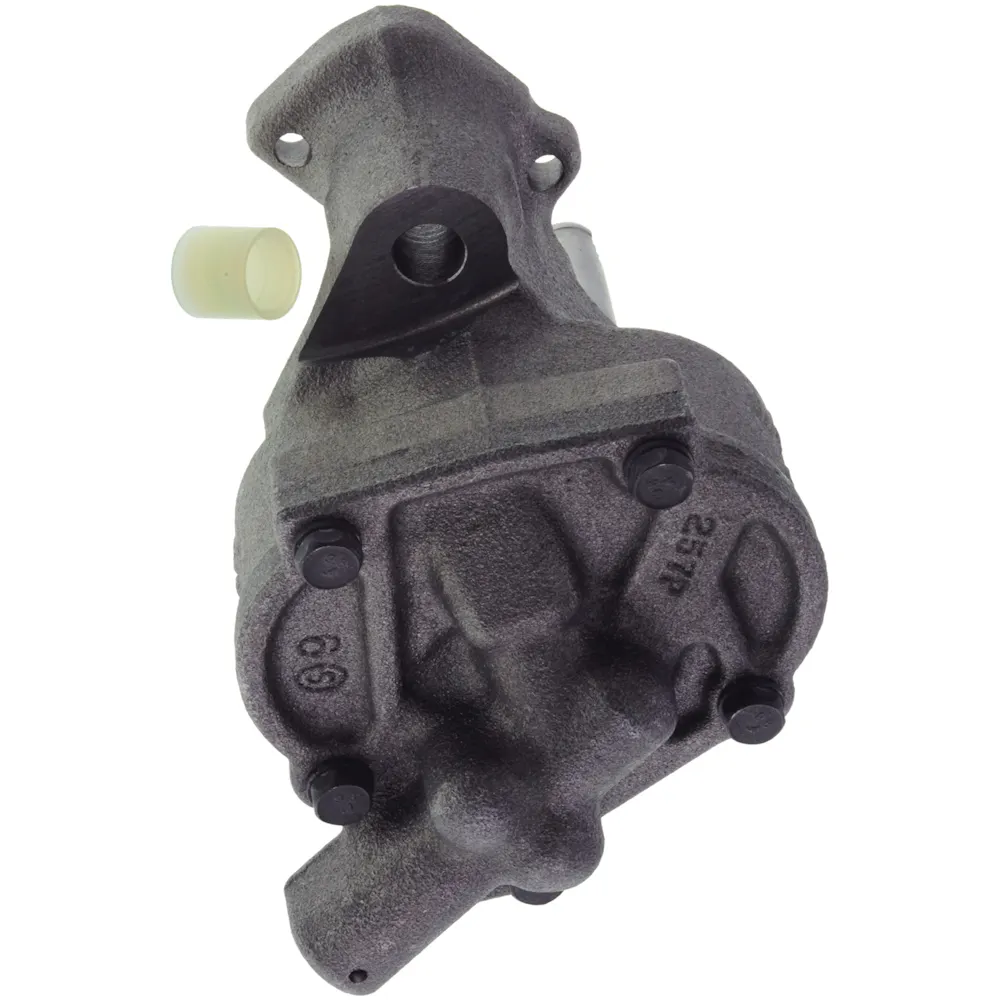

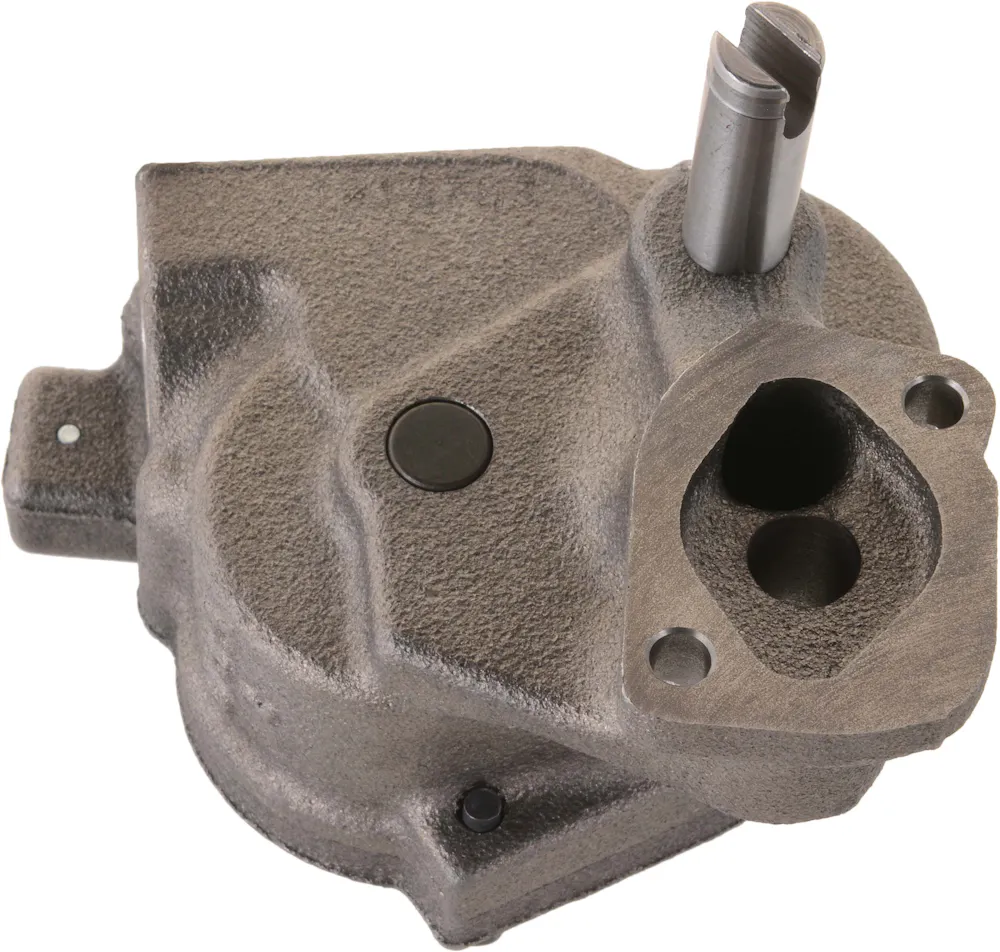

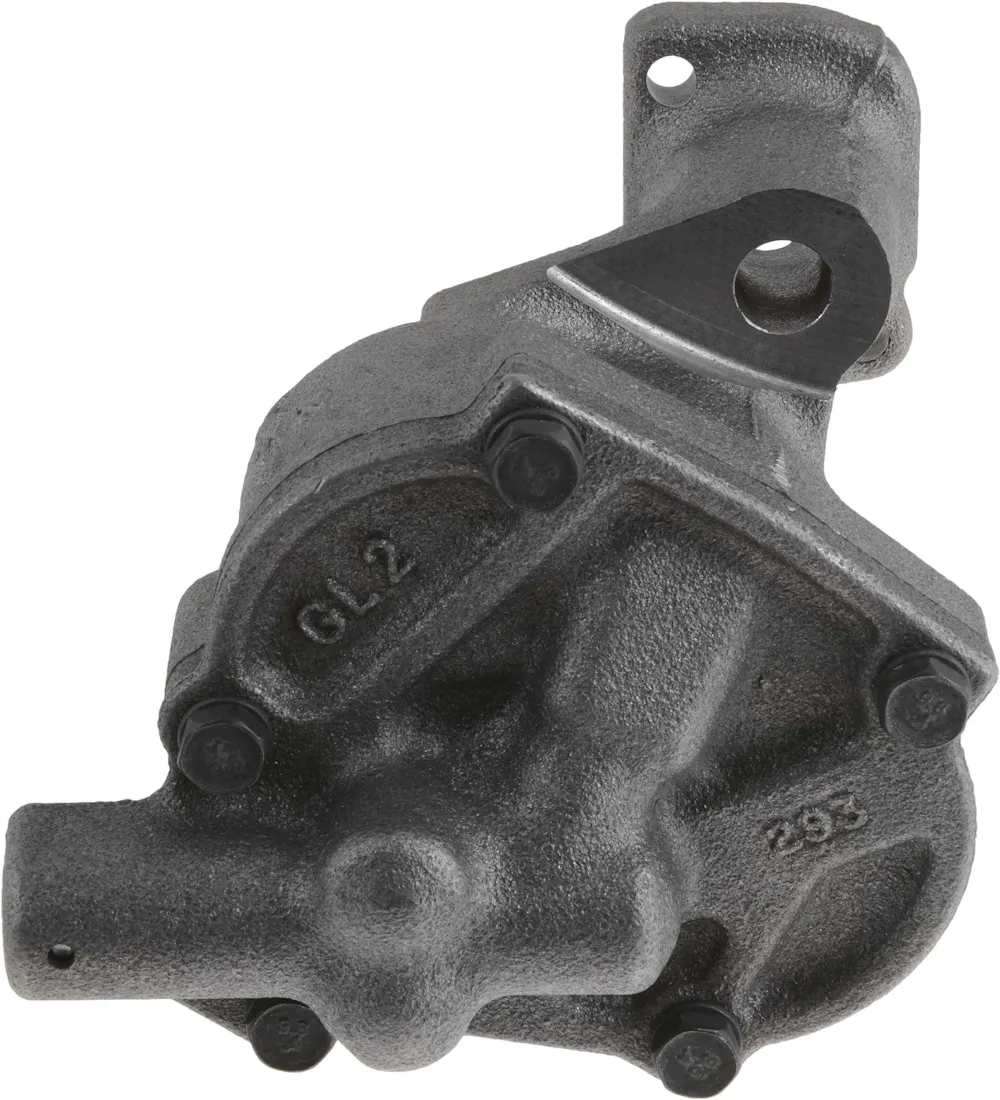

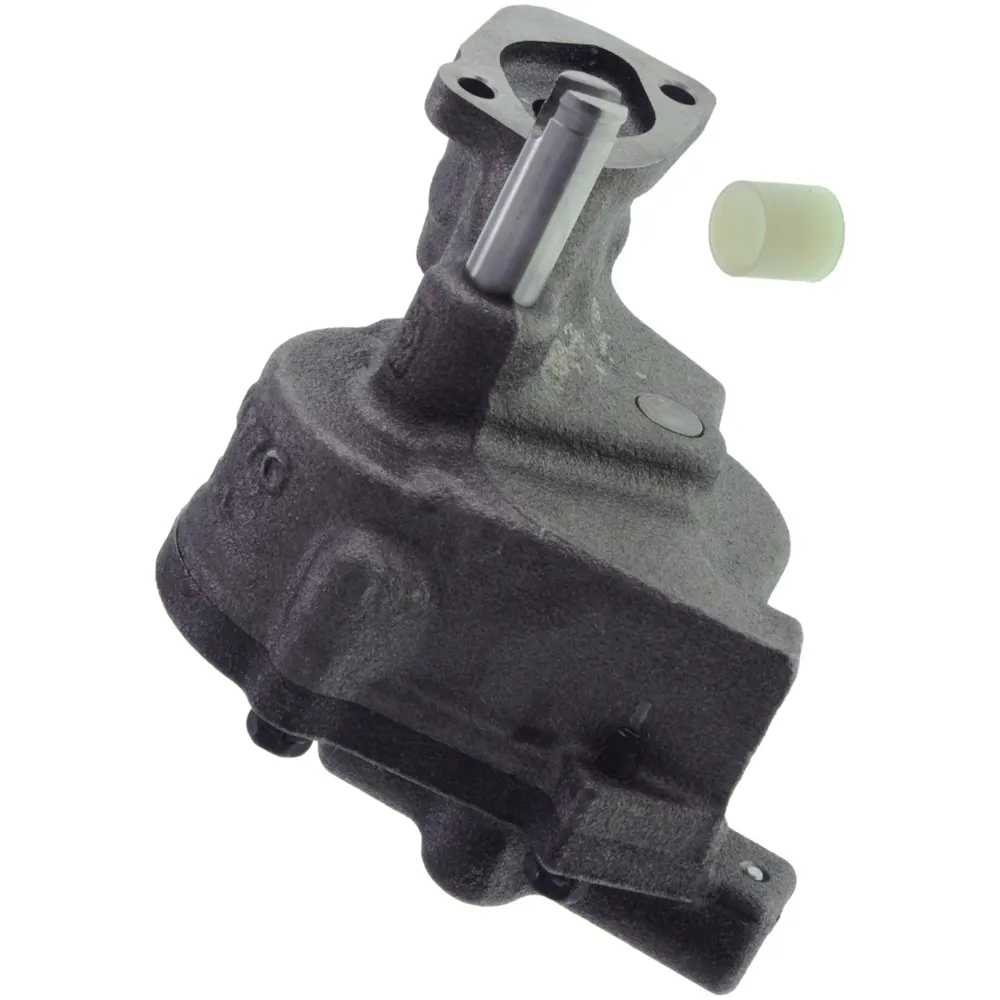

Description: Stock Replacement Oil Pump; M-77G Stock Replacement : Standard Volume, Standard Pressure, Cast Iron Oil Pump
Description:
Description
Made in USA. Melling oil pumps provide dependable performance every time in every application. Every Melling oil pump is engineered and assembled to the highest production standards from high quality materials. All Melling oil pumps use the latest in gear and gerotor technology to provide the highest level of quality and performance. Gears are machined to close tolerances to ensure proper engine pressure and correct, efficient pump operation. End plates are precision ground for maximum wear resistance. Every Melling oil pump is individually tested for pressure and flow under conditions designed to duplicate actual engine operating conditions.
Features & benefits
- Precision engineered for optimum fit and function
- Manufactured from high quality materials for consistent durable wear
- Designed for long-life and worry-free performance
- Meets or exceeds original equipment specifications
Application summary
| Year | Make / model |
|---|---|
| 1980-1990 | Chevrolet B60 |
| 1973-1974 | Chevrolet Blazer |
| 1975-1980 | Chevrolet C10 |
| 1968-1974 | Chevrolet C10 Pickup |
| 1968-1980 | Chevrolet C10 Suburban |
| 1990 | Chevrolet C1500 |
| 1975-1986 | Chevrolet C20 |
| 1968-1974 | Chevrolet C20 Pickup |
| 1968-1986 | Chevrolet C20 Suburban |
| 1975-1986 | Chevrolet C30 |
| 1968-1974 | Chevrolet C30 Pickup |
| 1988-1990 | Chevrolet C3500 |
| 1966-1979 | Chevrolet C50 |
| 1986 | Chevrolet C50 |
| 1990 | Chevrolet C5500 Kodiak |
| 1966-1990 | Chevrolet C60 |
| 1990 | Chevrolet C60 Kodiak |
| 1979-1990 | Chevrolet C70 |
| 1990 | Chevrolet C70 Kodiak |
| 1968-1975 | Chevrolet El Camino |
| 1973-1974 | Chevrolet G10 Van |
| 1976 | Chevrolet G20 |
| 1973-1974 | Chevrolet G20 Van |
| 1975-1976 | Chevrolet G30 |
| 1988-1990 | Chevrolet G30 |
| 1973-1974 | Chevrolet G30 Van |
| 1976 | Chevrolet K10 |
| 1980 | Chevrolet K10 |
| 1968-1974 | Chevrolet K10 Pickup |
| 1968-1974 | Chevrolet K10 Suburban |
| 1976-1978 | Chevrolet K20 |
| 1968-1974 | Chevrolet K20 Pickup |
| 1968-1974 | Chevrolet K20 Suburban |
| 1985 | Chevrolet K20 Suburban |
| 1977 | Chevrolet K30 |
| 1980-1986 | Chevrolet K30 |
| 1968-1974 | Chevrolet K30 Pickup |
| 1988-1990 | Chevrolet K3500 |
| 1976-1978 | Chevrolet K5 Blazer |
| 1973 | Chevrolet P10 Van |
| 1976 | Chevrolet P20 |
| 1979 | Chevrolet P20 |
| 1973 | Chevrolet P20 Van |
| 1975-1990 | Chevrolet P30 |
| 1972-1974 | Chevrolet P30 Van |
| 1986-1990 | Chevrolet P60 |
| 1987-1988 | Chevrolet R20 |
| 1987-1988 | Chevrolet R20 Suburban |
| 1989 | Chevrolet R2500 |
| 1989-1990 | Chevrolet R2500 Suburban |
| 1987-1988 | Chevrolet R30 |
| 1989-1990 | Chevrolet R3500 |
| 1987-1988 | Chevrolet V20 Suburban |
| 1990 | Chevrolet V2500 Suburban |
| 1987-1988 | Chevrolet V30 |
| 1989-1990 | Chevrolet V3500 |
| 1980-1990 | GMC B6000 |
| 1975-1978 | GMC C15 |
| 1975-1978 | GMC C15 Suburban |
| 1968-1974 | GMC C15/C1500 Pickup |
| 1968-1974 | GMC C15/C1500 Suburban |
| 1979-1980 | GMC C1500 |
| 1979-1980 | GMC C1500 Suburban |
| 1975-1978 | GMC C25 |
| 1975-1978 | GMC C25 Suburban |
| 1968-1974 | GMC C25/C2500 Pickup |
| 1968-1974 | GMC C25/C2500 Suburban |
| 1979-1986 | GMC C2500 |
| 1979-1986 | GMC C2500 Suburban |
| 1975-1978 | GMC C35 |
| 1968-1974 | GMC C35/C3500 Pickup |
| 1979-1986 | GMC C3500 |
| 1988-1990 | GMC C3500 |
| 1979 | GMC C5000 |
Specifications
- GTIN
- 00729295101208
- Weight
- 4.75 lb
- Height
- 4 in
- Length
- 6 in
- Width
- 5 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- MEL
- Warehouse brand code
- BCBC
- AAIA brand code
- BCBC
Attributes
- Bolts Included
- No
- Bushing Included
- No
- California Proposition 65
- No
- Cotter Pin Included
- No
- Cover Material
- Cast Iron
- Drive Shaft Included
- No
- Drive Type
- Drive Shaft
- Finish
- Rust Preventative
- Gasket Or Seal Included
- No
- Gear Material
- Steel
- Gears Included
- Yes
- Governor Spinner Included
- No
- Grade Type
- Standard Replacement
- Guide Included
- No
- Height
- 4.18
- Housing Material
- Cast Iron
- Inlet Size (in)
- 0.750
- Inlet Size (mm)
- 19.00
- Intermediate Shaft Included
- No
- Mounting Hole Diameter
- 0.25
- Mounting Hole Quantity
- 2
- Nylon Bushing Included
- No
- O-Ring Included
- No
- Oil Pump Type
- Gear
- Pick Up Tube Diameter
- 0.750
- Pickup Screen Included
- No
- Pump Cover Included
- Yes
- Shaft Material
- Not Applicable
- Spacer Included
- No
- Timing Cover Included
- No
- Title
- Engine Oil Pump
- Washers Included
- No
- Width
- 3.82
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1980-1990 Chevrolet B60; 1973-1974 Chevrolet Blazer; 1975-1980 Chevrolet C10; 1968-1974 Chevrolet C10 Pickup; 1968-1980 Chevrolet C10 Suburban; 1990 Chevrolet C1500; 1975-1986 Chevrolet C20; 1968-1974 Chevrolet C20 Pickup; 1968-1986 Chevrolet C20 Suburban; 1975-1986 Chevrolet C30; 1968-1974 Chevrolet C30 Pickup; 1988-1990 Chevrolet C3500; 1966-1979 Chevrolet C50; 1986 Chevrolet C50; 1990 Chevrolet C5500 Kodiak; 1966-1990 Chevrolet C60; 1990 Chevrolet C60 Kodiak; 1979-1990 Chevrolet C70; 1990 Chevrolet C70 Kodiak; 1968-1975 Chevrolet El Camino; 1973-1974 Chevrolet G10 Van; 1976 Chevrolet G20; 1973-1974 Chevrolet G20 Van; 1975-1976 Chevrolet G30; 1988-1990 Chevrolet G30; 1973-1974 Chevrolet G30 Van; 1976 Chevrolet K10; 1980 Chevrolet K10; 1968-1974 Chevrolet K10 Pickup; 1968-1974 Chevrolet K10 Suburban; 1976-1978 Chevrolet K20; 1968-1974 Chevrolet K20 Pickup; 1968-1974 Chevrolet K20 Suburban; 1985 Chevrolet K20 Suburban; 1977 Chevrolet K30; 1980-1986 Chevrolet K30; 1968-1974 Chevrolet K30 Pickup; 1988-1990 Chevrolet K3500; 1976-1978 Chevrolet K5 Blazer; 1973 Chevrolet P10 Van; 1976 Chevrolet P20; 1979 Chevrolet P20; 1973 Chevrolet P20 Van; 1975-1990 Chevrolet P30; 1972-1974 Chevrolet P30 Van; 1986-1990 Chevrolet P60; 1987-1988 Chevrolet R20; 1987-1988 Chevrolet R20 Suburban; 1989 Chevrolet R2500; 1989-1990 Chevrolet R2500 Suburban; 1987-1988 Chevrolet R30; 1989-1990 Chevrolet R3500; 1987-1988 Chevrolet V20 Suburban; 1990 Chevrolet V2500 Suburban; 1987-1988 Chevrolet V30; 1989-1990 Chevrolet V3500; 1980-1990 GMC B6000; 1975-1978 GMC C15; 1975-1978 GMC C15 Suburban; 1968-1974 GMC C15/C1500 Pickup; 1968-1974 GMC C15/C1500 Suburban; 1979-1980 GMC C1500; 1979-1980 GMC C1500 Suburban; 1975-1978 GMC C25; 1975-1978 GMC C25 Suburban; 1968-1974 GMC C25/C2500 Pickup; 1968-1974 GMC C25/C2500 Suburban; 1979-1986 GMC C2500; 1979-1986 GMC C2500 Suburban; 1975-1978 GMC C35; 1968-1974 GMC C35/C3500 Pickup; 1979-1986 GMC C3500; 1988-1990 GMC C3500; 1979 GMC C5000; ...
