Melling Engine Parts / Melling Tool Co. / M-72HV
Part #: M-72HV
UPC: 729295101130
Loading...
Notify me when this item is in stock.

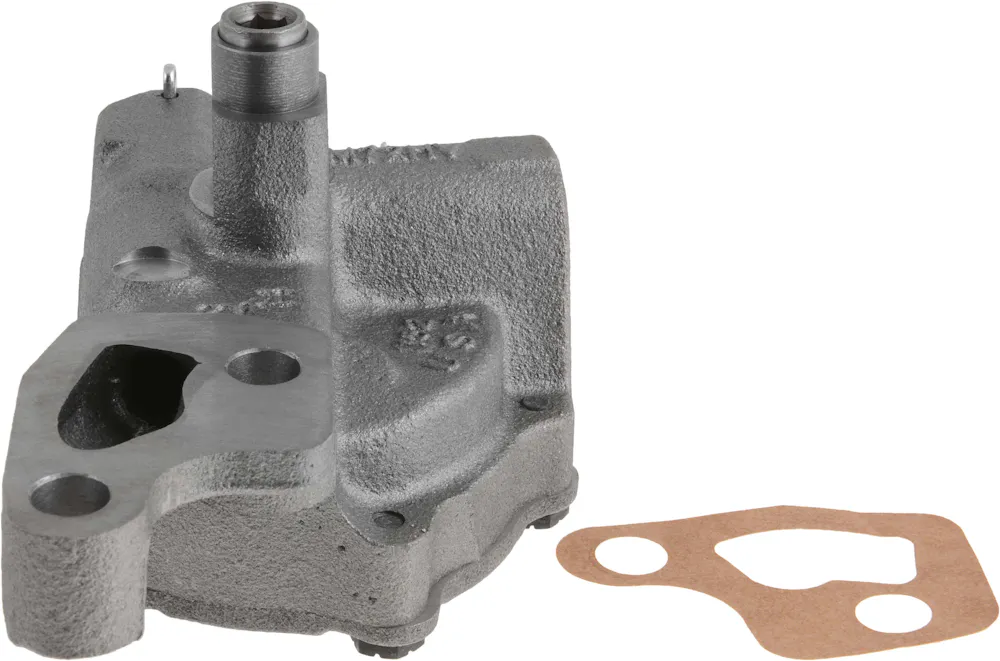

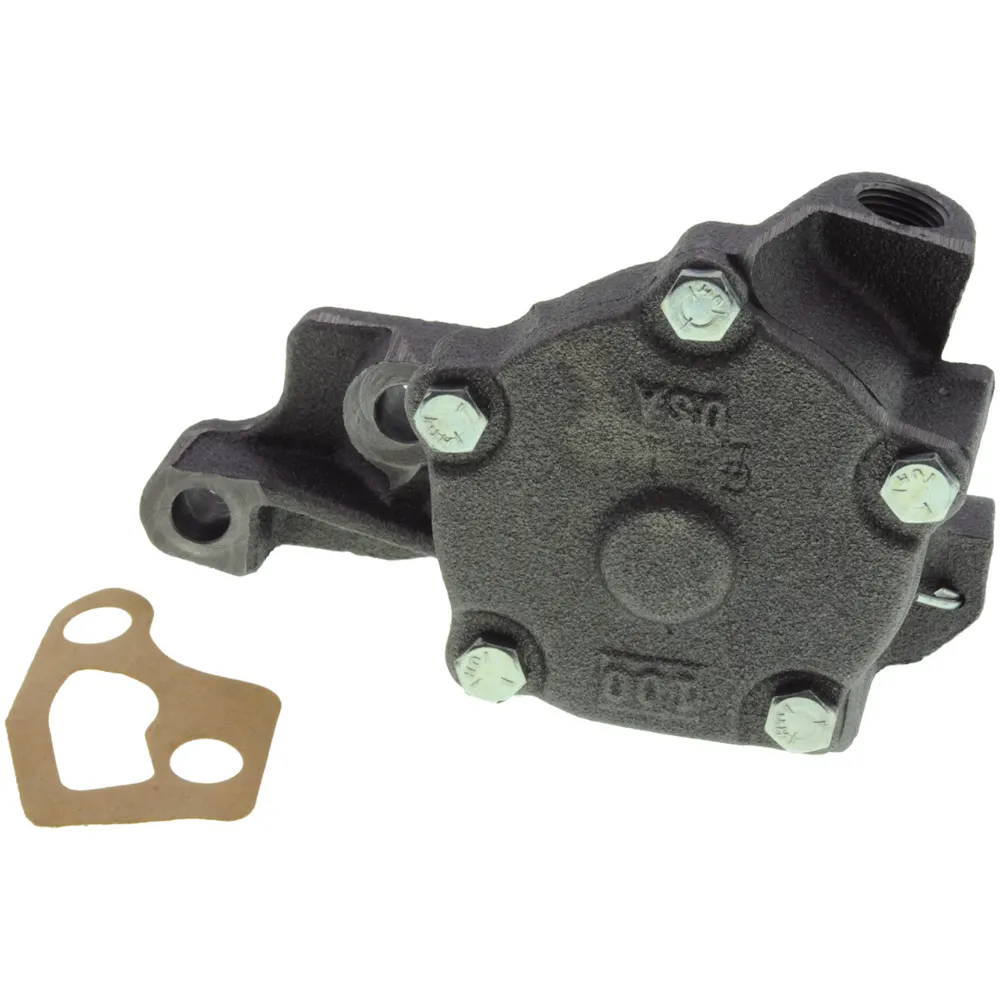

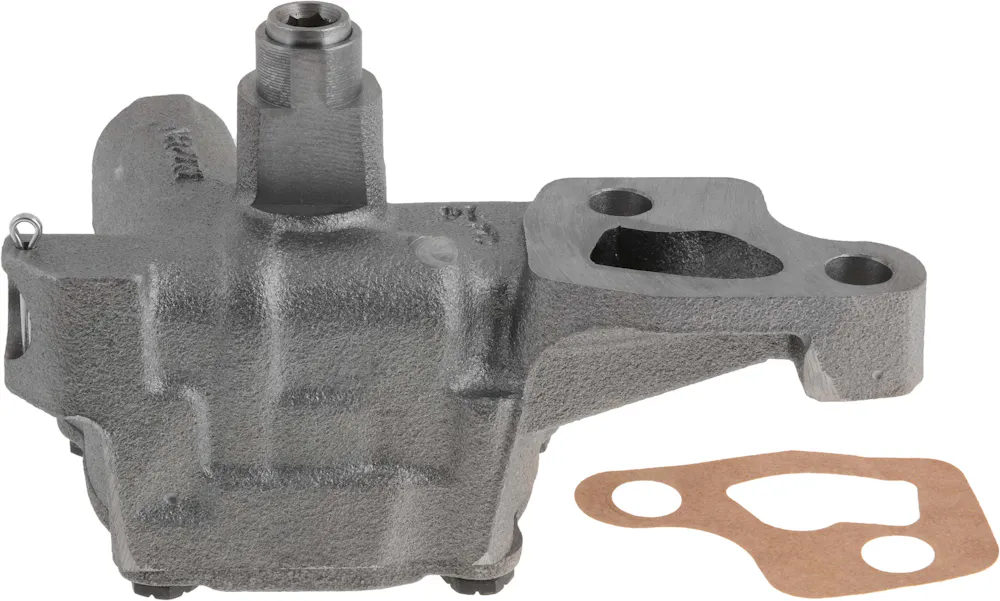

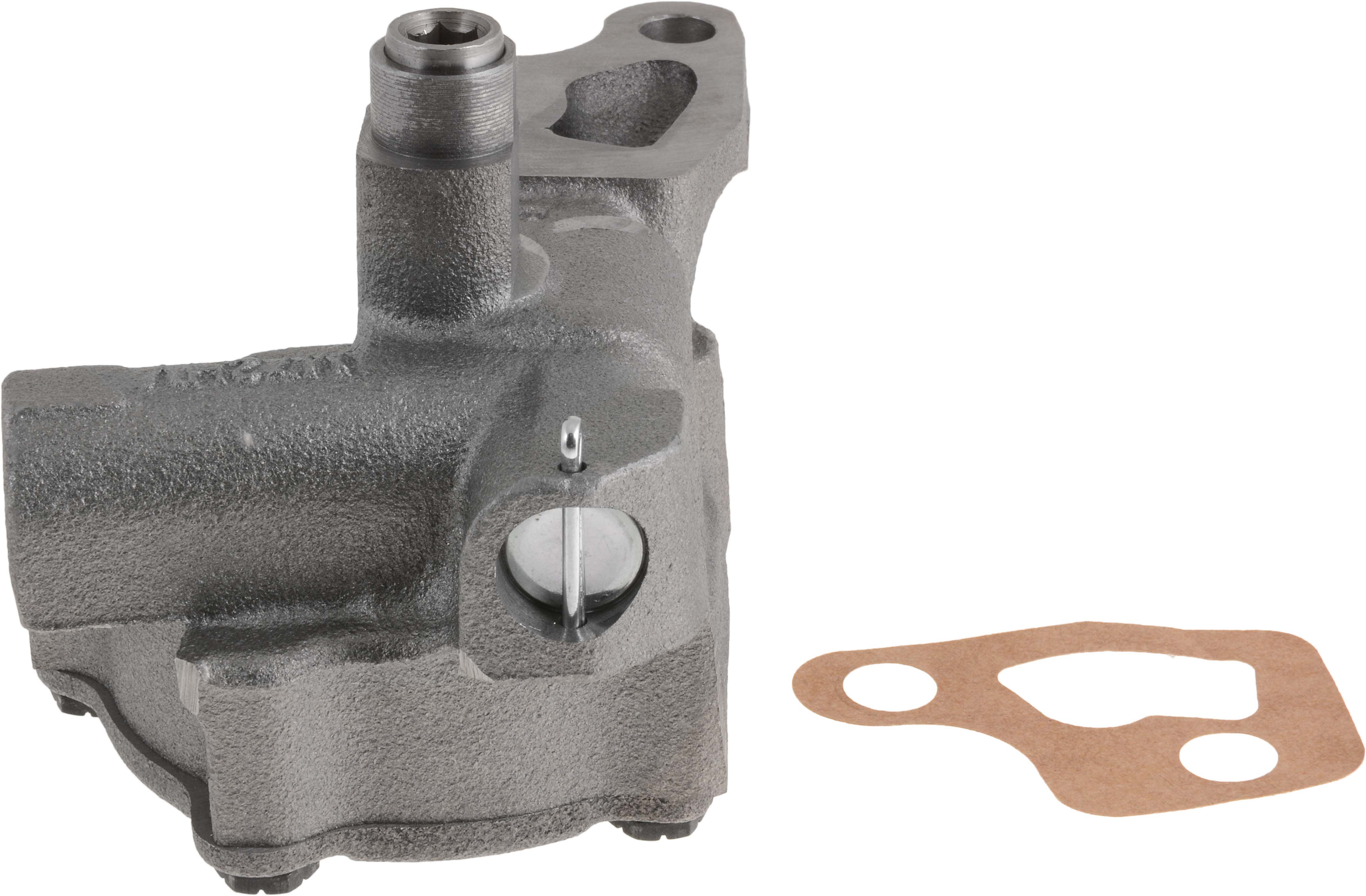

Description: High Volume Replacement Oil Pump; M-72HV Stock Replacement : High Volume, Standard Pressure, Cast Iron Oil Pump With Gasket
Description:
Description
Made in USA. Melling high volume oil pumps increase the amount of oil flow by an average of 20% through the engine improving oil pressure at idle providing dependable performance every time in every application. Every Melling high volume oil pump is engineered and assembled to the highest production standards from high quality materials. All Melling high volume oil pumps use the latest in gear and gerotor technology to provide the highest level of quality and performance. High volume gears are machined to close tolerances to ensure proper engine pressure and correct, efficient pump operation. End plates are precision ground for maximum wear resistance. Every Melling oil pump is individually tested for pressure and flow under conditions designed to duplicate actual engine operating conditions.
Features & benefits
- Manufactured from high quality materials for consistent durable wear
- Designed for long-life and worry-free performance
- High volume oil pump supplies additional oil to engines when necessary for high performance applications or low oil pressure issues
- Meets or exceeds original equipment specifications
- Precision engineered for optimum fit and function
Application summary
| Year | Make / model |
|---|---|
| 1975-1983 | Chrysler Cordoba |
| 1983-1989 | Chrysler Fifth Avenue |
| 1981-1983 | Chrysler Imperial |
| 1977-1982 | Chrysler LeBaron |
| 1977-1982 | Chrysler New Yorker |
| 1971-1981 | Chrysler Newport |
| 1978-1981 | Chrysler Town & Country |
| 1976-1980 | Chrysler Valiant |
| 1963-1964 | Dodge 330 |
| 1963-1964 | Dodge 440 |
| 1964-1966 | Dodge A100 |
| 1970 | Dodge A100 |
| 1964-1970 | Dodge A100 Truck |
| 1976-1980 | Dodge Aspen |
| 1975-1980 | Dodge B100 |
| 1971-1974 | Dodge B100 Van |
| 1981-1994 | Dodge B150 |
| 1995-1998 | Dodge B1500 |
| 1975-1980 | Dodge B200 |
| 1971-1974 | Dodge B200 Van |
| 1981-1994 | Dodge B250 |
| 1995-1998 | Dodge B2500 |
| 1975-1980 | Dodge B300 |
| 1971-1974 | Dodge B300 Van |
| 1981-1994 | Dodge B350 |
| 1995-1998 | Dodge B3500 |
| 1973-1980 | Dodge CB300 |
| 1970-1974 | Dodge Challenger |
| 1966-1978 | Dodge Charger |
| 1965-1976 | Dodge Coronet |
| 1975-1980 | Dodge D100 |
| 1984-1989 | Dodge D100 |
| 1976-1977 | Dodge D100 Panel |
| 1979-1980 | Dodge D100 Panel |
| 1968-1974 | Dodge D100 Pickup |
| 1962-1967 | Dodge D100 Series |
| 1977-1993 | Dodge D150 |
| 1975-1980 | Dodge D200 |
| 1968-1974 | Dodge D200 Pickup |
| 1962-1967 | Dodge D200 Series |
| 1981-1993 | Dodge D250 |
| 1975-1980 | Dodge D300 |
| 1968-1974 | Dodge D300 Pickup |
| 1962-1967 | Dodge D300 Series |
| 1981-1993 | Dodge D350 |
| 1987-2003 | Dodge Dakota |
| 1962 | Dodge Dart |
| 1964-1976 | Dodge Dart |
| 1982 | Dodge Dart |
| 1977-1989 | Dodge Diplomat |
| 1991-1992 | Dodge DM350 |
| 1998-2003 | Dodge Durango |
| 1968-1974 | Dodge M300 |
| 1974 | Dodge M350 |
| 1978-1979 | Dodge Magnum |
| 1970-1974 | Dodge MB300 |
| 1980-1983 | Dodge Mirada |
| 1968-1978 | Dodge Monaco |
| 1963-1973 | Dodge Polara |
| 1972-1974 | Dodge R300 |
| 1994-2003 | Dodge Ram 1500 |
| 1995-2003 | Dodge Ram 1500 Van |
| 1994-2002 | Dodge Ram 2500 |
| 1997-2003 | Dodge Ram 2500 Van |
| 1994-2002 | Dodge Ram 3500 |
| 1997-2003 | Dodge Ram 3500 Van |
| 1974-1996 | Dodge Ramcharger |
| 1999-2001 | Dodge Ramcharger |
| 1978-1980 | Dodge RD200 |
| 1971 | Dodge RM300 |
| 1973-1974 | Dodge RM300 |
| 1971 | Dodge RM350 |
| 1974 | Dodge RM350 |
| 1975-1977 | Dodge Royal Monaco |
| 1979-1981 | Dodge St. Regis |
| 1975-1977 | Dodge W100 |
| 1986-1989 | Dodge W100 |
| 1968-1974 | Dodge W100 Pickup |
| 1962-1967 | Dodge W100 Series |
| 1977-1993 | Dodge W150 |
| 1975-1980 | Dodge W200 |
Specifications
- GTIN
- 00729295101130
- Weight
- 4.4 lb
- Height
- 4.75 in
- Length
- 6 in
- Width
- 5.75 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- MEL
- Warehouse brand code
- BCBC
- AAIA brand code
- BCBC
Attributes
- Bolts Included
- No
- Bushing Included
- No
- California Proposition 65
- No
- Cotter Pin Included
- Yes
- Cover Material
- Cast Iron
- Drive Shaft Included
- No
- Drive Type
- Drive Shaft
- Finish
- Rust Preventative
- Gasket Or Seal Included
- Yes
- Gear Material
- Steel
- Gears Included
- Yes
- Governor Spinner Included
- No
- Grade Type
- Improved Design
- Guide Included
- No
- Height
- 3.62
- Housing Material
- Cast Iron
- Inlet Size (in)
- 0.375
- Inlet Size (mm)
- 10.00
- Intermediate Shaft Included
- No
- Mounting Hole Diameter
- 0.375
- Mounting Hole Quantity
- 2
- Nylon Bushing Included
- No
- O-Ring Included
- No
- Oil Pump Type
- Gear
- Pick Up Tube Diameter
- 0.375
- Pickup Screen Included
- No
- Pump Cover Included
- Yes
- Shaft Material
- Not Applicable
- Spacer Included
- No
- Timing Cover Included
- No
- Title
- Engine Oil Pump
- Washers Included
- No
- Width
- 5.84
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1975-1983 Chrysler Cordoba; 1983-1989 Chrysler Fifth Avenue; 1981-1983 Chrysler Imperial; 1977-1982 Chrysler LeBaron; 1977-1982 Chrysler New Yorker; 1971-1981 Chrysler Newport; 1978-1981 Chrysler Town & Country; 1976-1980 Chrysler Valiant; 1963-1964 Dodge 330; 1963-1964 Dodge 440; 1964-1966 Dodge A100; 1970 Dodge A100; 1964-1970 Dodge A100 Truck; 1976-1980 Dodge Aspen; 1975-1980 Dodge B100; 1971-1974 Dodge B100 Van; 1981-1994 Dodge B150; 1995-1998 Dodge B1500; 1975-1980 Dodge B200; 1971-1974 Dodge B200 Van; 1981-1994 Dodge B250; 1995-1998 Dodge B2500; 1975-1980 Dodge B300; 1971-1974 Dodge B300 Van; 1981-1994 Dodge B350; 1995-1998 Dodge B3500; 1973-1980 Dodge CB300; 1970-1974 Dodge Challenger; 1966-1978 Dodge Charger; 1965-1976 Dodge Coronet; 1975-1980 Dodge D100; 1984-1989 Dodge D100; 1976-1977 Dodge D100 Panel; 1979-1980 Dodge D100 Panel; 1968-1974 Dodge D100 Pickup; 1962-1967 Dodge D100 Series; 1977-1993 Dodge D150; 1975-1980 Dodge D200; 1968-1974 Dodge D200 Pickup; 1962-1967 Dodge D200 Series; 1981-1993 Dodge D250; 1975-1980 Dodge D300; 1968-1974 Dodge D300 Pickup; 1962-1967 Dodge D300 Series; 1981-1993 Dodge D350; 1987-2003 Dodge Dakota; 1962 Dodge Dart; 1964-1976 Dodge Dart; 1982 Dodge Dart; 1977-1989 Dodge Diplomat; 1991-1992 Dodge DM350; 1998-2003 Dodge Durango; 1968-1974 Dodge M300; 1974 Dodge M350; 1978-1979 Dodge Magnum; 1970-1974 Dodge MB300; 1980-1983 Dodge Mirada; 1968-1978 Dodge Monaco; 1963-1973 Dodge Polara; 1972-1974 Dodge R300; 1994-2003 Dodge Ram 1500; 1995-2003 Dodge Ram 1500 Van; 1994-2002 Dodge Ram 2500; 1997-2003 Dodge Ram 2500 Van; 1994-2002 Dodge Ram 3500; 1997-2003 Dodge Ram 3500 Van; 1974-1996 Dodge Ramcharger; 1999-2001 Dodge Ramcharger; 1978-1980 Dodge RD200; 1971 Dodge RM300; 1973-1974 Dodge RM300; 1971 Dodge RM350; 1974 Dodge RM350; 1975-1977 Dodge Royal Monaco; 1979-1981 Dodge St. Regis; 1975-1977 Dodge W100; 1986-1989 Dodge W100; 1968-1974 Dodge W100 Pickup; 1962-1967 Dodge W100 Series; 1977-1993 Dodge W150; 1975-1980 Dodge W200; ...
