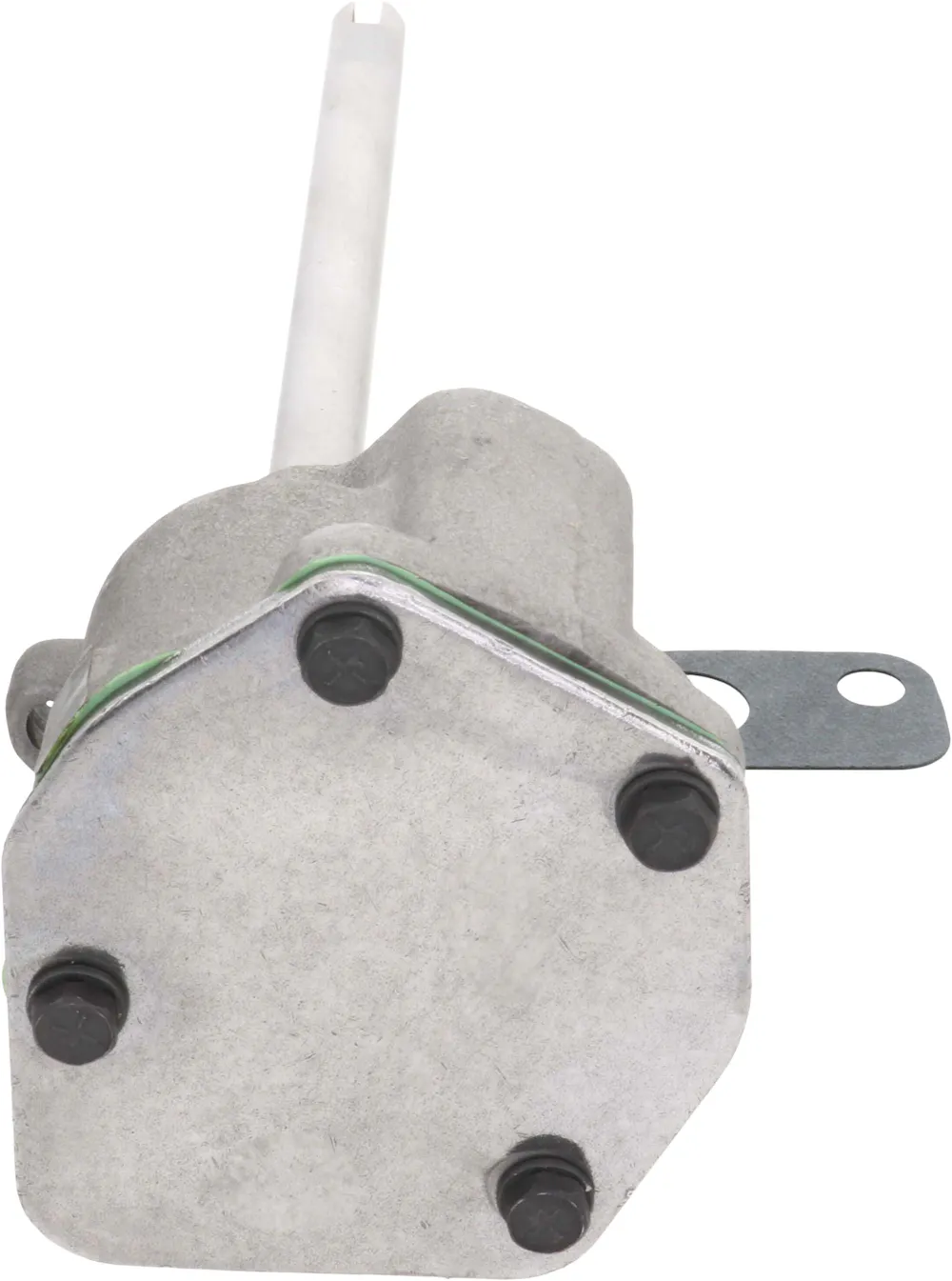

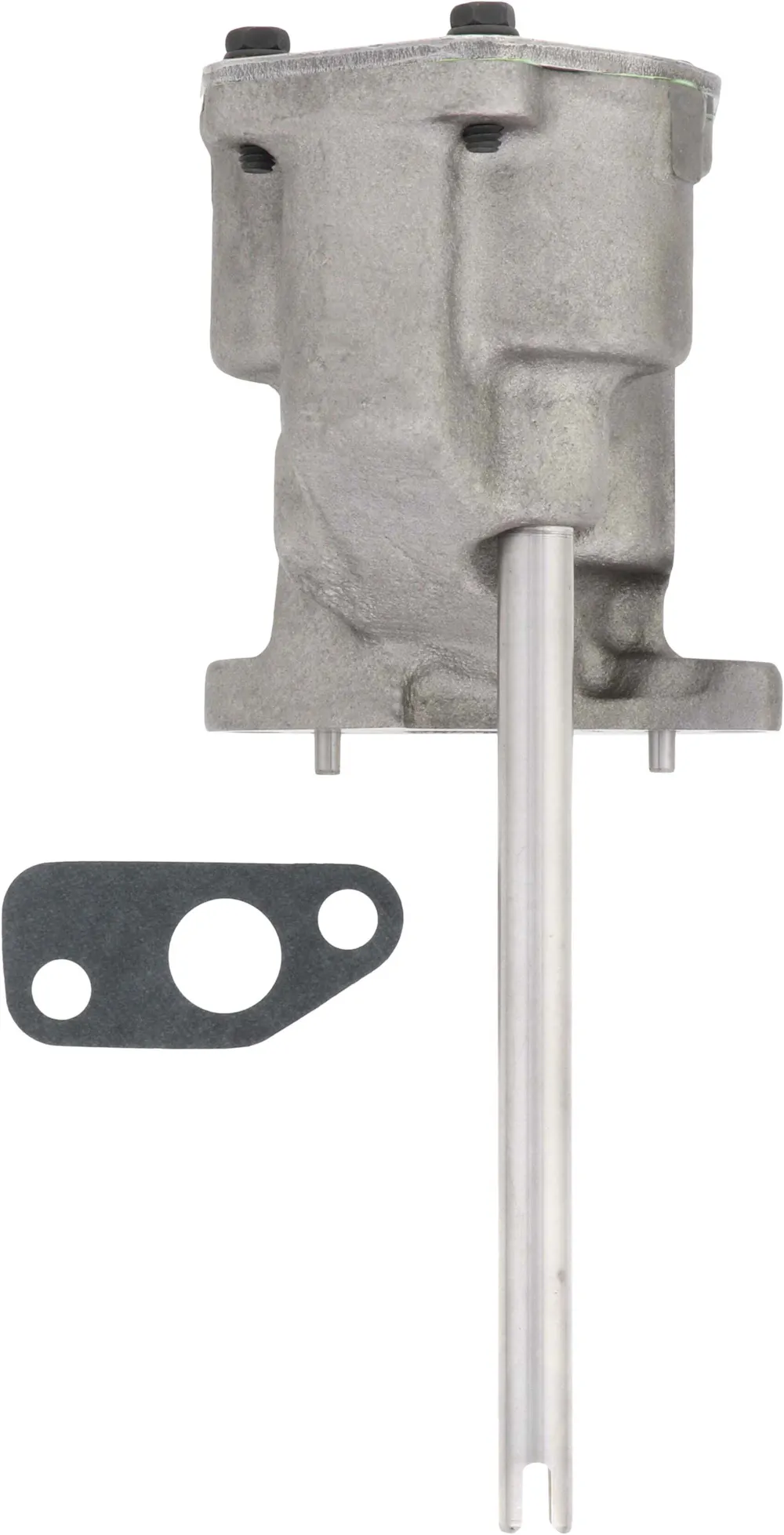

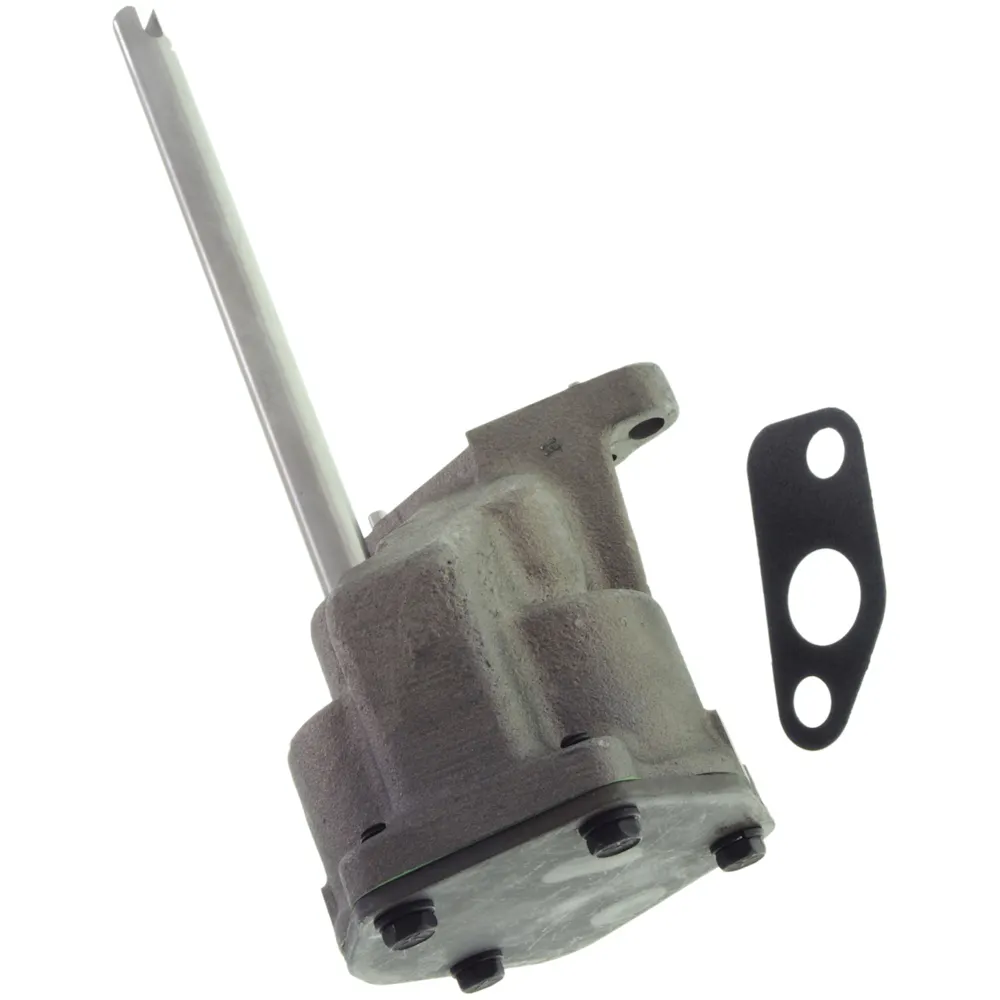

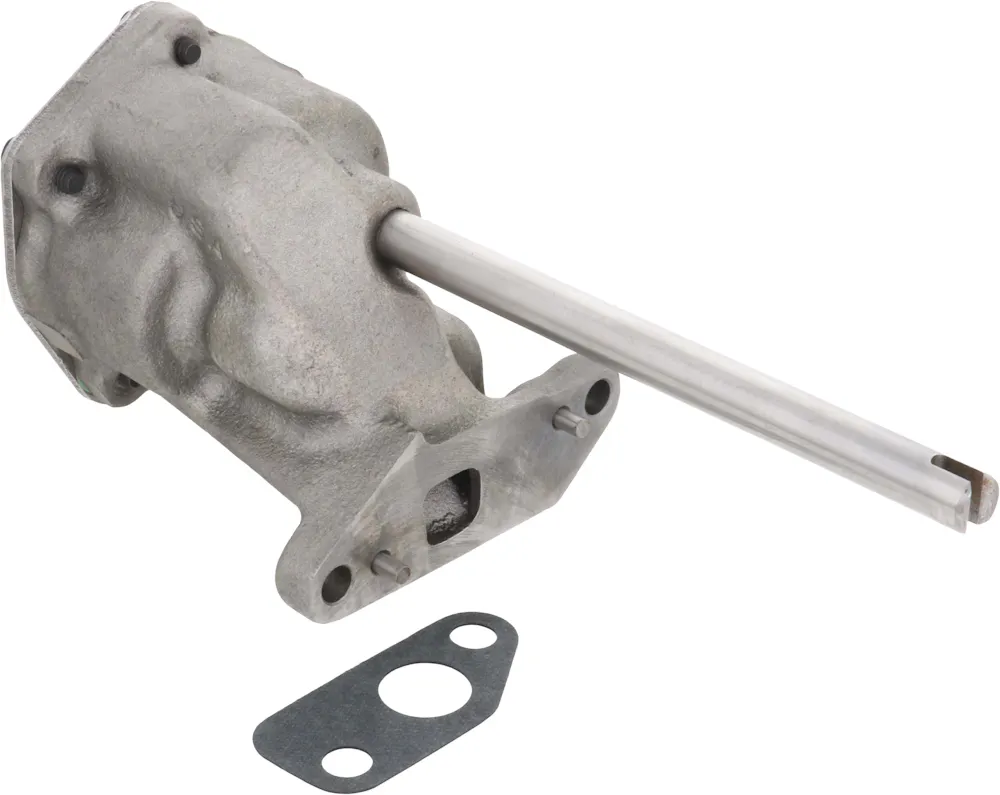

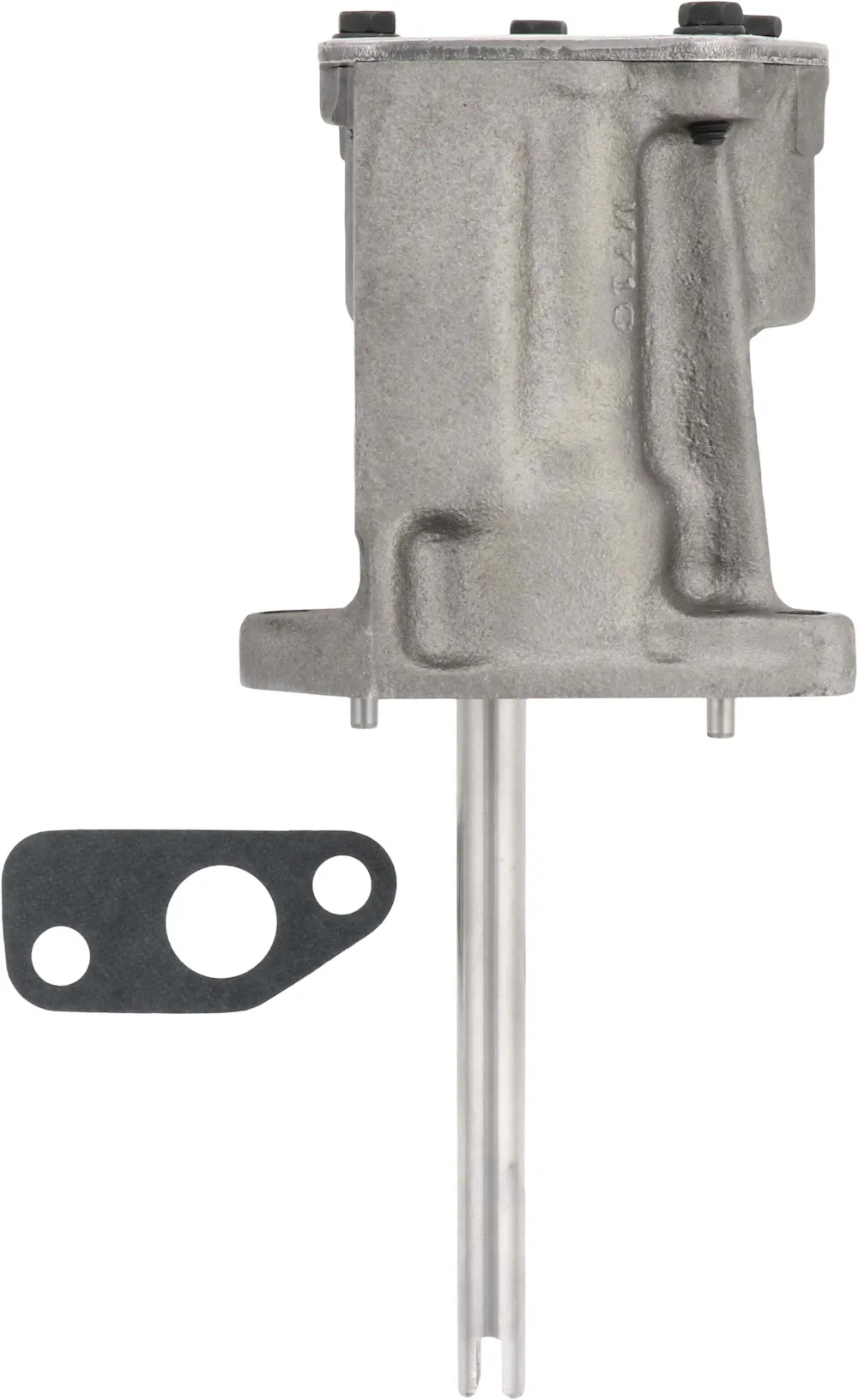

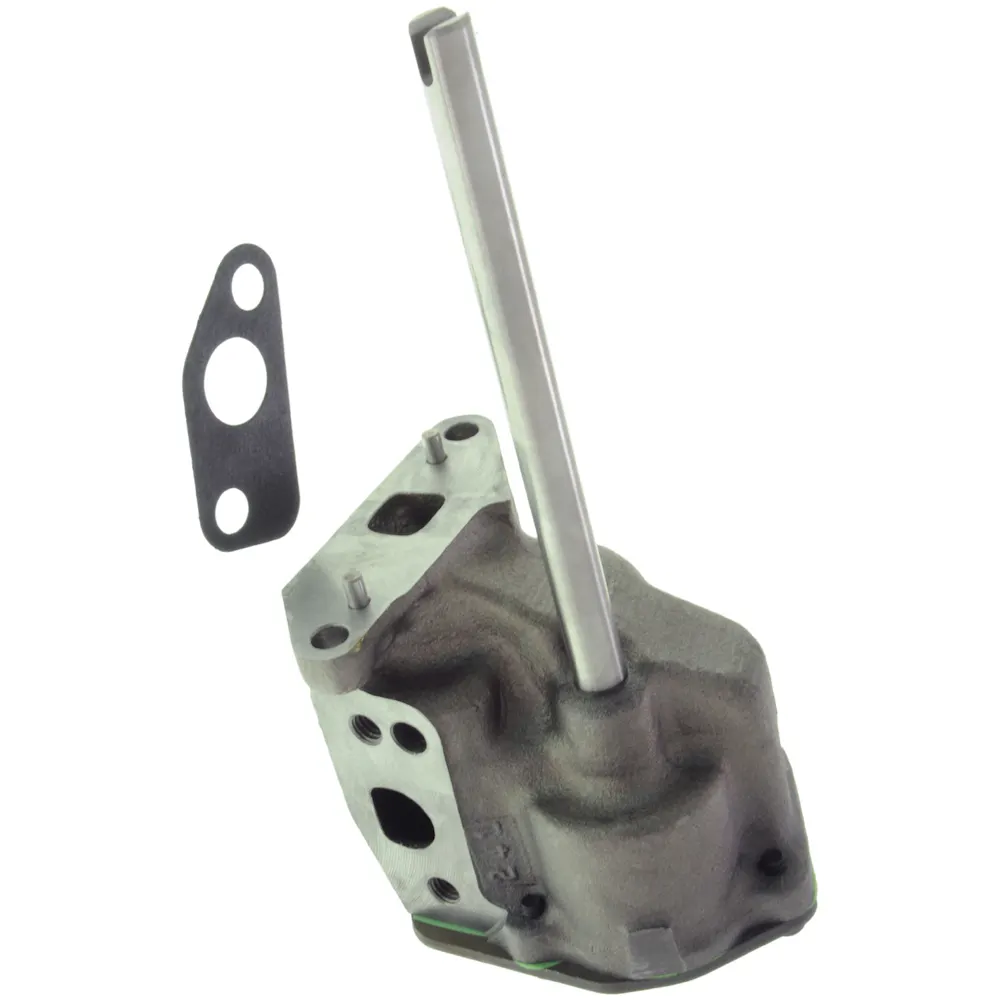

Melling Engine Parts / Melling Tool Co. · M-71C
Part #: M-71C
UPC: 729295101116
Log in for inventory
Notify me when this item is in stock.
Description: Stock Replacement Oil Pump; M-71C Stock Replacement : Standard Volume, Standard Pressure, Cast Iron Oil Pump With Gasket
Description:
Description
Made in USA. Melling oil pumps provide dependable performance every time in every application. Every Melling oil pump is engineered and assembled to the highest production standards from high quality materials. All Melling oil pumps use the latest in gear and gerotor technology to provide the highest level of quality and performance. Gears are machined to close tolerances to ensure proper engine pressure and correct, efficient pump operation. End plates are precision ground for maximum wear resistance. Every Melling oil pump is individually tested for pressure and flow under conditions designed to duplicate actual engine operating conditions.
Application summary
| Year | Make / model |
|---|---|
| 1979-1982 | International 1724 |
| 1979-1981 | International 1824 |
| 1979-1982 | International 1924 S |
| 1979-1982 | International 1925 S |
| 1980 | International Cargostar |
| 1979-1981 | International F1924 |
| 1980 | International S1723 |
| 1980 | International S1724 |
| 1980 | International S1823 |
| 1980 | International S1824 |
| 1980 | International S1924 |
| 1980 | International S1925 |
Specifications
- GTIN
- 00729295101116
- Weight
- 5.79 lb
- Height
- 4.75 in
- Length
- 10.75 in
- Width
- 6.25 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- MEL
- Warehouse brand code
- BCBC
- AAIA brand code
- BCBC
Attributes
- Bolts Included
- No
- Bushing Included
- No
- California Proposition 65
- No
- Cotter Pin Included
- No
- Cover Material
- Cast Iron
- Drive Shaft Included
- Yes
- Drive Type
- Drive Shaft
- Finish
- Rust Preventative
- Gasket Or Seal Included
- Yes
- Gear Material
- Steel
- Gears Included
- Yes
- Governor Spinner Included
- No
- Grade Type
- Standard Replacement
- Guide Included
- No
- Height
- 9.31
- Housing Material
- Cast Iron
- Inlet Size (in)
- 0.750
- Inlet Size (mm)
- 19.00
- Intermediate Shaft Included
- Yes
- Mounting Hole Diameter
- 0.315
- Mounting Hole Quantity
- 2
- Nylon Bushing Included
- No
- O-Ring Included
- No
- Oil Pump Type
- Gear
- Pick Up Tube Diameter
- 0.750
- Pickup Screen Included
- No
- Pump Cover Included
- Yes
- Shaft Material
- Steel
- Spacer Included
- No
- Timing Cover Included
- No
- Title
- Engine Oil Pump
- Washers Included
- No
- Width
- 4.27
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1979-1982 International 1724; 1979-1981 International 1824; 1979-1982 International 1924 S; 1979-1982 International 1925 S; 1980 International Cargostar; 1979-1981 International F1924; 1980 International S1723; 1980 International S1724; 1980 International S1823; 1980 International S1824; 1980 International S1924; 1980 International S1925
