Melling Engine Parts / Melling Tool Co. / M-70C

Melling Engine Parts / Melling Tool Co. M-70C

Part #: M-70C
UPC: 729295101055

Loading...
Notify me when this item is in stock.

Brand: Melling Engine Parts / Melling Tool Co. Series: Stock Replacement Oil Pumps

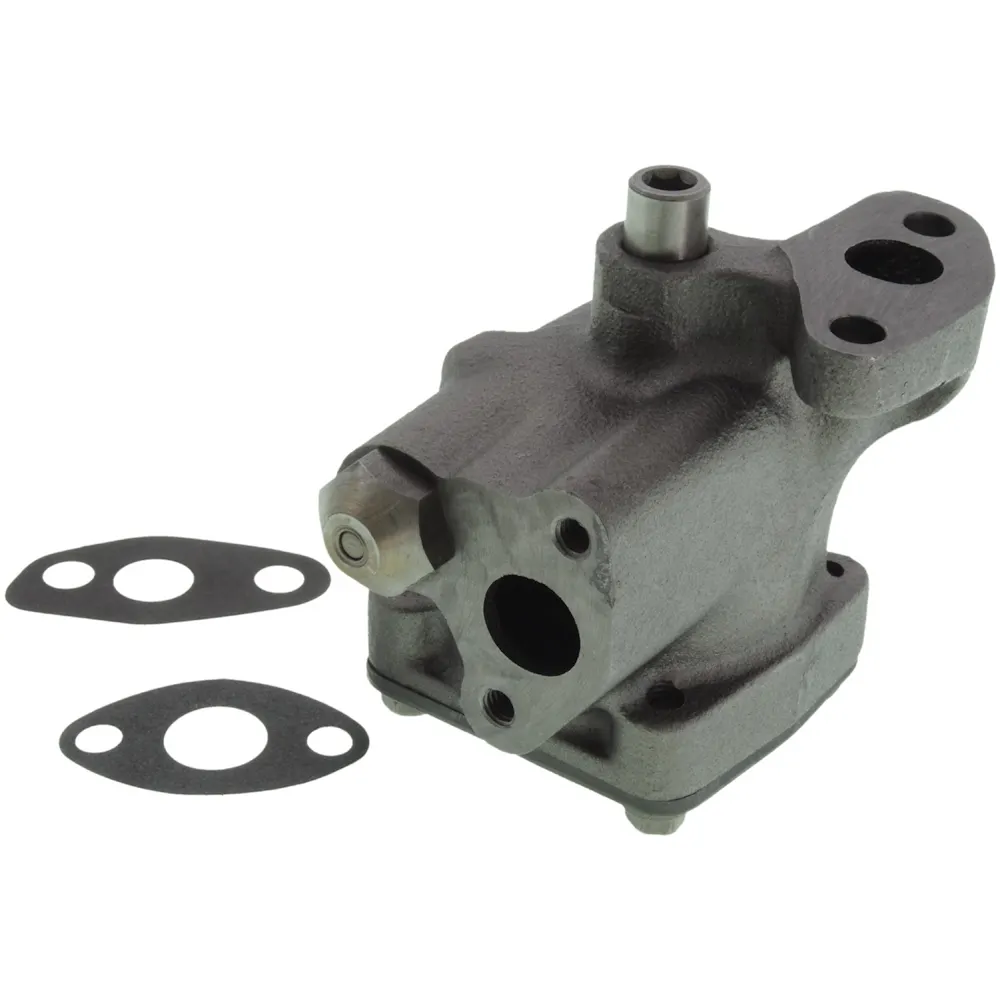

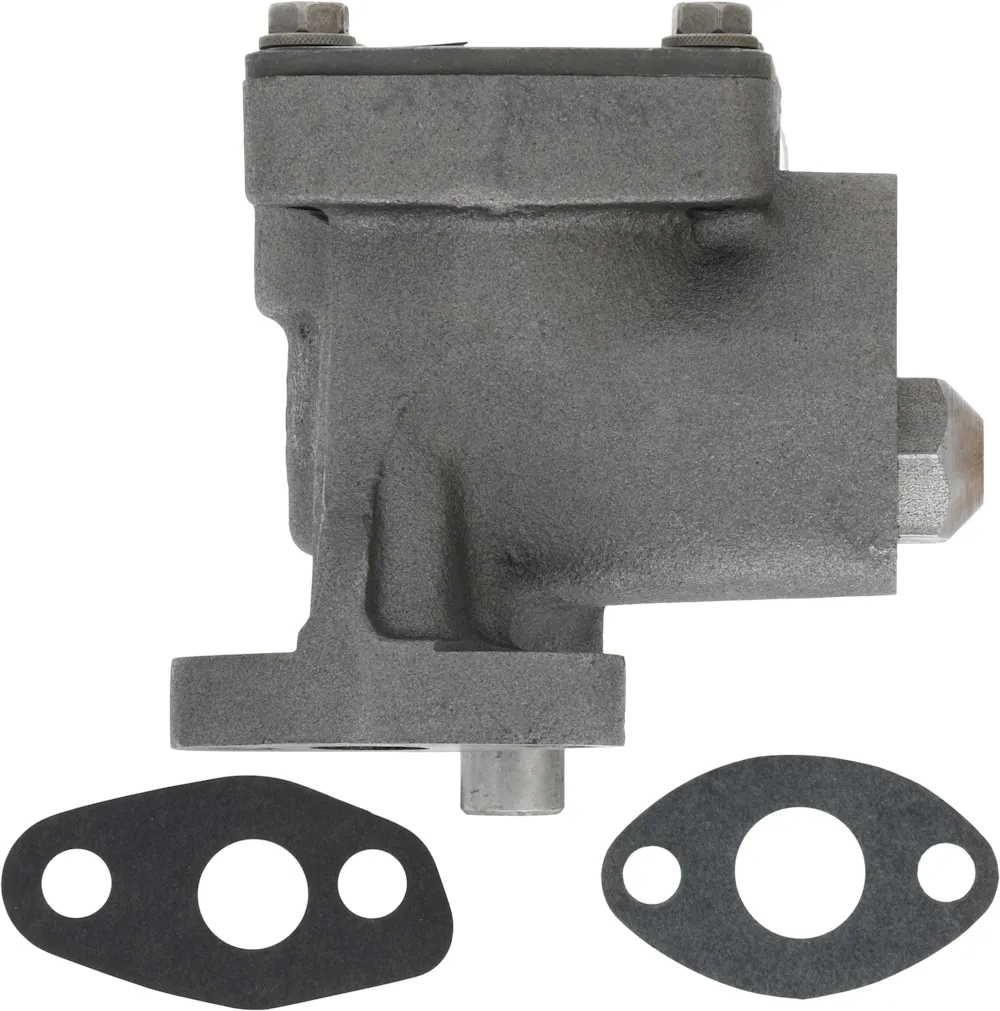

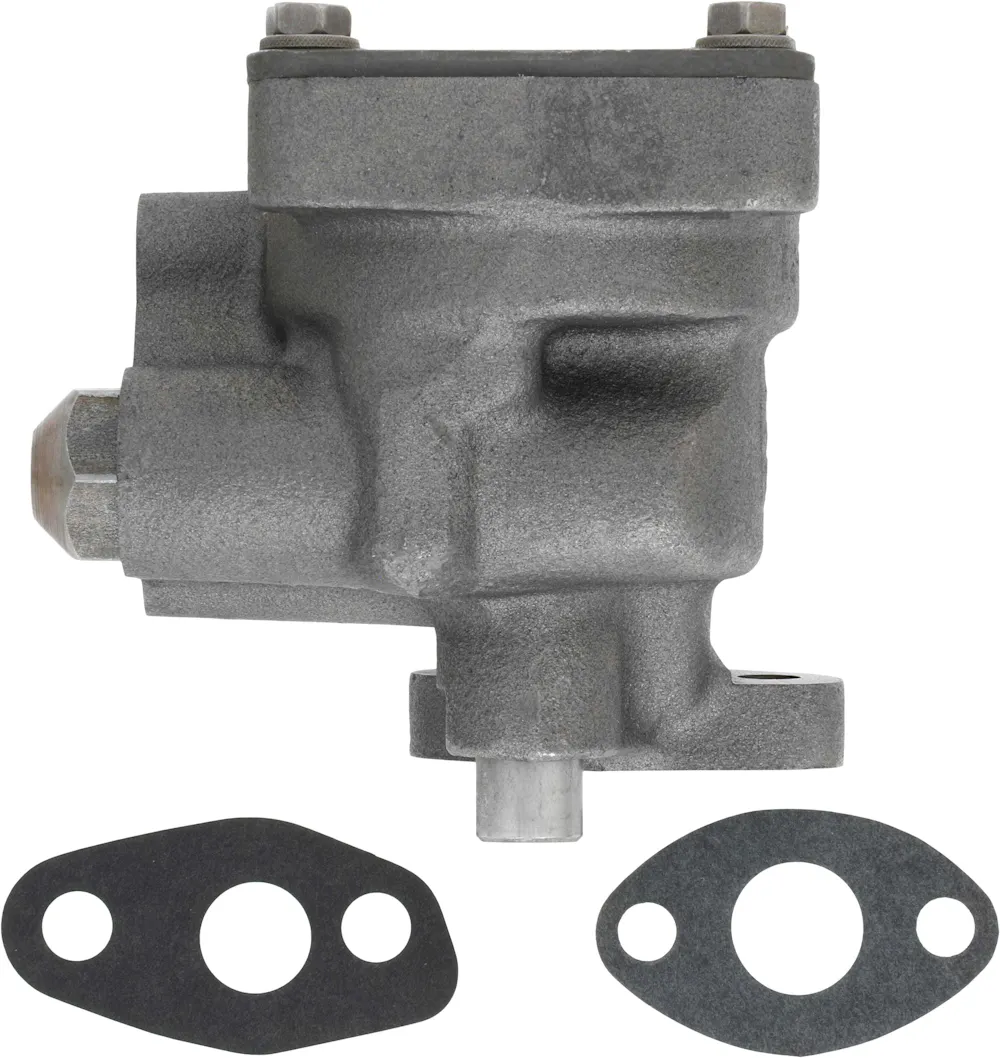

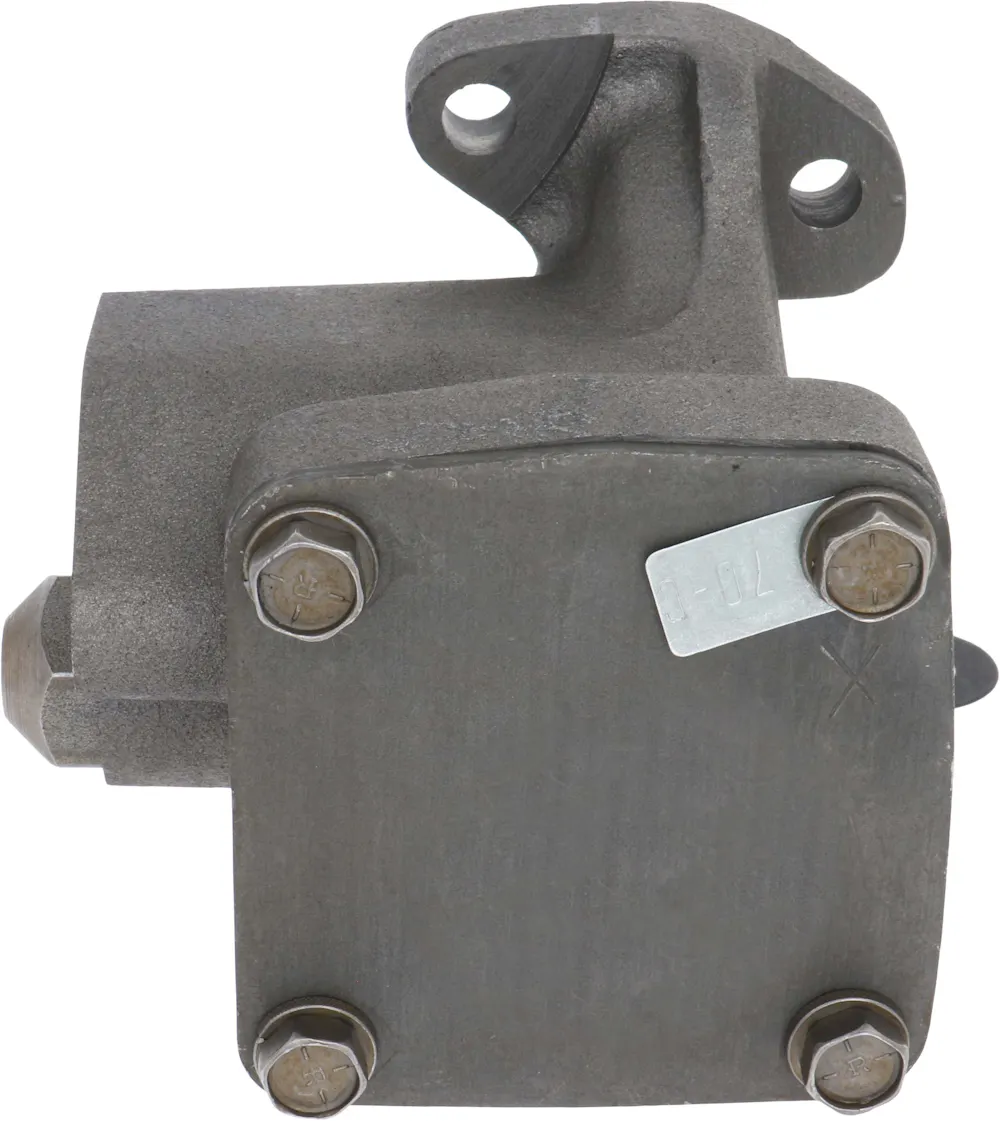

Description: Stock Replacement Oil Pump; M-70C Stock Replacement : Standard Volume, Standard Pressure, Cast Iron Oil Pump With Gasket

Description:

Log in to order

Description

Made in USA. Melling oil pumps provide dependable performance every time in every application. Every Melling oil pump is engineered and assembled to the highest production standards from high quality materials. All Melling oil pumps use the latest in gear and gerotor technology to provide the highest level of quality and performance. Gears are machined to close tolerances to ensure proper engine pressure and correct, efficient pump operation. End plates are precision ground for maximum wear resistance. Every Melling oil pump is individually tested for pressure and flow under conditions designed to duplicate actual engine operating conditions.

Features & benefits

  • Precision engineered for optimum fit and function
  • Manufactured from high quality materials for consistent durable wear
  • Designed for long-life and worry-free performance
  • Meets or exceeds original equipment specifications

Application summary

Year Make / model
1962-1974 Chevrolet C60
1962-1965 Chevrolet C80
1966 GMC 1000
1960-1965 GMC 1000 Series
1960-1965 GMC 1500 Series
1960-1965 GMC 2500 Series
1960-1966 GMC 3000
1960-1966 GMC 3500
1964-1965 GMC B3500
1967-1969 GMC C15/C1500 Pickup
1967-1969 GMC C15/C1500 Suburban
1967-1969 GMC C25/C2500 Pickup
1967-1969 GMC C25/C2500 Suburban
1967-1969 GMC C35/C3500 Pickup
1966 GMC K1000
1966-1969 GMC K15/K1500 Pickup
1967-1969 GMC K15/K1500 Suburban
1967-1969 GMC K25/K2500 Pickup
1967-1969 GMC K25/K2500 Suburban
1968-1969 GMC K35/K3500 Pickup
1965-1967 GMC L3500
1960-1966 GMC Suburban
1960 GMC Truck
1960-1962 GMC V3000 Forward Control

Specifications

GTIN
00729295101055
Weight
5.46 lb
Height
4 in
Length
6 in
Width
5 in
EO
Legal US
Life cycle
Available to Order
AAM brand code
MEL
Warehouse brand code
BCBC
AAIA brand code
BCBC

Attributes

Bolts Included
No
Bushing Included
No
California Proposition 65
No
Cotter Pin Included
No
Cover Material
Cast Iron
Drive Shaft Included
No
Drive Type
Drive Shaft
Finish
Rust Preventative
Gasket Or Seal Included
Yes
Gear Material
Steel
Gears Included
Yes
Governor Spinner Included
No
Grade Type
Standard Replacement
Guide Included
No
Height
4.12
Housing Material
Cast Iron
Inlet Size (in)
0.750
Inlet Size (mm)
19.00
Intermediate Shaft Included
No
Mounting Hole Diameter
0.375
Mounting Hole Quantity
2
Nylon Bushing Included
No
O-Ring Included
No
Oil Pump Type
Gear
Pick Up Screen Diameter
0.82
Pick Up Tube Diameter
0.750
Pickup Screen Included
No
Pump Cover Included
Yes
Shaft Material
Not Applicable
Spacer Included
No
Timing Cover Included
No
Title
Engine Oil Pump
Washers Included
No
Width
3.71

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

1962-1974 Chevrolet C60; 1962-1965 Chevrolet C80; 1966 GMC 1000; 1960-1965 GMC 1000 Series; 1960-1965 GMC 1500 Series; 1960-1965 GMC 2500 Series; 1960-1966 GMC 3000; 1960-1966 GMC 3500; 1964-1965 GMC B3500; 1967-1969 GMC C15/C1500 Pickup; 1967-1969 GMC C15/C1500 Suburban; 1967-1969 GMC C25/C2500 Pickup; 1967-1969 GMC C25/C2500 Suburban; 1967-1969 GMC C35/C3500 Pickup; 1966 GMC K1000; 1966-1969 GMC K15/K1500 Pickup; 1967-1969 GMC K15/K1500 Suburban; 1967-1969 GMC K25/K2500 Pickup; 1967-1969 GMC K25/K2500 Suburban; 1968-1969 GMC K35/K3500 Pickup; 1965-1967 GMC L3500; 1960-1966 GMC Suburban; 1960 GMC Truck; 1960-1962 GMC V3000 Forward Control
