Melling Engine Parts / Melling Tool Co. / M-63HV
Part #: M-63HV
UPC: 729295100843
Loading...
Notify me when this item is in stock.

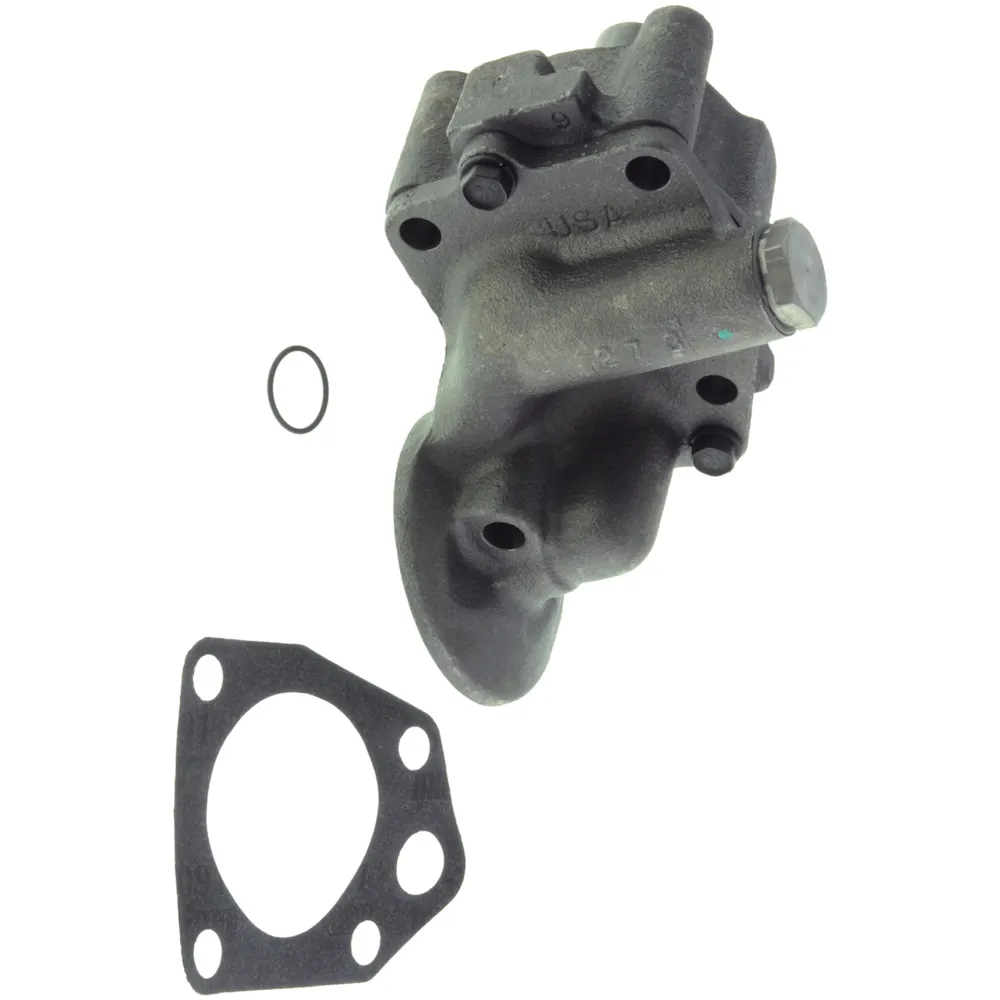

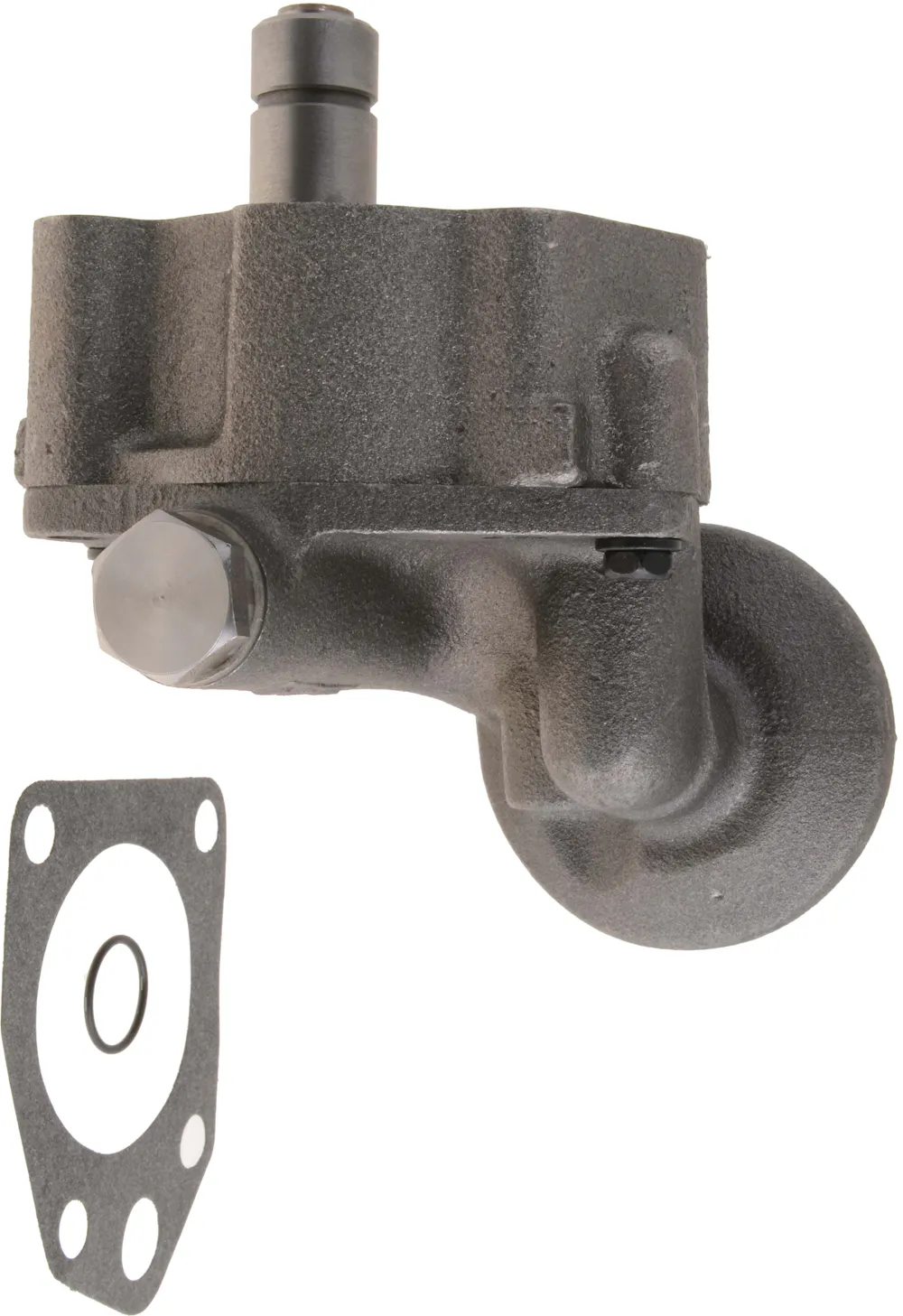

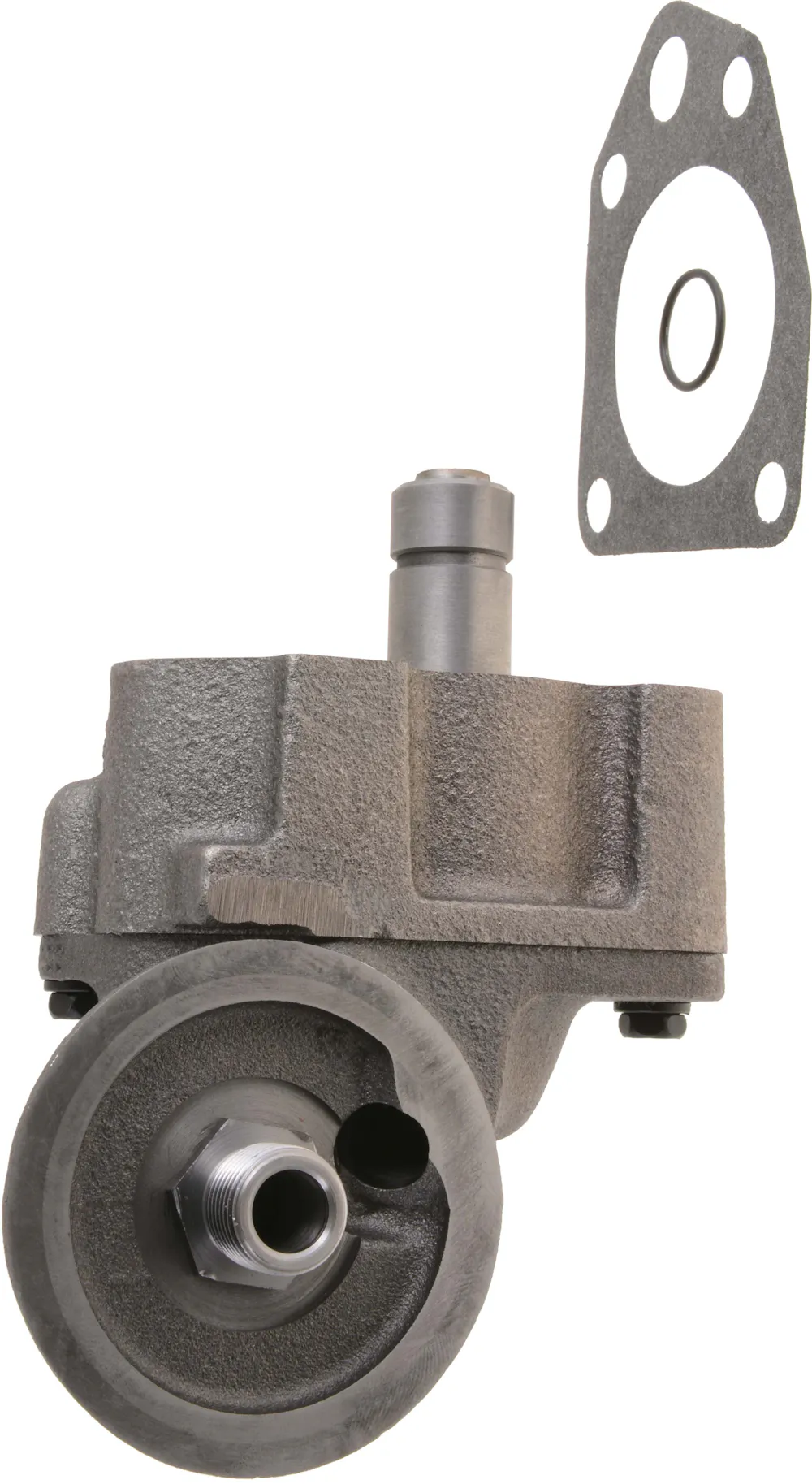

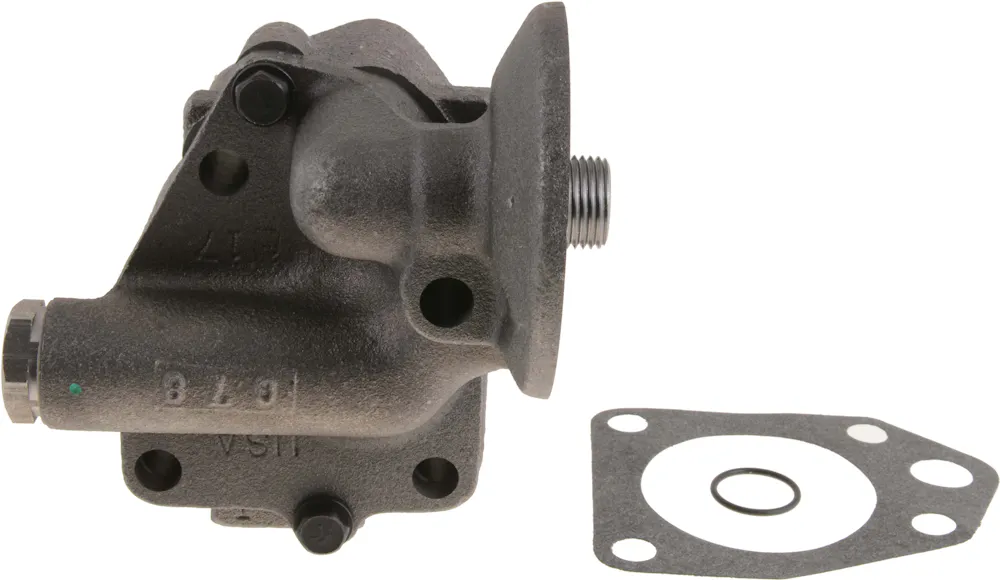

Description: High Volume Replacement Oil Pump; M-63HV Stock Replacement : High Volume, Standard Pressure, Cast Iron Oil Pump With Gasket
Description:
Description
Made in USA. Melling high volume oil pumps increase the amount of oil flow by an average of 20% through the engine improving oil pressure at idle providing dependable performance every time in every application. Every Melling high volume oil pump is engineered and assembled to the highest production standards from high quality materials. All Melling high volume oil pumps use the latest in gear and gerotor technology to provide the highest level of quality and performance. High volume gears are machined to close tolerances to ensure proper engine pressure and correct, efficient pump operation. End plates are precision ground for maximum wear resistance. Every Melling oil pump is individually tested for pressure and flow under conditions designed to duplicate actual engine operating conditions.
Features & benefits
- Precision engineered for optimum fit and function
- Manufactured from high quality materials for consistent durable wear
- Designed for long-life and worry-free performance
- High volume oil pump supplies additional oil to engines when necessary for high performance applications or low oil pressure issues
- Meets or exceeds original equipment specifications
Application summary
| Year | Make / model |
|---|---|
| 1959-1971 | Chrysler 300 |
| 1975-1978 | Chrysler Cordoba |
| 1959-1975 | Chrysler Imperial |
| 1959-1978 | Chrysler New Yorker |
| 1959-1978 | Chrysler Newport |
| 1959-1960 | Chrysler Saratoga |
| 1959-1977 | Chrysler Town & Country |
| 1959-1961 | Chrysler Windsor |
| 1958-1961 | DeSoto Adventurer |
| 1958-1959 | DeSoto Firedome |
| 1958-1961 | DeSoto Fireflite |
| 1958-1959 | DeSoto Firesweep |
| 1963-1964 | Dodge 330 |
| 1963-1964 | Dodge 440 |
| 1962-1965 | Dodge 880 |
| 1974 | Dodge B100 Van |
| 1975-1978 | Dodge B200 |
| 1971-1974 | Dodge B200 Van |
| 1975-1978 | Dodge B300 |
| 1971-1974 | Dodge B300 Van |
| 1976-1979 | Dodge CB300 |
| 1970-1974 | Dodge Challenger |
| 1966-1978 | Dodge Charger |
| 1958-1959 | Dodge Coronet |
| 1965-1976 | Dodge Coronet |
| 1958-1961 | Dodge Custom |
| 1975-1978 | Dodge D100 |
| 1968-1974 | Dodge D100 Pickup |
| 1967 | Dodge D100 Series |
| 1977-1978 | Dodge D150 |
| 1975-1978 | Dodge D200 |
| 1968-1974 | Dodge D200 Pickup |
| 1967 | Dodge D200 Series |
| 1975-1978 | Dodge D300 |
| 1968-1974 | Dodge D300 Pickup |
| 1967 | Dodge D300 Series |
| 1978 | Dodge D400 |
| 1978 | Dodge D450 |
| 1960-1962 | Dodge Dart |
| 1967-1969 | Dodge Dart |
| 1958-1959 | Dodge Lancer |
| 1961 | Dodge Lancer |
| 1974 | Dodge M300 |
| 1974 | Dodge M350 |
| 1978 | Dodge Magnum |
| 1960 | Dodge Matador |
| 1974 | Dodge MB300 |
| 1965-1978 | Dodge Monaco |
| 1960-1961 | Dodge Phoenix |
| 1961 | Dodge Pioneer |
| 1960-1973 | Dodge Polara |
| 1974-1978 | Dodge Ramcharger |
| 1958-1959 | Dodge Royal |
| 1975-1977 | Dodge Royal Monaco |
| 1961 | Dodge Seneca |
| 1958-1959 | Dodge Sierra |
| 1958 | Dodge Suburban |
| 1960 | Dodge Truck |
| 1975-1977 | Dodge W100 |
| 1968-1974 | Dodge W100 Pickup |
| 1967 | Dodge W100 Series |
| 1977-1978 | Dodge W150 |
| 1975-1978 | Dodge W200 |
| 1968-1974 | Dodge W200 Pickup |
| 1967 | Dodge W200 Series |
| 1975-1978 | Dodge W300 |
| 1968-1974 | Dodge W300 Pickup |
| 1967 | Dodge W300 Series |
| 1964 | Plymouth Barracuda |
| 1967-1972 | Plymouth Barracuda |
| 1958-1970 | Plymouth Belvedere |
| 1965-1967 | Plymouth Belvedere II |
| 1970-1972 | Plymouth Cuda |
| 1958-1961 | Plymouth Custom |
| 1960-1963 | Plymouth Fleet Special |
| 1958-1978 | Plymouth Fury |
| 1968-1974 | Plymouth Fury I |
| 1965-1974 | Plymouth Fury II |
| 1965-1974 | Plymouth Fury III |
| 1972-1977 | Plymouth Gran Fury |
Specifications
- GTIN
- 00729295100843
- Weight
- 7.45 lb
- Height
- 5.25 in
- Length
- 8 in
- Width
- 6 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- MEL
- Warehouse brand code
- BCBC
- AAIA brand code
- BCBC
Attributes
- Bolts Included
- No
- Bushing Included
- No
- California Proposition 65
- No
- Cotter Pin Included
- No
- Cover Material
- Cast Iron
- Drive Shaft Included
- No
- Drive Type
- Drive Shaft
- Finish
- Rust Preventative
- Gasket Or Seal Included
- Yes
- Gear Material
- Steel
- Gears Included
- Yes
- Governor Spinner Included
- No
- Grade Type
- Improved Design
- Guide Included
- No
- Height
- 127.0
- Housing Material
- Cast Iron
- Inlet Size (in)
- Not Applicable
- Inlet Size (mm)
- Not Applicable
- Intermediate Shaft Included
- No
- Mounting Hole Diameter
- 0.375
- Mounting Hole Quantity
- 2
- Nylon Bushing Included
- No
- O-Ring Included
- Yes
- Oil Pump Type
- Gear
- Pickup Screen Included
- No
- Pump Cover Included
- Yes
- Shaft Material
- Not Applicable
- Spacer Included
- No
- Timing Cover Included
- No
- Title
- Engine Oil Pump
- Washers Included
- No
- Width
- 4.53
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1959-1971 Chrysler 300; 1975-1978 Chrysler Cordoba; 1959-1975 Chrysler Imperial; 1959-1978 Chrysler New Yorker; 1959-1978 Chrysler Newport; 1959-1960 Chrysler Saratoga; 1959-1977 Chrysler Town & Country; 1959-1961 Chrysler Windsor; 1958-1961 DeSoto Adventurer; 1958-1959 DeSoto Firedome; 1958-1961 DeSoto Fireflite; 1958-1959 DeSoto Firesweep; 1963-1964 Dodge 330; 1963-1964 Dodge 440; 1962-1965 Dodge 880; 1974 Dodge B100 Van; 1975-1978 Dodge B200; 1971-1974 Dodge B200 Van; 1975-1978 Dodge B300; 1971-1974 Dodge B300 Van; 1976-1979 Dodge CB300; 1970-1974 Dodge Challenger; 1966-1978 Dodge Charger; 1958-1959 Dodge Coronet; 1965-1976 Dodge Coronet; 1958-1961 Dodge Custom; 1975-1978 Dodge D100; 1968-1974 Dodge D100 Pickup; 1967 Dodge D100 Series; 1977-1978 Dodge D150; 1975-1978 Dodge D200; 1968-1974 Dodge D200 Pickup; 1967 Dodge D200 Series; 1975-1978 Dodge D300; 1968-1974 Dodge D300 Pickup; 1967 Dodge D300 Series; 1978 Dodge D400; 1978 Dodge D450; 1960-1962 Dodge Dart; 1967-1969 Dodge Dart; 1958-1959 Dodge Lancer; 1961 Dodge Lancer; 1974 Dodge M300; 1974 Dodge M350; 1978 Dodge Magnum; 1960 Dodge Matador; 1974 Dodge MB300; 1965-1978 Dodge Monaco; 1960-1961 Dodge Phoenix; 1961 Dodge Pioneer; 1960-1973 Dodge Polara; 1974-1978 Dodge Ramcharger; 1958-1959 Dodge Royal; 1975-1977 Dodge Royal Monaco; 1961 Dodge Seneca; 1958-1959 Dodge Sierra; 1958 Dodge Suburban; 1960 Dodge Truck; 1975-1977 Dodge W100; 1968-1974 Dodge W100 Pickup; 1967 Dodge W100 Series; 1977-1978 Dodge W150; 1975-1978 Dodge W200; 1968-1974 Dodge W200 Pickup; 1967 Dodge W200 Series; 1975-1978 Dodge W300; 1968-1974 Dodge W300 Pickup; 1967 Dodge W300 Series; 1964 Plymouth Barracuda; 1967-1972 Plymouth Barracuda; 1958-1970 Plymouth Belvedere; 1965-1967 Plymouth Belvedere II; 1970-1972 Plymouth Cuda; 1958-1961 Plymouth Custom; 1960-1963 Plymouth Fleet Special; 1958-1978 Plymouth Fury; 1968-1974 Plymouth Fury I; 1965-1974 Plymouth Fury II; 1965-1974 Plymouth Fury III; 1972-1977 Plymouth Gran Fury; ...
Resources
- Brand logo
- Installation Instructions
- Installation Instructions
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Primary
- Engine Priming Tank - Melling # MPL-201
- Oil Pump Volume and Pressure Explanation
- How to Measure the Health of your Engine - By Melling Engine Parts
- Spanish Version: Oil Pump Volume and Pressure by Melling
- Measuring Bearing clearances in an engine - they have a major impact on oil pressure
- Grease in Oil Pumps??? Tech Tip from Melling Engine Parts
Equivalent Parts
Melling Engine Parts / Melling Tool Co. M-63HV
