Melling Engine Parts / Melling Tool Co. · M-57HP
Part #: M-57HP
UPC: 729295100690
Loading...
Notify me when this item is in stock.

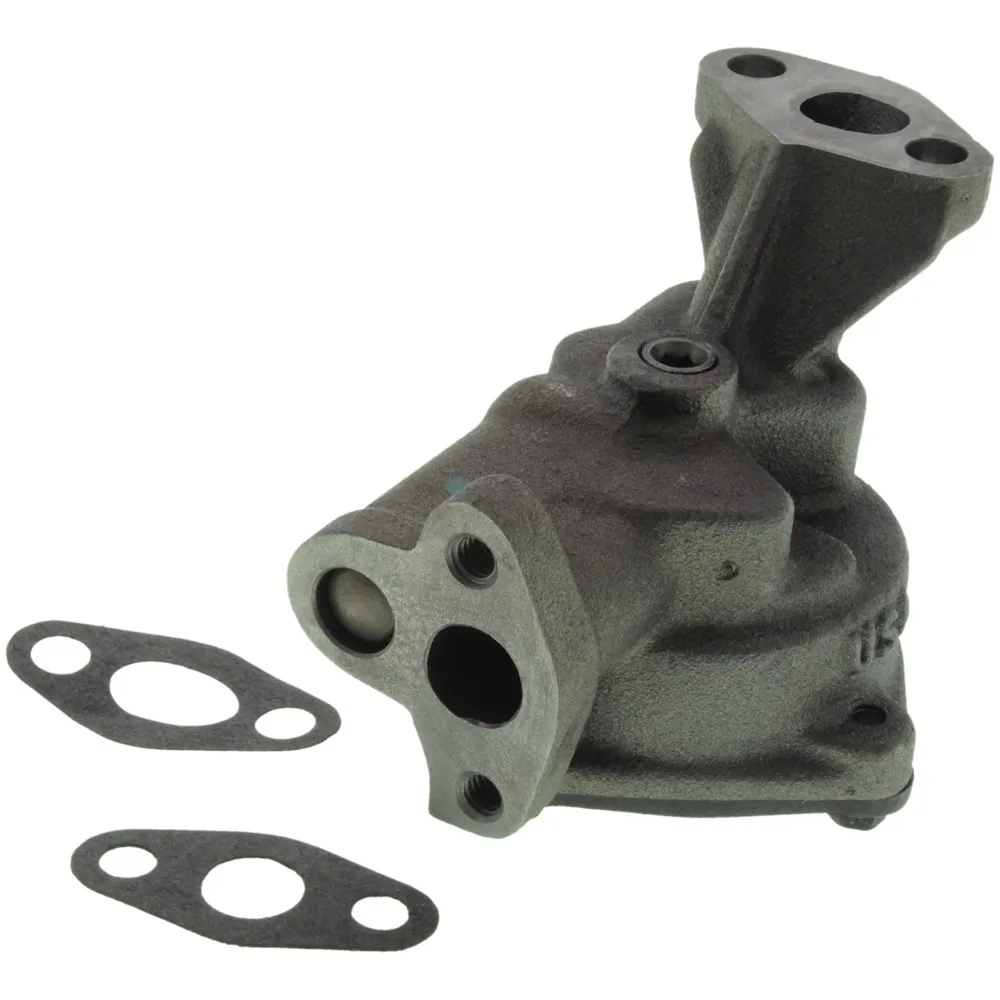

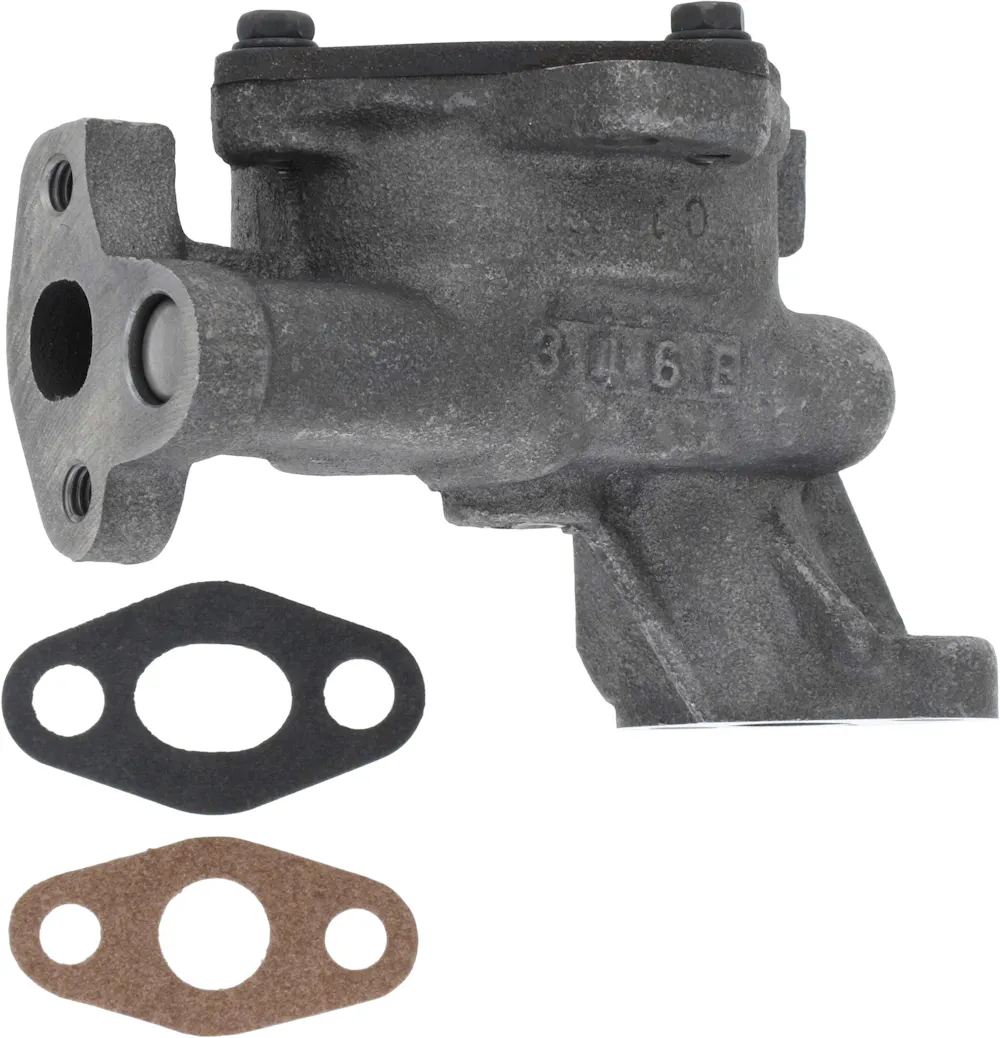

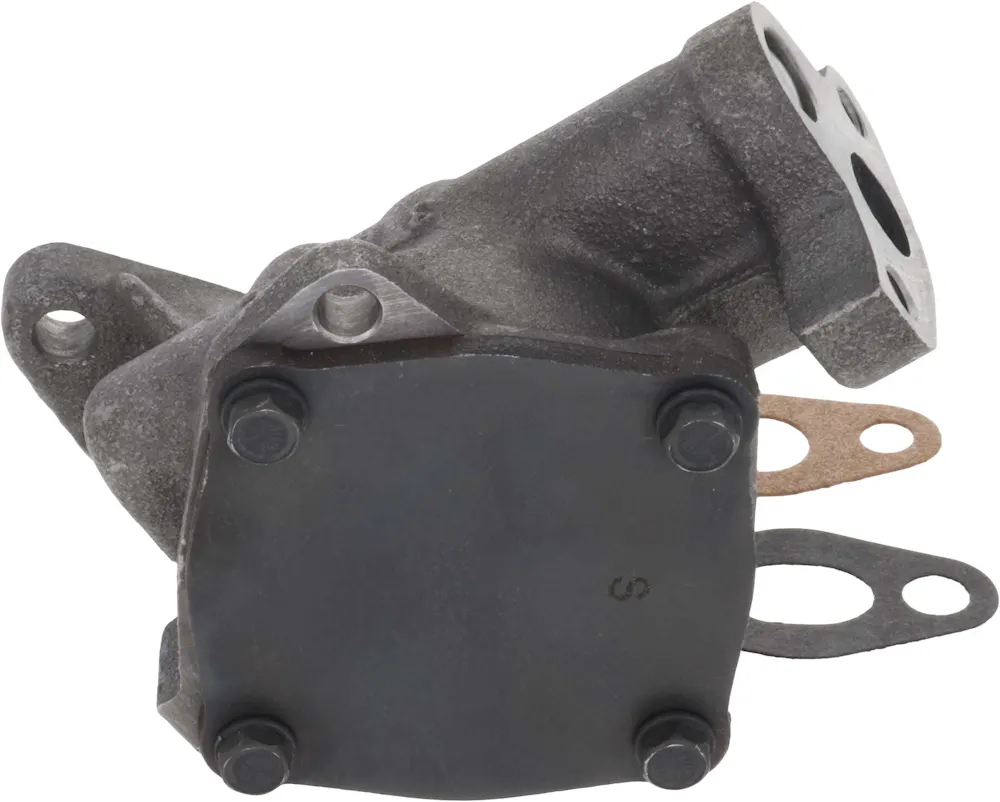

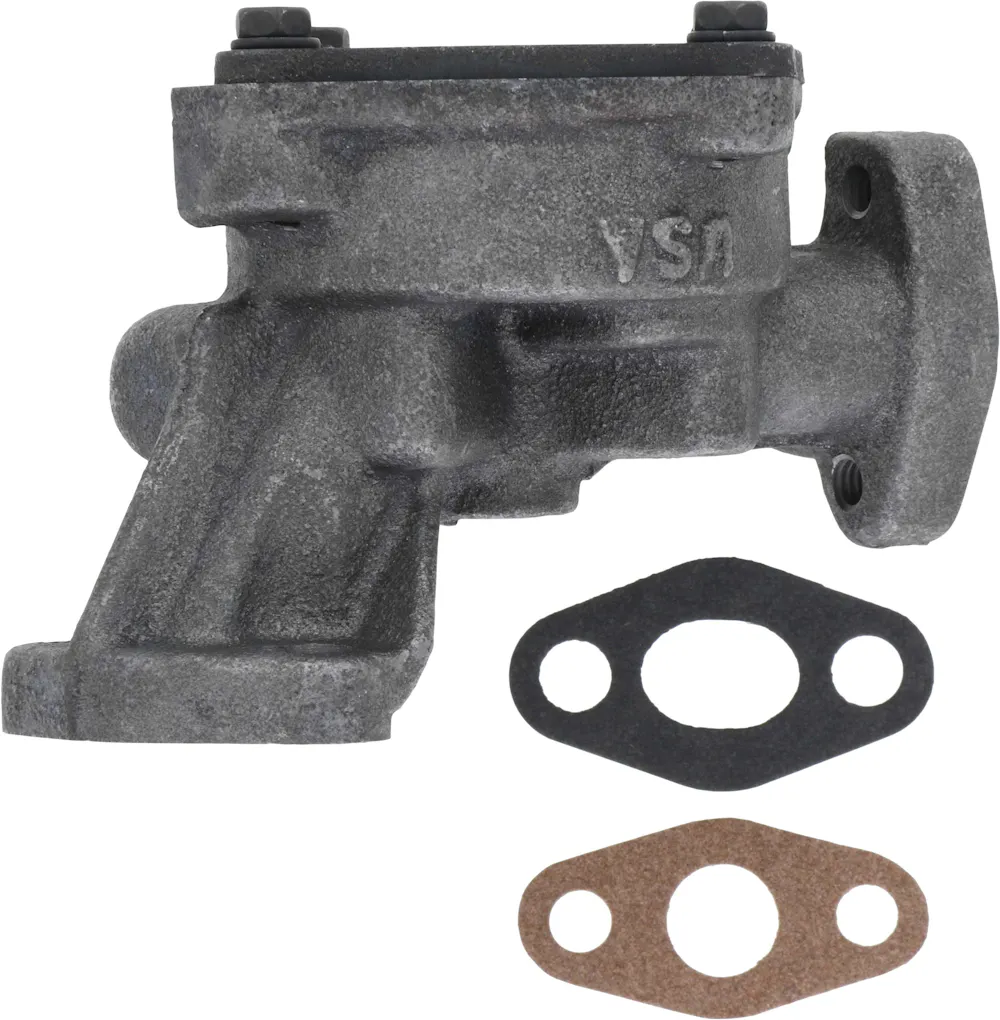

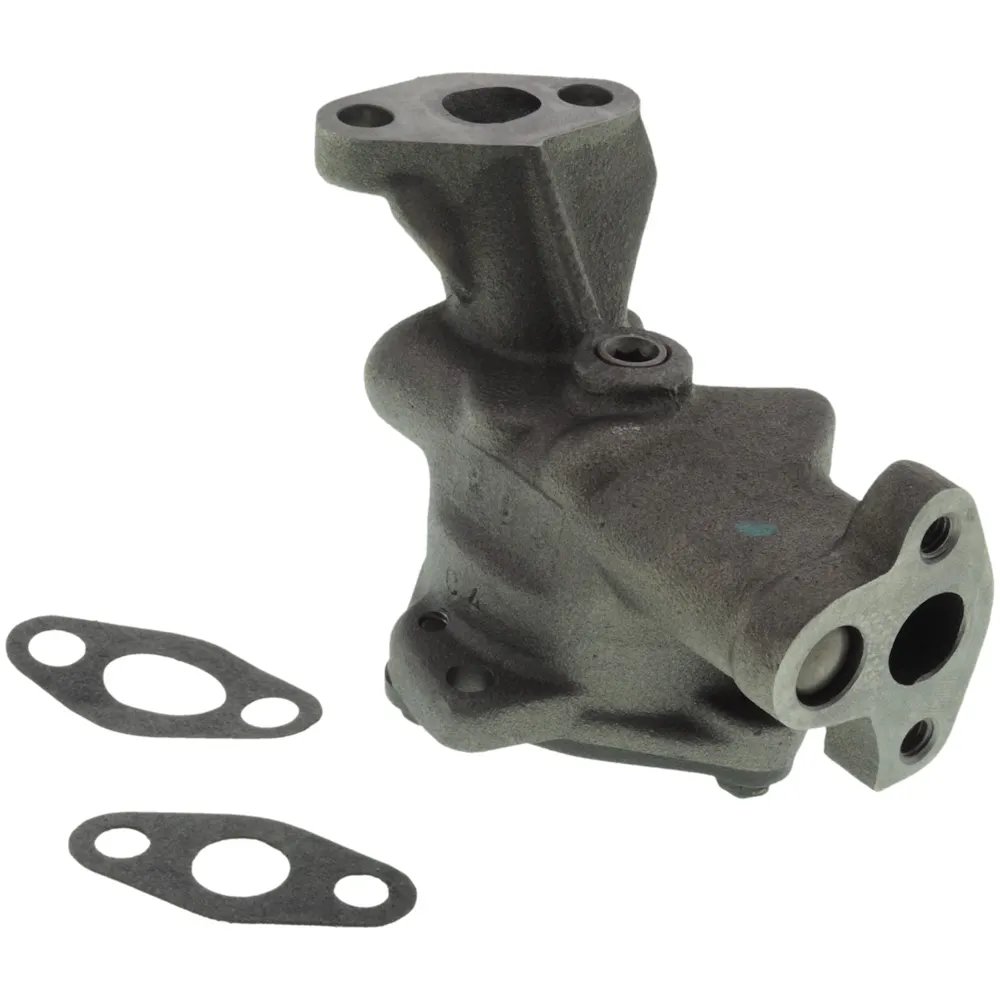

Description: Stock Replacement Oil Pump; M-57HP Stock Replacement : Standard Volume, High Pressure, Cast Iron Oil Pump With Gasket
Description:
Description
Made in USA. Melling high pressure oil pumps can aid in increasing the amount of oil pressure in engines with low oil pressure. Melling oil pumps provide dependable performance every time in every application. Every Melling high pressure oil pump is engineered and assembled to the highest production standards from high quality materials. All Melling high pressure oil pumps use the latest in gear and gerotor technology to provide the highest level of quality and performance. Gears are machined to close tolerances to ensure proper engine pressure and correct, efficient pump operation. End plates are precision ground for maximum wear resistance. Every Melling oil pump is individually tested for pressure and flow under conditions designed to duplicate actual engine operating conditions.
Features & benefits
- Precision engineered for optimum fit and function
- Manufactured from high quality materials for consistent durable wear
- Designed for long-life and worry-free performance
- High pressure oil pump supplies additional oil pressure to engines when necessary for high performance applications or low oil pressure issues
- Meets or exceeds original equipment specifications
Application summary
| Year | Make / model |
|---|---|
| 1958 | Edsel Bermuda |
| 1959 | Edsel Corsair |
| 1958 | Edsel Pacer |
| 1958-1960 | Edsel Ranger |
| 1958 | Edsel Roundup |
| 1958-1960 | Edsel Villager |
| 1963 | Ford 300 |
| 1962-1968 | Ford Country Sedan |
| 1962-1968 | Ford Country Squire |
| 1964-1968 | Ford Custom |
| 1965-1968 | Ford Custom 500 |
| 1964-1968 | Ford Fairlane |
| 1962-1967 | Ford Galaxie |
| 1962-1968 | Ford Galaxie 500 |
| 1964-1968 | Ford GT40 |
| 1965-1968 | Ford LTD |
| 1968 | Ford Mustang |
| 1962-1968 | Ford Ranch Wagon |
| 1963-1967 | Ford Thunderbird |
| 1968 | Ford Torino |
| 1966-1968 | Lincoln Continental |
| 1968 | Lincoln Mark III |
| 1967 | Mercury Brougham |
| 1964-1967 | Mercury Caliente |
| 1966-1967 | Mercury Capri |
| 1962-1967 | Mercury Colony Park |
| 1964-1969 | Mercury Comet |
| 1962-1967 | Mercury Commuter |
| 1968 | Mercury Cougar |
| 1964-1969 | Mercury Cyclone |
| 1963-1966 | Mercury Marauder |
| 1967 | Mercury Marquis |
| 1964-1967 | Mercury Montclair |
| 1968-1969 | Mercury Montego |
| 1962-1967 | Mercury Monterey |
| 1964-1967 | Mercury Park Lane |
| 1964-1967 | Mercury Villager |
| 1966-1967 | Mercury Voyager |
Specifications
- GTIN
- 00729295100690
- Weight
- 4 lb
- Height
- 4 in
- Length
- 6 in
- Width
- 5 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- MEL
- Warehouse brand code
- BCBC
- AAIA brand code
- BCBC
Attributes
- Bolts Included
- No
- Bushing Included
- No
- California Proposition 65
- No
- Cotter Pin Included
- No
- Cover Material
- Cast Iron
- Drive Shaft Included
- No
- Drive Type
- Drive Shaft
- Finish
- Rust Preventative
- Gasket Or Seal Included
- Yes
- Gear Material
- Steel
- Gears Included
- Yes
- Governor Spinner Included
- No
- Grade Type
- Improved Design
- Guide Included
- No
- Height
- 3.72
- Housing Material
- Cast Iron
- Inlet Size (in)
- 0.630
- Inlet Size (mm)
- 16.00
- Intermediate Shaft Included
- No
- Mounting Hole Diameter
- 0.375
- Mounting Hole Quantity
- 2
- Nylon Bushing Included
- No
- O-Ring Included
- No
- Oil Pump Type
- Gear
- Pick Up Screen Diameter
- 0.62
- Pick Up Tube Diameter
- 0.630
- Pickup Screen Included
- No
- Pump Cover Included
- Yes
- Shaft Material
- Not Applicable
- Spacer Included
- No
- Timing Cover Included
- No
- Title
- Engine Oil Pump
- Washers Included
- No
- Width
- 4.63
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1958 Edsel Bermuda; 1959 Edsel Corsair; 1958 Edsel Pacer; 1958-1960 Edsel Ranger; 1958 Edsel Roundup; 1958-1960 Edsel Villager; 1963 Ford 300; 1962-1968 Ford Country Sedan; 1962-1968 Ford Country Squire; 1964-1968 Ford Custom; 1965-1968 Ford Custom 500; 1964-1968 Ford Fairlane; 1962-1967 Ford Galaxie; 1962-1968 Ford Galaxie 500; 1964-1968 Ford GT40; 1965-1968 Ford LTD; 1968 Ford Mustang; 1962-1968 Ford Ranch Wagon; 1963-1967 Ford Thunderbird; 1968 Ford Torino; 1966-1968 Lincoln Continental; 1968 Lincoln Mark III; 1967 Mercury Brougham; 1964-1967 Mercury Caliente; 1966-1967 Mercury Capri; 1962-1967 Mercury Colony Park; 1964-1969 Mercury Comet; 1962-1967 Mercury Commuter; 1968 Mercury Cougar; 1964-1969 Mercury Cyclone; 1963-1966 Mercury Marauder; 1967 Mercury Marquis; 1964-1967 Mercury Montclair; 1968-1969 Mercury Montego; 1962-1967 Mercury Monterey; 1964-1967 Mercury Park Lane; 1964-1967 Mercury Villager; 1966-1967 Mercury Voyager
