Melling Engine Parts / Melling Tool Co. · M-54F
Part #: M-54F
UPC: 729295100584
Loading...
Notify me when this item is in stock.

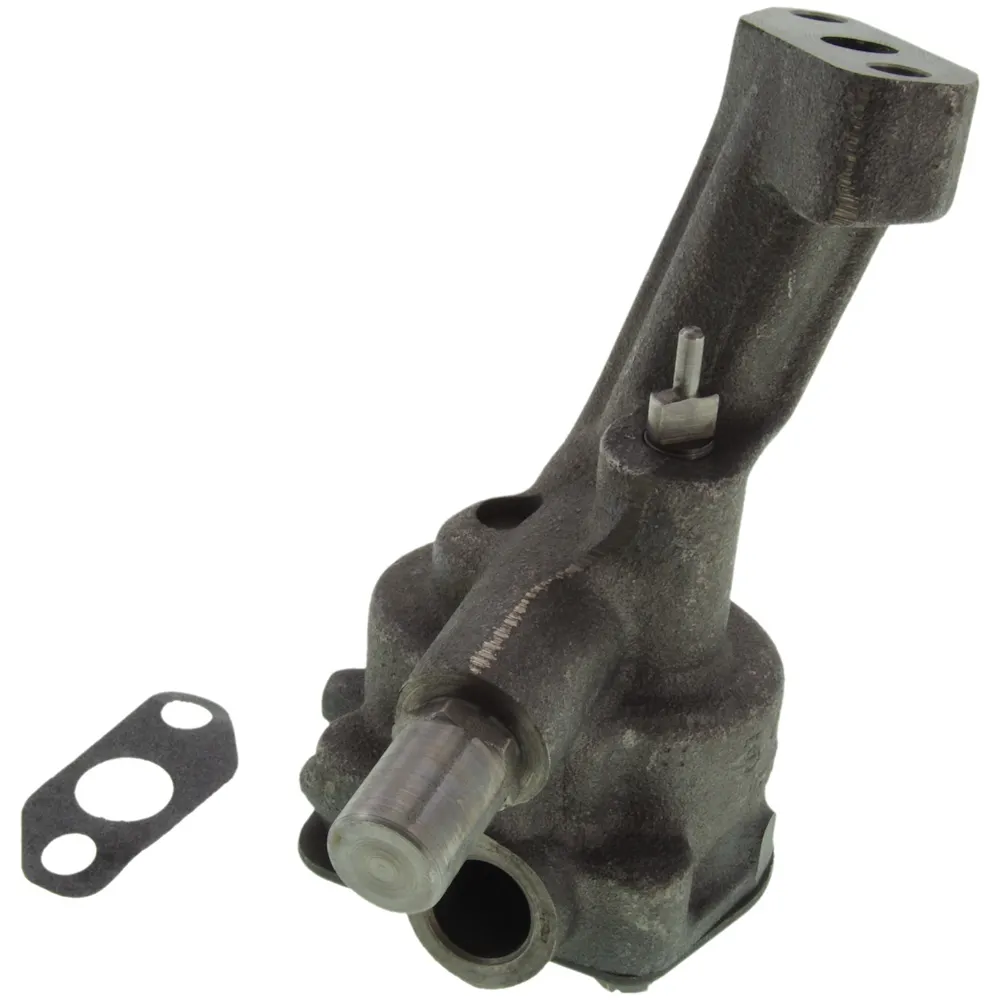

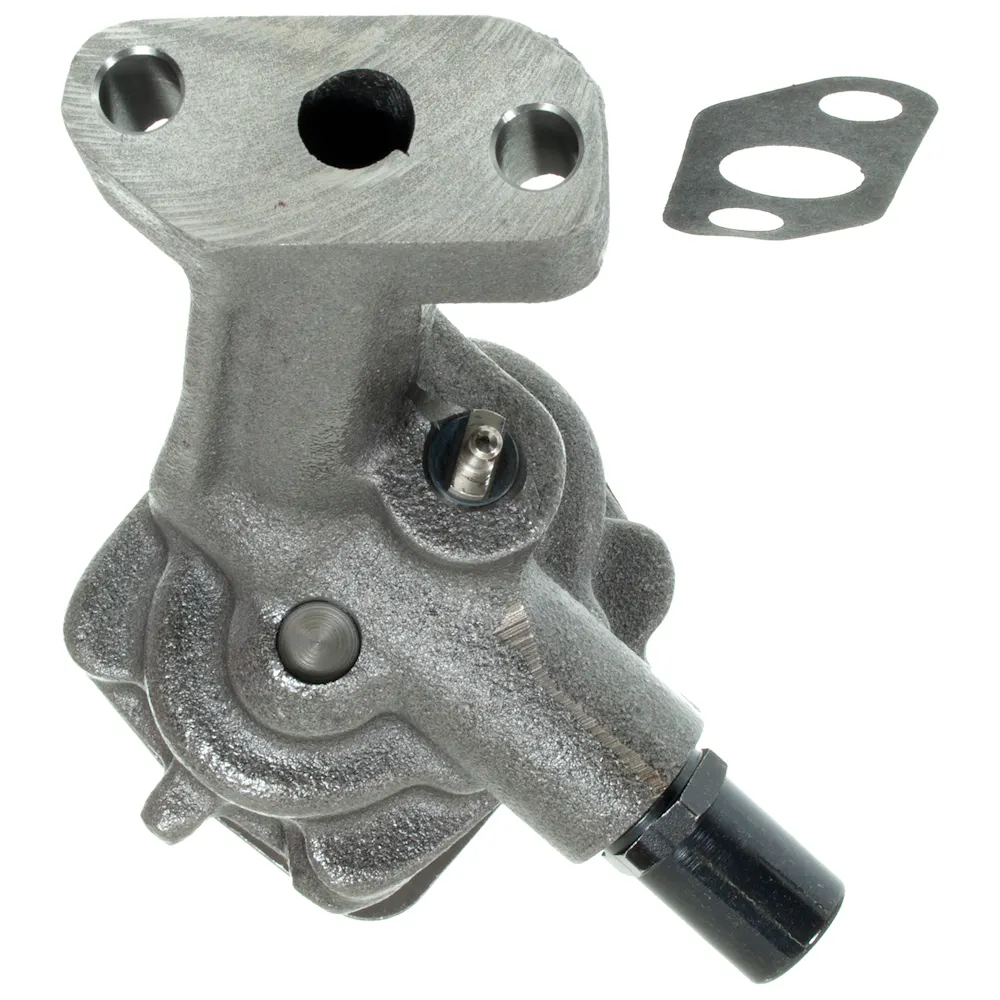

Description: Stock Replacement Oil Pump; M-54F Stock Replacement : Standard Volume, Standard Pressure, Cast Iron Oil Pump With Gasket
Description:
Description
Made in USA. Melling oil pumps provide dependable performance every time in every application. Every Melling oil pump is engineered and assembled to the highest production standards from high quality materials. All Melling oil pumps use the latest in gear and gerotor technology to provide the highest level of quality and performance. Gears are machined to close tolerances to ensure proper engine pressure and correct, efficient pump operation. End plates are precision ground for maximum wear resistance. Every Melling oil pump is individually tested for pressure and flow under conditions designed to duplicate actual engine operating conditions.
Features & benefits
- Manufactured from high quality materials for consistent durable wear
- Melling oil pumps are tested for pressure and flow under operating conditions to ensure quality
- Designed for long-life and worry-free performance
- Meets or exceeds original equipment specifications
- Precision engineered for optimum fit and function
Application summary
| Year | Make / model |
|---|---|
| 1969-1971 | Pontiac Bonneville |
| 1969-1971 | Pontiac Catalina |
| 1969-1970 | Pontiac Executive |
| 1969-1974 | Pontiac Firebird |
| 1974 | Pontiac Grand Am |
| 1969-1971 | Pontiac Grand Prix |
| 1971 | Pontiac Grand Safari |
| 1971 | Pontiac Grandville |
| 1969-1972 | Pontiac GTO |
| 1969-1971 | Pontiac Laurentian |
| 1969-1972 | Pontiac LeMans |
| 1969-1971 | Pontiac Parisienne |
| 1970 | Pontiac Strato-Chief |
| 1969-1970 | Pontiac Tempest |
Specifications
- GTIN
- 00729295100584
- Weight
- 5.12 lb
- Height
- 5.25 in
- Length
- 8 in
- Width
- 6 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- MEL
- Warehouse brand code
- BCBC
- AAIA brand code
- BCBC
Attributes
- Bolts Included
- No
- Bushing Included
- No
- California Proposition 65
- No
- Cotter Pin Included
- No
- Cover Material
- Cast Iron
- Drive Shaft Included
- No
- Drive Type
- Drive Shaft
- Finish
- Rust Preventative
- Gasket Or Seal Included
- Yes
- Gear Material
- Steel
- Gears Included
- Yes
- Governor Spinner Included
- No
- Grade Type
- Standard Replacement
- Guide Included
- No
- Height
- 6.25
- Housing Material
- Cast Iron
- Inlet Size (in)
- 0.730
- Inlet Size (mm)
- 18.00
- Intermediate Shaft Included
- No
- Mounting Hole Diameter
- 0.375
- Mounting Hole Quantity
- 2
- Nylon Bushing Included
- No
- O-Ring Included
- No
- Oil Pump Type
- Gear
- Pick Up Tube Diameter
- 0.73
- Pickup Screen Included
- No
- Pump Cover Included
- Yes
- Shaft Material
- Not Applicable
- Spacer Included
- No
- Timing Cover Included
- No
- Title
- Engine Oil Pump
- Washers Included
- No
- Width
- 3.7
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1969-1971 Pontiac Bonneville; 1969-1971 Pontiac Catalina; 1969-1970 Pontiac Executive; 1969-1974 Pontiac Firebird; 1974 Pontiac Grand Am; 1969-1971 Pontiac Grand Prix; 1971 Pontiac Grand Safari; 1971 Pontiac Grandville; 1969-1972 Pontiac GTO; 1969-1971 Pontiac Laurentian; 1969-1972 Pontiac LeMans; 1969-1971 Pontiac Parisienne; 1970 Pontiac Strato-Chief; 1969-1970 Pontiac Tempest
