Melling Engine Parts / Melling Tool Co. · M-53

Melling Engine Parts / Melling Tool Co. M-53

Part #: M-53
UPC: 729295100515

Loading...
Notify me when this item is in stock.

Brand: Melling Engine Parts / Melling Tool Co. Series: Stock Replacement Oil Pumps
Log in to order

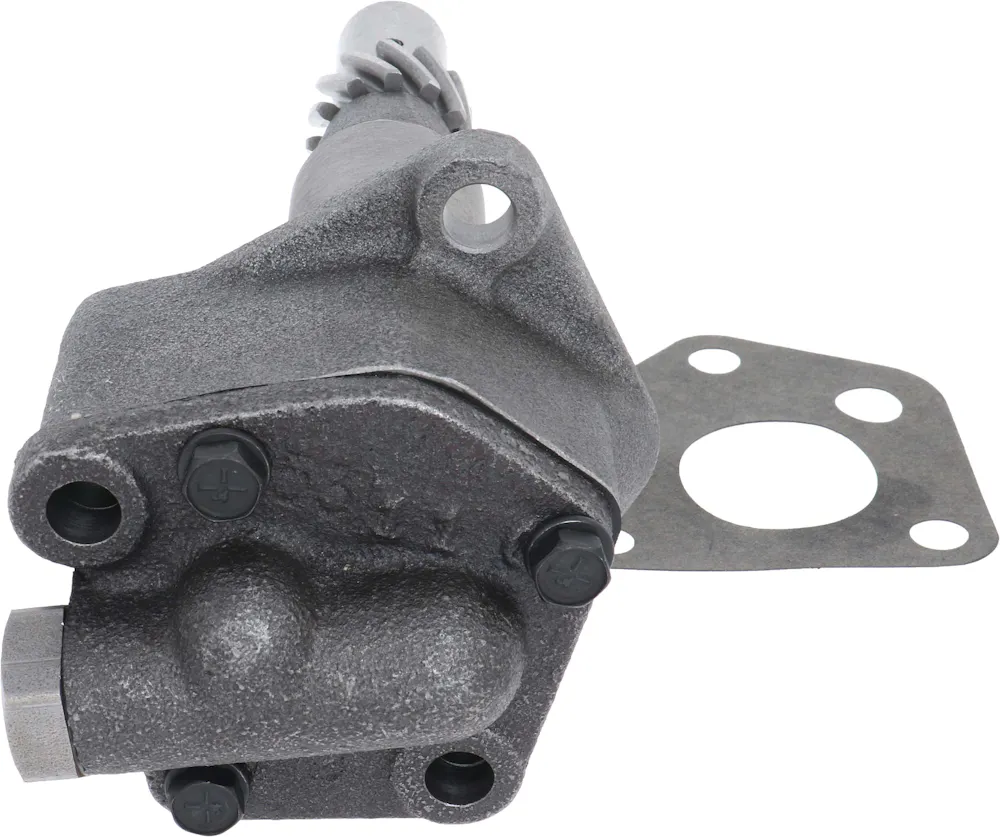

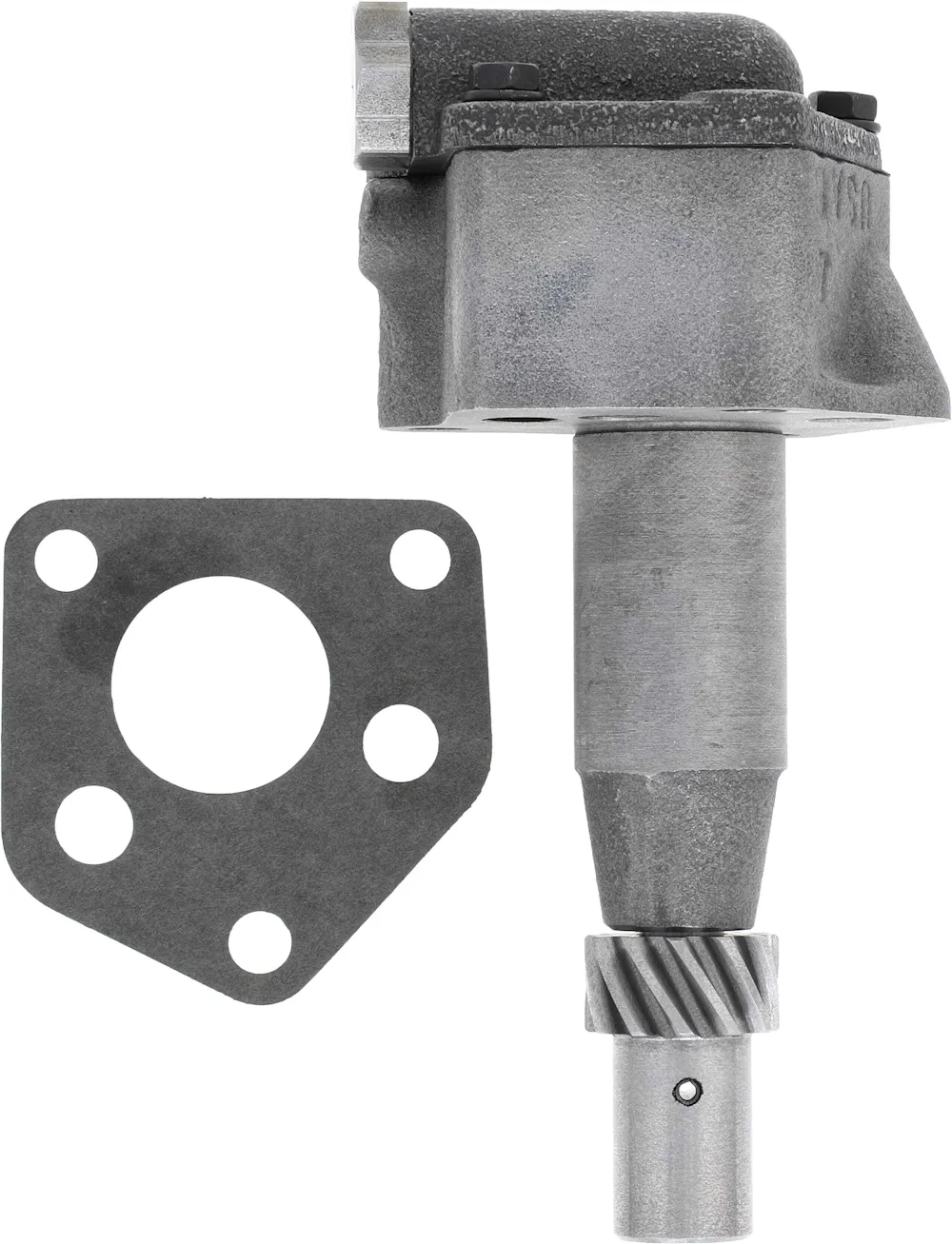

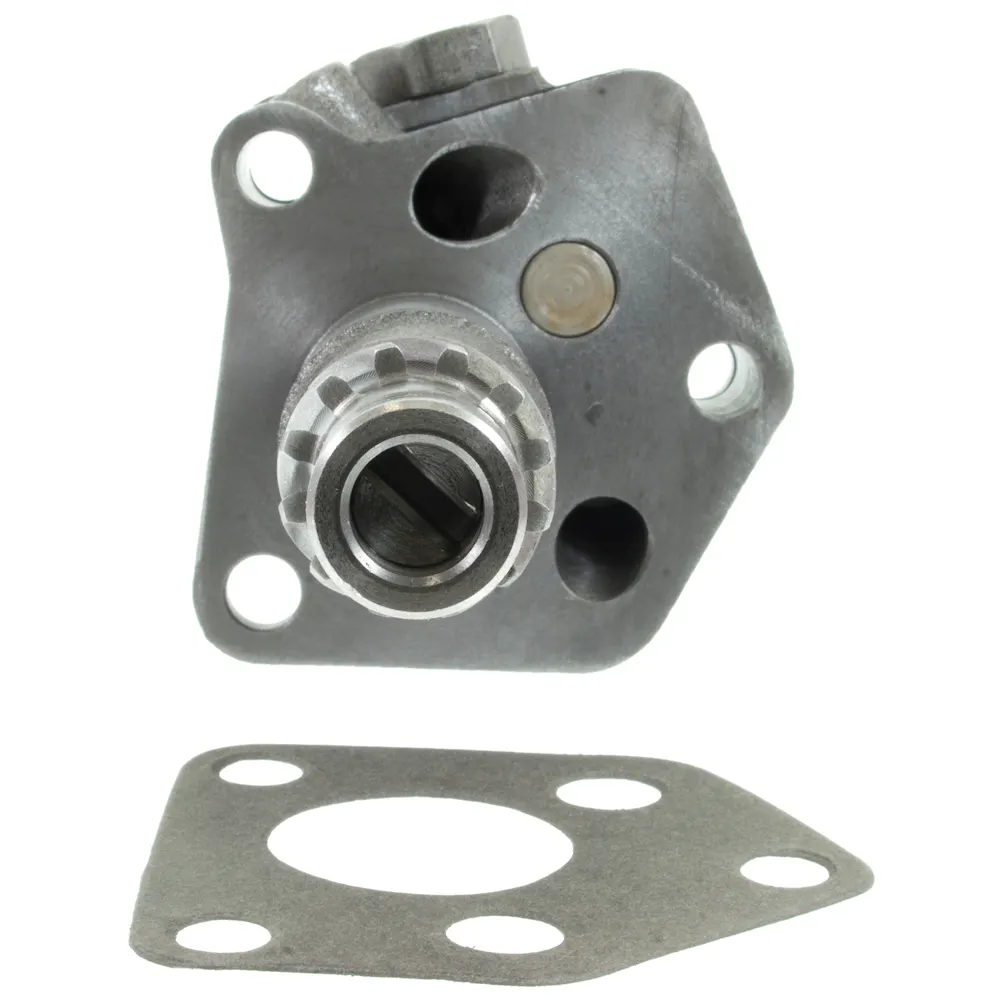

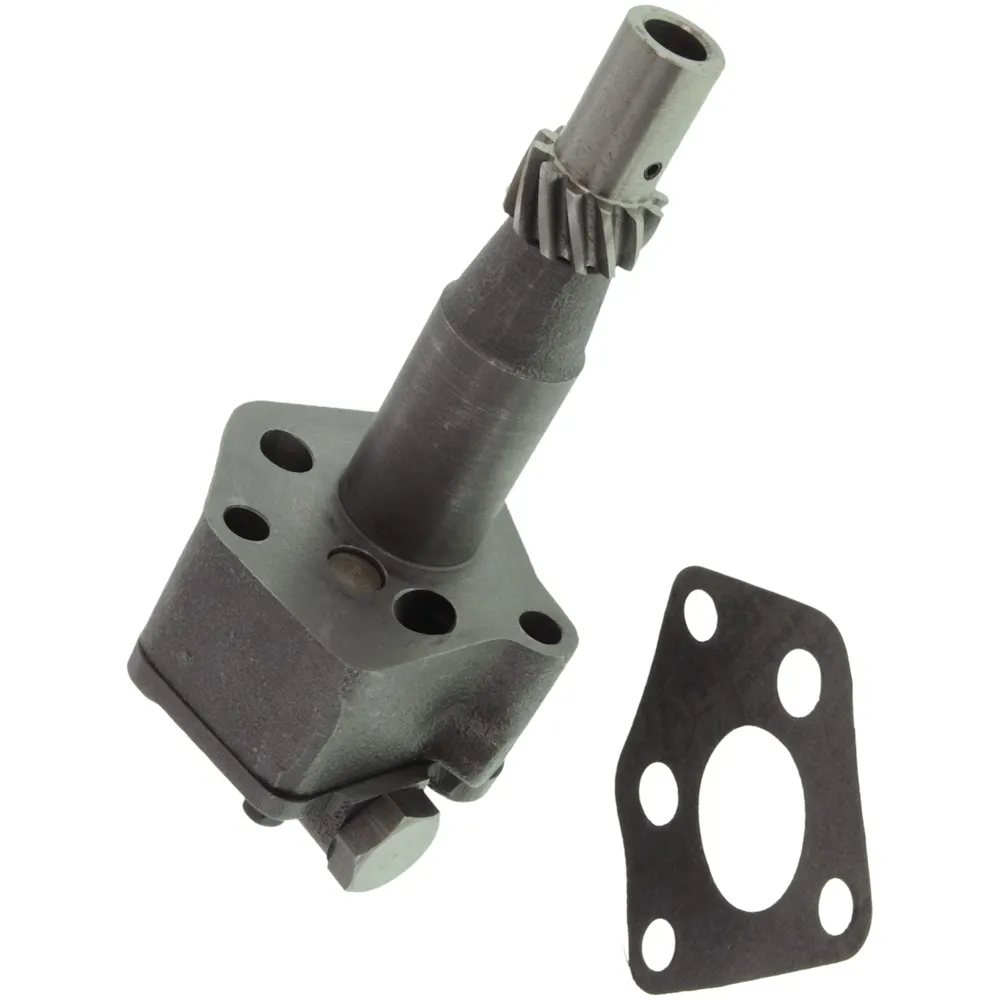

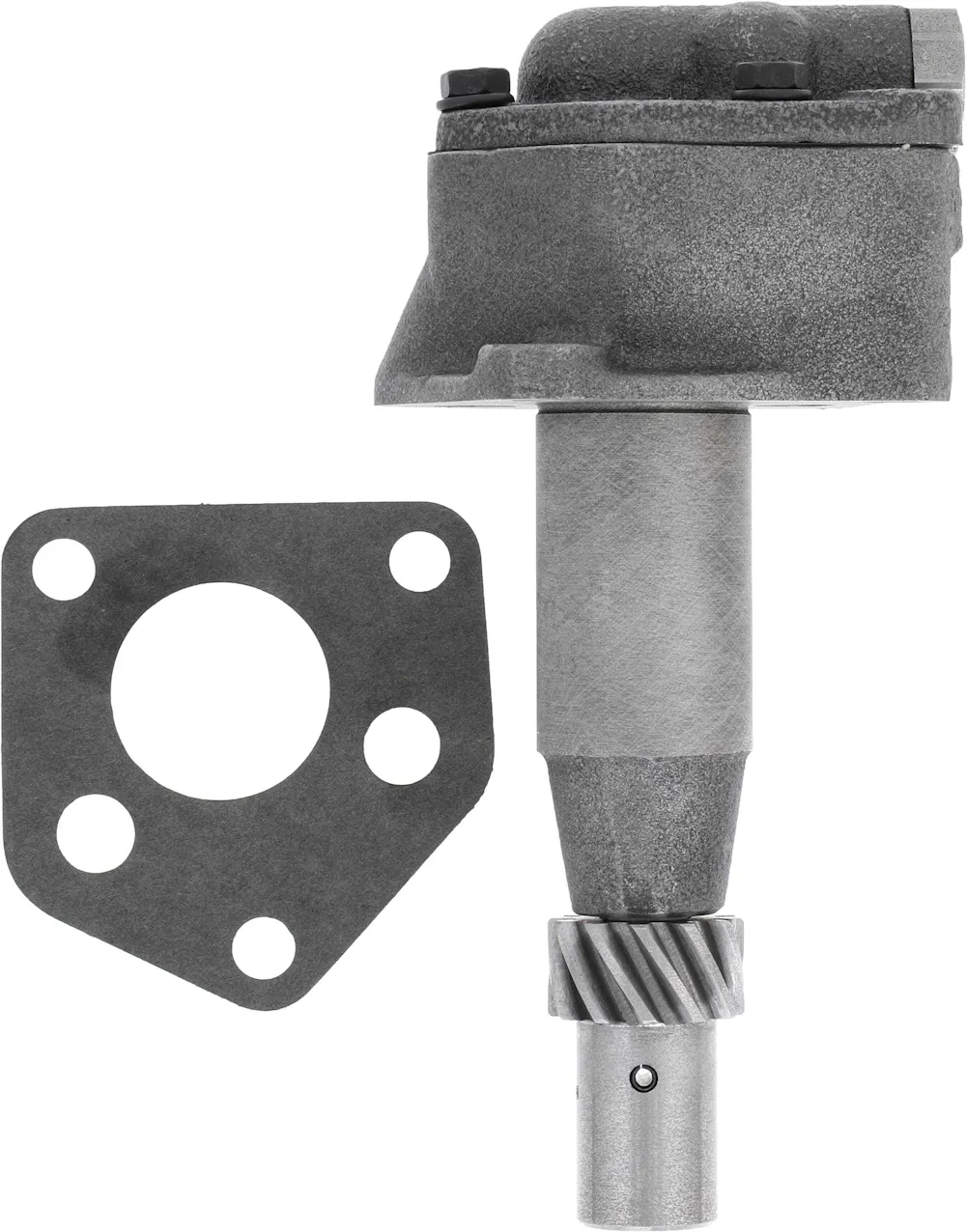

Description: Stock Replacement Oil Pump; M-53 Stock Replacement : Standard Volume, Standard Pressure, Cast Iron Oil Pump With Gasket

Description:

Description

Made in USA. Melling oil pumps provide dependable performance every time in every application. Every Melling oil pump is engineered and assembled to the highest production standards from high quality materials. All Melling oil pumps use the latest in gear and gerotor technology to provide the highest level of quality and performance. Gears are machined to close tolerances to ensure proper engine pressure and correct, efficient pump operation. End plates are precision ground for maximum wear resistance. Every Melling oil pump is individually tested for pressure and flow under conditions designed to duplicate actual engine operating conditions.

Features & benefits

  • Manufactured from high quality materials for consistent durable wear
  • Designed for long-life and worry-free performance
  • Meets or exceeds original equipment specifications
  • Precision engineered for optimum fit and function

Application summary

Year Make / model
1956 Jeep 475
1959-1966 Jeep CJ3
1959-1973 Jeep CJ5
1966-1968 Jeep CJ5A
1959-1971 Jeep CJ6
1966-1968 Jeep CJ6A
1966-1973 Jeep Commando
1961-1969 Jeep Dispatcher
1959-1965 Jeep DJ3
1965-1971 Jeep DJ5
1965-1968 Jeep DJ6
1963-1966 Jeep F-134
1957-1960 Jeep F4
1957-1962 Jeep F4-134
1958-1960 Jeep FA-134
1957-1966 Jeep FC150
1957-1961 Jeep FC170
1964-1966 Jeep FC170
1961-1965 Jeep FJ3A
1966-1971 Jeep Jeepster
1956-1966 Jeep Truck
1961-1967 Jeep Universal
1961-1969 Jeep Universal Truck
1961-1962 Jeep Utility
1956-1964 Jeep Utility Wagon
1943-1958 Jeep Willys
1942-1943 Willys MA
1942-1943 Willys MB

Specifications

GTIN
00729295100515
Weight
3.9 lb
Height
5.25 in
Length
8 in
Width
6 in
EO
Legal US
Life cycle
Available to Order
AAM brand code
MEL
Warehouse brand code
BCBC
AAIA brand code
BCBC

Attributes

Bolts Included
No
Bushing Included
No
California Proposition 65
No
Cotter Pin Included
No
Cover Material
Cast Iron
Drive Shaft Included
No
Drive Type
Drive Shaft
Finish
Rust Preventative
Gasket Or Seal Included
Yes
Gear Material
Steel
Gears Included
Yes
Governor Spinner Included
No
Grade Type
Standard Replacement
Guide Included
No
Height
6.75
Housing Material
Cast Iron
Inlet Size (in)
0.500
Inlet Size (mm)
13.00
Intermediate Shaft Included
No
Mounting Hole Diameter
0.375
Mounting Hole Quantity
3
Nylon Bushing Included
No
O-Ring Included
Yes
Oil Pump Type
Gear
Pick Up Tube Diameter
0.500
Pickup Screen Included
No
Pump Cover Included
Yes
Shaft Material
Not Applicable
Spacer Included
No
Timing Cover Included
No
Title
Engine Oil Pump
Washers Included
No
Width
2.91

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

1956 Jeep 475; 1959-1966 Jeep CJ3; 1959-1973 Jeep CJ5; 1966-1968 Jeep CJ5A; 1959-1971 Jeep CJ6; 1966-1968 Jeep CJ6A; 1966-1973 Jeep Commando; 1961-1969 Jeep Dispatcher; 1959-1965 Jeep DJ3; 1965-1971 Jeep DJ5; 1965-1968 Jeep DJ6; 1963-1966 Jeep F-134; 1957-1960 Jeep F4; 1957-1962 Jeep F4-134; 1958-1960 Jeep FA-134; 1957-1966 Jeep FC150; 1957-1961 Jeep FC170; 1964-1966 Jeep FC170; 1961-1965 Jeep FJ3A; 1966-1971 Jeep Jeepster; 1956-1966 Jeep Truck; 1961-1967 Jeep Universal; 1961-1969 Jeep Universal Truck; 1961-1962 Jeep Utility; 1956-1964 Jeep Utility Wagon; 1943-1958 Jeep Willys; 1942-1943 Willys MA; 1942-1943 Willys MB
Retail View

Equivalent Parts

MAHLE - 601-1069
