Melling Engine Parts / Melling Tool Co. · M-28E
Part #: M-28E
UPC: 729295100348
Log in for inventory
Notify me when this item is in stock.
Description: Stock Replacement Oil Pump; M-28E Stock Replacement : Standard Volume, Standard Pressure, Cast Iron Oil Pump
Description:
Description
Made in USA. Melling oil pumps provide dependable performance every time in every application. Every Melling oil pump is engineered and assembled to the highest production standards from high quality materials. All Melling oil pumps use the latest in gear and gerotor technology to provide the highest level of quality and performance. Gears are machined to close tolerances to ensure proper engine pressure and correct, efficient pump operation. End plates are precision ground for maximum wear resistance. Every Melling oil pump is individually tested for pressure and flow under conditions designed to duplicate actual engine operating conditions.
Features & benefits
- Manufactured from high quality materials for consistent durable wear
- Designed for long-life and worry-free performance
- Meets or exceeds original equipment specifications
- Precision engineered for optimum fit and function
Application summary
| Year | Make / model |
|---|---|
| 1966 | International 1000A |
| 1967 | International 1000B |
| 1968 | International 1000C |
| 1969-1970 | International 1000D |
| 1966 | International 1100A |
| 1967 | International 1100B |
| 1968 | International 1100C |
| 1969-1970 | International 1100D |
| 1966 | International 1200A |
| 1967 | International 1200B |
| 1968 | International 1200C |
| 1969-1970 | International 1200D |
| 1966 | International 1300A |
| 1967 | International 1300B |
| 1968 | International 1300C |
| 1969-1970 | International 1300D |
| 1957-1958 | International A102 |
| 1957-1958 | International A110 |
| 1957-1958 | International A112 |
| 1957-1958 | International A120 |
| 1957-1958 | International A122 |
| 1957-1958 | International A130 |
| 1957-1958 | International A132 |
| 1964 | International AB120 |
| 1965 | International AB1200 |
| 1960-1965 | International AB140 |
| 1965 | International AB1400 |
| 1961-1965 | International AM120 |
| 1961-1965 | International AM130 |
| 1960-1964 | International AM150 |
| 1959-1960 | International B100 |
| 1959-1960 | International B102 |
| 1959-1960 | International B110 |
| 1959-1960 | International B112 |
| 1959-1960 | International B120 |
| 1959-1960 | International B122 |
| 1959-1960 | International B130 |
| 1959-1960 | International B132 |
| 1961-1962 | International C100 |
| 1963-1964 | International C1000 |
| 1961-1962 | International C102 |
| 1961-1962 | International C110 |
| 1963-1964 | International C1100 |
| 1961-1962 | International C112 |
| 1961-1962 | International C120 |
| 1963-1964 | International C1200 |
| 1961-1962 | International C122 |
| 1961-1962 | International C130 |
| 1963-1964 | International C1300 |
| 1961-1962 | International C132 |
| 1962-1965 | International CM110 |
| 1962-1965 | International CM75 |
| 1962-1965 | International CM80 |
| 1965 | International D1000 |
| 1965 | International D1100 |
| 1965 | International D1200 |
| 1965 | International D1300 |
| 1950-1952 | International L110 |
| 1950-1952 | International L111 |
| 1950-1952 | International L112 |
| 1950-1952 | International L120 |
| 1950-1952 | International L121 |
| 1950-1952 | International L122 |
| 1950-1952 | International L130 |
| 1950-1952 | International L150 |
| 1951-1952 | International L151 |
| 1950-1952 | International L153 |
| 1950-1952 | International LM153 |
Specifications
- GTIN
- 00729295100348
- Weight
- 6.32 lb
- Height
- 4.25 in
- Length
- 13.5 in
- Width
- 5.5 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- MEL
- Warehouse brand code
- BCBC
- AAIA brand code
- BCBC
Attributes
- Bolts Included
- No
- Bushing Included
- No
- California Proposition 65
- No
- Cotter Pin Included
- Yes
- Cover Material
- Cast Iron
- Drive Shaft Included
- No
- Drive Type
- Drive Shaft
- Finish
- Rust Preventative
- Gasket Or Seal Included
- No
- Gear Material
- Steel
- Gears Included
- Yes
- Governor Spinner Included
- No
- Grade Type
- Standard Replacement
- Guide Included
- No
- Height
- 12.5
- Housing Material
- Cast Iron
- Inlet Size (in)
- 0.750
- Inlet Size (mm)
- 19.00
- Intermediate Shaft Included
- No
- Mounting Hole Diameter
- 0.315
- Mounting Hole Quantity
- 2
- Nylon Bushing Included
- No
- O-Ring Included
- No
- Oil Pump Type
- Gear
- Pick Up Tube Diameter
- 0.750
- Pickup Screen Included
- No
- Pump Cover Included
- Yes
- Shaft Material
- Not Applicable
- Spacer Included
- No
- Timing Cover Included
- No
- Title
- Engine Oil Pump
- Washers Included
- No
- Width
- 4.77
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1966 International 1000A; 1967 International 1000B; 1968 International 1000C; 1969-1970 International 1000D; 1966 International 1100A; 1967 International 1100B; 1968 International 1100C; 1969-1970 International 1100D; 1966 International 1200A; 1967 International 1200B; 1968 International 1200C; 1969-1970 International 1200D; 1966 International 1300A; 1967 International 1300B; 1968 International 1300C; 1969-1970 International 1300D; 1957-1958 International A102; 1957-1958 International A110; 1957-1958 International A112; 1957-1958 International A120; 1957-1958 International A122; 1957-1958 International A130; 1957-1958 International A132; 1964 International AB120; 1965 International AB1200; 1960-1965 International AB140; 1965 International AB1400; 1961-1965 International AM120; 1961-1965 International AM130; 1960-1964 International AM150; 1959-1960 International B100; 1959-1960 International B102; 1959-1960 International B110; 1959-1960 International B112; 1959-1960 International B120; 1959-1960 International B122; 1959-1960 International B130; 1959-1960 International B132; 1961-1962 International C100; 1963-1964 International C1000; 1961-1962 International C102; 1961-1962 International C110; 1963-1964 International C1100; 1961-1962 International C112; 1961-1962 International C120; 1963-1964 International C1200; 1961-1962 International C122; 1961-1962 International C130; 1963-1964 International C1300; 1961-1962 International C132; 1962-1965 International CM110; 1962-1965 International CM75; 1962-1965 International CM80; 1965 International D1000; 1965 International D1100; 1965 International D1200; 1965 International D1300; 1950-1952 International L110; 1950-1952 International L111; 1950-1952 International L112; 1950-1952 International L120; 1950-1952 International L121; 1950-1952 International L122; 1950-1952 International L130; 1950-1952 International L150; 1951-1952 International L151; 1950-1952 International L153; 1950-1952 International LM153; ...
Resources
- Brand logo
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Primary
- Engine Priming Tank - Melling # MPL-201
- Oil Pump Volume and Pressure Explanation
- How to Measure the Health of your Engine - By Melling Engine Parts
- Spanish Version: Oil Pump Volume and Pressure by Melling
- Measuring Bearing clearances in an engine - they have a major impact on oil pressure
- Grease in Oil Pumps??? Tech Tip from Melling Engine Parts

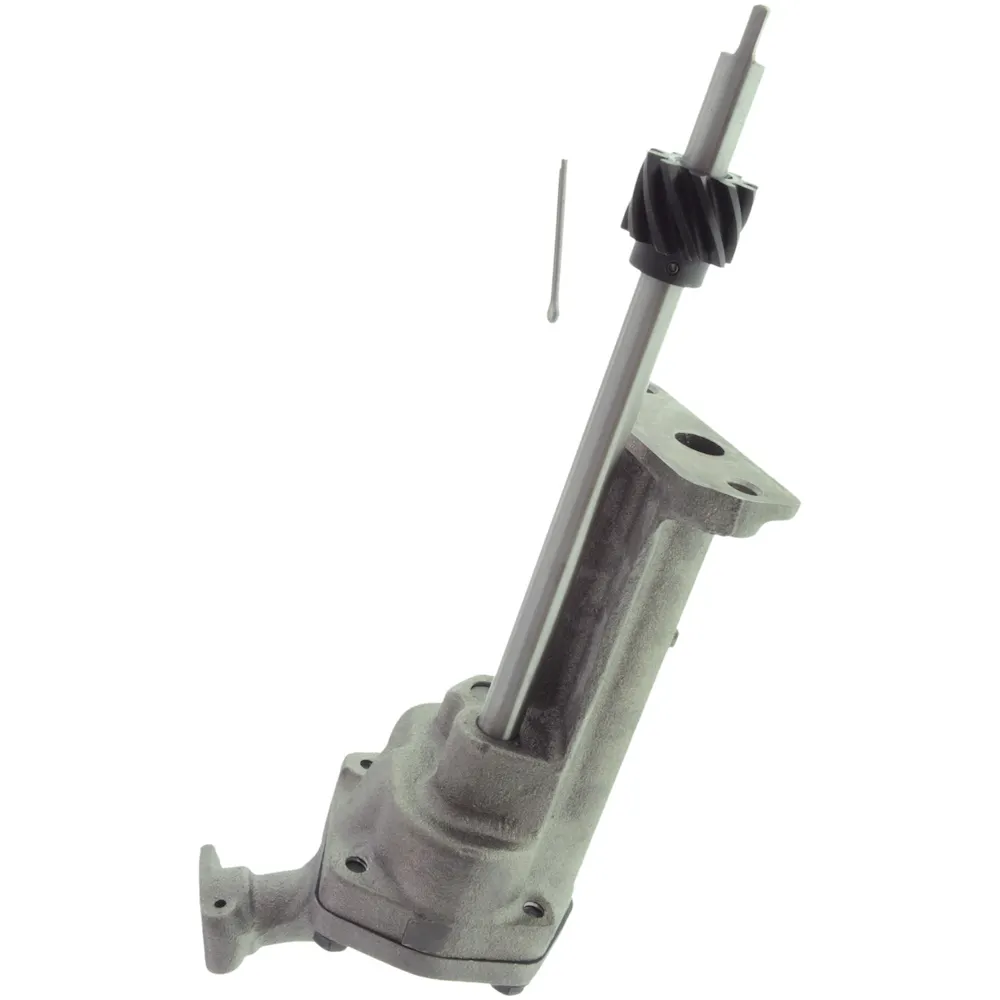

Melling Engine Parts / Melling Tool Co. M-28E
