Melling Engine Parts / Melling Tool Co. · 55-S1
Part #: 55-S1
UPC: 729295110347
Loading...
Notify me when this item is in stock.

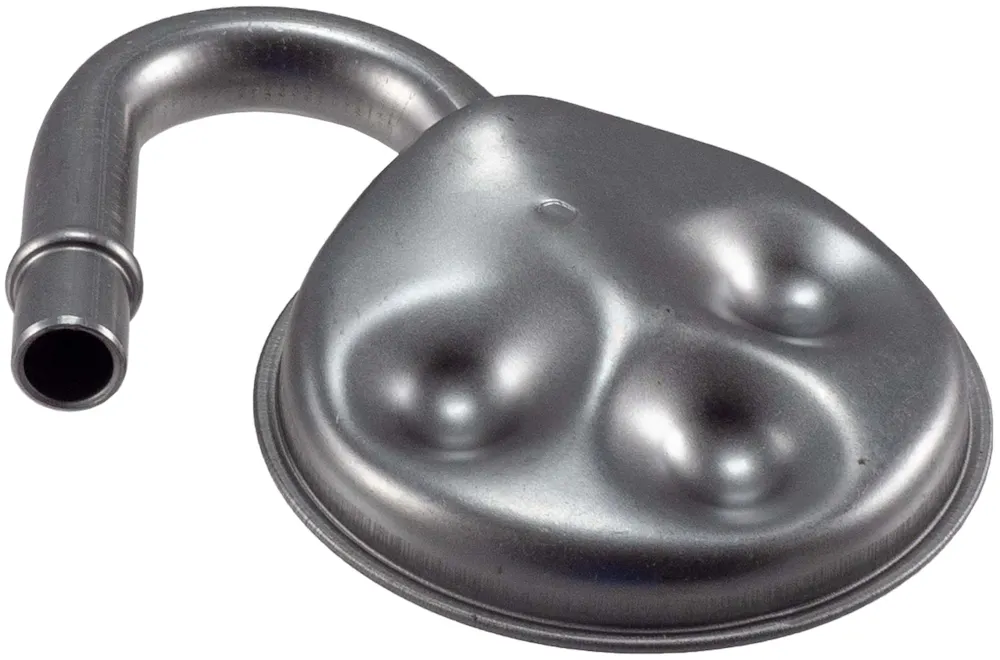

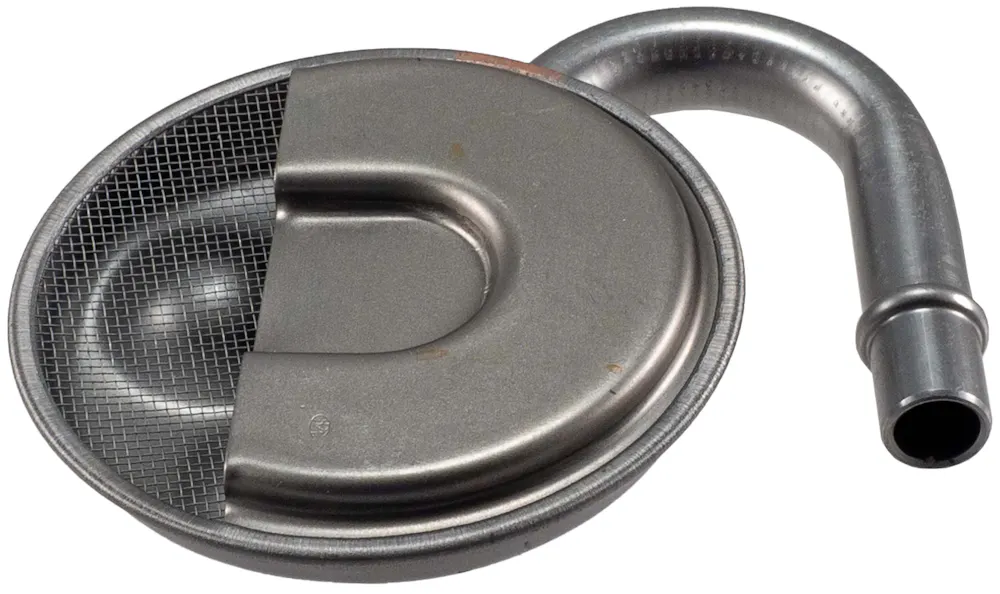

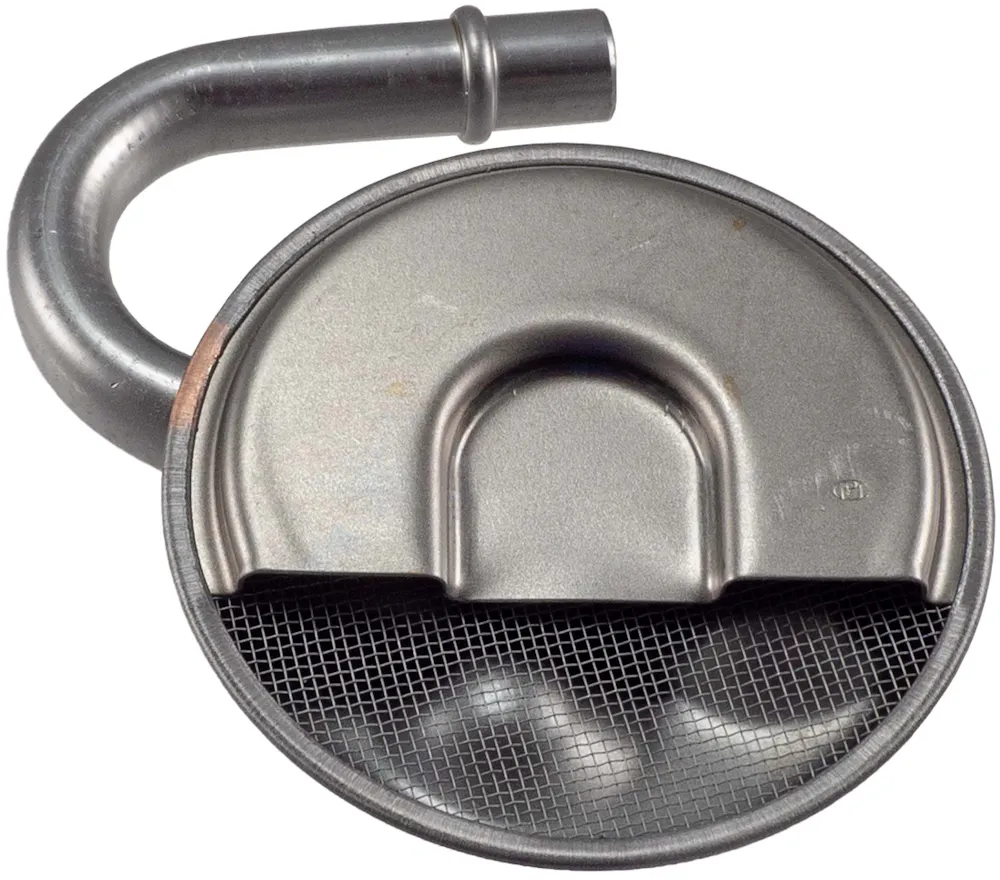

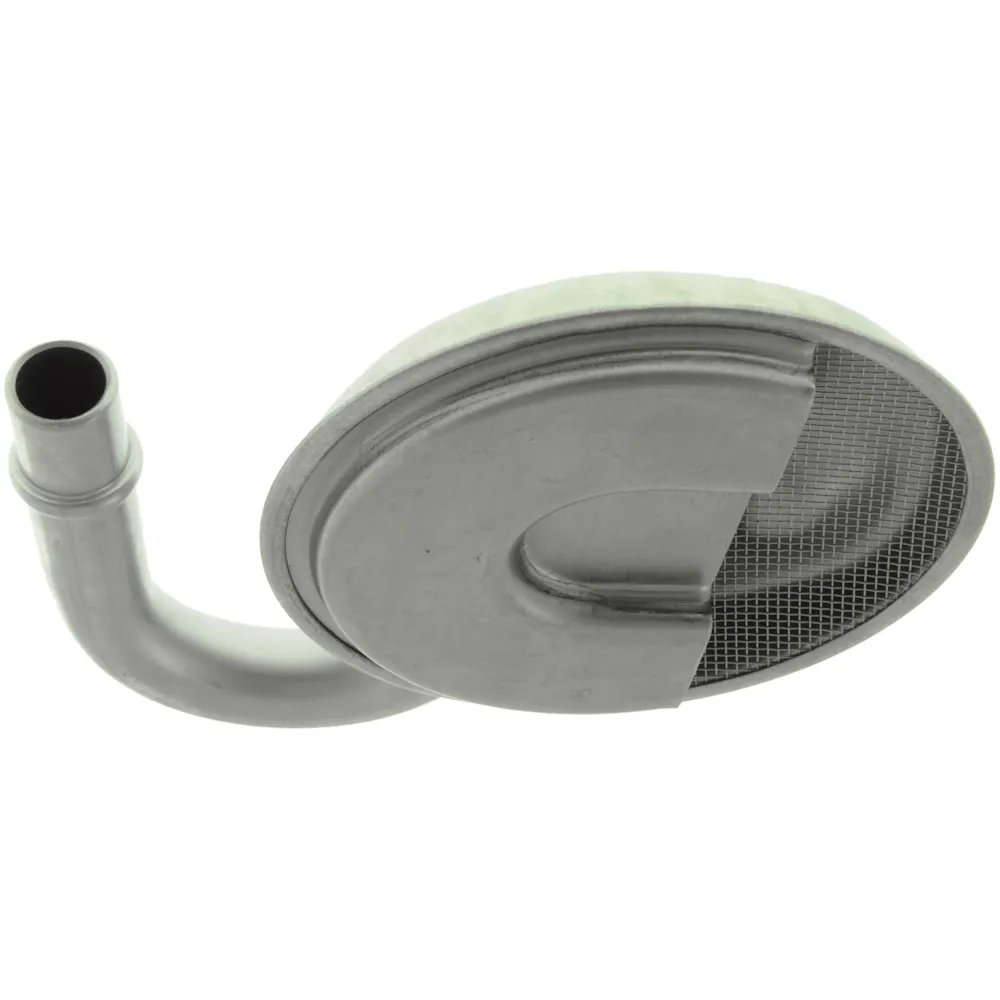

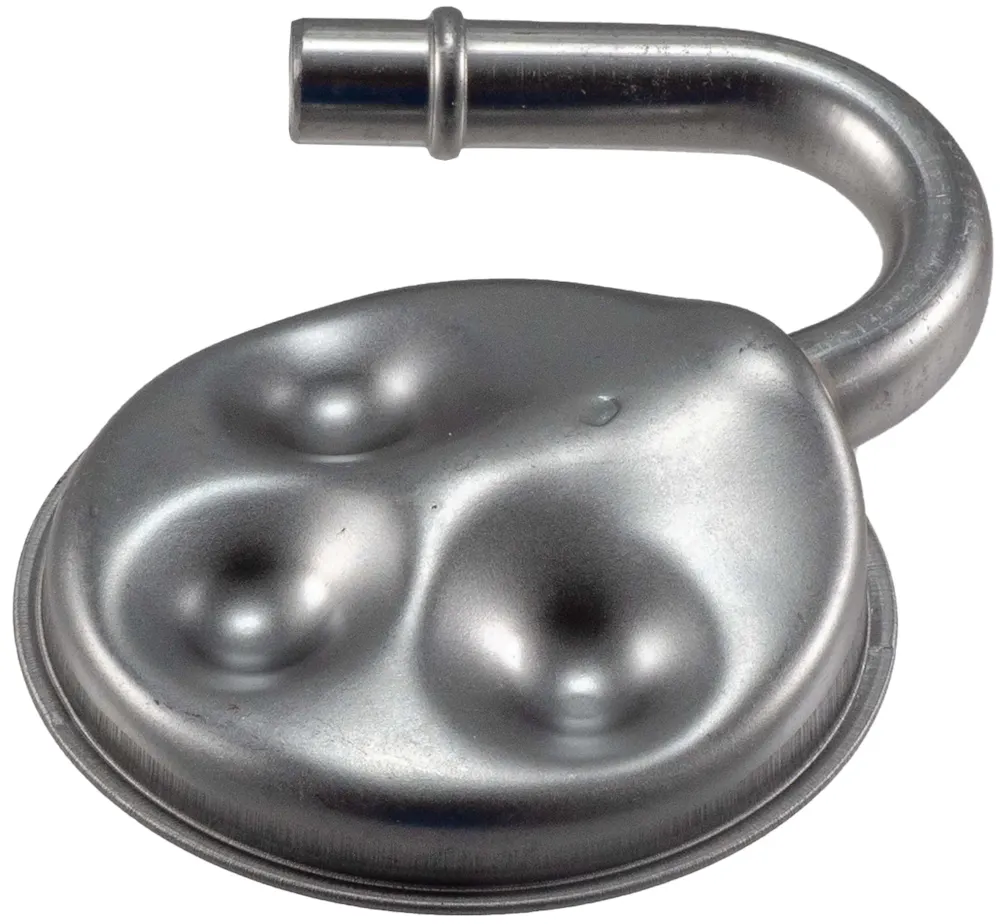

Description: Stock Replacement Oil Pump Screen
Description:
Description
Made In USA. A new Melling pick-up tube/oil screen assembly provides the lubrication oil as well as protection for your oil pump from materials that find their way into the engine oil supply system. Contaminates enter your oil system via engine wear, extended time between oil changes and other internal engine sources. These contaminates can interfere with the proper oil flow and pressure spring functions resulting in engine damage and/or failure. Melling suggests that a new properly installed oil pump pick-up tube/screen be a part of every oil pump installation. Several Melling oil pump applications are offered with an oil screen included.
Features & benefits
- Designed for long-life and worry-free performance
- Meets or exceeds original equipment specifications
- Precision engineering protects the engine from dirt and contaminants
- Manufactured from high quality durable materials for long wear
Application summary
| Year | Make / model |
|---|---|
| 1977-1981 | Buick Century |
| 1991-1994 | Buick Commercial Chassis |
| 1978 | Buick LeSabre |
| 1982 | Buick LeSabre |
| 1977-1987 | Buick Regal |
| 1991-1994 | Buick Roadmaster |
| 1977-1979 | Buick Skylark |
| 1990-1992 | Cadillac Brougham |
| 1992-1994 | Cadillac Commercial Chassis |
| 1993-1994 | Cadillac Fleetwood |
| 1965-1975 | Chevrolet Bel Air |
| 1981 | Chevrolet Bel Air |
| 1965-1972 | Chevrolet Biscayne |
| 1971-1974 | Chevrolet Blazer |
| 1987-1994 | Chevrolet Blazer |
| 1969-1972 | Chevrolet Brookwood |
| 1975-1986 | Chevrolet C10 |
| 1965-1967 | Chevrolet C10 Pickup |
| 1971-1974 | Chevrolet C10 Pickup |
| 1967 | Chevrolet C10 Suburban |
| 1971-1986 | Chevrolet C10 Suburban |
| 1988-1994 | Chevrolet C1500 |
| 1992 | Chevrolet C1500 Suburban |
| 1975-1986 | Chevrolet C20 |
| 1965-1967 | Chevrolet C20 Pickup |
| 1971-1974 | Chevrolet C20 Pickup |
| 1967 | Chevrolet C20 Suburban |
| 1971-1986 | Chevrolet C20 Suburban |
| 1988-1994 | Chevrolet C2500 |
| 1975-1986 | Chevrolet C30 |
| 1965-1967 | Chevrolet C30 Pickup |
| 1971-1974 | Chevrolet C30 Pickup |
| 1988 | Chevrolet C3500 |
| 1993-1994 | Chevrolet C3500 |
| 1967-1994 | Chevrolet Camaro |
| 1966-1994 | Chevrolet Caprice |
| 1965-1973 | Chevrolet Chevelle |
| 1968 | Chevrolet Chevy II |
| 1991-1994 | Chevrolet Commercial Chassis |
| 1976-1979 | Chevrolet Corvette |
| 1965-1967 | Chevrolet El Camino |
| 1970-1987 | Chevrolet El Camino |
| 1969-1970 | Chevrolet Estate |
| 1975-1994 | Chevrolet G10 |
| 1971-1974 | Chevrolet G10 Van |
| 1975-1994 | Chevrolet G20 |
| 1967 | Chevrolet G20 Van |
| 1971-1974 | Chevrolet G20 Van |
| 1975-1988 | Chevrolet G30 |
| 1971-1974 | Chevrolet G30 Van |
| 1965-1985 | Chevrolet Impala |
| 1994 | Chevrolet Impala |
| 1975-1986 | Chevrolet K10 |
| 1965-1967 | Chevrolet K10 Pickup |
| 1973-1974 | Chevrolet K10 Pickup |
| 1967 | Chevrolet K10 Suburban |
| 1973-1986 | Chevrolet K10 Suburban |
| 1988-1994 | Chevrolet K1500 |
| 1992-1994 | Chevrolet K1500 Suburban |
| 1975-1986 | Chevrolet K20 |
| 1967 | Chevrolet K20 Panel |
| 1965-1967 | Chevrolet K20 Pickup |
| 1973-1974 | Chevrolet K20 Pickup |
| 1967 | Chevrolet K20 Suburban |
| 1973-1986 | Chevrolet K20 Suburban |
| 1988-1994 | Chevrolet K2500 |
| 1992-1994 | Chevrolet K2500 Suburban |
| 1977-1986 | Chevrolet K30 |
| 1973-1974 | Chevrolet K30 Pickup |
Specifications
- GTIN
- 00729295110347
- Weight
- 0.6 lb
- Height
- 2.5 in
- Length
- 5.5 in
- Width
- 5.25 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- MEL
- Warehouse brand code
- BCBC
- AAIA brand code
- BCBC
Attributes
- California Proposition 65
- No
- Flanged End
- No
- Gasket Or Seal Included
- No
- Grade Type
- Standard Replacement
- Mounting Hardware Included
- No
- Screen Face Diameter
- 4.07
- Screen Material
- Galvanized Steel
- Title
- Engine Oil Pump Pickup Tube And Screen
- Tube Inside Diameter
- 0.5
- Tube Length
- 0.75
- Tube Material
- Galvanized Steel
- Tube Shape
- Straight
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1977-1981 Buick Century; 1991-1994 Buick Commercial Chassis; 1978 Buick LeSabre; 1982 Buick LeSabre; 1977-1987 Buick Regal; 1991-1994 Buick Roadmaster; 1977-1979 Buick Skylark; 1990-1992 Cadillac Brougham; 1992-1994 Cadillac Commercial Chassis; 1993-1994 Cadillac Fleetwood; 1965-1975 Chevrolet Bel Air; 1981 Chevrolet Bel Air; 1965-1972 Chevrolet Biscayne; 1971-1974 Chevrolet Blazer; 1987-1994 Chevrolet Blazer; 1969-1972 Chevrolet Brookwood; 1975-1986 Chevrolet C10; 1965-1967 Chevrolet C10 Pickup; 1971-1974 Chevrolet C10 Pickup; 1967 Chevrolet C10 Suburban; 1971-1986 Chevrolet C10 Suburban; 1988-1994 Chevrolet C1500; 1992 Chevrolet C1500 Suburban; 1975-1986 Chevrolet C20; 1965-1967 Chevrolet C20 Pickup; 1971-1974 Chevrolet C20 Pickup; 1967 Chevrolet C20 Suburban; 1971-1986 Chevrolet C20 Suburban; 1988-1994 Chevrolet C2500; 1975-1986 Chevrolet C30; 1965-1967 Chevrolet C30 Pickup; 1971-1974 Chevrolet C30 Pickup; 1988 Chevrolet C3500; 1993-1994 Chevrolet C3500; 1967-1994 Chevrolet Camaro; 1966-1994 Chevrolet Caprice; 1965-1973 Chevrolet Chevelle; 1968 Chevrolet Chevy II; 1991-1994 Chevrolet Commercial Chassis; 1976-1979 Chevrolet Corvette; 1965-1967 Chevrolet El Camino; 1970-1987 Chevrolet El Camino; 1969-1970 Chevrolet Estate; 1975-1994 Chevrolet G10; 1971-1974 Chevrolet G10 Van; 1975-1994 Chevrolet G20; 1967 Chevrolet G20 Van; 1971-1974 Chevrolet G20 Van; 1975-1988 Chevrolet G30; 1971-1974 Chevrolet G30 Van; 1965-1985 Chevrolet Impala; 1994 Chevrolet Impala; 1975-1986 Chevrolet K10; 1965-1967 Chevrolet K10 Pickup; 1973-1974 Chevrolet K10 Pickup; 1967 Chevrolet K10 Suburban; 1973-1986 Chevrolet K10 Suburban; 1988-1994 Chevrolet K1500; 1992-1994 Chevrolet K1500 Suburban; 1975-1986 Chevrolet K20; 1967 Chevrolet K20 Panel; 1965-1967 Chevrolet K20 Pickup; 1973-1974 Chevrolet K20 Pickup; 1967 Chevrolet K20 Suburban; 1973-1986 Chevrolet K20 Suburban; 1988-1994 Chevrolet K2500; 1992-1994 Chevrolet K2500 Suburban; 1977-1986 Chevrolet K30; 1973-1974 Chevrolet K30 Pickup; ...
