Melling Engine Parts / Melling Tool Co. · 54-DS
Part #: 54-DS
UPC: 729295110316
Log in for inventory
Notify me when this item is in stock.

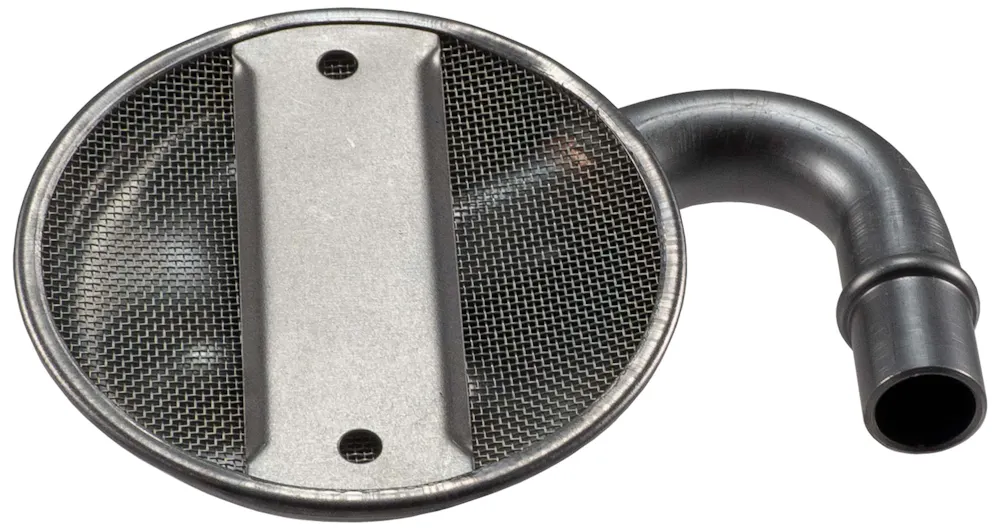

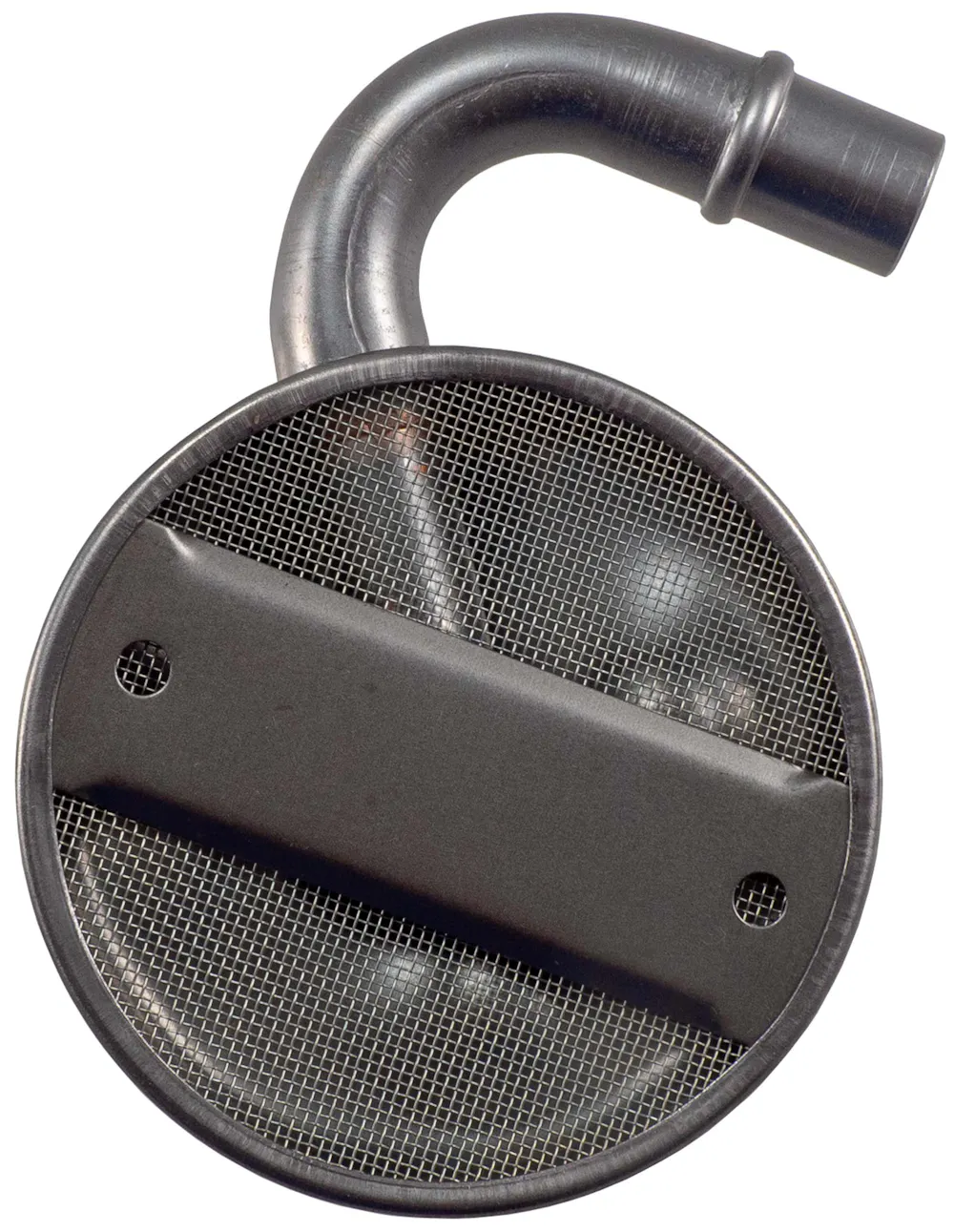

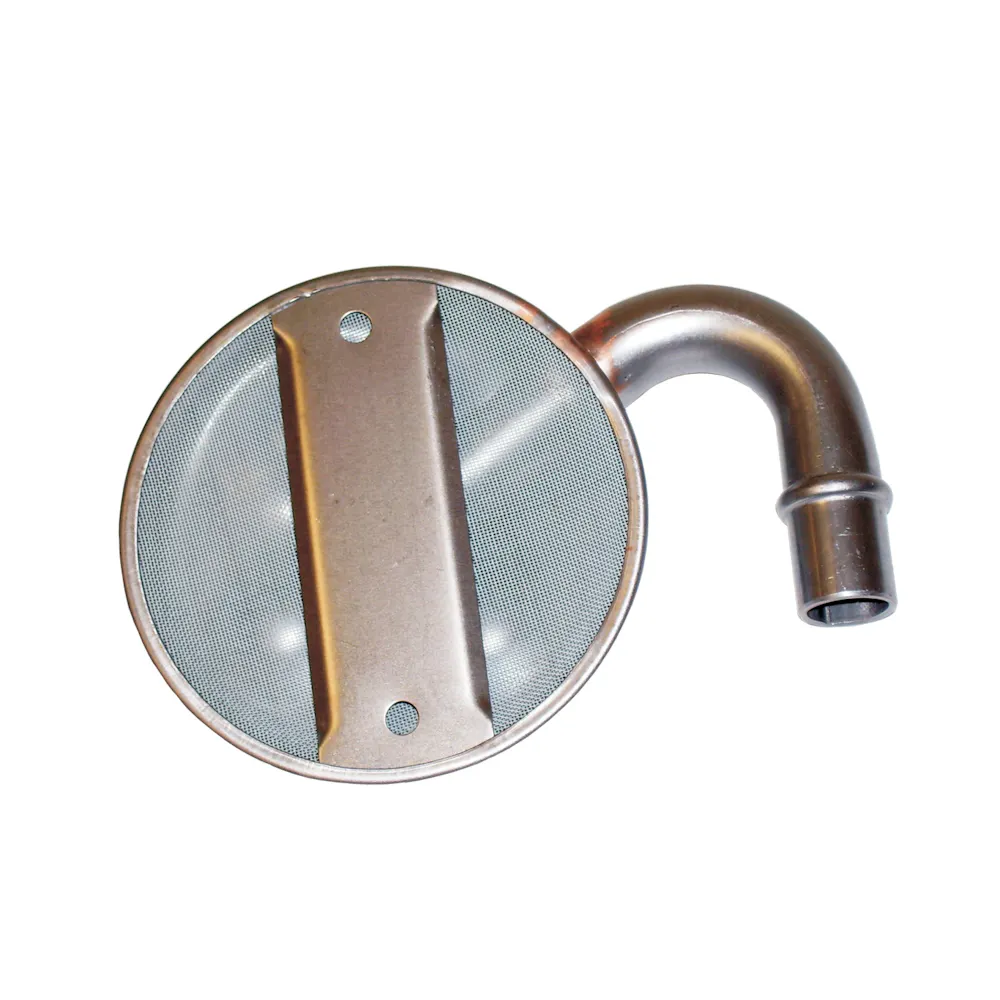

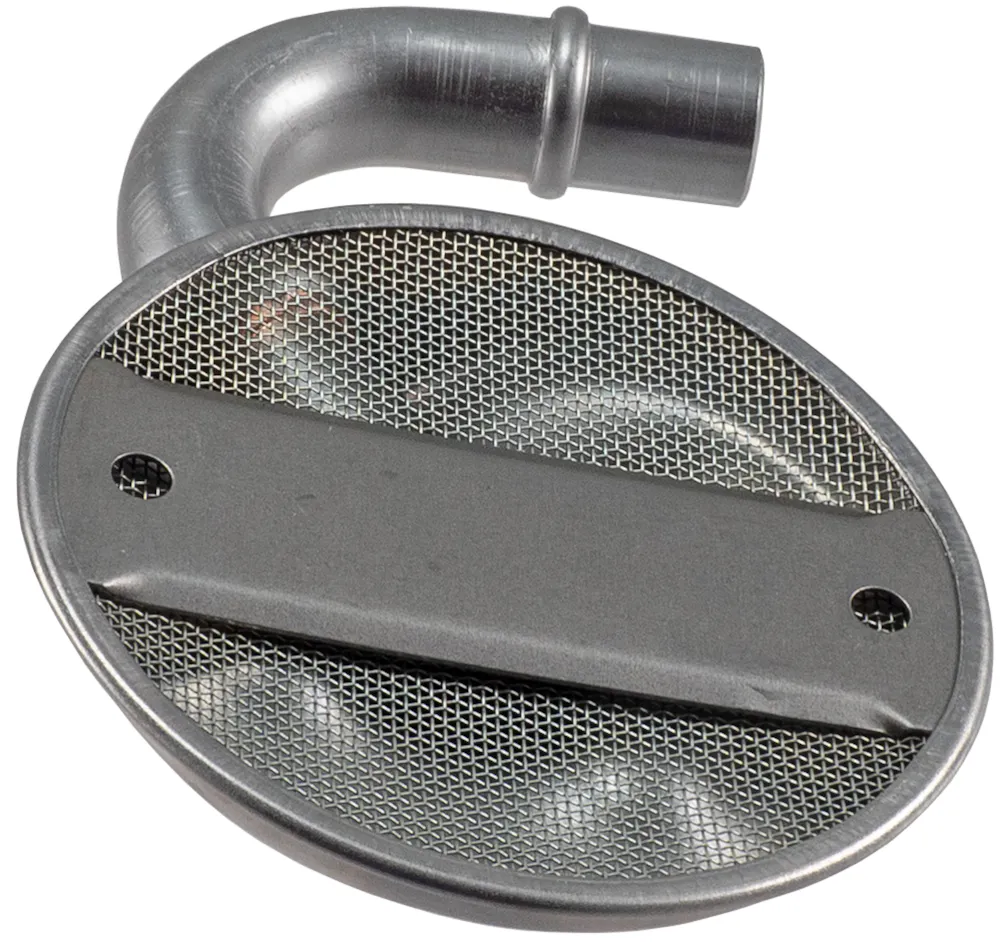

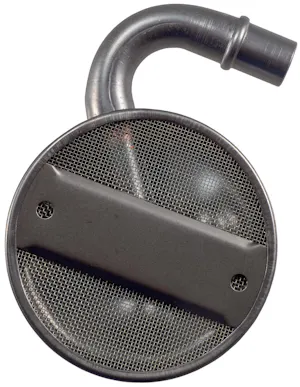

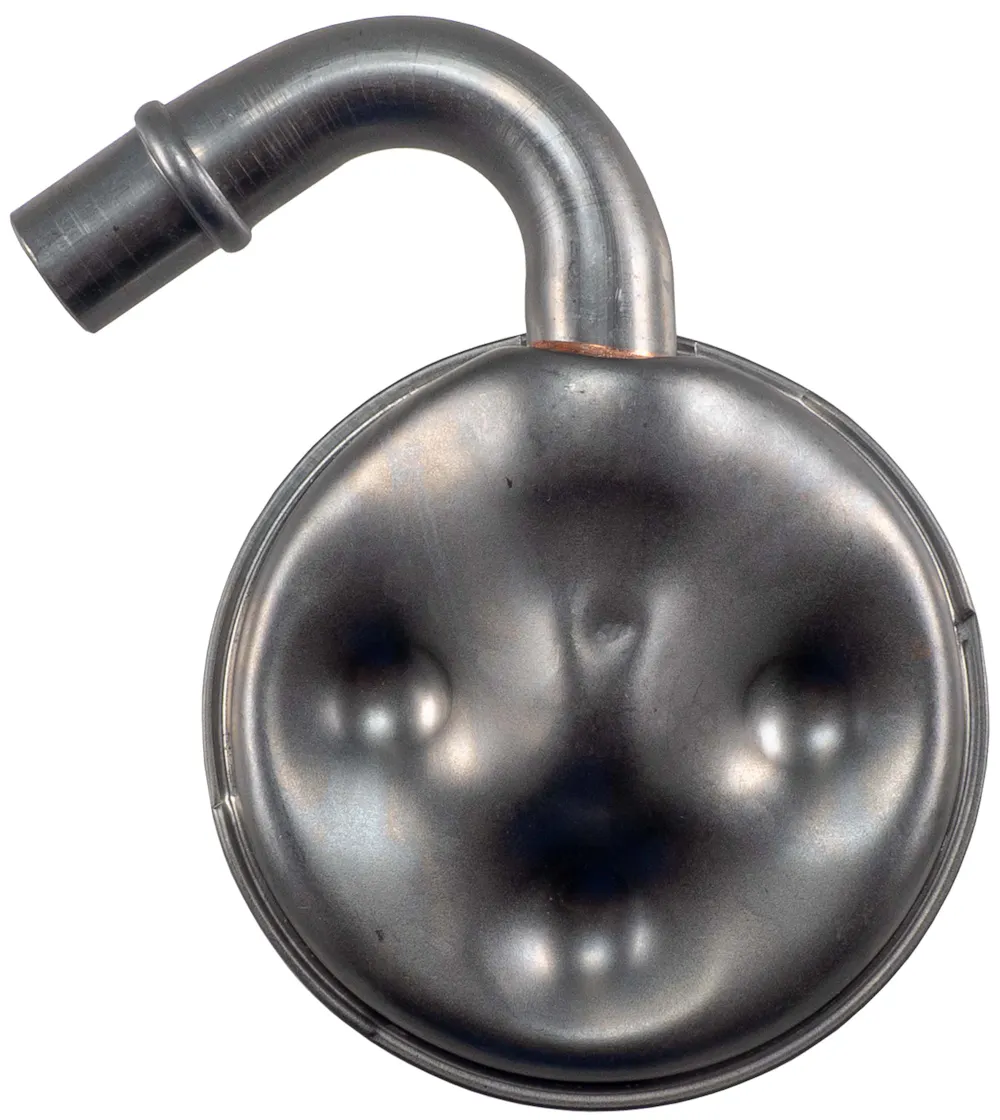

Description: Stock Replacement Oil Pump Screen
Description:
Description
Made In USA. A new Melling pick-up tube/oil screen assembly provides the lubrication oil as well as protection for your oil pump from materials that find their way into the engine oil supply system. Contaminates enter your oil system via engine wear, extended time between oil changes and other internal engine sources. These contaminates can interfere with the proper oil flow and pressure spring functions resulting in engine damage and/or failure. Melling suggests that a new properly installed oil pump pick-up tube/screen be a part of every oil pump installation. Several Melling oil pump applications are offered with an oil screen included.
Features & benefits
- Designed for long-life and worry-free performance
- Meets or exceeds original equipment specifications
- Precision engineering protects the engine from dirt and contaminants
- Manufactured from high quality durable materials for long wear
Application summary
| Year | Make / model |
|---|---|
| 1979-1981 | Buick Century |
| 1980 | Buick Electra |
| 1980 | Buick Estate Wagon |
| 1977-1980 | Buick LeSabre |
| 1979-1981 | Buick Regal |
| 1977 | Buick Skylark |
| 1975 | Oldsmobile 98 |
| 1975 | Oldsmobile Custom Cruiser |
| 1975 | Oldsmobile Delta 88 |
| 1979 | Oldsmobile Delta 88 |
| 1968-1971 | Pontiac Acadian |
| 1968-1969 | Pontiac Beaumont |
| 1959-1981 | Pontiac Bonneville |
| 1959-1981 | Pontiac Catalina |
| 1967-1970 | Pontiac Executive |
| 1967-1981 | Pontiac Firebird |
| 1973-1975 | Pontiac Grand Am |
| 1978-1980 | Pontiac Grand Am |
| 1975-1977 | Pontiac Grand LeMans |
| 1979-1981 | Pontiac Grand LeMans |
| 1962-1981 | Pontiac Grand Prix |
| 1971-1978 | Pontiac Grand Safari |
| 1971-1975 | Pontiac Grandville |
| 1964-1973 | Pontiac GTO |
| 1967-1974 | Pontiac Laurentian |
| 1976-1977 | Pontiac Laurentian |
| 1963-1977 | Pontiac LeMans |
| 1979-1981 | Pontiac LeMans |
| 1967-1974 | Pontiac Parisienne |
| 1976-1977 | Pontiac Parisienne |
| 1959-1966 | Pontiac Star Chief |
| 1969-1970 | Pontiac Strato-Chief |
| 1961-1970 | Pontiac Tempest |
| 1960-1961 | Pontiac Ventura |
| 1971-1975 | Pontiac Ventura |
| 1977 | Pontiac Ventura |
Specifications
- GTIN
- 00729295110316
- Weight
- 0.55 lb
- Height
- 2.25 in
- Length
- 7.25 in
- Width
- 7 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- MEL
- Warehouse brand code
- BCBC
- AAIA brand code
- BCBC
Attributes
- California Proposition 65
- No
- Flanged End
- No
- Gasket Or Seal Included
- No
- Grade Type
- Standard Replacement
- Mounting Hardware Included
- No
- Screen Face Diameter
- 4.06
- Screen Material
- Galvanized Steel
- Title
- Engine Oil Pump Pickup Tube And Screen
- Tube Inside Diameter
- 0.6
- Tube Length
- 0.25
- Tube Material
- Galvanized Steel
- Tube Shape
- Straight
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1979-1981 Buick Century; 1980 Buick Electra; 1980 Buick Estate Wagon; 1977-1980 Buick LeSabre; 1979-1981 Buick Regal; 1977 Buick Skylark; 1975 Oldsmobile 98; 1975 Oldsmobile Custom Cruiser; 1975 Oldsmobile Delta 88; 1979 Oldsmobile Delta 88; 1968-1971 Pontiac Acadian; 1968-1969 Pontiac Beaumont; 1959-1981 Pontiac Bonneville; 1959-1981 Pontiac Catalina; 1967-1970 Pontiac Executive; 1967-1981 Pontiac Firebird; 1973-1975 Pontiac Grand Am; 1978-1980 Pontiac Grand Am; 1975-1977 Pontiac Grand LeMans; 1979-1981 Pontiac Grand LeMans; 1962-1981 Pontiac Grand Prix; 1971-1978 Pontiac Grand Safari; 1971-1975 Pontiac Grandville; 1964-1973 Pontiac GTO; 1967-1974 Pontiac Laurentian; 1976-1977 Pontiac Laurentian; 1963-1977 Pontiac LeMans; 1979-1981 Pontiac LeMans; 1967-1974 Pontiac Parisienne; 1976-1977 Pontiac Parisienne; 1959-1966 Pontiac Star Chief; 1969-1970 Pontiac Strato-Chief; 1961-1970 Pontiac Tempest; 1960-1961 Pontiac Ventura; 1971-1975 Pontiac Ventura; 1977 Pontiac Ventura
