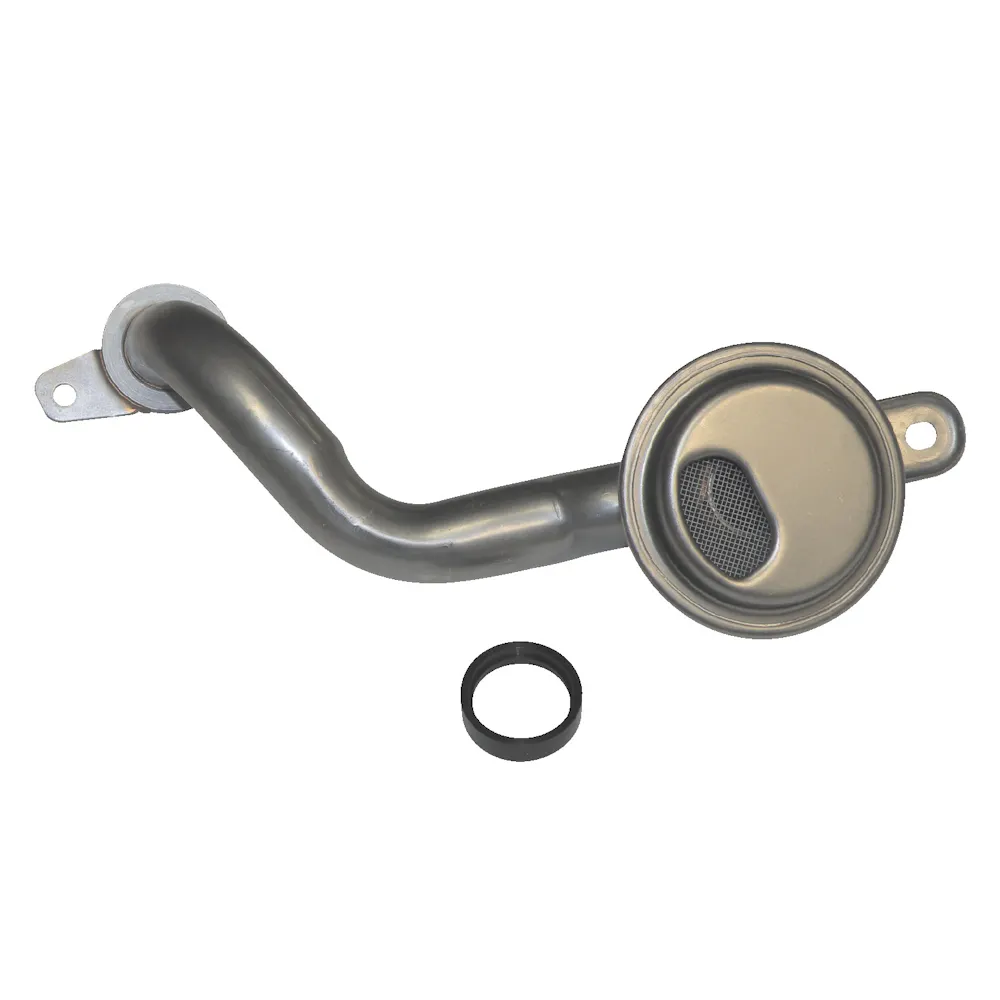

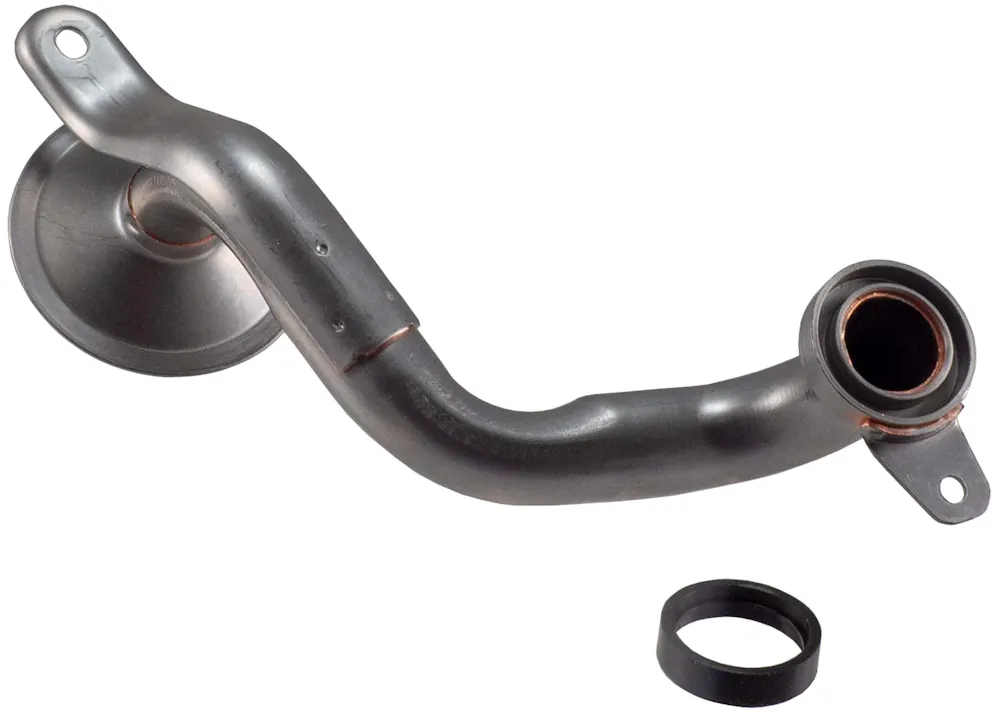

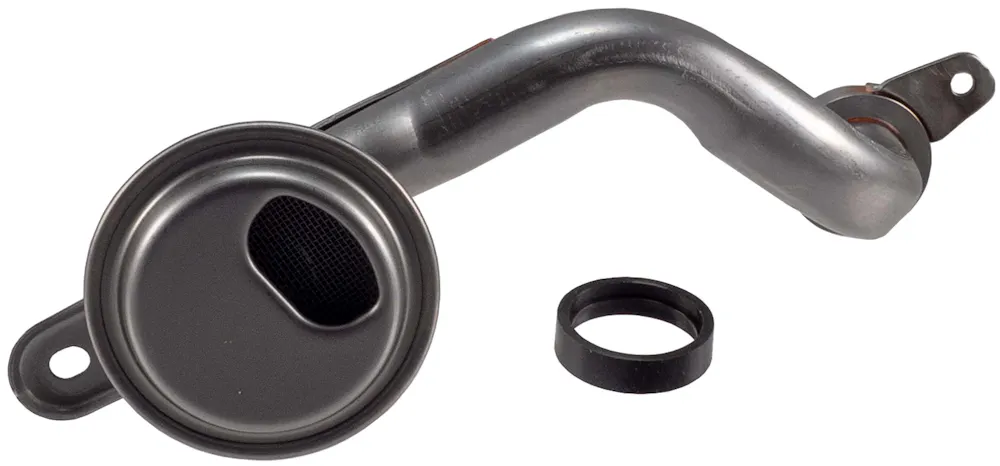

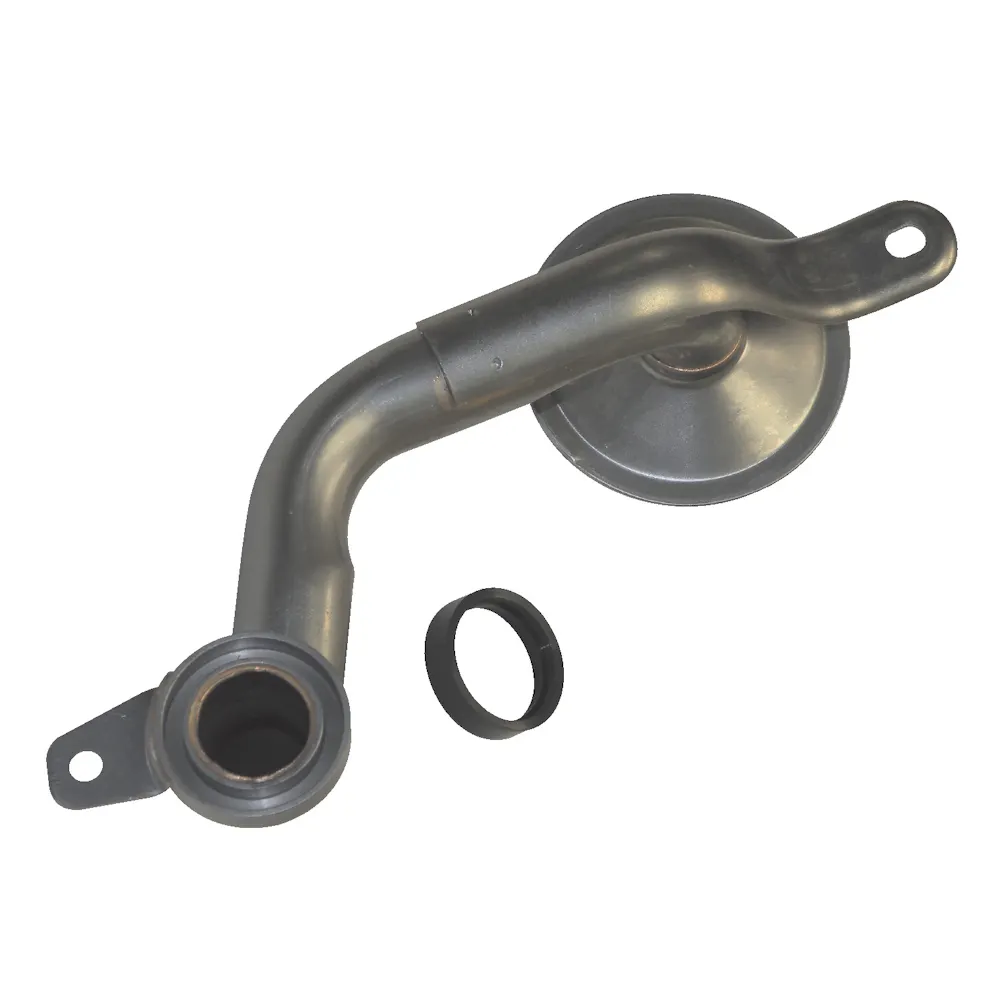

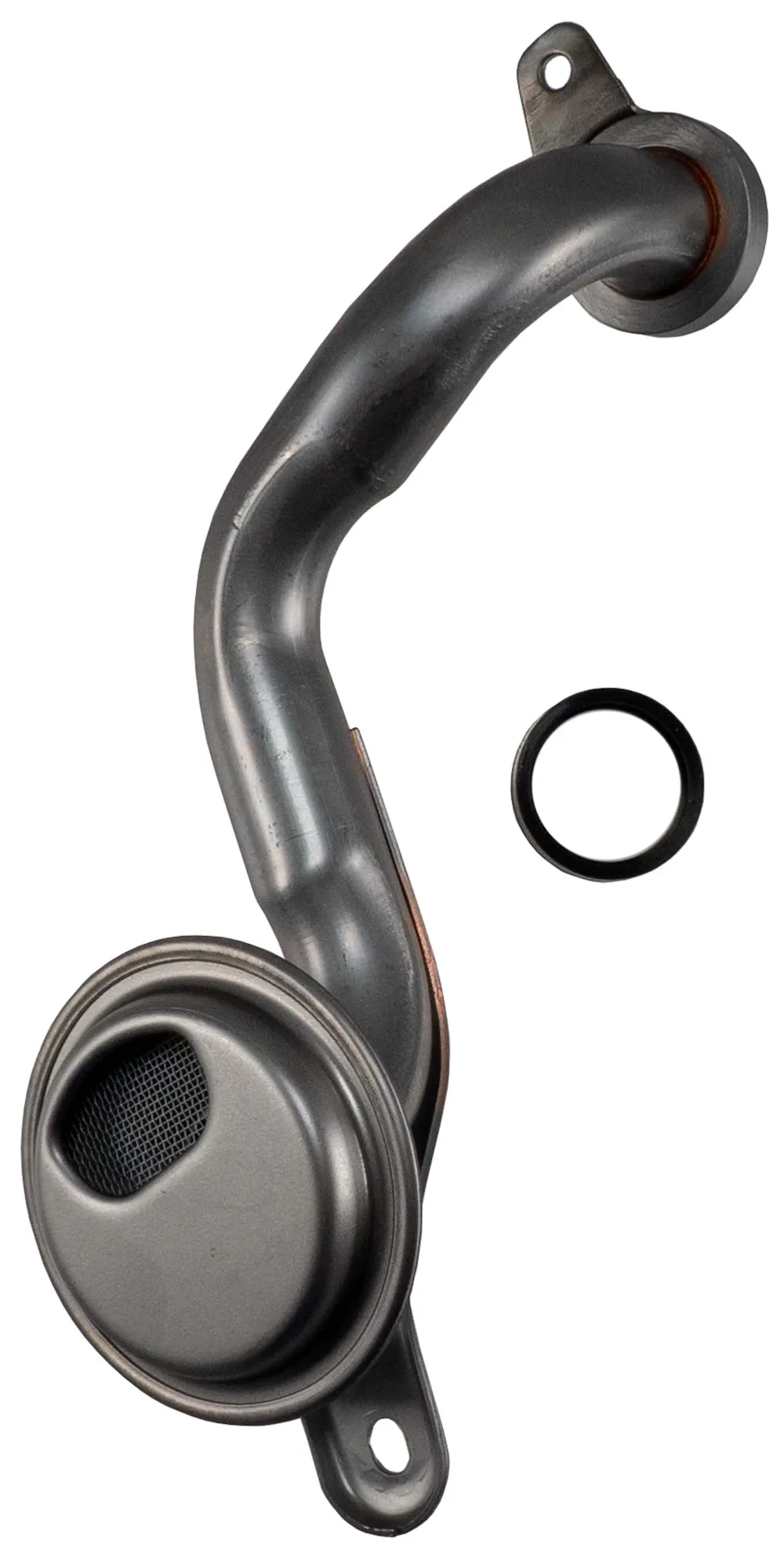

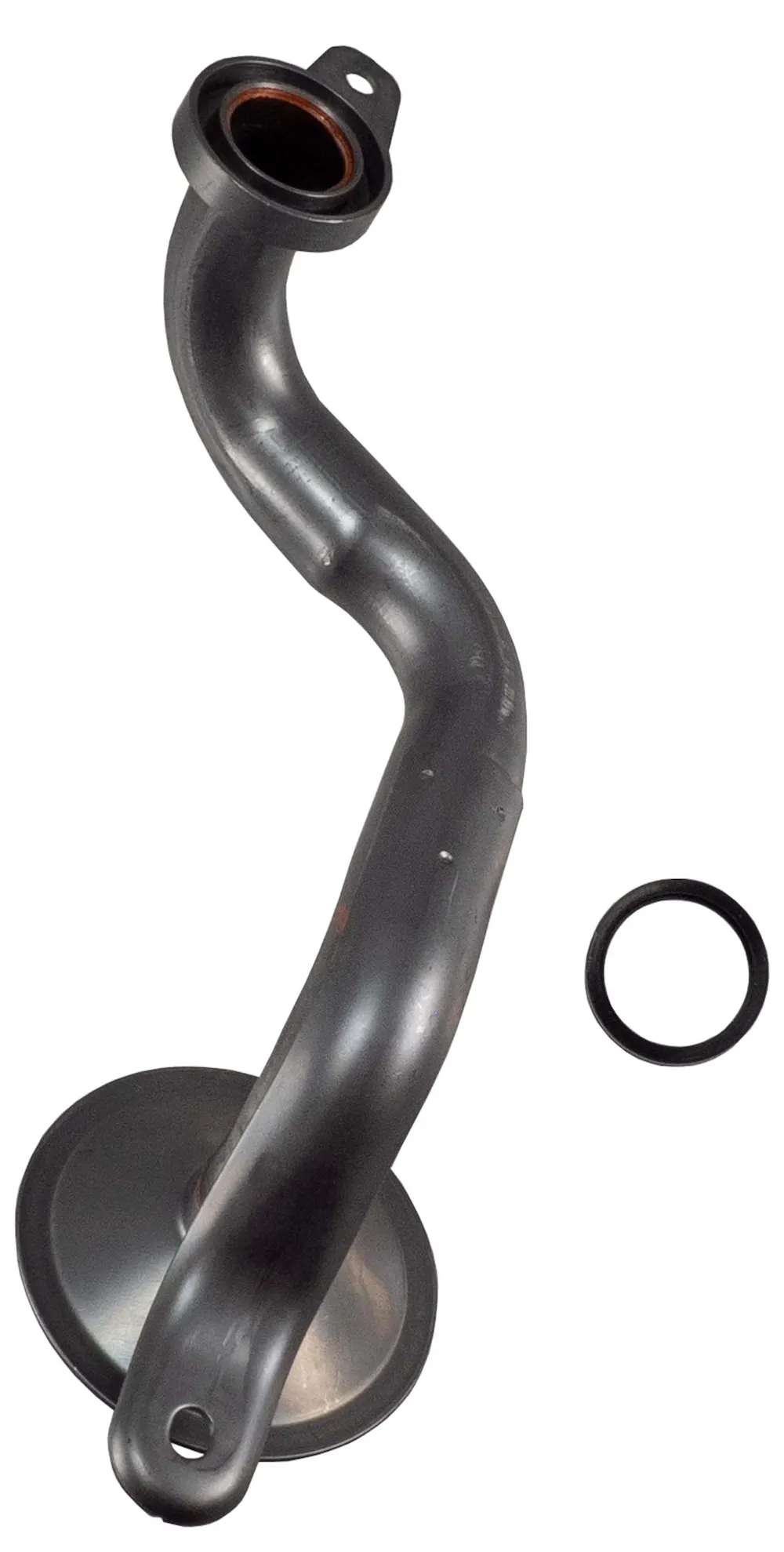

Melling Engine Parts / Melling Tool Co. / 368S
Part #: 368S
UPC: 729295113645
Loading...
Notify me when this item is in stock.
Description: Stock Replacement Oil Pump Screen
Description:
Description
Made In USA. A new Melling pick-up tube/oil screen assembly provides the lubrication oil as well as protection for your oil pump from materials that find their way into the engine oil supply system. Contaminates enter your oil system via engine wear, extended time between oil changes and other internal engine sources. These contaminates can interfere with the proper oil flow and pressure spring functions resulting in engine damage and/or failure. Melling suggests that a new properly installed oil pump pick-up tube/screen be a part of every oil pump installation. Several Melling oil pump applications are offered with an oil screen included.
Features & benefits
- Designed for long-life and worry-free performance
- Meets or exceeds original equipment specifications
- Precision engineering protects the engine from dirt and contaminants
- Manufactured from high quality durable materials for long wear
Application summary
| Year | Make / model |
|---|---|
| 2010 | Buick Allure |
| 2008-2017 | Buick Enclave |
| 2010-2016 | Buick LaCrosse |
| 2010-2016 | Cadillac SRX |
| 2013-2019 | Cadillac XTS |
| 2012 | Chevrolet Captiva Sport |
| 2008-2017 | Chevrolet Equinox |
| 2012-2020 | Chevrolet Impala |
| 2014-2016 | Chevrolet Impala Limited |
| 2008-2012 | Chevrolet Malibu |
| 2009-2017 | Chevrolet Traverse |
| 2007-2016 | GMC Acadia |
| 2017 | GMC Acadia Limited |
| 2010-2017 | GMC Terrain |
| 2007-2009 | Pontiac G6 |
| 2008-2009 | Pontiac Torrent |
| 2007-2009 | Saturn Aura |
| 2007-2010 | Saturn Outlook |
| 2008-2010 | Saturn Vue |
| 2007-2009 | Suzuki XL-7 |
Specifications
- GTIN
- 00729295113645
- Weight
- 1.12 lb
- Height
- 4.25 in
- Length
- 10.75 in
- Width
- 5 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- MEL
- Warehouse brand code
- BCBC
- AAIA brand code
- BCBC
Attributes
- California Proposition 65
- No
- Flange Mount Hole Quantity
- 1
- Flanged End
- Yes
- Gasket Or Seal Included
- Yes
- Grade Type
- Standard Replacement
- Mounting Hardware Included
- No
- Screen Face Diameter
- 3.14
- Screen Material
- Galvanized Steel
- Title
- Engine Oil Pump Pickup Tube and Screen
- Tube Inside Diameter
- 0.8
- Tube Length
- 4.85
- Tube Material
- Galvanized Steel
- Tube Shape
- Molded Assembly
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2010 Buick Allure; 2008-2017 Buick Enclave; 2010-2016 Buick LaCrosse; 2010-2016 Cadillac SRX; 2013-2019 Cadillac XTS; 2012 Chevrolet Captiva Sport; 2008-2017 Chevrolet Equinox; 2012-2020 Chevrolet Impala; 2014-2016 Chevrolet Impala Limited; 2008-2012 Chevrolet Malibu; 2009-2017 Chevrolet Traverse; 2007-2016 GMC Acadia; 2017 GMC Acadia Limited; 2010-2017 GMC Terrain; 2007-2009 Pontiac G6; 2008-2009 Pontiac Torrent; 2007-2009 Saturn Aura; 2007-2010 Saturn Outlook; 2008-2010 Saturn Vue; 2007-2009 Suzuki XL-7
Resources
- Brand logo
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Primary
- How to Measure the Health of your Engine - By Melling Engine Parts
- Melling Oil Pump Screen Installation Process
- Spanish Version Oil Pump Screen Installation Process by Melling
- Oil Pump Pickup Screen Replacement tips from Melling Engine Parts
- Why replace your Oil Pump Pickup Screen by Melling
