Melling Engine Parts / Melling Tool Co. · 258S
Part #: 258S
UPC: 729295111894
Loading...
Notify me when this item is in stock.

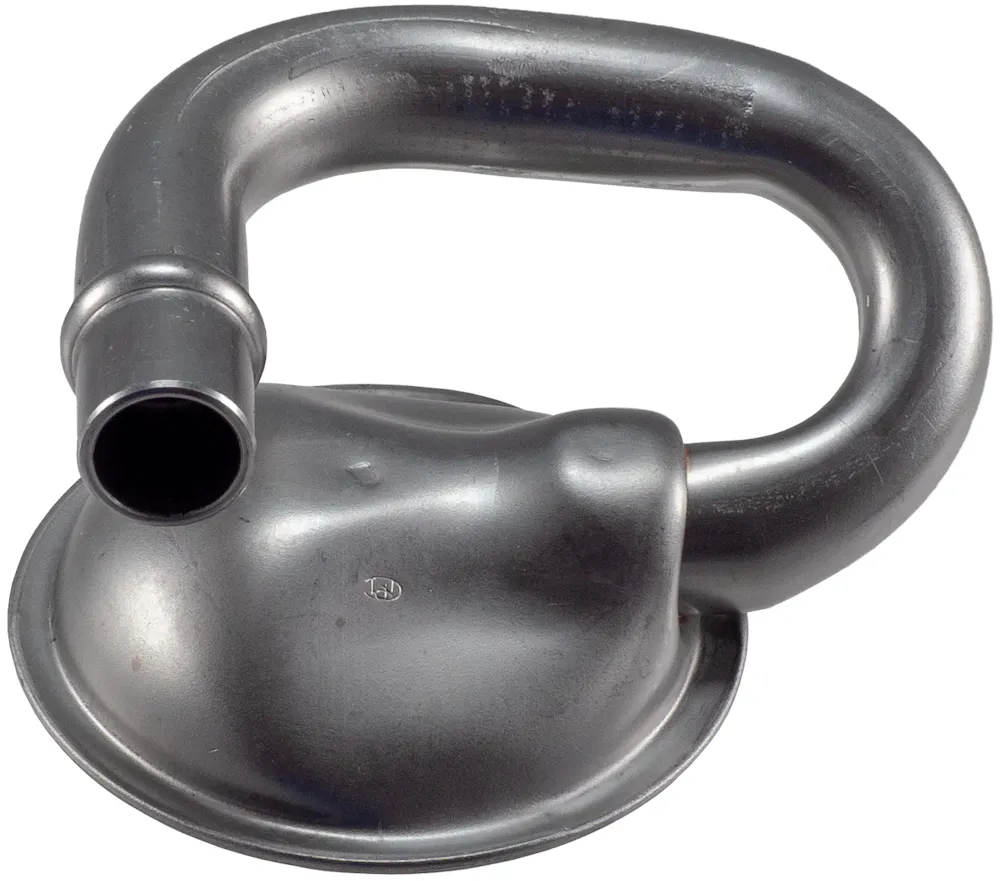

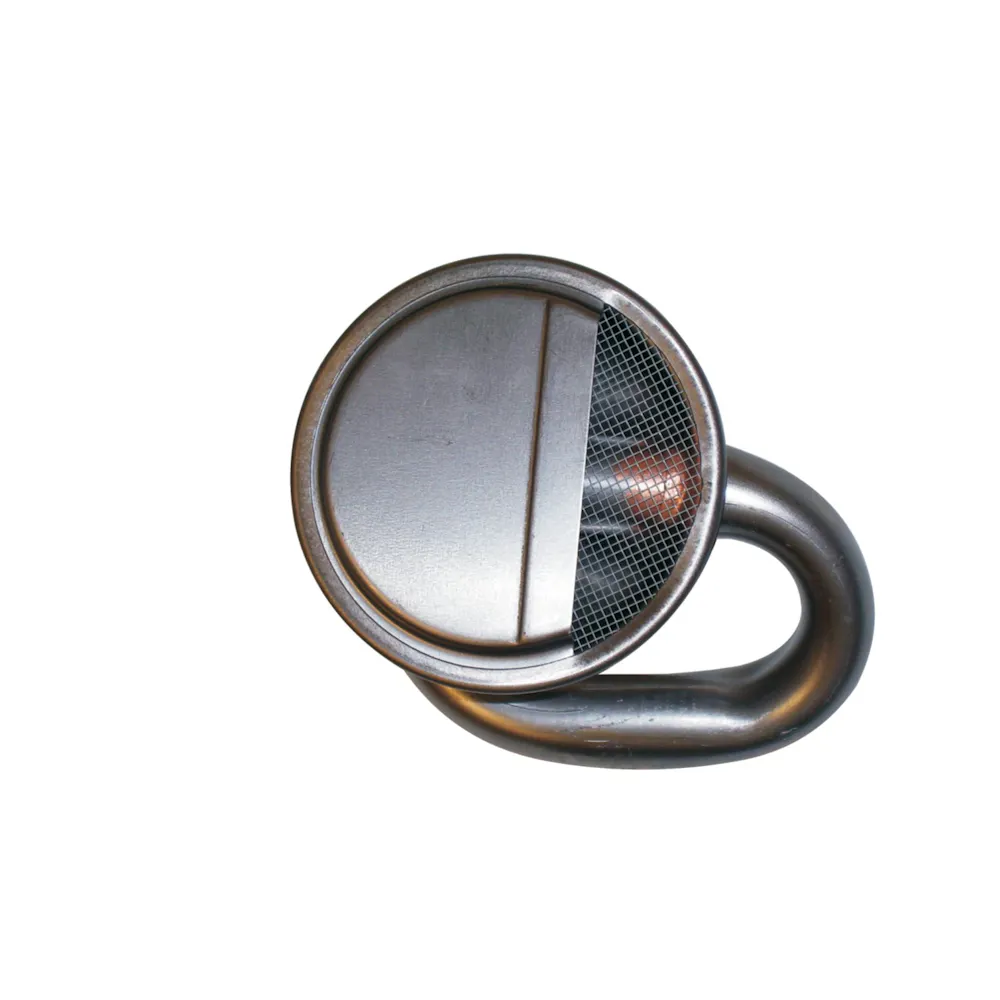

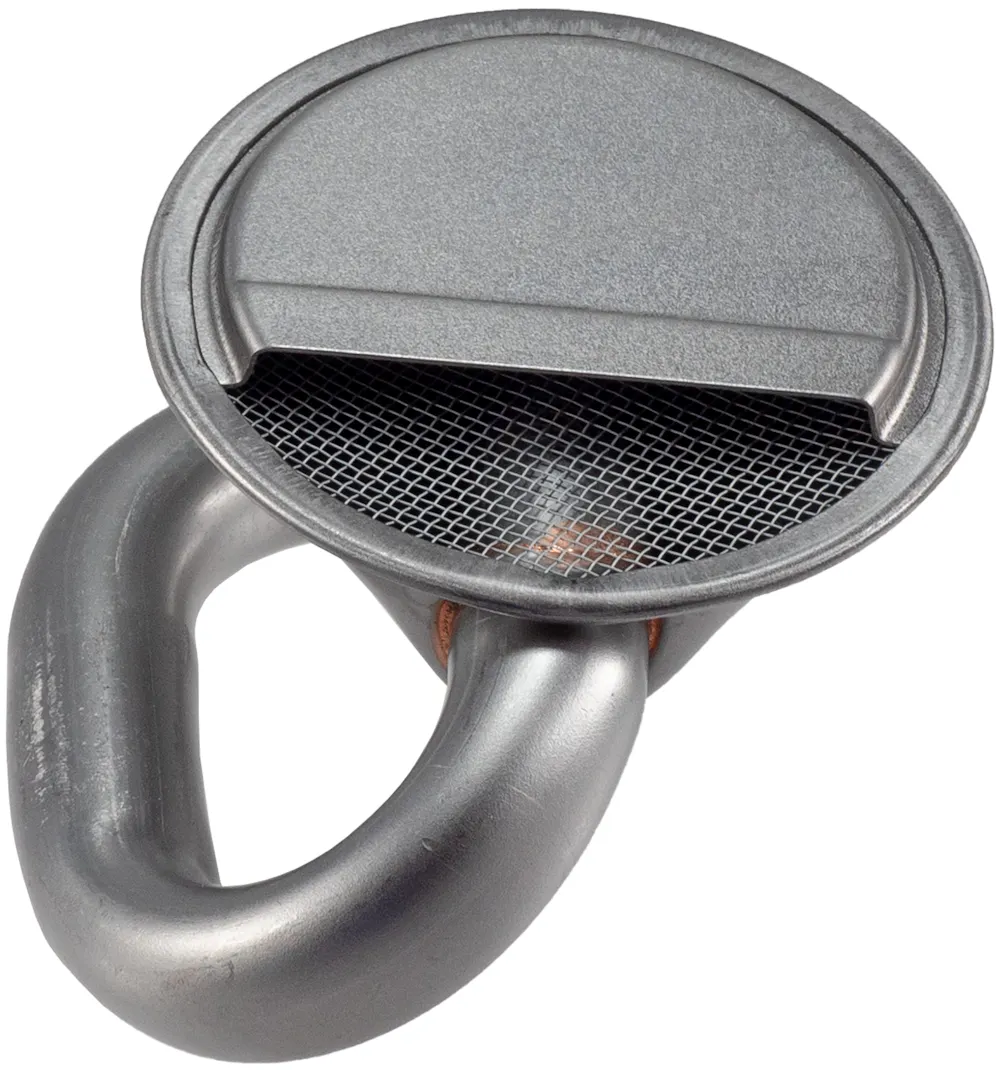

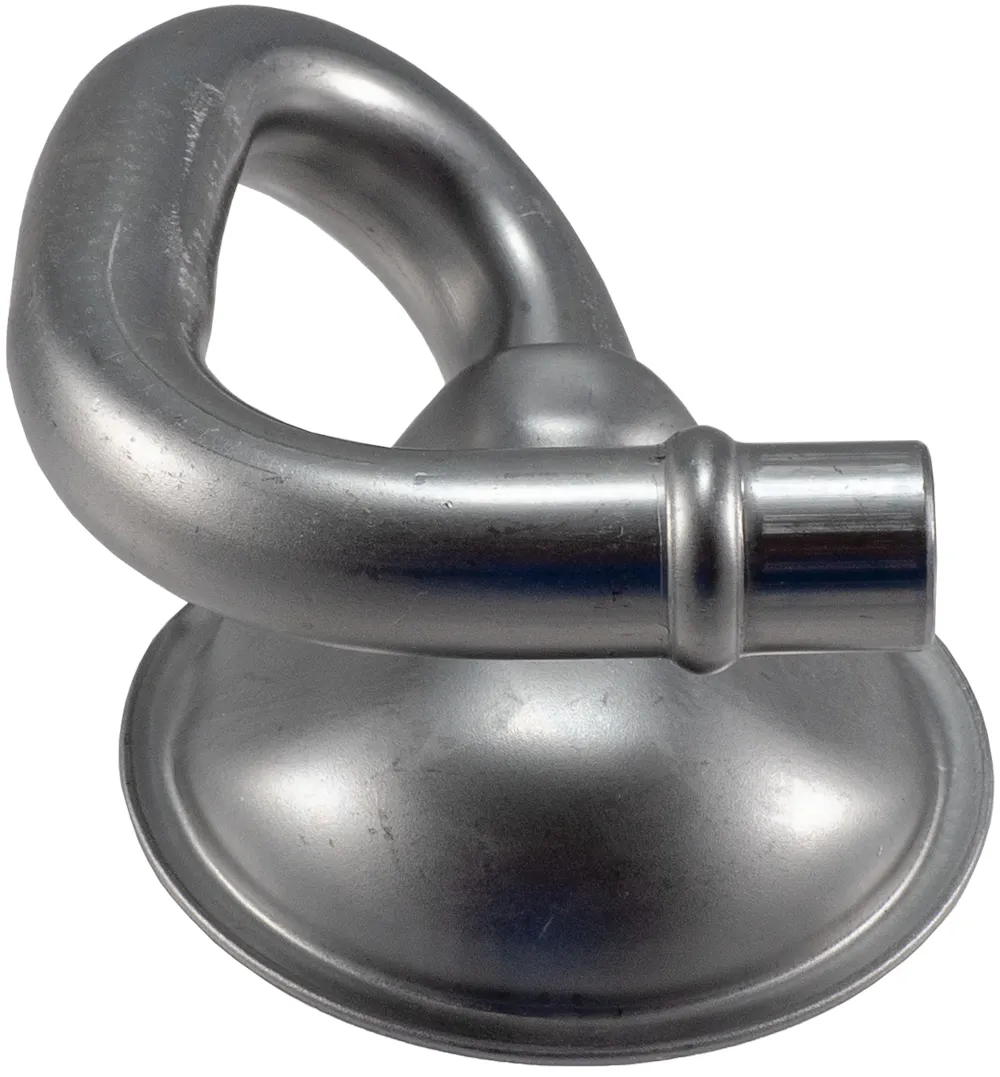

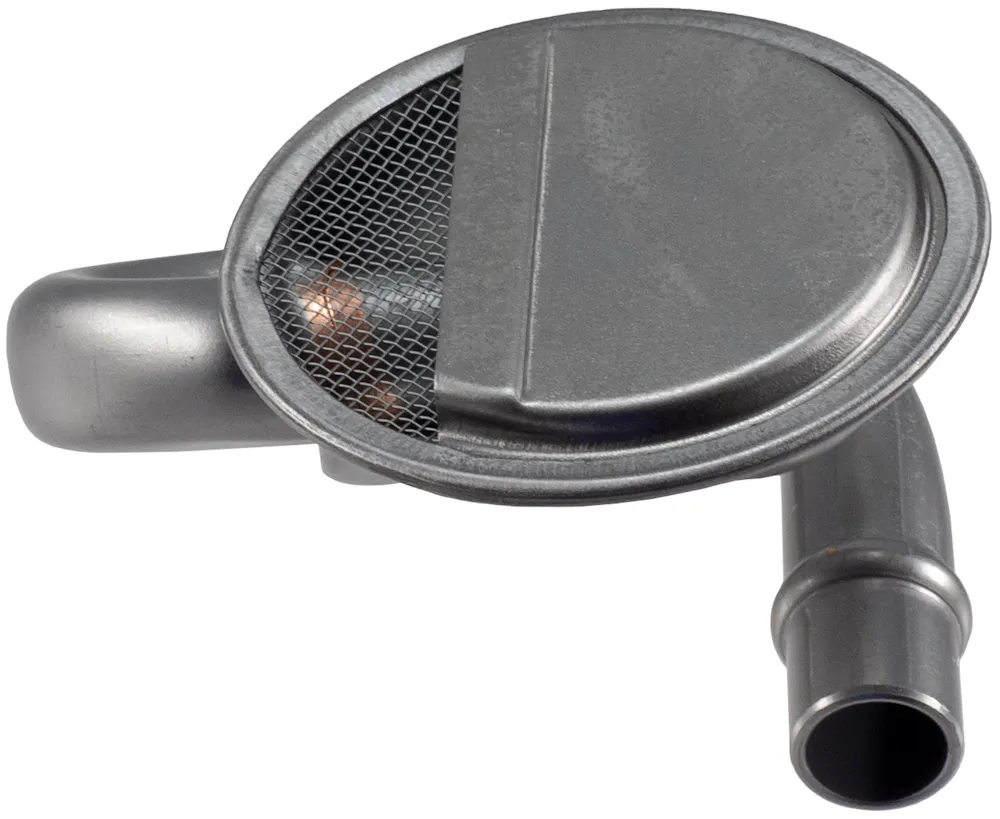

Description: Stock Replacement Oil Pump Screen
Description:
Description
Made In USA. A new Melling pick-up tube/oil screen assembly provides the lubrication oil as well as protection for your oil pump from materials that find their way into the engine oil supply system. Contaminates enter your oil system via engine wear, extended time between oil changes and other internal engine sources. These contaminates can interfere with the proper oil flow and pressure spring functions resulting in engine damage and/or failure. Melling suggests that a new properly installed oil pump pick-up tube/screen be a part of every oil pump installation. Several Melling oil pump applications are offered with an oil screen included.
Features & benefits
- Designed for long-life and worry-free performance
- Meets or exceeds original equipment specifications
- Manufactured from high quality durable materials for long wear
Application summary
| Year | Make / model |
|---|---|
| 1996-2005 | Chevrolet Blazer |
| 1996-1998 | Chevrolet C1500 |
| 2003-2014 | Chevrolet Express 1500 |
| 2003-2005 | Chevrolet Express 2500 |
| 1996-1998 | Chevrolet K1500 |
| 1996-1999 | Chevrolet P30 |
| 1996-2003 | Chevrolet S10 |
| 1999-2013 | Chevrolet Silverado 1500 |
| 1996-1998 | GMC C1500 |
| 1996-2002 | GMC Jimmy |
| 1996-1998 | GMC K1500 |
| 2003-2014 | GMC Savana 1500 |
| 2003-2005 | GMC Savana 2500 |
| 1999-2013 | GMC Sierra 1500 |
| 1996-2003 | GMC Sonoma |
| 1997-2000 | Isuzu Hombre |
Specifications
- GTIN
- 00729295111894
- Weight
- 0.71 lb
- Height
- 2.75 in
- Length
- 7.25 in
- Width
- 4.75 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- MEL
- Warehouse brand code
- BCBC
- AAIA brand code
- BCBC
Attributes
- California Proposition 65
- No
- Flanged End
- No
- Gasket Or Seal Included
- No
- Grade Type
- Standard Replacement
- Mounting Hardware Included
- No
- Screen Face Diameter
- 3.26
- Screen Material
- Galvanized Steel
- Title
- Engine Oil Pump Pickup Tube and Screen
- Tube Inside Diameter
- 0.6
- Tube Length
- 1.52
- Tube Material
- Galvanized Steel
- Tube Shape
- Straight
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1996-2005 Chevrolet Blazer; 1996-1998 Chevrolet C1500; 2003-2014 Chevrolet Express 1500; 2003-2005 Chevrolet Express 2500; 1996-1998 Chevrolet K1500; 1996-1999 Chevrolet P30; 1996-2003 Chevrolet S10; 1999-2013 Chevrolet Silverado 1500; 1996-1998 GMC C1500; 1996-2002 GMC Jimmy; 1996-1998 GMC K1500; 2003-2014 GMC Savana 1500; 2003-2005 GMC Savana 2500; 1999-2013 GMC Sierra 1500; 1996-2003 GMC Sonoma; 1997-2000 Isuzu Hombre
