Melling Engine Parts / Melling Tool Co. / 244S
Part #: 244S
UPC: 729295111498
Loading...
Notify me when this item is in stock.

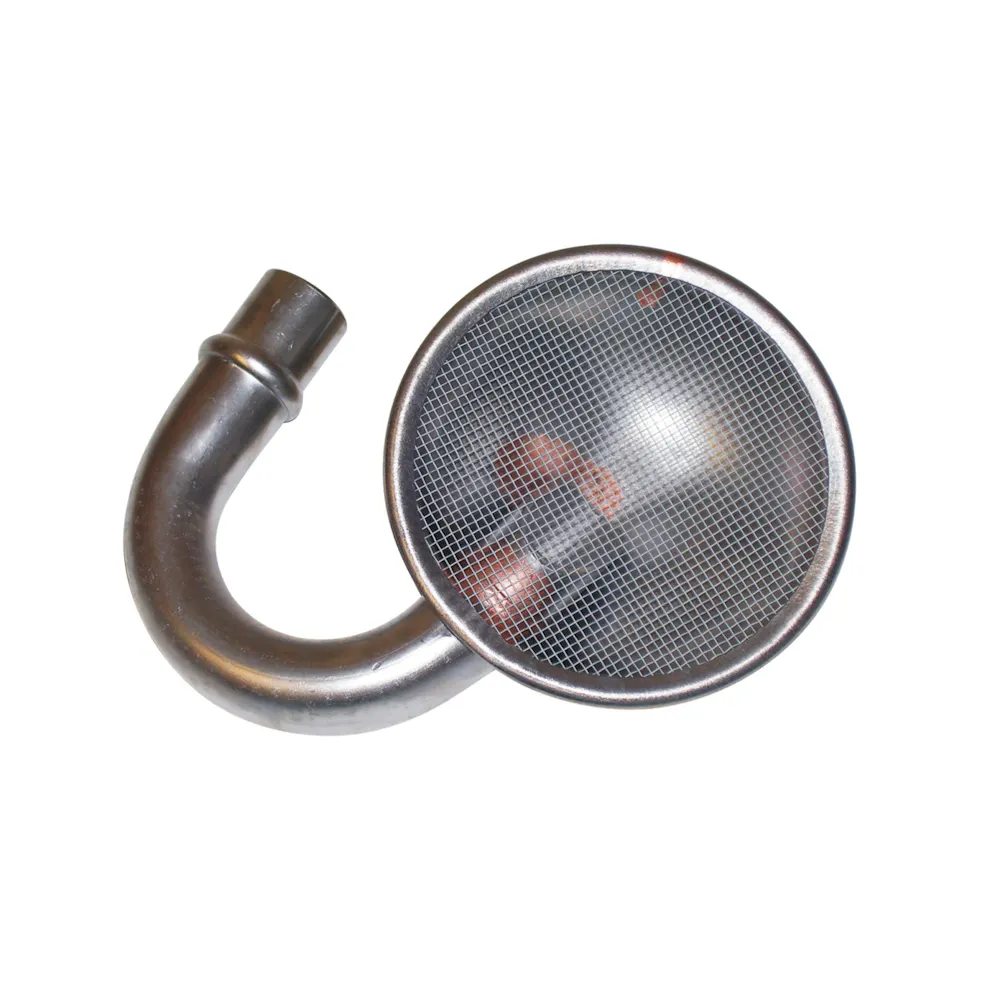

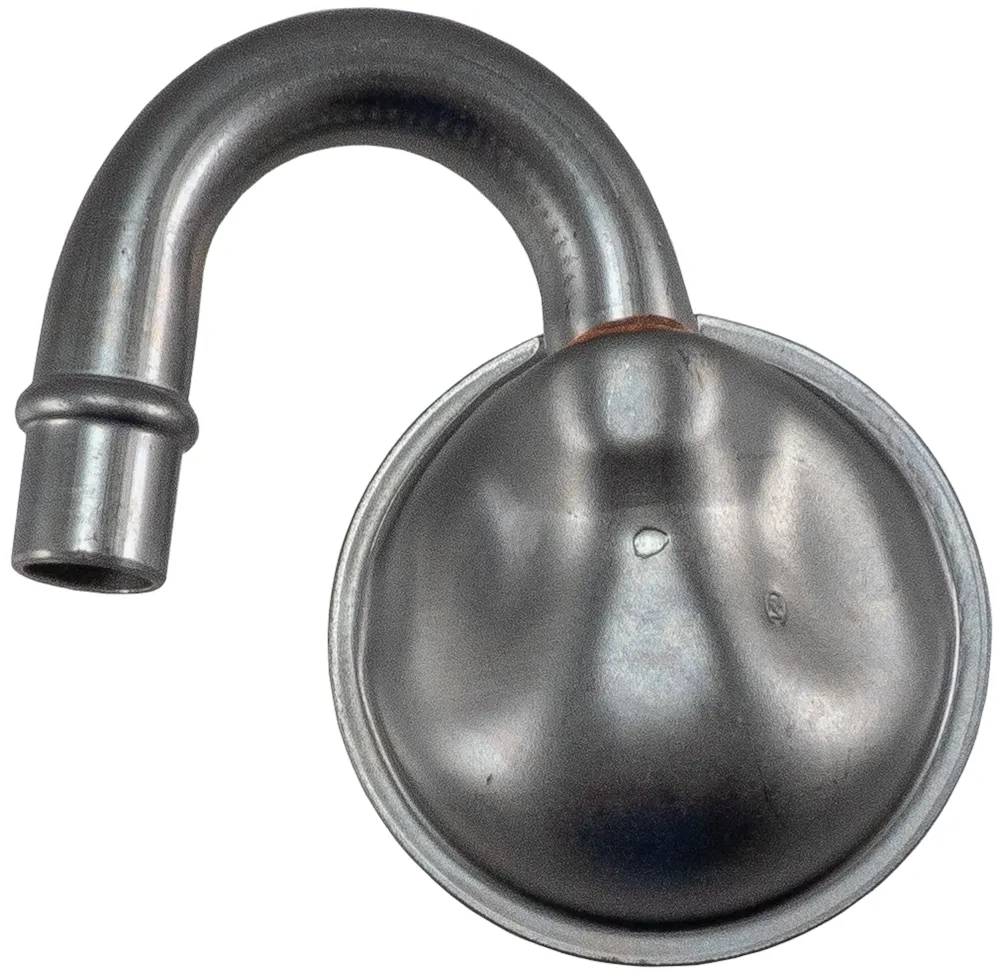

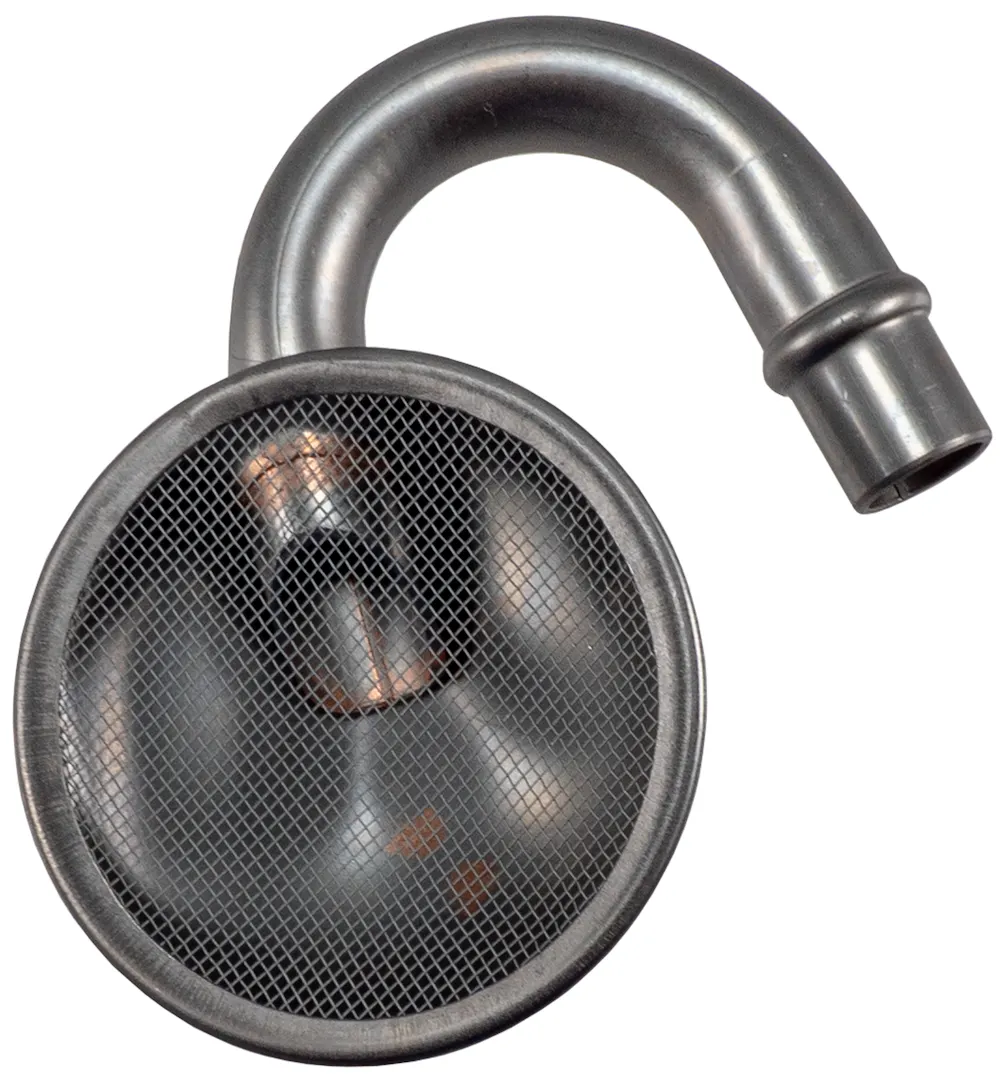

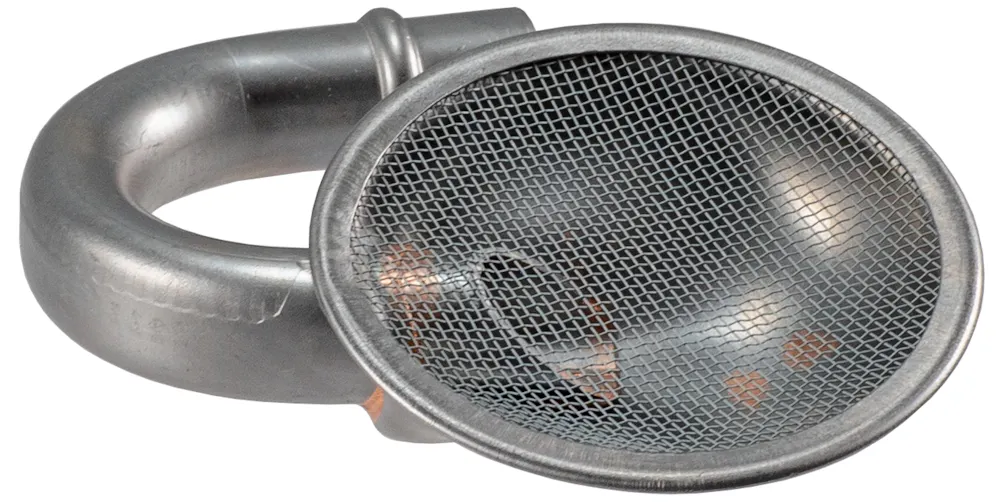

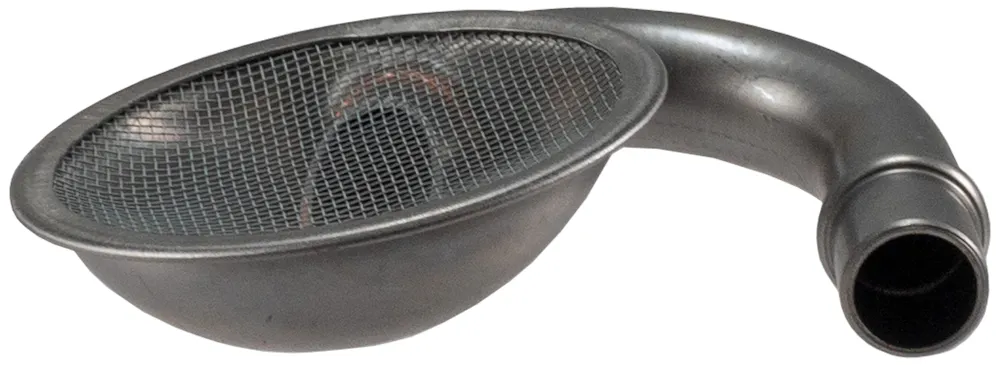

Description: Stock Replacement Oil Pump Screen
Description:
Description
Made In USA. A new Melling pick-up tube/oil screen assembly provides the lubrication oil as well as protection for your oil pump from materials that find their way into the engine oil supply system. Contaminates enter your oil system via engine wear, extended time between oil changes and other internal engine sources. These contaminates can interfere with the proper oil flow and pressure spring functions resulting in engine damage and/or failure. Melling suggests that a new properly installed oil pump pick-up tube/screen be a part of every oil pump installation. Several Melling oil pump applications are offered with an oil screen included.
Features & benefits
- Designed for long-life and worry-free performance
- Meets or exceeds original equipment specifications
- Precision engineering protects the engine from dirt and contaminants
- Manufactured from high quality durable materials for long wear
Application summary
| Year | Make / model |
|---|---|
| 1990-1995 | Chevrolet Camaro |
| 1984-1986 | Chevrolet S10 |
| 1990-1993 | Chevrolet S10 |
| 1984-1986 | Chevrolet S10 Blazer |
| 1984-1986 | GMC S15 |
| 1990 | GMC S15 |
| 1984-1986 | GMC S15 Jimmy |
| 1991-1993 | GMC Sonoma |
| 1990-1995 | Pontiac Firebird |
Specifications
- GTIN
- 00729295111498
- Weight
- 0.48 lb
- Height
- 2.5 in
- Length
- 5.5 in
- Width
- 5.25 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- MEL
- Warehouse brand code
- BCBC
- AAIA brand code
- BCBC
Attributes
- California Proposition 65
- No
- Flanged End
- No
- Gasket Or Seal Included
- No
- Grade Type
- Standard Replacement
- Mounting Hardware Included
- No
- Screen Face Diameter
- 3.25
- Screen Material
- Galvanized Steel
- Title
- Engine Oil Pump Pickup Tube and Screen
- Tube Inside Diameter
- 0.6
- Tube Length
- 1.04
- Tube Material
- Galvanized Steel
- Tube Shape
- Straight
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1990-1995 Chevrolet Camaro; 1984-1986 Chevrolet S10; 1990-1993 Chevrolet S10; 1984-1986 Chevrolet S10 Blazer; 1984-1986 GMC S15; 1990 GMC S15; 1984-1986 GMC S15 Jimmy; 1991-1993 GMC Sonoma; 1990-1995 Pontiac Firebird
Resources
- Brand logo
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Primary
- How to Measure the Health of your Engine - By Melling Engine Parts
- Melling Oil Pump Screen Installation Process
- Spanish Version Oil Pump Screen Installation Process by Melling
- Oil Pump Pickup Screen Replacement tips from Melling Engine Parts
- Why replace your Oil Pump Pickup Screen by Melling
Equivalent Parts
Melling Engine Parts / Melling Tool Co. 244S
