Melling Engine Parts / Melling Tool Co. · 213S
Part #: 213S
UPC: 729295111719
Loading...
Notify me when this item is in stock.

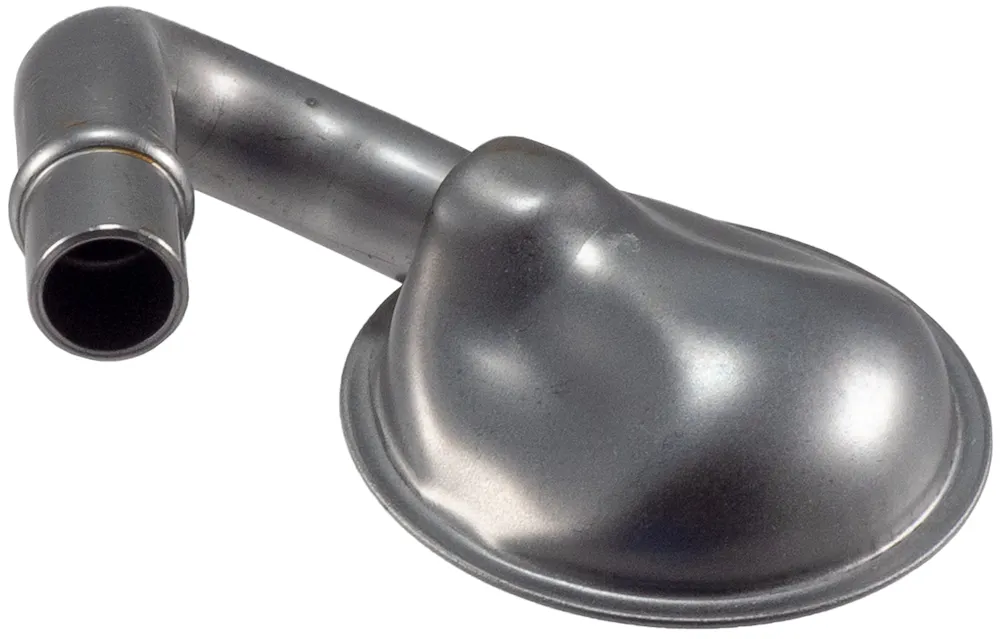

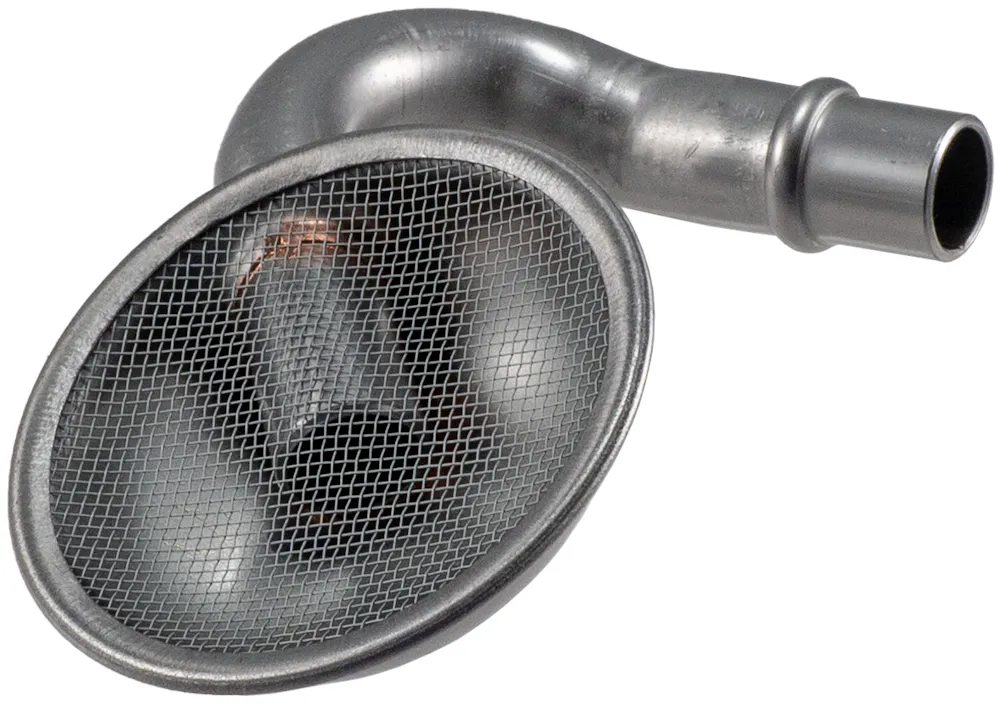

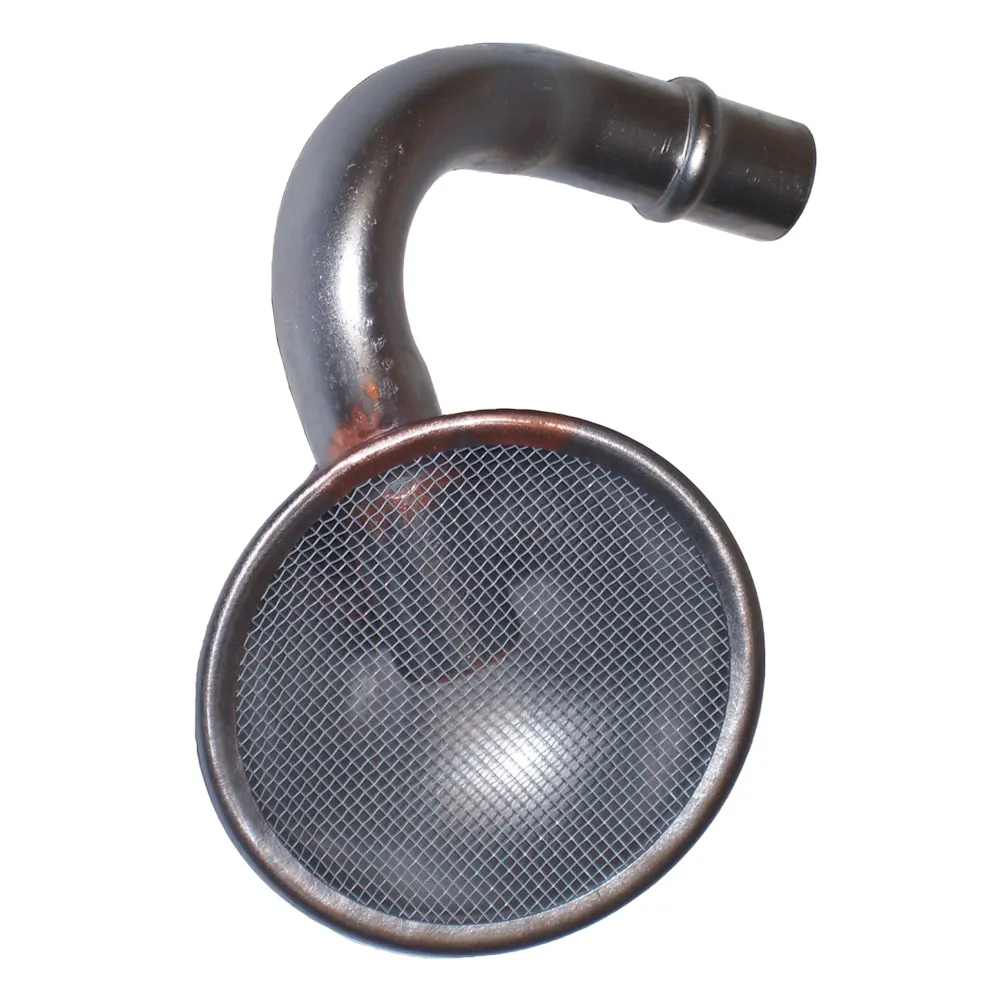

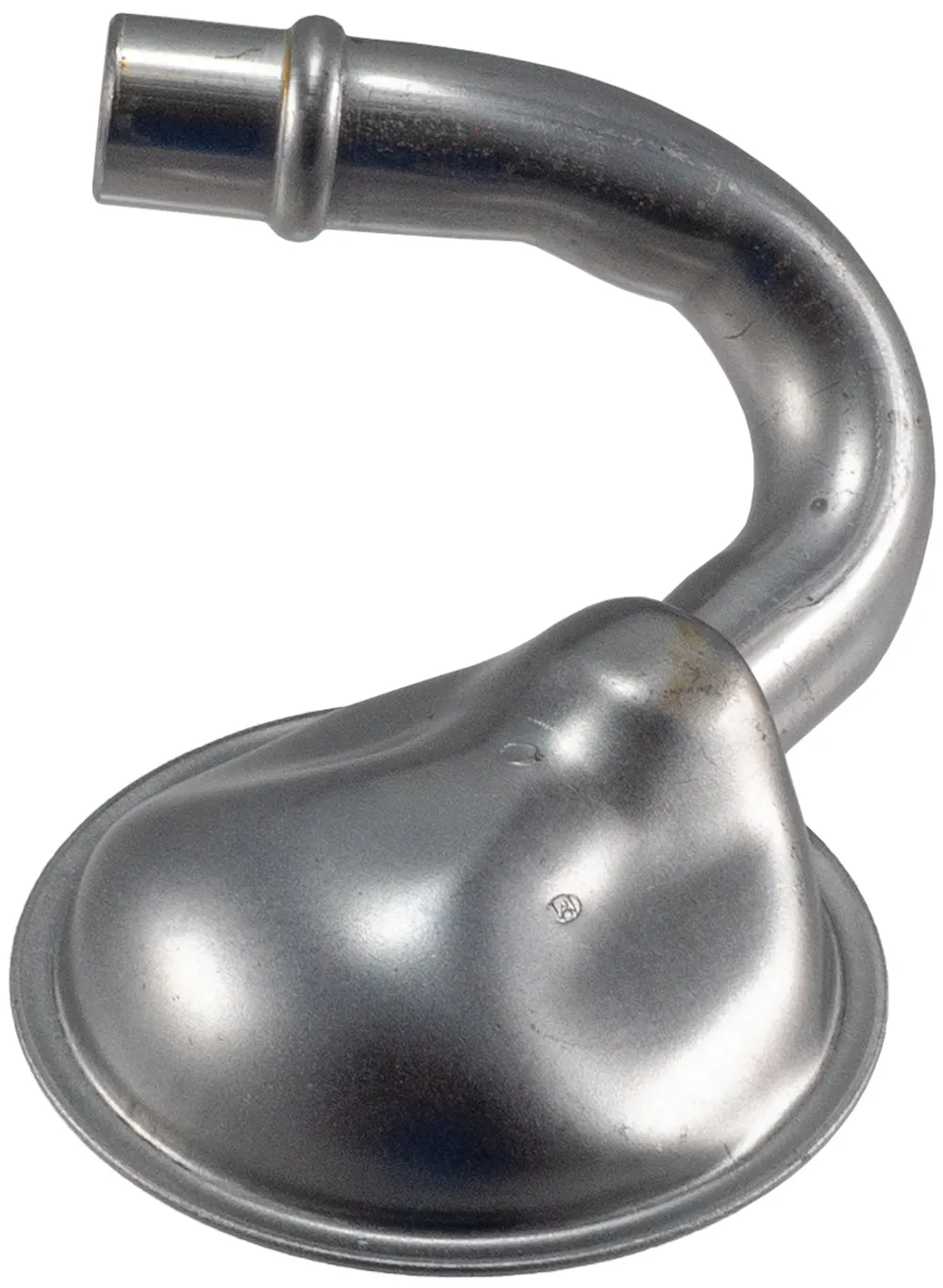

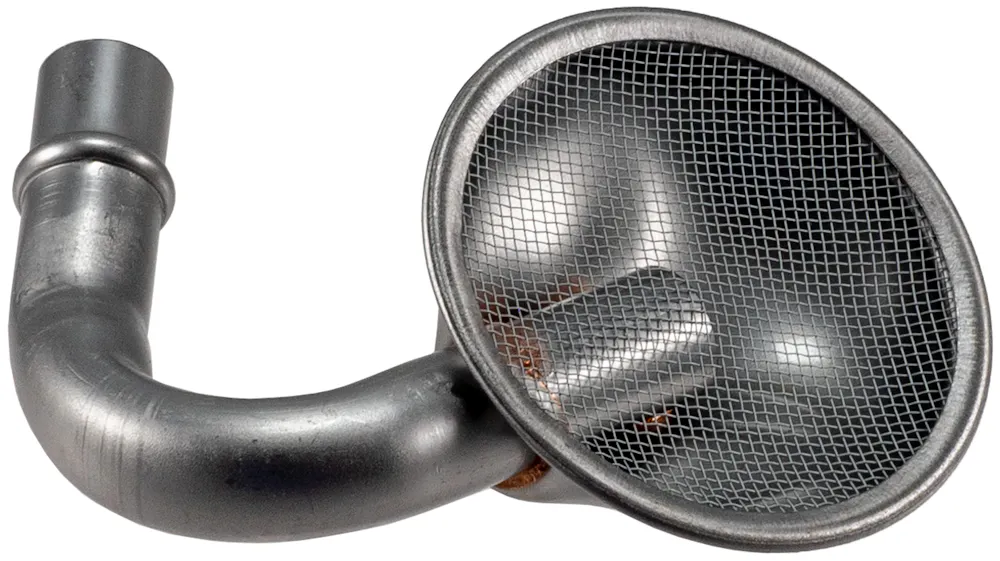

Description: Stock Replacement Oil Pump Screen
Description:
Description
Made In USA. A new Melling pick-up tube/oil screen assembly provides the lubrication oil as well as protection for your oil pump from materials that find their way into the engine oil supply system. Contaminates enter your oil system via engine wear, extended time between oil changes and other internal engine sources. These contaminates can interfere with the proper oil flow and pressure spring functions resulting in engine damage and/or failure. Melling suggests that a new properly installed oil pump pick-up tube/screen be a part of every oil pump installation. Several Melling oil pump applications are offered with an oil screen included.
Features & benefits
- Designed for long-life and worry-free performance
- Meets or exceeds original equipment specifications
- Manufactured from high quality durable materials for long wear
Application summary
| Year | Make / model |
|---|---|
| 1993-1995 | Chevrolet Astro |
| 1993-1995 | Chevrolet C1500 |
| 1993 | Chevrolet C1500 Suburban |
| 1993-1995 | Chevrolet C2500 |
| 1993 | Chevrolet C2500 Suburban |
| 1993-1995 | Chevrolet G10 |
| 1993-1995 | Chevrolet G20 |
| 1993-1995 | Chevrolet G30 |
| 1993-1995 | Chevrolet K1500 |
| 1993-1995 | Chevrolet K2500 |
| 1993-1995 | Chevrolet P30 |
| 1993-1995 | GMC C1500 |
| 1993 | GMC C1500 Suburban |
| 1993-1995 | GMC C2500 |
| 1993 | GMC C2500 Suburban |
| 1993-1995 | GMC G1500 |
| 1993-1995 | GMC G2500 |
| 1993-1995 | GMC G3500 |
| 1993-1995 | GMC K1500 |
| 1993-1995 | GMC K2500 |
| 1993-1995 | GMC P3500 |
| 1993-1995 | GMC Safari |
Specifications
- GTIN
- 00729295111719
- Weight
- 0.49 lb
- Height
- 2.5 in
- Length
- 5.5 in
- Width
- 5.25 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- MEL
- Warehouse brand code
- BCBC
- AAIA brand code
- BCBC
Attributes
- California Proposition 65
- No
- Flanged End
- No
- Gasket Or Seal Included
- No
- Grade Type
- Standard Replacement
- Mounting Hardware Included
- No
- Screen Face Diameter
- 3.26
- Screen Material
- Galvanized Steel
- Title
- Engine Oil Pump Pickup Tube and Screen
- Tube Inside Diameter
- 0.6
- Tube Length
- 1.65
- Tube Shape
- Straight
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1993-1995 Chevrolet Astro; 1993-1995 Chevrolet C1500; 1993 Chevrolet C1500 Suburban; 1993-1995 Chevrolet C2500; 1993 Chevrolet C2500 Suburban; 1993-1995 Chevrolet G10; 1993-1995 Chevrolet G20; 1993-1995 Chevrolet G30; 1993-1995 Chevrolet K1500; 1993-1995 Chevrolet K2500; 1993-1995 Chevrolet P30; 1993-1995 GMC C1500; 1993 GMC C1500 Suburban; 1993-1995 GMC C2500; 1993 GMC C2500 Suburban; 1993-1995 GMC G1500; 1993-1995 GMC G2500; 1993-1995 GMC G3500; 1993-1995 GMC K1500; 1993-1995 GMC K2500; 1993-1995 GMC P3500; 1993-1995 GMC Safari
