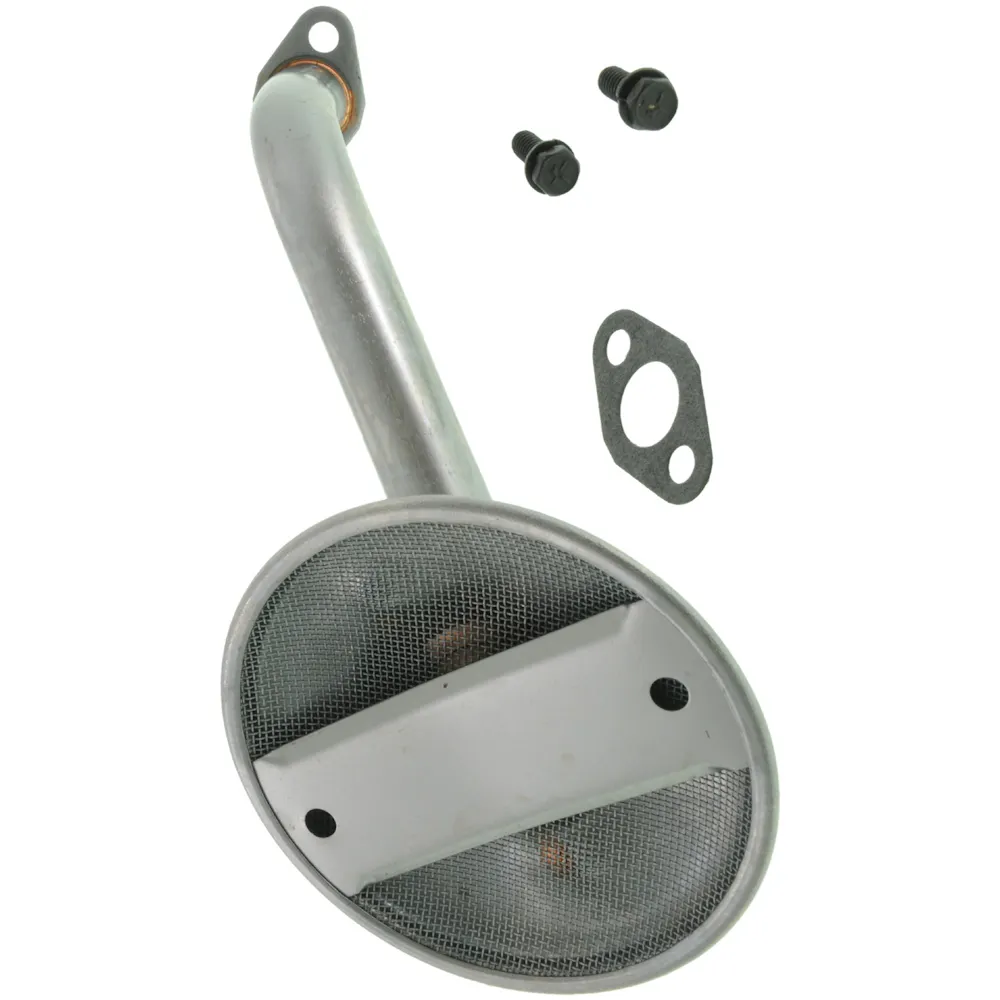

Melling Engine Parts / Melling Tool Co. · 20-IS5
Part #: 20-IS5
UPC: 729295110064
Loading...
Notify me when this item is in stock.
Description: Stock Replacement Oil Pump Screen
Description:
Description
Made In USA. A new Melling pick-up tube/oil screen assembly provides the lubrication oil as well as protection for your oil pump from materials that find their way into the engine oil supply system. Contaminates enter your oil system via engine wear, extended time between oil changes and other internal engine sources. These contaminates can interfere with the proper oil flow and pressure spring functions resulting in engine damage and/or failure. Melling suggests that a new properly installed oil pump pick-up tube/screen be a part of every oil pump installation. Several Melling oil pump applications are offered with an oil screen included.
Features & benefits
- Designed for long-life and worry-free performance
- Meets or exceeds original equipment specifications
- Precision engineering protects the engine from dirt and contaminants
- Manufactured from high quality durable materials for long wear
Application summary
| Year | Make / model |
|---|---|
| 1973-1975 | Buick Apollo |
| 1973 | Buick Centurion |
| 1973-1977 | Buick Century |
| 1976-1980 | Buick Electra |
| 1970 | Buick Estate Wagon |
| 1973 | Buick Estate Wagon |
| 1978-1980 | Buick Estate Wagon |
| 1970-1972 | Buick GS |
| 1968-1969 | Buick GS 350 |
| 1968-1980 | Buick LeSabre |
| 1973-1977 | Buick Regal |
| 1977-1978 | Buick Riviera |
| 1968-1972 | Buick Skylark |
| 1975-1976 | Buick Skylark |
| 1968-1969 | Buick Special |
| 1968-1972 | Buick Sportwagon |
| 1973-1977 | Oldsmobile Omega |
| 1975 | Pontiac Firebird |
| 1975 | Pontiac Grand Am |
| 1975 | Pontiac Grand LeMans |
| 1975 | Pontiac LeMans |
| 1975-1976 | Pontiac Ventura |
Specifications
- GTIN
- 00729295110064
- Weight
- 0.86 lb
- Height
- 5.25 in
- Length
- 8 in
- Width
- 6 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- MEL
- Warehouse brand code
- BCBC
- AAIA brand code
- BCBC
Attributes
- California Proposition 65
- No
- Flange Mount Hole Quantity
- 2
- Flanged End
- Yes
- Gasket Or Seal Included
- Yes
- Grade Type
- Standard Replacement
- Mounting Hardware Included
- Yes
- Screen Face Diameter
- 4.06
- Screen Material
- Galvanized Steel
- Title
- Engine Oil Pump Pickup Tube and Screen
- Tube Inside Diameter
- 0.6
- Tube Length
- 4.85
- Tube Material
- Galvanized Steel
- Tube Shape
- Straight
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1973-1975 Buick Apollo; 1973 Buick Centurion; 1973-1977 Buick Century; 1976-1980 Buick Electra; 1970 Buick Estate Wagon; 1973 Buick Estate Wagon; 1978-1980 Buick Estate Wagon; 1970-1972 Buick GS; 1968-1969 Buick GS 350; 1968-1980 Buick LeSabre; 1973-1977 Buick Regal; 1977-1978 Buick Riviera; 1968-1972 Buick Skylark; 1975-1976 Buick Skylark; 1968-1969 Buick Special; 1968-1972 Buick Sportwagon; 1973-1977 Oldsmobile Omega; 1975 Pontiac Firebird; 1975 Pontiac Grand Am; 1975 Pontiac Grand LeMans; 1975 Pontiac LeMans; 1975-1976 Pontiac Ventura
Resources
- Brand logo
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Primary
- How to Measure the Health of your Engine - By Melling Engine Parts
- Melling Oil Pump Screen Installation Process
- Spanish Version Oil Pump Screen Installation Process by Melling
- Oil Pump Pickup Screen Replacement tips from Melling Engine Parts
- Why replace your Oil Pump Pickup Screen by Melling
